4635/180 printer
with inverter
feeder/stacker and
two feeder/
stackers
Installation Planning Guide
The following illustrates a top view of the space requirements for
the printer with an inverter feeder/stacker and one feeder/
stacker.

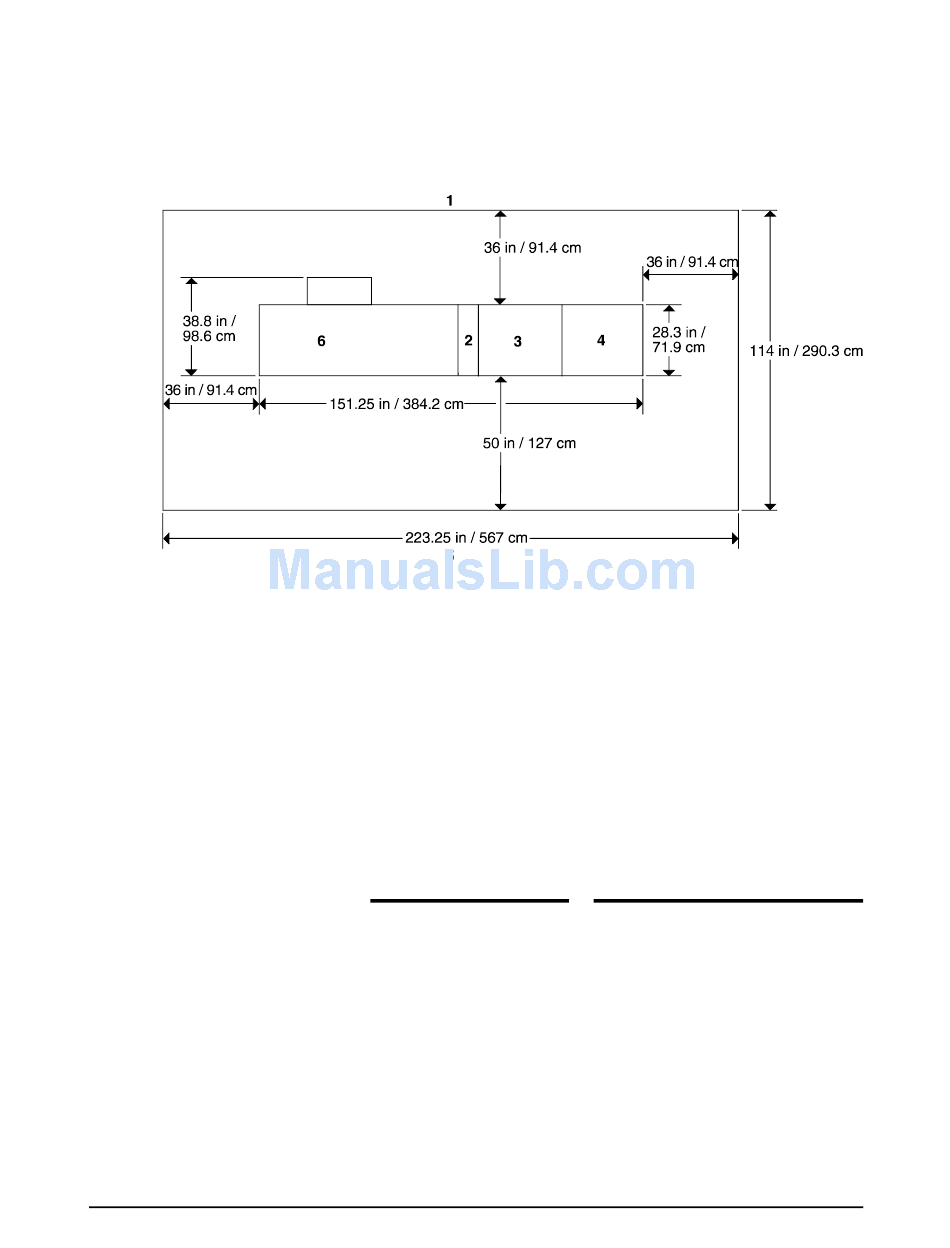

Figure 6-4. 96/4635/180 printer with inverter feeder/stacker +
feeder/stacker configuration
1. Back of system
2. Inverter
3. Feeder/stacker
4. Feeder/stacker
5. Front of system
6. Printer
The dimensions of the printer with the inverter feeder/stacker,
and two feeder/stackers are as follows:
Dimension
Width:
Depth:
Height:
Total weight:
Total space requirement:
Specifications
183.50 inches / 466.1 cm
38.8 inches / 98.6 cm
59.6 inches / 151.3 cm
3,109 pounds / 1,411.9 kg
256.5 by 114 inches /
648.9 by 290.3 cm
6-9
