VLT® Servo Drive System ISD 511
Operating Guide
5.
Disable the IPv4 Checksum offload on the network interfaces as described in

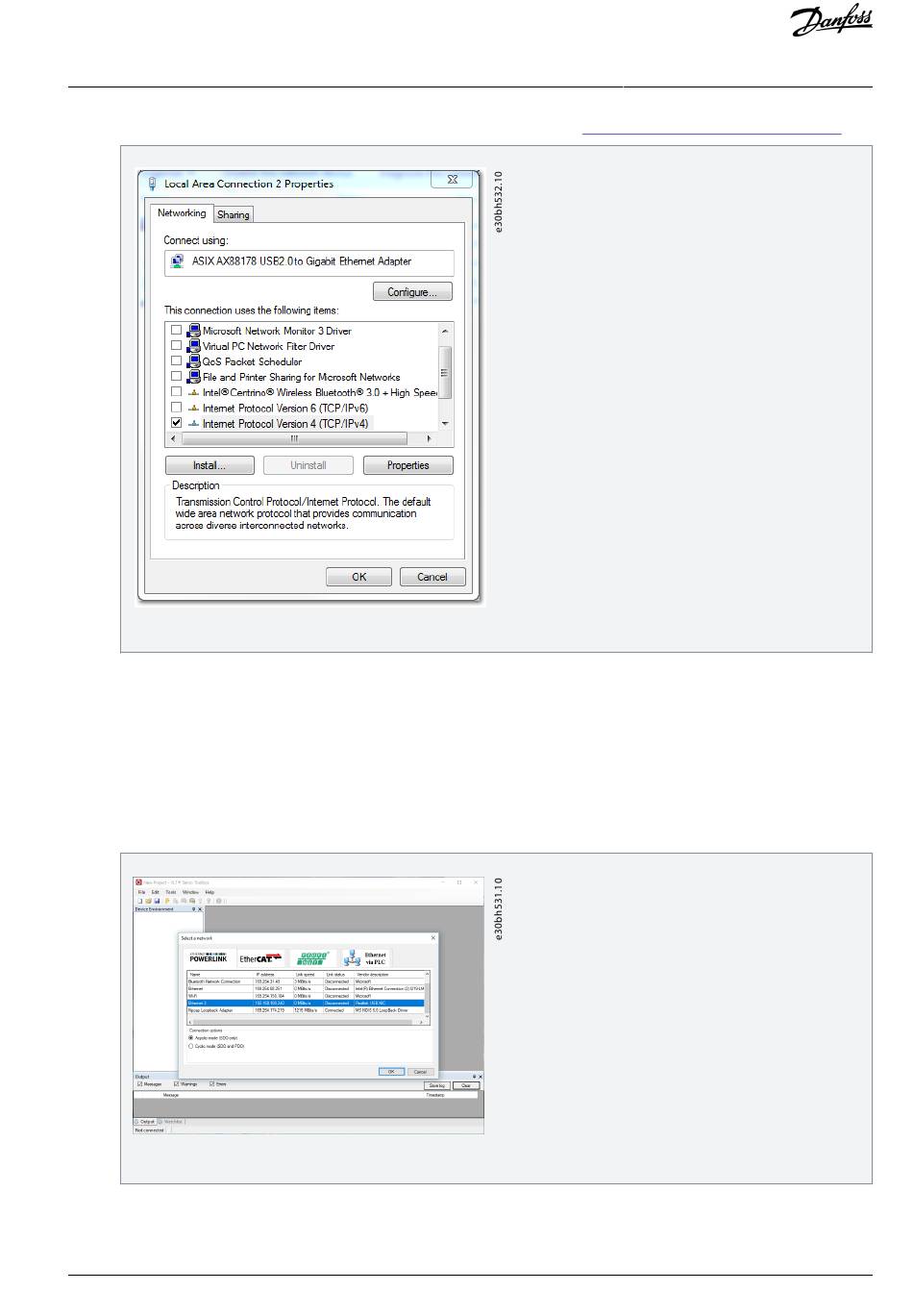

Illustration 49: Local Area Connection 2 Properties
6.6.4.4.4 Setting the Correct Ethernet POWERLINK® Master IP Address
Procedure
1.
Open the Network and Sharing Center.
2.
On the left, click on Change adapter settings.
3.
Right-click on the network interface used for fieldbus communication and select Properties.
4.
Click on Internet Protocol Version 4 (TCP/IPv4) (the checkbox must be checked) and then click on Properties.
5.
Select Use the following IP address and use 192.168.100.240 as the IP address and 255.255.255.0 as the subnet mask. Leave
all other fields empty.
Illustration 50: Internet Protocol Version 4 (TCP/IPv4) Properties
Danfoss A/S © 2023.08
6.6.4.3.3 Enabling Indirect Communication.
AQ377148425069en-000101 / 130R1213 | 81
Commissioning
