6. Adjust the M23 feed-in cable connector to the desired position taking into account the allowed angles.

120°

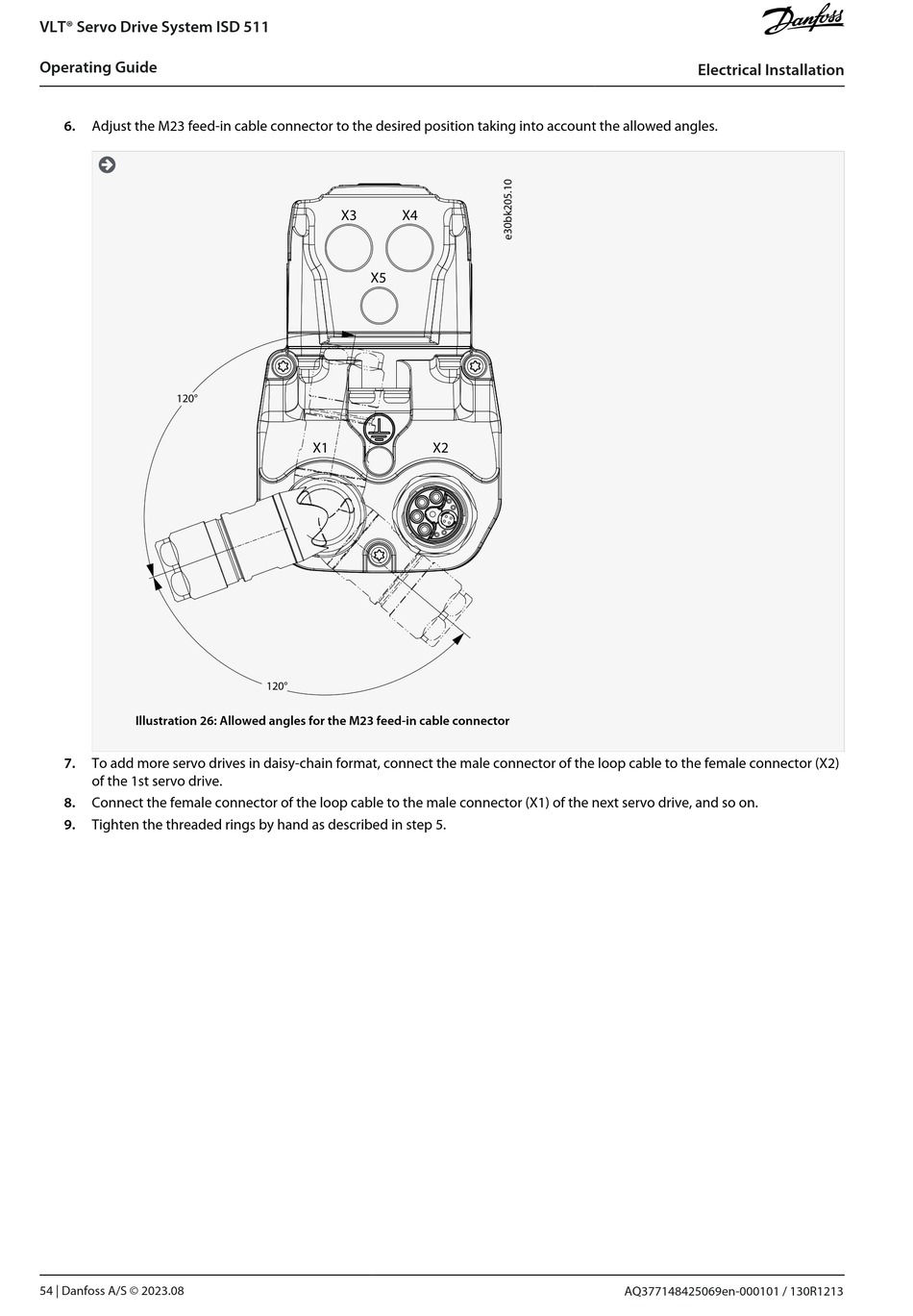

Illustration 26: Allowed angles for the M23 feed-in cable connector
7.
To add more servo drives in daisy-chain format, connect the male connector of the loop cable to the female connector (X2)
of the 1st servo drive.
8. Connect the female connector of the loop cable to the male connector (X1) of the next servo drive, and so on.
9. Tighten the threaded rings by hand as described in step 5.
