VLT® Servo Drive System ISD 511
Operating Guide
Mechanical Installation
60 60
[2.36]
[2.36]
101 106
[3.98] [4.17]

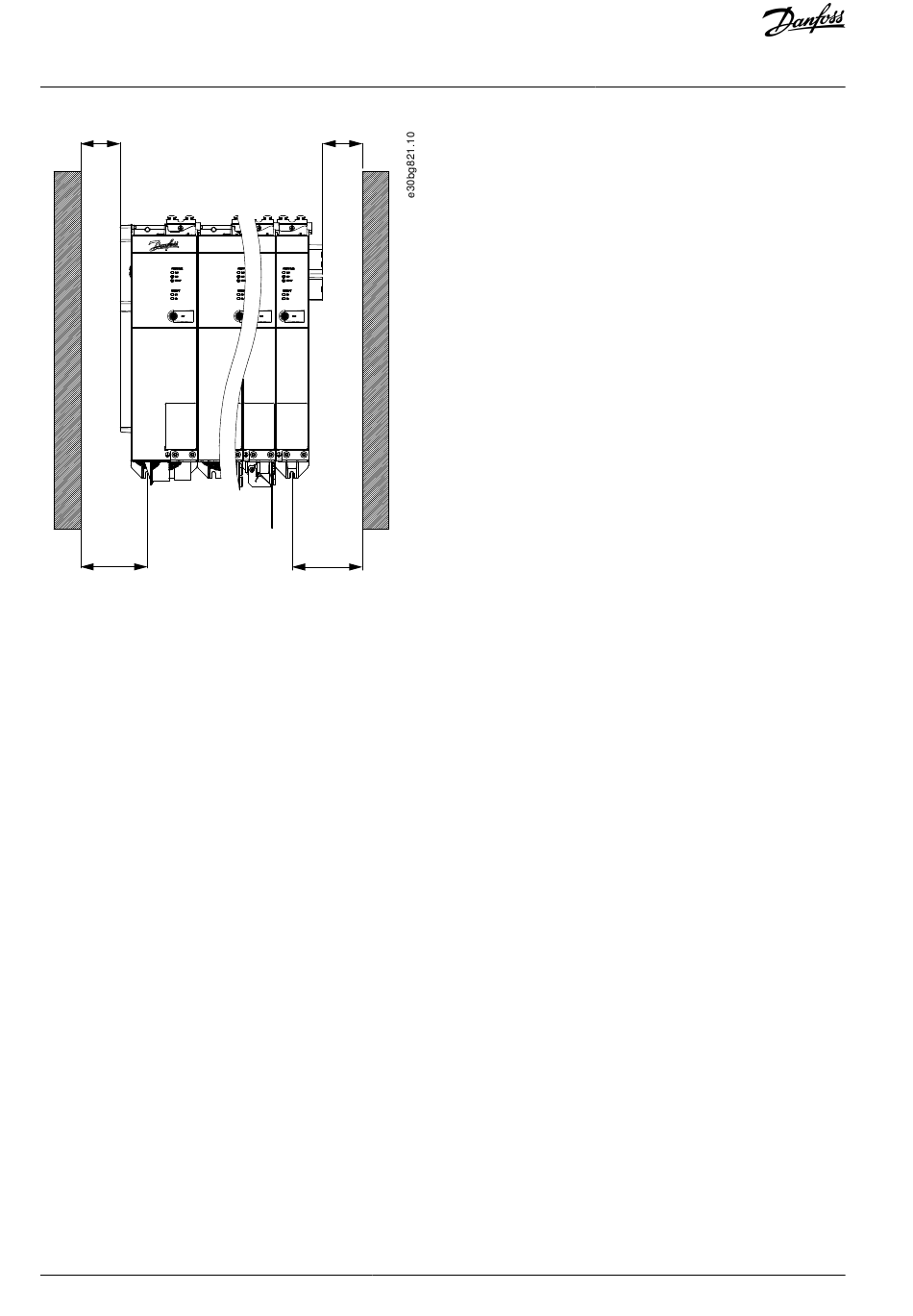

Illustration 12: Minimum Space Required at the Sides

4.7.3 Installation Aids and Tools Required

For installation of the ISD 511 servo drives and the system modules, the tools corresponding to the fixings screws (not included) are
required.

4.7.4 Fitting Instructions for ISD 511 Servo Drive

4.7.4.1 Overview

The ISD 511 servo drives are delivered with plastic M23 protection caps and a shaft protection cap.
These plastic protection caps prevent damage during transport and handling. Always mount the metal protection caps if the con-
nector is not used.
