VLT® Servo Drive System ISD 511
Operating Guide
-
The system modules are designed for use within a control cabinet. If the STO function is used, the cabinet must be rated at
least IP54.
-
The DAM 510 has a protection rating of IP20 according to IEC/EN 60529 (except connectors, which are IP00).
-
The DAM 510 can be damaged if exposed to fluids.
An example type code for the DAM 510 is: MSD510DAM510F1C015AD6E20PLSXXXXXXXXXXXXX.
1
2
3
4
5

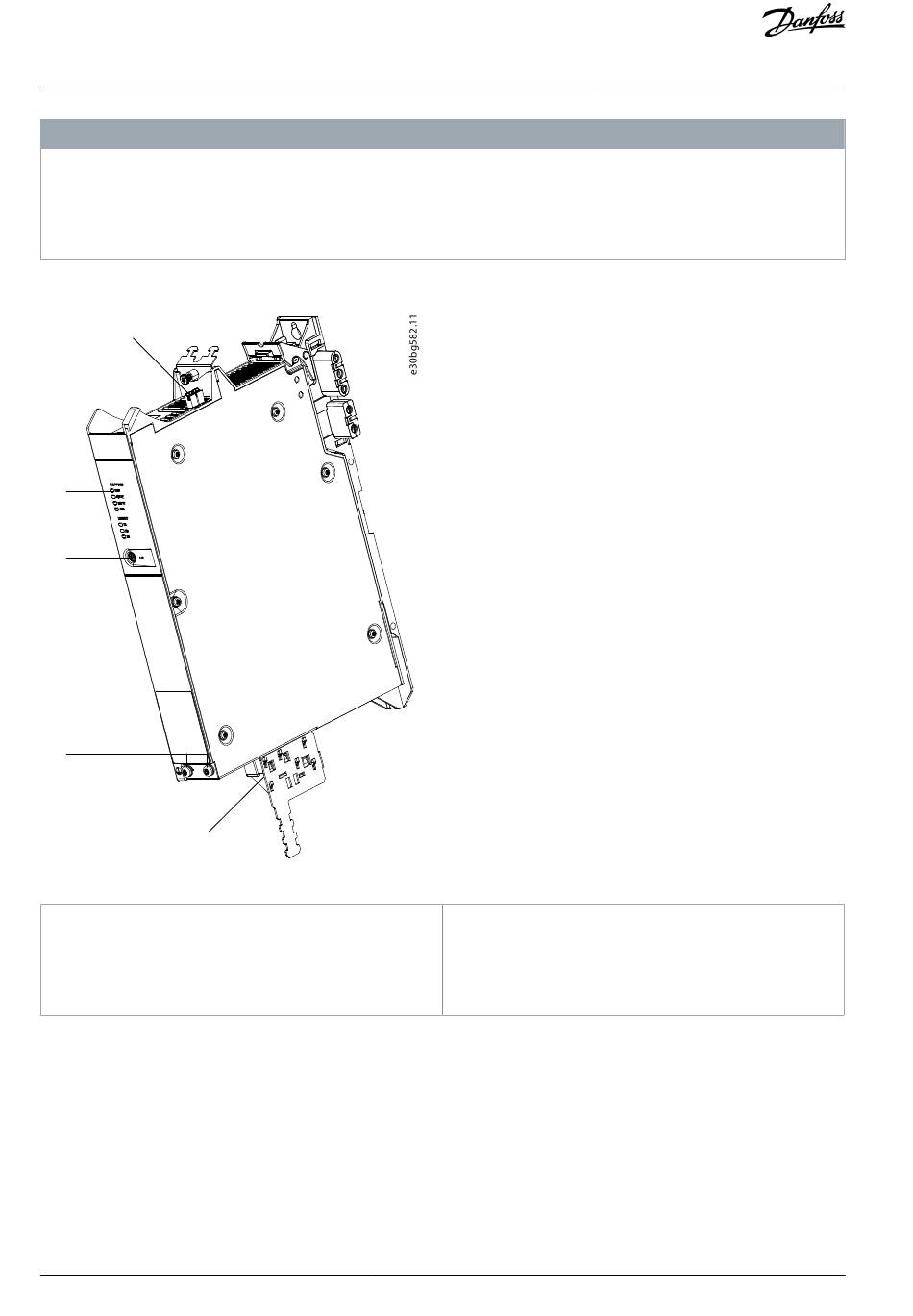

Illustration 4: DAM 510
1 Connectors: STO, Ethernet, and external encoder
2 Operating LEDs
3 LCP connector

3.5 Auxiliary Capacitors Module (ACM 510)

3.5.1 Overview

ACM is the abbreviation for Auxiliary Capacitors Module. The ACM 510 can be connected to the ISD 511 system to store energy,
enabling a controlled machine stop in emergency situations.
26 | Danfoss A/S © 2023.08
N O T I C E
4 PE screws
5 Connectors: UDC, AUX, STO out, and Ethernet
System Description
AQ377148425069en-000101 / 130R1213
