Danfoss VLT ISD 511 Operating Manual page 144

VLT® Servo Drive System ISD 511
Operating Guide

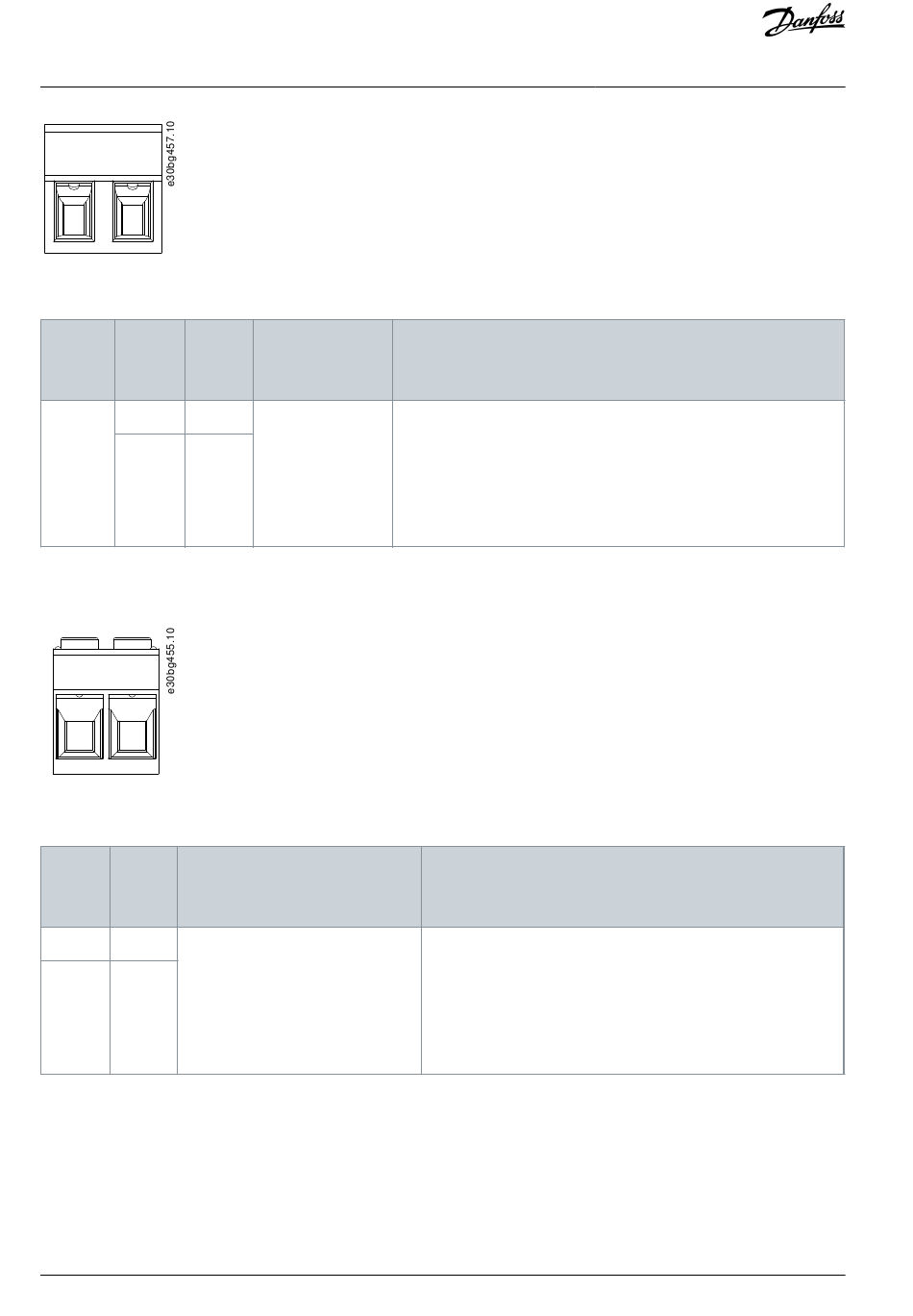

Illustration 89: STO Connector on the Bottom of DAM 510
Table 128: Pin Assignment of STO Connector on the Bottom of DAM 510
Connec- De-
Pins
tor name scrip-
(left to
tion
right)
STO DAM 1 STO+
2 STO–
11.6.10 UDC Connector
The UDC connector is on the bottom of the Decentral Access Module (DAM 510).
Illustration 90: UDC Connector
Table 129: Pin Assignment of UDC Connector
De- Notes
Pins
scrip-
(left to
tion
right)
1 UDC+
Used to connect the DC-link voltage
from the Decentral access Module
2 UDC–
(DAM 510) to the hybrid cable for the
ISD line.
11.6.11 AUX Connector
The AUX connector is on the bottom of the Decentral Access Module (DAM 510).
144 | Danfoss A/S © 2023.08
Notes Rating/parameter
Used for the STO
Nominal voltage: 24 V DC ±10%
output from the
Nominal current: Depends on the number of servo drives in the appli-
DAM to the hybrid
cation.
cable.
Maximum current: 1 A
Conductor cross-section range: 0.2–1.5 mm
Plug terminal tightening torque: 0.22–0.25 Nm (1.95–2.21 in-lb)
Rating/parameter
Nominal voltage: 560–800 V DC
Nominal current: Depends on the number of servo drives in the
application.
Maximum current: 25 A
Conductor cross-section range: 0.2–6 mm
Plug terminal tightening torque: 0.5–0.8 Nm (4.43–7.08 in-lb)
Specifications
2
(AWG 24–AWG 16)
2
(AWG 24–AWG 10)
AQ377148425069en-000101 / 130R1213
