VLT® Servo Drive System ISD 511
Operating Guide
-
The ACM 510 has a protection rating of IP20 according to IEC/EN 60529 (except connectors, which are IP00).
-
The ACM 510 can be damaged if exposed to fluids.
-
The system modules are designed for use within a control cabinet. If the STO function is used, the control cabinet must be
rated at least IP54.
An example type code for the ACM 510 is: MSD510ACM510F1E00C8D6E20PLSXXXXXXXXXXXXX.
1
2
STATUS ACM
DEV
CAP ST
NET ST
LINK/ACT
X1
X2
3
LCP
4

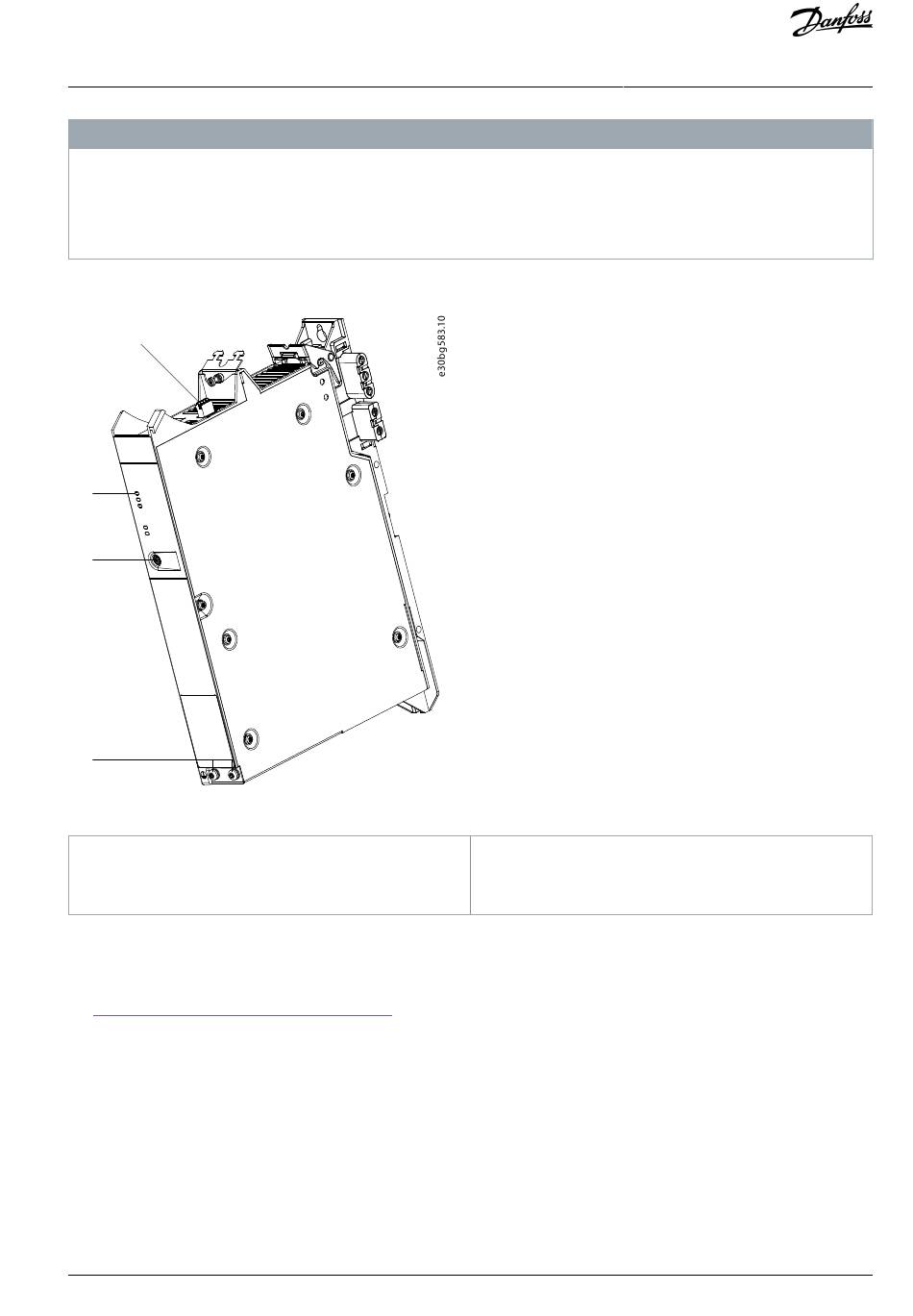

Illustration 5: ACM 510
1 Connectors: I/O, relay, and Ethernet
2 Operating LEDs

3.6 Expansion Module EXM 510

The EXM 510 supports modular machine setup by splitting the system modules into 2 control cabinets. The maximum length of the
cable between the EXM 510 modules is 5 m.
See 5.9.5 Connecting the Expansion Module EXM 510
Danfoss A/S © 2023.08
N O T I C E
3 LCP connector
4 PE screws
for further information.
System Description
AQ377148425069en-000101 / 130R1213 | 27
