11 Specifications
11.1 Nameplates
11.1.1 Nameplates on ISD 511 Servo Drive
Check the nameplates and compare them with the order data. Use the part number for reference. The part number uniquely identi-
fies the drive type.
Ensure that the nameplates are clearly legible.
The servo drives can be identified externally only by the original Danfoss nameplates.
VLT ® ISD511
ISD511XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
1
2 Input1: 565-680VDC 0.30A Input2: 24-48VDC 0.40A
M : 1.5Nm N : 400rpm
NOM NOM
3
M : 10Nm N : 1000rpm
MAX MAX
4
Ambient: 5...45°C / 41...113°F Enclosure: IP65
5
Danfoss A/S, 6430 Nordborg, Denmark
Danfoss Ltd., 22 Wycombe End, HP9 1NB, GB

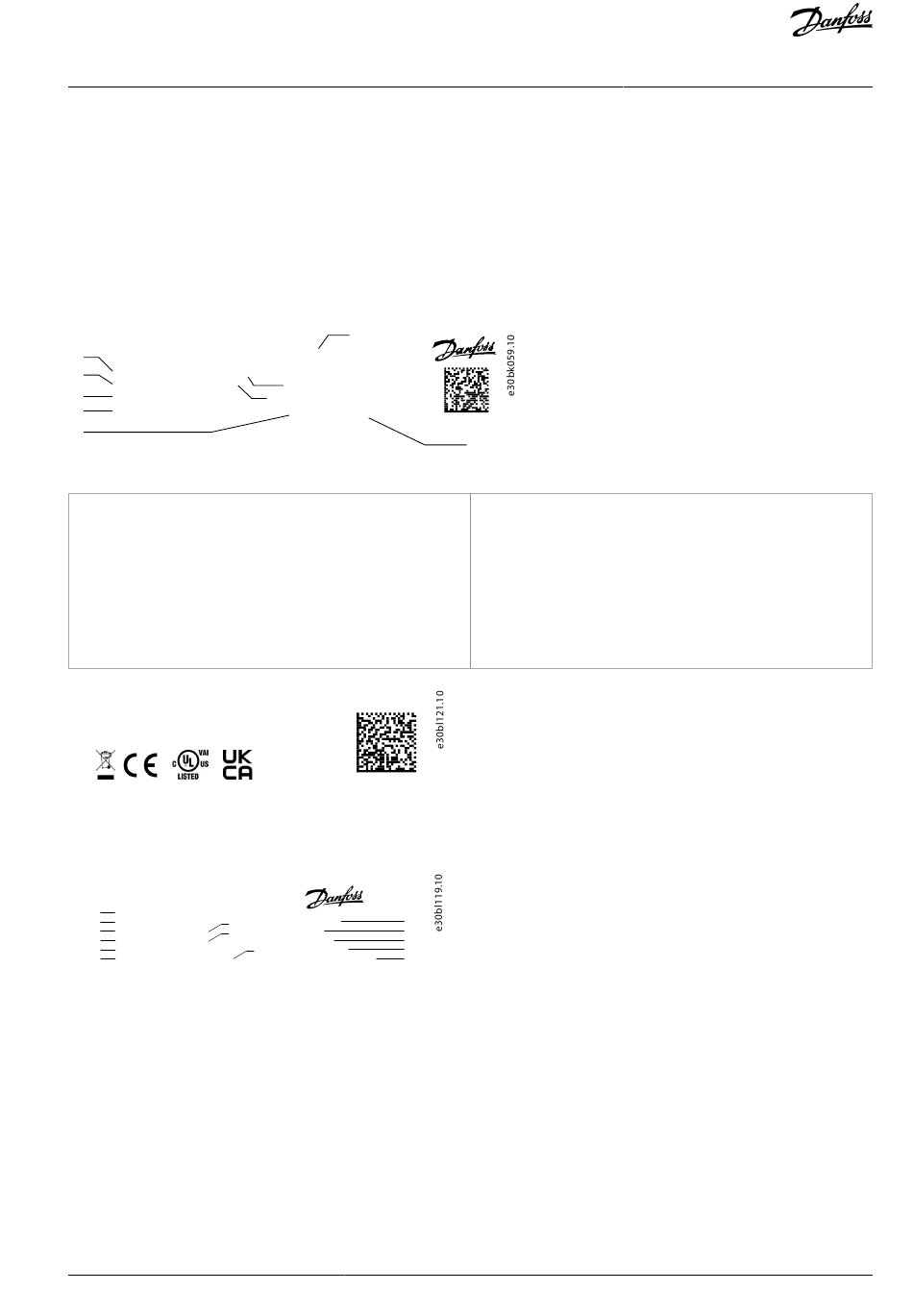

Illustration 64: Nameplate on the Bottom of ISD 511
1 Supply voltage
2 Nominal torque
3 Maximum torque
4 Ambient temperature range
5 Protection rating
VLT® ISD® 511
Accept. for field wiring - Min. 75°C, Cu
Type 4X Indoor use only
E134261 Power Conversion Equipment
Danfoss A/S 6430 Nordborg, Denmark
Danfoss Ltd., 22 Wycombe End, HP9 1NB, GB
Illustration 65: Tracing and Conformity Label on the Electronic Cover of ISD 511
VLT® ISD® 511
1
Input1: 560-680VDC 0.30A
2
Input2: 24-48VDC 0.40A 7
3
M : 1.5Nm N : 400rpm 8
nom nom
4
M : 10Nm N : 1000rpm
max max
5
Ambient: 5...45°C / 41...113°F
6
Enclosure: IP65 HW: E0, FS, SO
Illustration 66: Product Label on the Electronic Cover of ISD 511
Danfoss A/S © 2023.08
6
Part. no: 175GXXXX
7
Serial no: 029401Q501
8
MAC: 00:1B:08:32:88:D0
Customer no: 0906407837
P/N: 175G0379
S/N: 123401Q123
Made in Italy
10
ISD-511-D6-01T5-PL
11
P/N: 175G0379
12
S/N: 123401Q123
13
9
MAC: 00-1B-08-0E-XX
14
Customer No.: 0906765889 XX
Made in Italy
9
6 Typecode
7 Auxiliary input voltage
8 Rated speed
9 Customer part number
Specifications
AQ377148425069en-000101 / 130R1213 | 125
