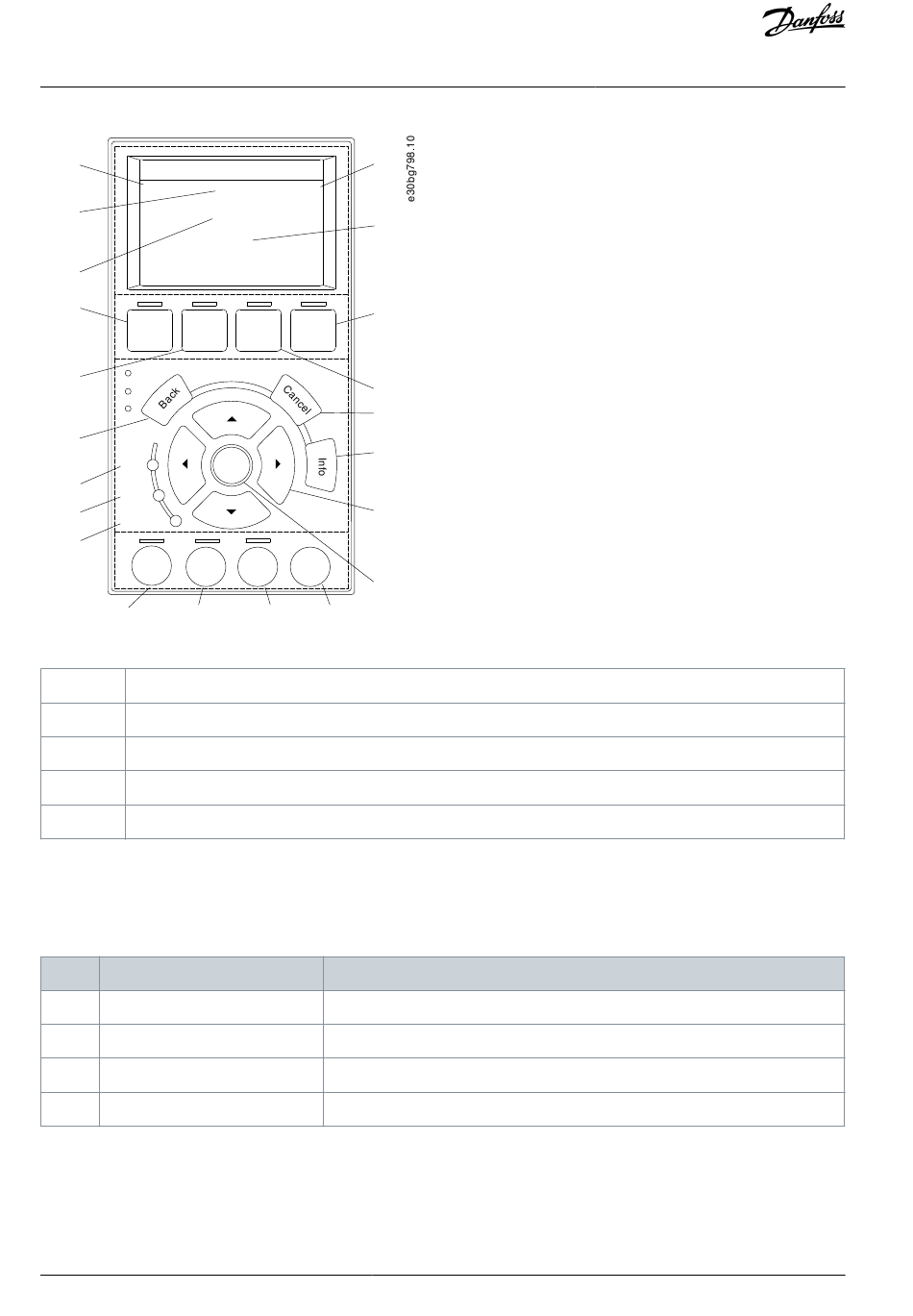

Illustration 8: Display Area when Connected to the ACM 510
1 Temperature power board
2 Temperature capacitor bank 1
3 Temperature capacitor bank 2
4 U line voltage
AUX
5 Actual UDC (voltage)

3.10.2.2 B: Display menu keys

Menu keys are used for menu access for parameter set-up, toggling through status display modes during normal operation, and
viewing fault log data.
Table 8: Display Menu Keys
Key
6 Status
7 Quick Menu
8 Main Menu
9 Alarm Log

3.10.2.3 C: Navigation keys and indicator lights (LEDs)

Navigation keys are used for moving the display cursor and provide operation control in local operation. There are also 3 status
LEDs in this area.
32 | Danfoss A/S © 2023.08
3
38 °C 40 °C
24 V
5
565 V
9
Main Alarm
Menu Log
8
11
12
OK
13
Auto
Reset
On
14
20 21
Function
Shows operational information.
Allows access to parameters.
Allows access to parameters.
Shows the last 10 alarms.
