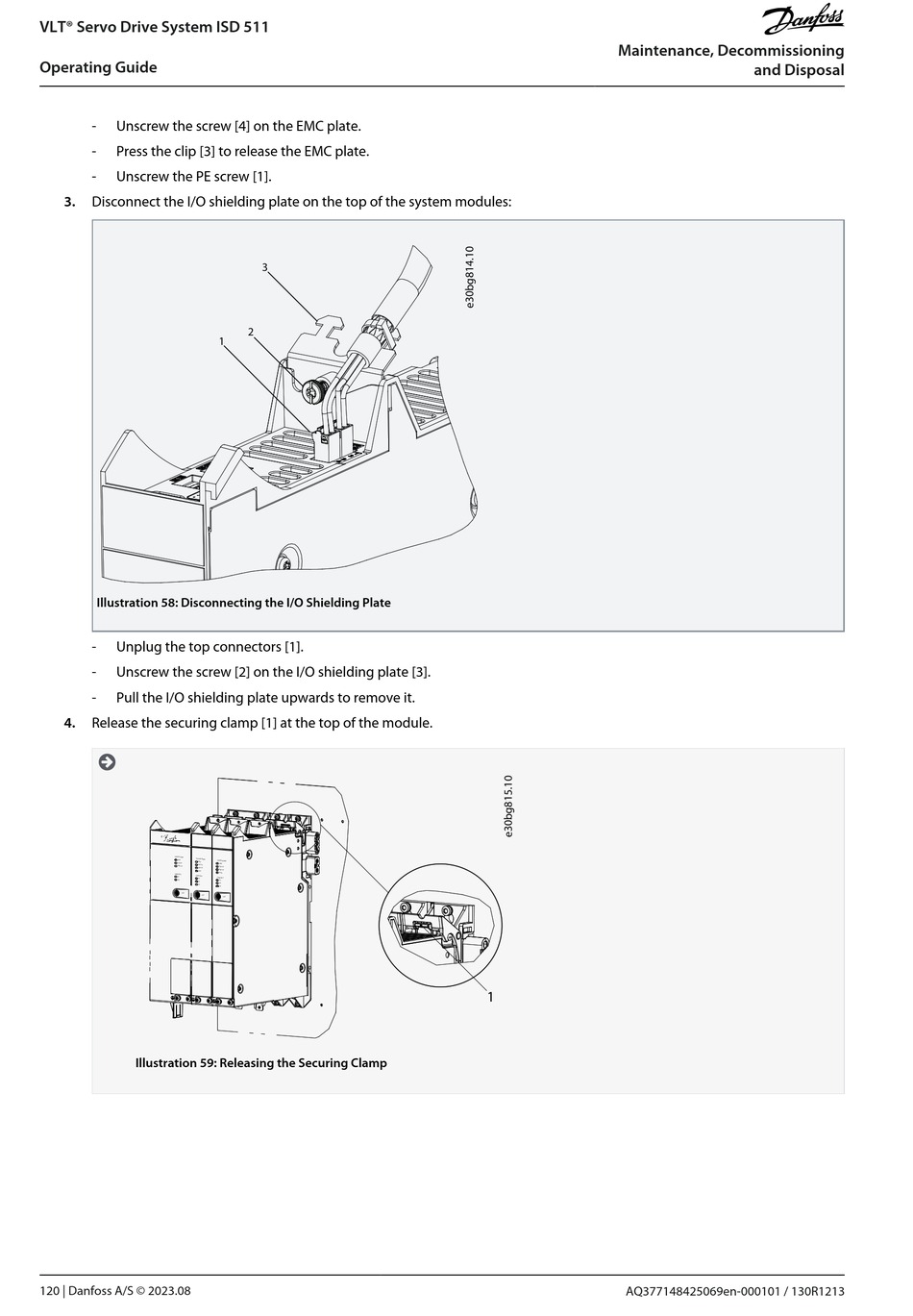

Danfoss VLT ISD 511 Operating Manual page 120

VLT® Servo Drive System ISD 511
Operating Guide
- Unscrew the screw [4] on the EMC plate.
- Press the clip [3] to release the EMC plate.
- Unscrew the PE screw [1].
3. Disconnect the I/O shielding plate on the top of the system modules:
Illustration 58: Disconnecting the I/O Shielding Plate
- Unplug the top connectors [1].
- Unscrew the screw [2] on the I/O shielding plate [3].
- Pull the I/O shielding plate upwards to remove it.
4.
Release the securing clamp [1] at the top of the module.

Illustration 59: Releasing the Securing Clamp
120 | Danfoss A/S © 2023.08
3
2
1
Maintenance, Decommissioning
1
AQ377148425069en-000101 / 130R1213
and Disposal
