5. Tilt the module forward and remove it from the backplate.


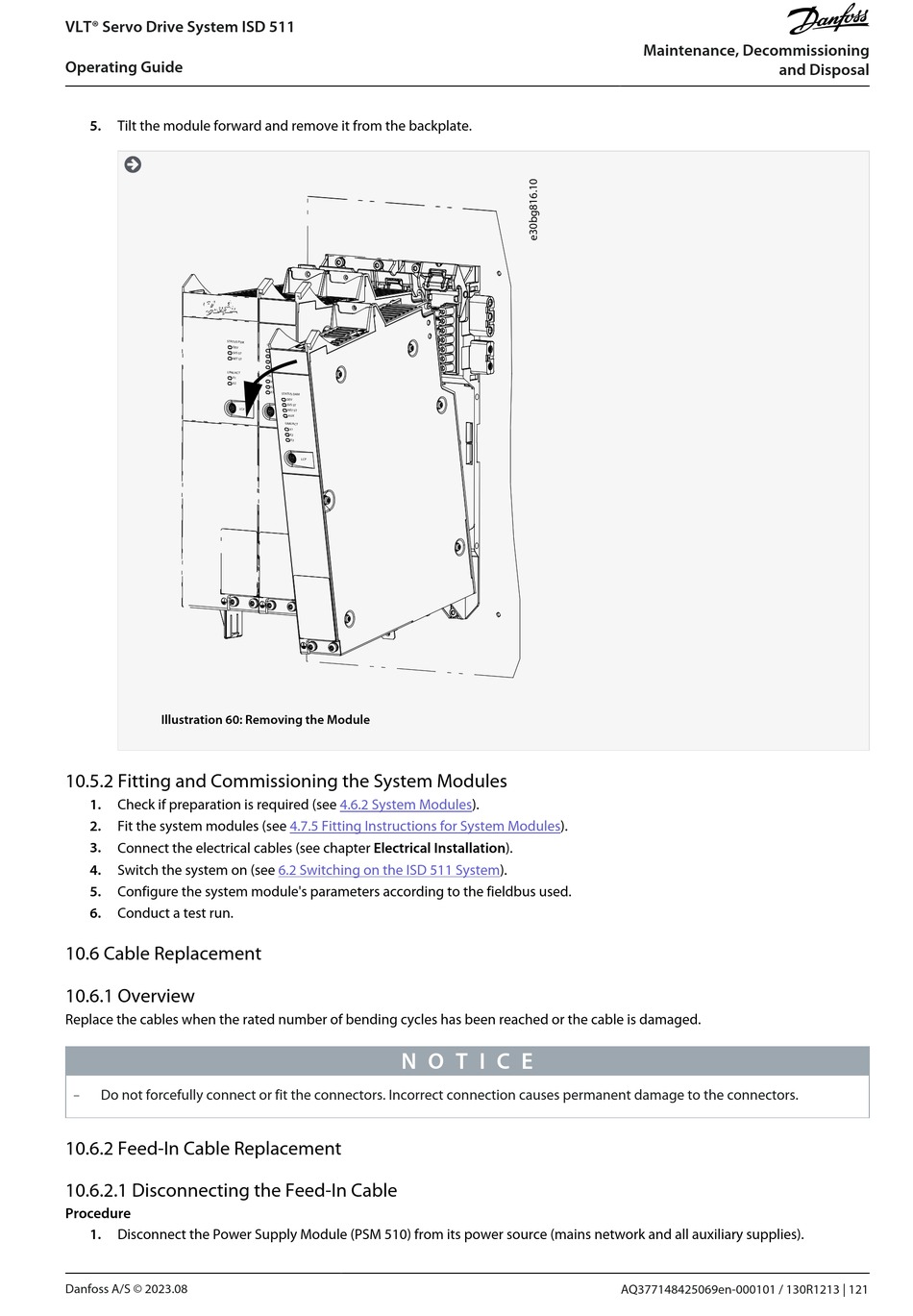

Illustration 60: Removing the Module
10.5.2 Fitting and Commissioning the System Modules
1. Check if preparation is required (see
2. Fit the system modules (see
3.
Connect the electrical cables (see chapter Electrical Installation).
4. Switch the system on (see
5. Configure the system module's parameters according to the fieldbus used.
6. Conduct a test run.
10.6 Cable Replacement
10.6.1 Overview
Replace the cables when the rated number of bending cycles has been reached or the cable is damaged.
-
Do not forcefully connect or fit the connectors. Incorrect connection causes permanent damage to the connectors.
10.6.2 Feed-In Cable Replacement
10.6.2.1 Disconnecting the Feed-In Cable
Procedure
1.
Disconnect the Power Supply Module (PSM 510) from its power source (mains network and all auxiliary supplies).
