Mounting The Isd 511 To The Roundtable - Danfoss VLT ISD 511 Operating Manual

VLT® Servo Drive System ISD 511
Operating Guide
Mechanical Installation

4.7.4.2 Mounting the ISD 511 to the Roundtable

Procedure
1.
The ISD 511 can be mounted to the roundtable from the bottom (see Illustration 13) and the top (see Illustration 14).
4 x M6 x 40

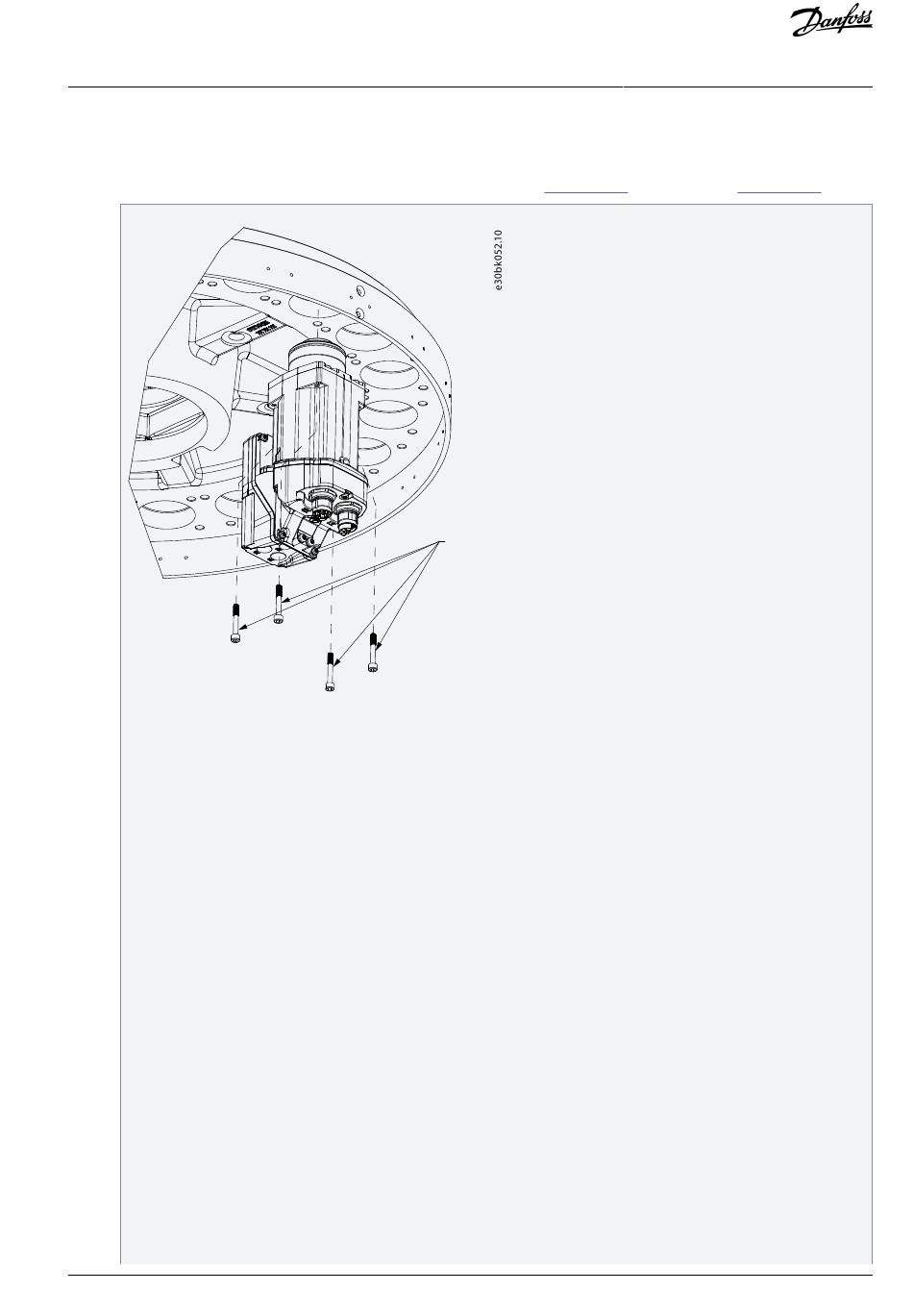

Illustration 13: Mounting the ISD 511 from the Bottom
