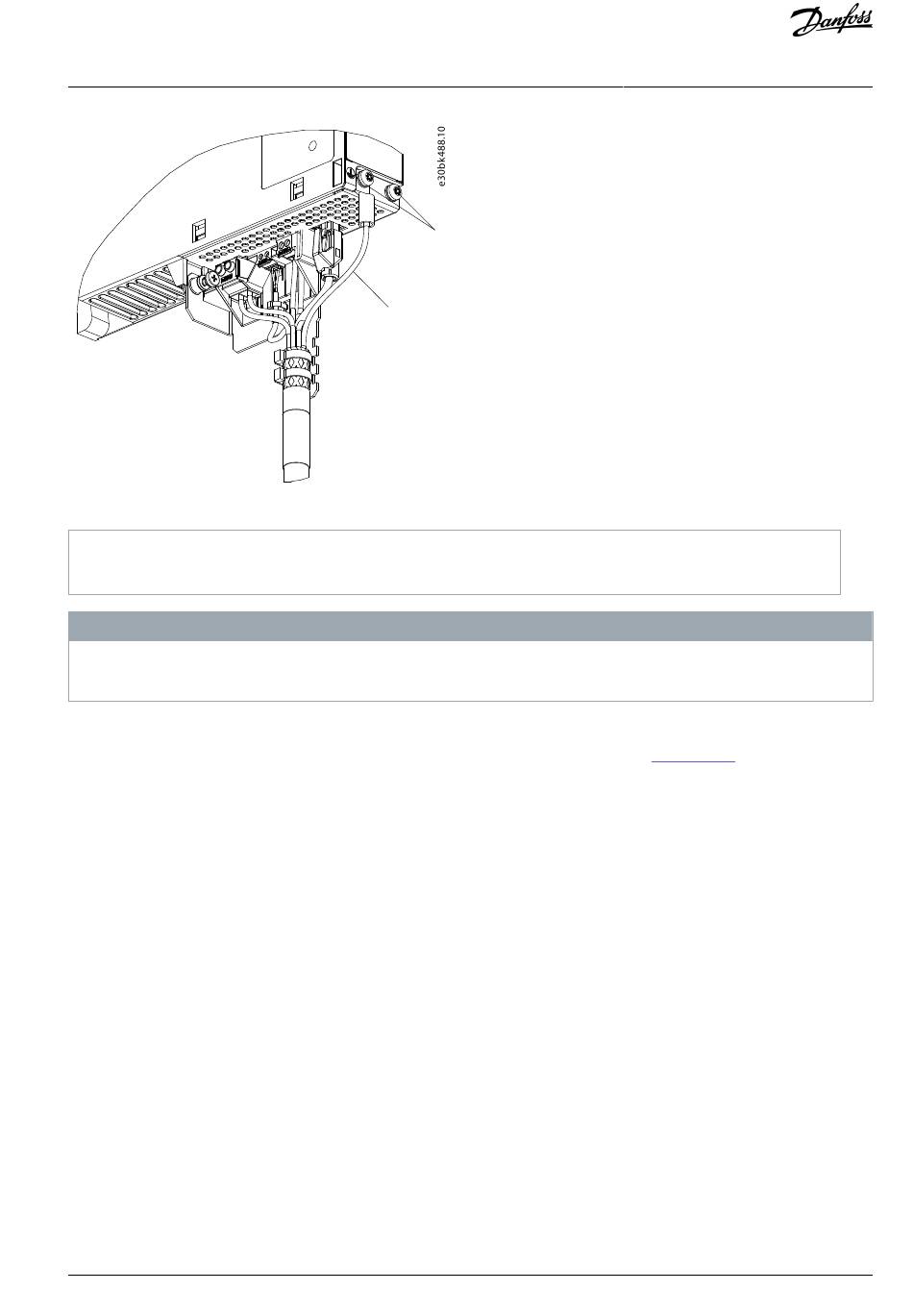

Illustration 21: Connecting the PE Wire of the Feed-in Cable
1 PE screws on DAM 510
2 PE yellow/green wire (fork lug)
-
The ISD 511 servo drive has 2 PE screws. The 2nd screw can be used to loop the earthing conductor for a maximum of 5 units.
If the system uses more than 5 units, ground them in groups of 5.

5.3.2 Grounding the System Modules

Do not ground the system modules in daisy-chain format. Use the grounding method shown in
Danfoss A/S © 2023.08
1
2
N O T I C E
Electrical Installation
Illustration 22.
