2.
Fully rotate the threaded ring of the cable connector counterclockwise. Use the marking OPEN as a reference for the cable
connector.
3.
Ensure that the marking OPEN on the cable connector is facing the servo drive.
4.
Press the connector towards the electronic housing on the servo drive until the sealing on the connector is entirely cov-
ered.
5.
Tighten the M23 feed-in cable connector by rotating the threaded ring clockwise out of the flat area around the OPEN
marking.

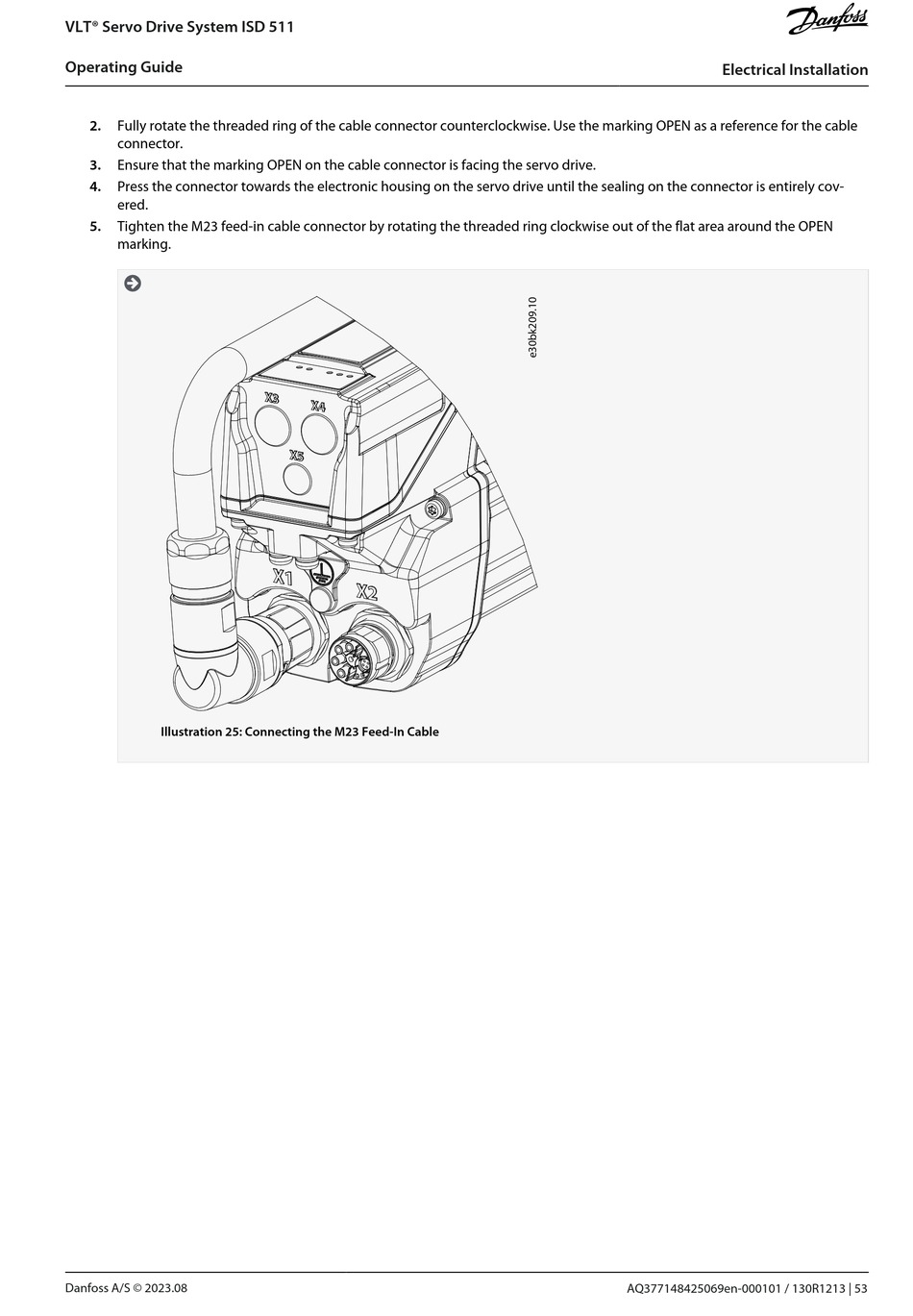

Illustration 25: Connecting the M23 Feed-In Cable
Danfoss A/S © 2023.08
Electrical Installation
AQ377148425069en-000101 / 130R1213 | 53
