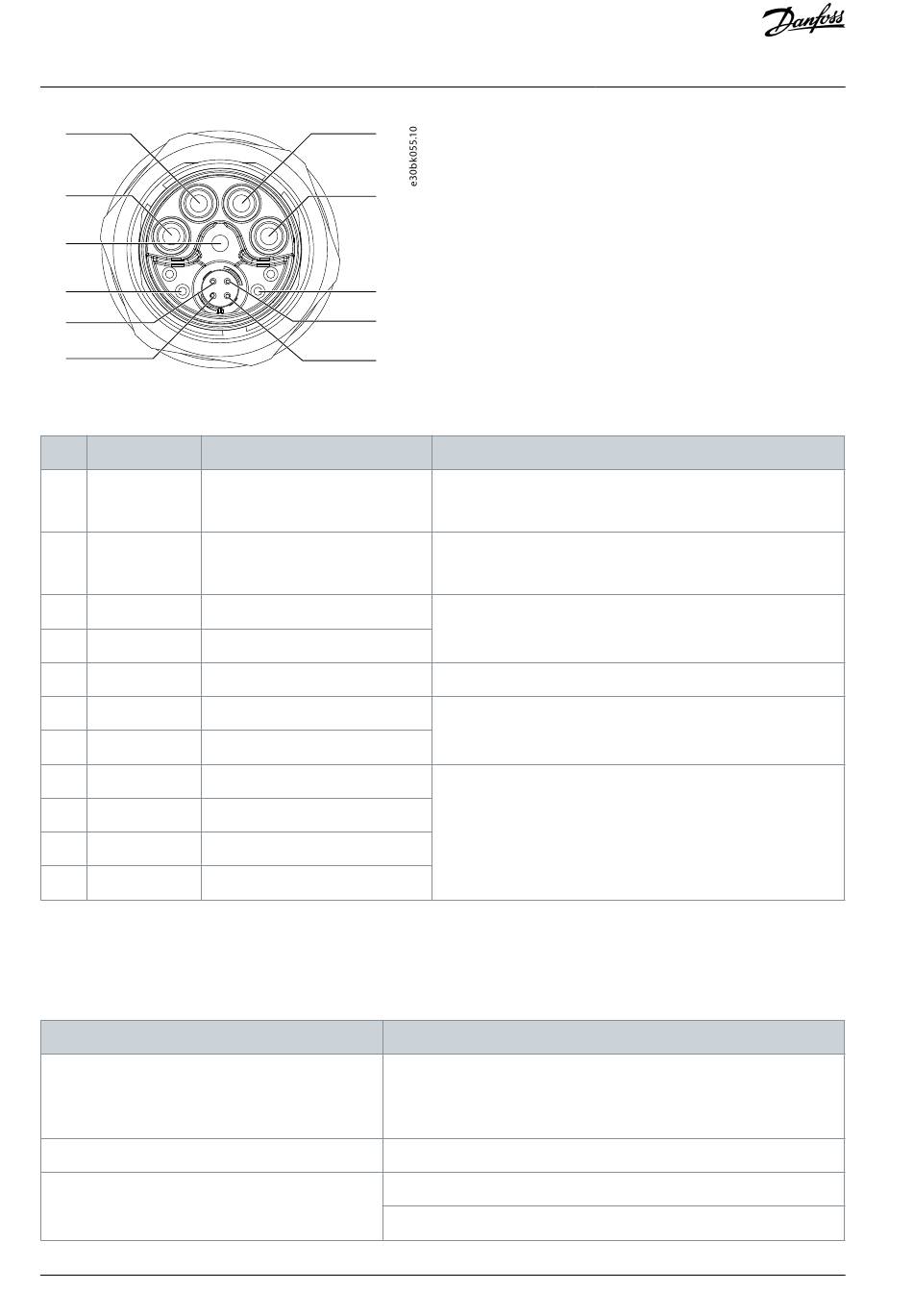

Illustration 95: Pin Assignment of X2 Female Hybrid Connector (M23)
Table 135: Pin Assignment of X1 and X2 Hybrid Connectors (M23)
Pin Description Notes
A UDC- Negative DC supply
B UDC+ Positive DC supply
C AUX+ Auxiliary supply
D AUX- Auxiliary supply ground
PE PE PE connector
2 STO+ Safety supply
3 STO- Safety supply ground
5 TD+ Positive Ethernet transmit
6 RD- Positive Ethernet receive
7 TD- Negative Ethernet transmit
8 RD+ Negative Ethernet receive
11.8 General Specifications and Environmental Data
11.8.1 ISD 511 Servo Drives
Table 136: General Specifications and Environmental Conditions for ISD 511
Specification
IP ratings
Vibration test
Maximum relative humidity
148 | Danfoss A/S © 2023.08
B
A
3
7
6
Rating/parameter
Operating voltage: 565–680 V DC, maximum 778 V
Negative DC supply (maximum -15 A/25 A)
Operating voltage: 565–680 V DC, maximum 778 V
Positive DC supply (maximum 15 A/25 A)
24-48 V DC±10%, 15 A
Absolute maximum 55 V DC
15 A
24 V DC ±10%, 1 A
According to standard 100BASE-T
Value
IP65 according to EN 60529
IP69K (flange and sealing) according to ISO 20653
Indoor only
Class 3M7 according to IEC 60721-3-3
Storage/transport: 5–95% (non-condensing)
Stationary use: 5–95% (non-condensing)
