Danfoss VLT ISD 511 Operating Manual page 49

VLT® Servo Drive System ISD 511
Operating Guide

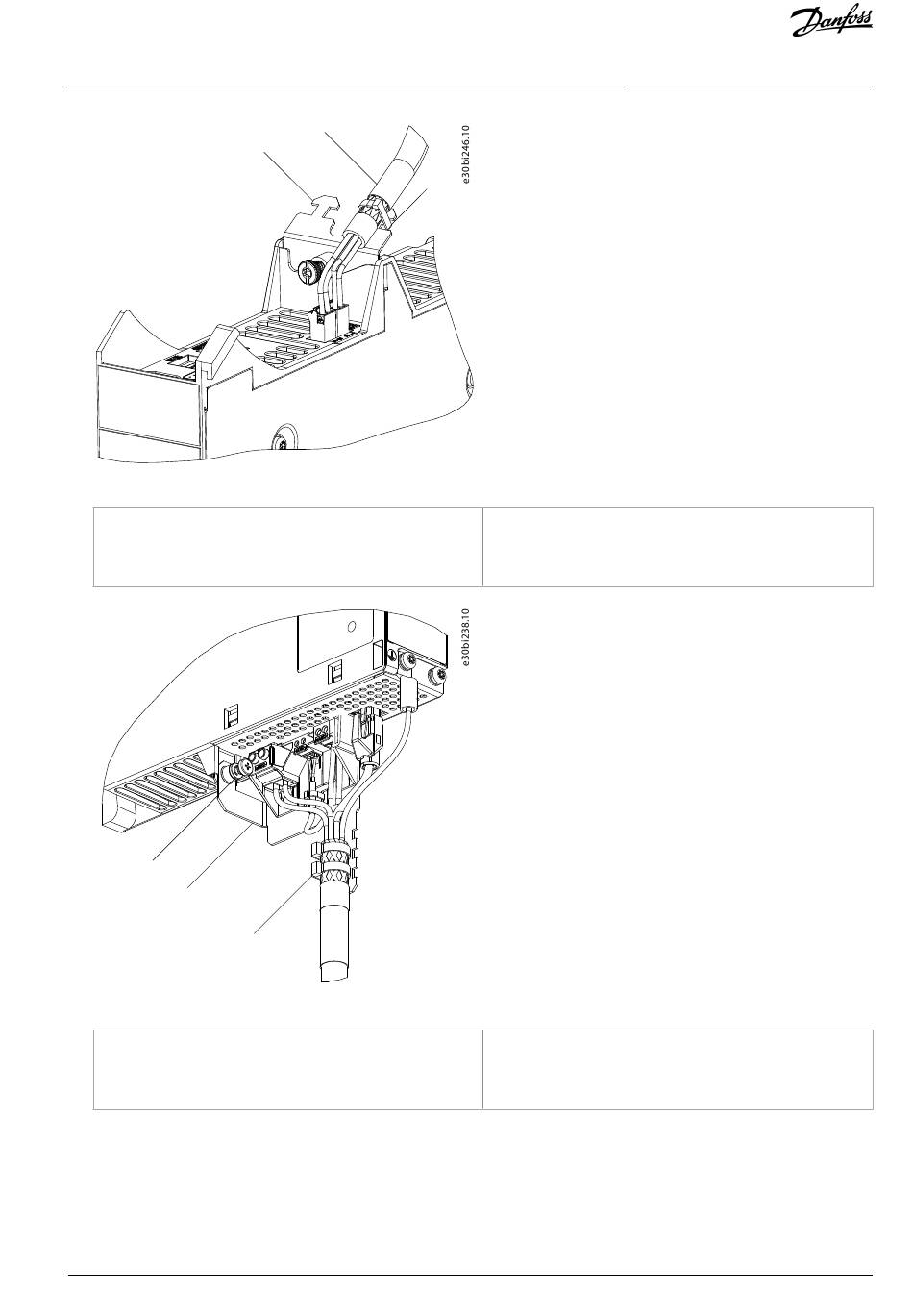

Illustration 23: Cable Shielding on the Top of the System Modules
1 Cable
2 Cable tie
3
2
Illustration 24: Cable Shielding on the Bottom of the System Modules
1 Cable tie
2 EMC metal shielding plate
• Use a cable with a shielding that has a high-coverage to reduce electrical interference.
• Do not use pigtails to connect the shielding. A 360° wire connection is recommended.
Danfoss A/S © 2023.08
1
3
1
2
3 I/O shielding plate
3 EMC plate screw
Electrical Installation
AQ377148425069en-000101 / 130R1213 | 49
