VLT® Servo Drive System ISD 511
Operating Guide
An example type code for the PSM 510 is: MSD510PSM510F2P10C0D6E20PLSXXXXXXXXXXXXX.
2
3
4
5
6
7

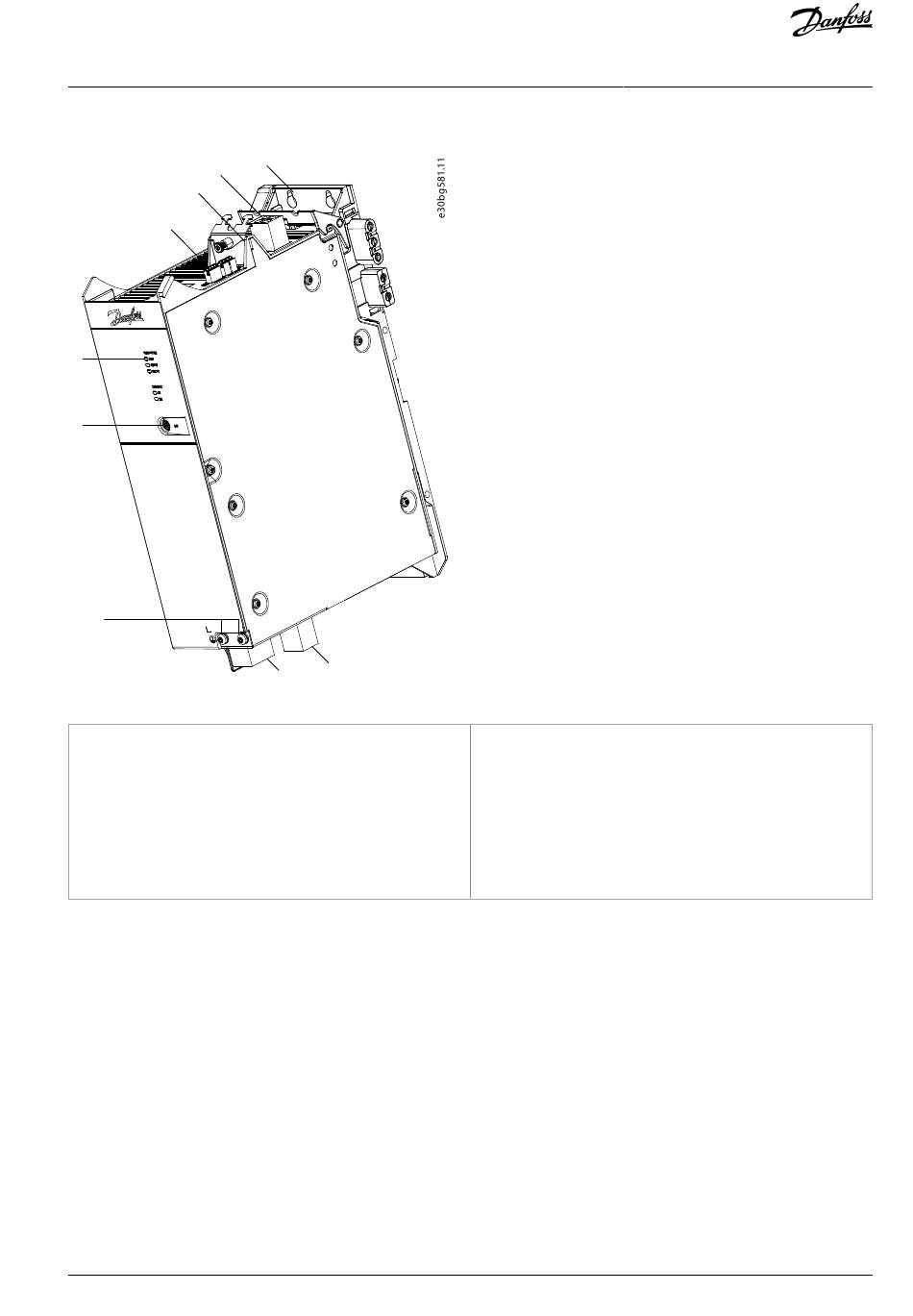

Illustration 3: PSM 510
1 Backplate
2 24/48 V input connector
3 Cable relief and shielding
4 Connectors: I/O, STO, relay, and Ethernet
5 Operating LEDs

3.4 Decentral Access Module (DAM 510)

3.4.1 Overview

DAM is the abbreviation for Decentral Access Module. The DAM 510 is a central interface/gateway to the decentral servo system. It
is used to connect the VLT Integrated Servo Drive ISD 511 to the servo system via a hybrid feed-in cable.
®
The DAM 510 supplies the decentral servo drives with DC-link, U
cable. The DAM 510 provides functions, such as:
• Overcurrent protection of the hybrid cable
• Overvoltage protection
• Charging circuit of the DC-link
• External encoder connection
• DC-link capacitance buffer for the decentral servo drives
The DAM 510 can be controlled via Ethernet-based fieldbus.
LEDs on the front of the DAM 510 show the operating status and warnings.
Danfoss A/S © 2023.08
1
9
8
6 LCP connector
7 PE screws
8 AC mains supply connector
9 Internal/external brake resistor connector
, STO, and the Ethernet-based fieldbus via the hybrid feed-in
AUX
System Description
AQ377148425069en-000101 / 130R1213 | 25
