5.9.2.2 Connecting the Cables on the Power Supply Module PSM 510

5.9.2.2.1 Connecting the Cables on the Top of the Power Supply Module PSM 510
1
6
7

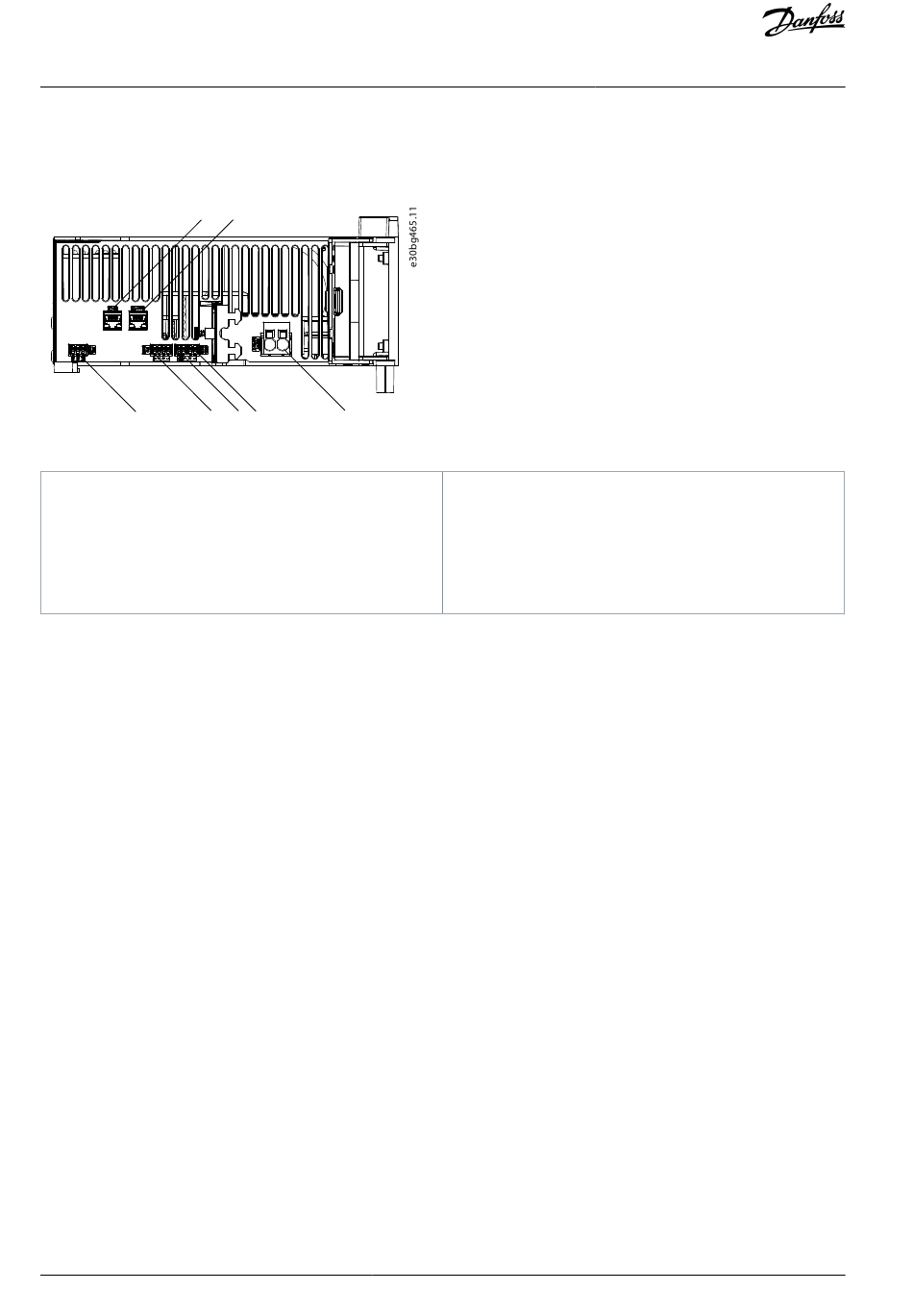

Illustration 29: Connectors on the Top of PSM 510
1 Ethernet connector IN (X1 IN)
2 Ethernet connector OUT (X2 OUT)
3 24/48 V IN connector (INPUT 24/48 V)
4 STO connector IN (STO PSM)
Procedure
1. Connect the Ethernet cable from the PLC to the Ethernet input connector (X1 IN) [1].
2.
Connect the Ethernet cable from the Ethernet output connector (X2 OUT) [2] to the next module.
3. Insert the wires into the 24/48 V IN (INPUT 24/48 V) connector.
4.
Insert the 24/48 V IN connector [3].
5. Insert the wires into the STO connector IN (STO PSM) connector.
6.
Insert the STO connector IN connector [4].
7. Insert the wires into the STO connector OUT (STO PSM) connector.
8.
Insert the STO connector OUT connector [5].
9. If I/Os are required, insert the wires into the I/O connector and insert the connector (I/O PSM) [6].
10.
If a relay is required, insert the wires into the relay connector and insert the connector (REL PSM) [7].
58 | Danfoss A/S © 2023.08
2
5 4 3
5 STO connector OUT (STO PSM)
6 I/O connector (I/O PSM)
7 Relay connector (REL PSM)
AQ377148425069en-000101 / 130R1213
