VLT® Servo Drive System ISD 511
Operating Guide

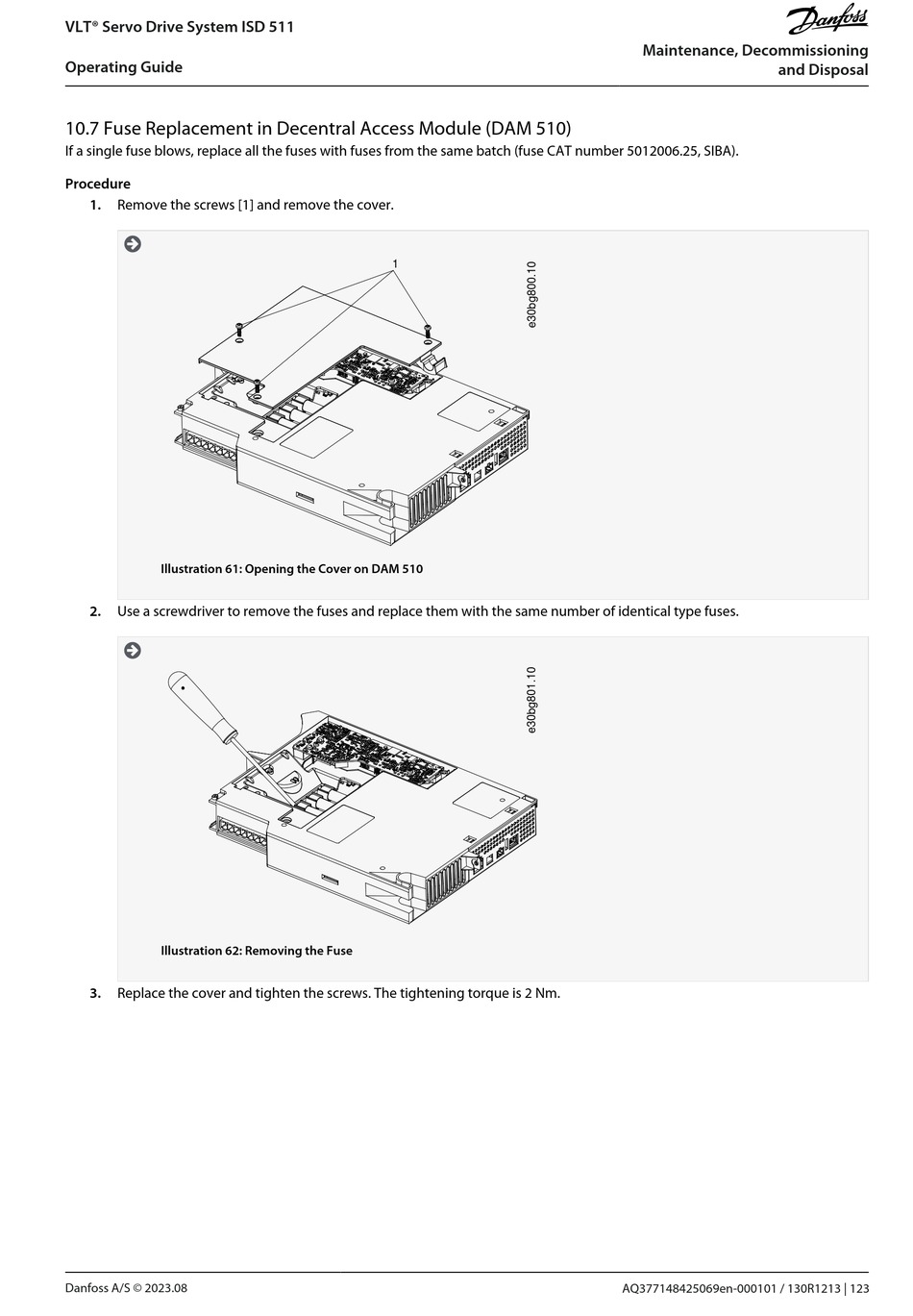

10.7 Fuse Replacement in Decentral Access Module (DAM 510)
If a single fuse blows, replace all the fuses with fuses from the same batch (fuse CAT number 5012006.25, SIBA).
Procedure
1. Remove the screws [1] and remove the cover.

Illustration 61: Opening the Cover on DAM 510
2. Use a screwdriver to remove the fuses and replace them with the same number of identical type fuses.

Illustration 62: Removing the Fuse
3.
Replace the cover and tighten the screws. The tightening torque is 2 Nm.
Danfoss A/S © 2023.08
1
Maintenance, Decommissioning
and Disposal
AQ377148425069en-000101 / 130R1213 | 123
