3.
Mount the backplates to the mounting plate in the control cabinet using M5 screws with a minimum head diameter or
washer diameter of 9.5 mm. The tightening torque is 3 Nm.

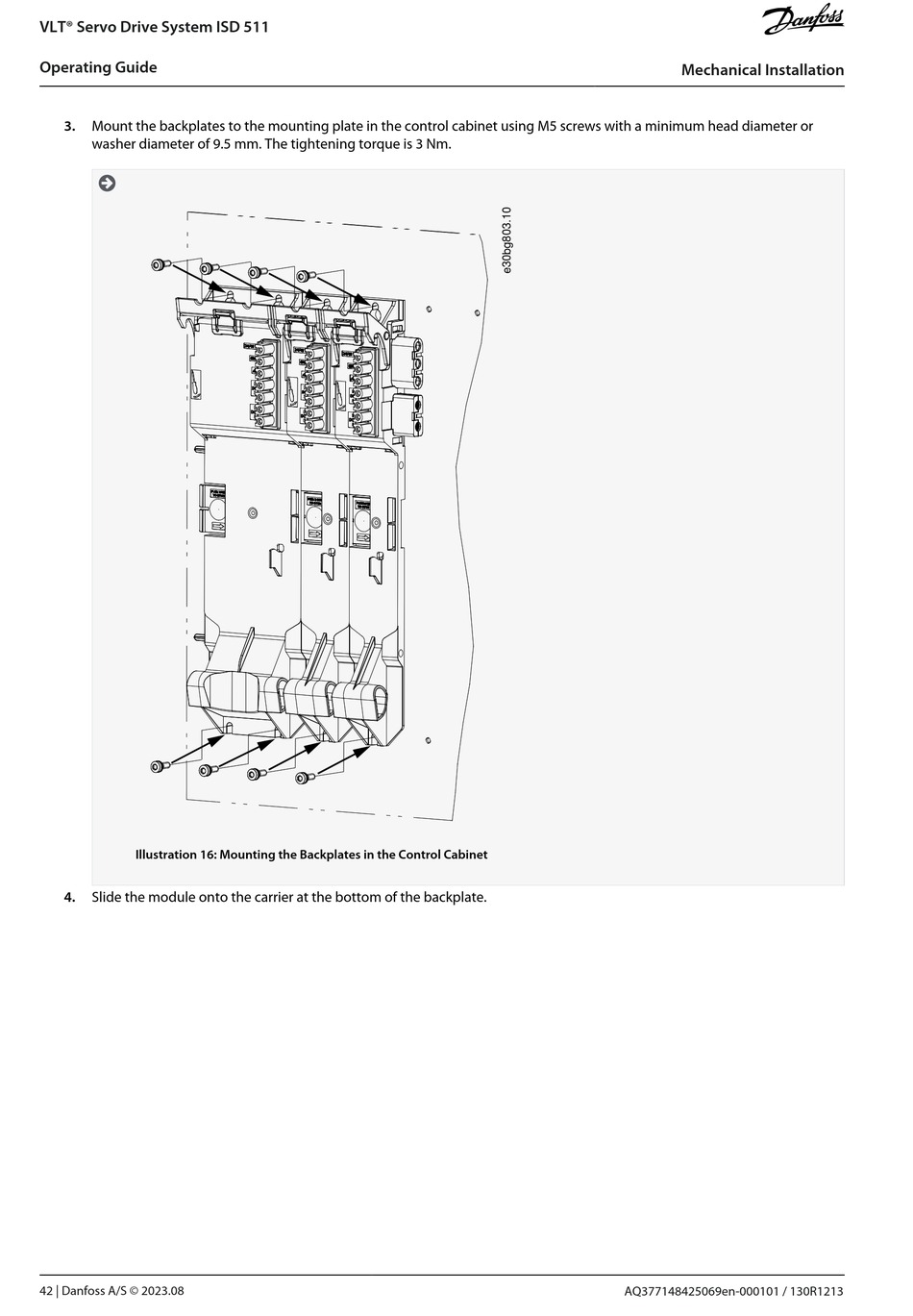

Illustration 16: Mounting the Backplates in the Control Cabinet
4.
Slide the module onto the carrier at the bottom of the backplate.
42 | Danfoss A/S © 2023.08
Mechanical Installation
AQ377148425069en-000101 / 130R1213
