7.

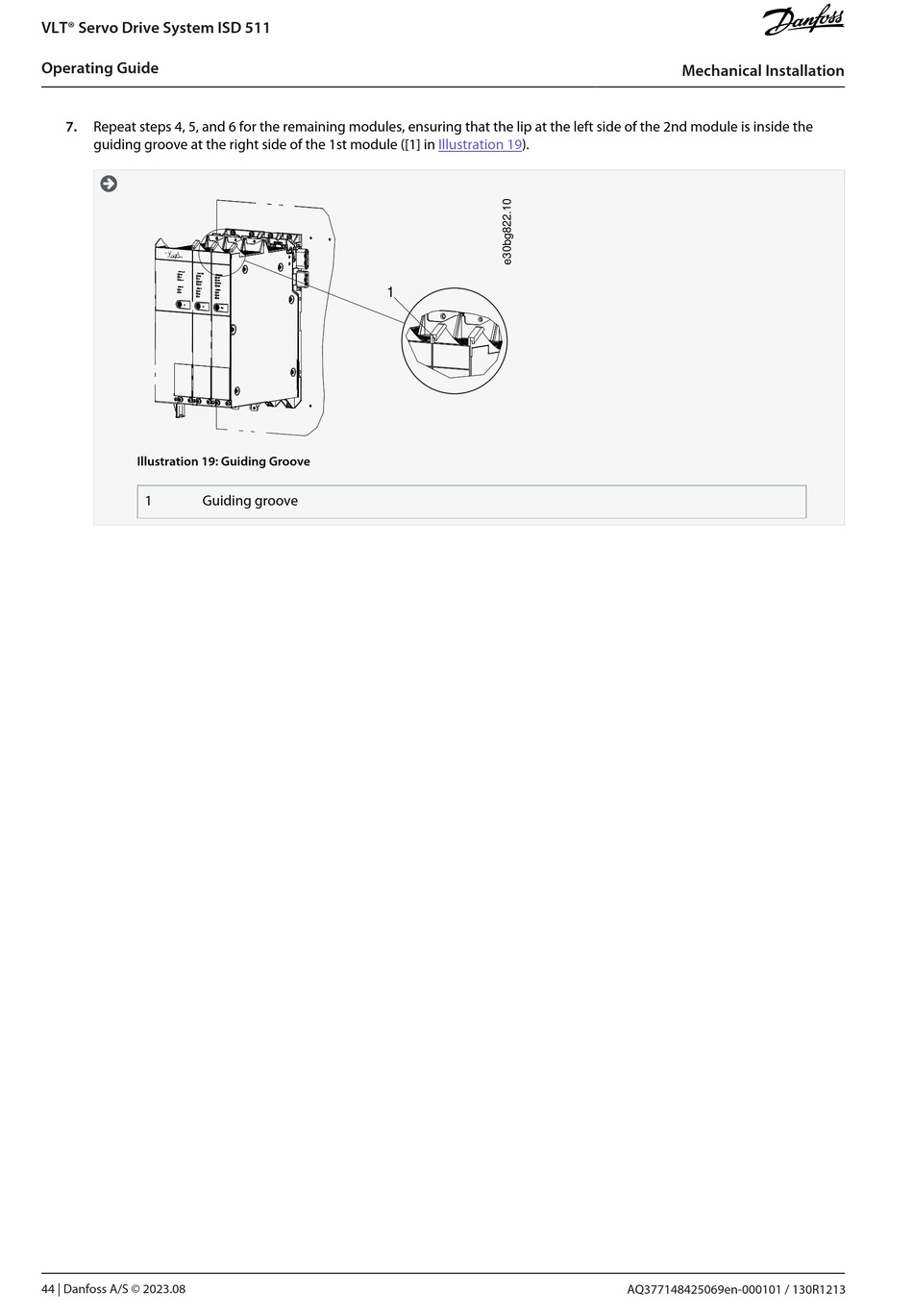

Repeat steps 4, 5, and 6 for the remaining modules, ensuring that the lip at the left side of the 2nd module is inside the
guiding groove at the right side of the 1st module ([1] in
Illustration 19: Guiding Groove
1
Guiding groove
44 | Danfoss A/S © 2023.08
Illustration
19).
