4.6.3 Drilling Templates
50
50
[1.97]
[1.97]
M5
UNF 10-32
Ø10,6
[0.42]
FS2
M5
UNF 10-32
50
50
[1.97]
[1.97]
(100 x number of FS2 + 50 x number of FS1) - 50

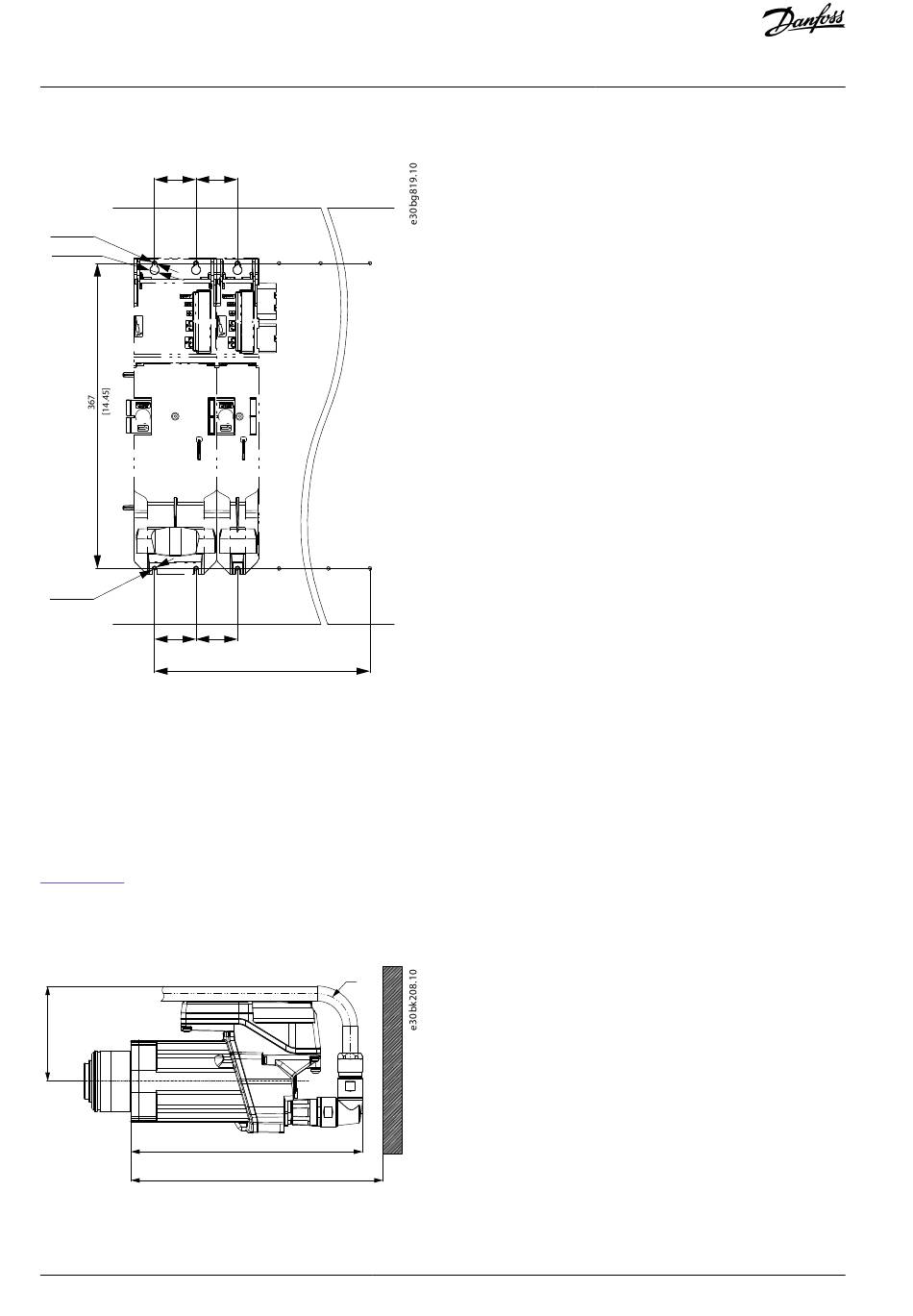

Illustration 9: Drilling templates for 50 mm and 100 mm System Modules
4.7 Installation Procedure
4.7.1 Space Requirements for ISD 511
In addition to its own dimensions, the ISD 511 servo drive needs space for the hybrid cable and the connector.
4.7.1.1 Minimum Distance for M23 Angled Connector
Illustration 10
shows the minimum distance from the servo drive to the next object.
For cable installation (connecting/disconnecting the M23 angled connector on an installed device), allow a mounting space of the
height of the connector plus an additional 25 mm (273 mm – 248 mm).
The minimum bending radius R
102
Illustration 10: Minimum Distance for M23 Angled Connector
36 | Danfoss A/S © 2023.08
FS1
for permanently static installed cable is 22.5 mm.
min
R35
248
273
Mechanical Installation
AQ377148425069en-000101 / 130R1213
