10.
Ensure that there is no mechanical tension on the cables.
X1

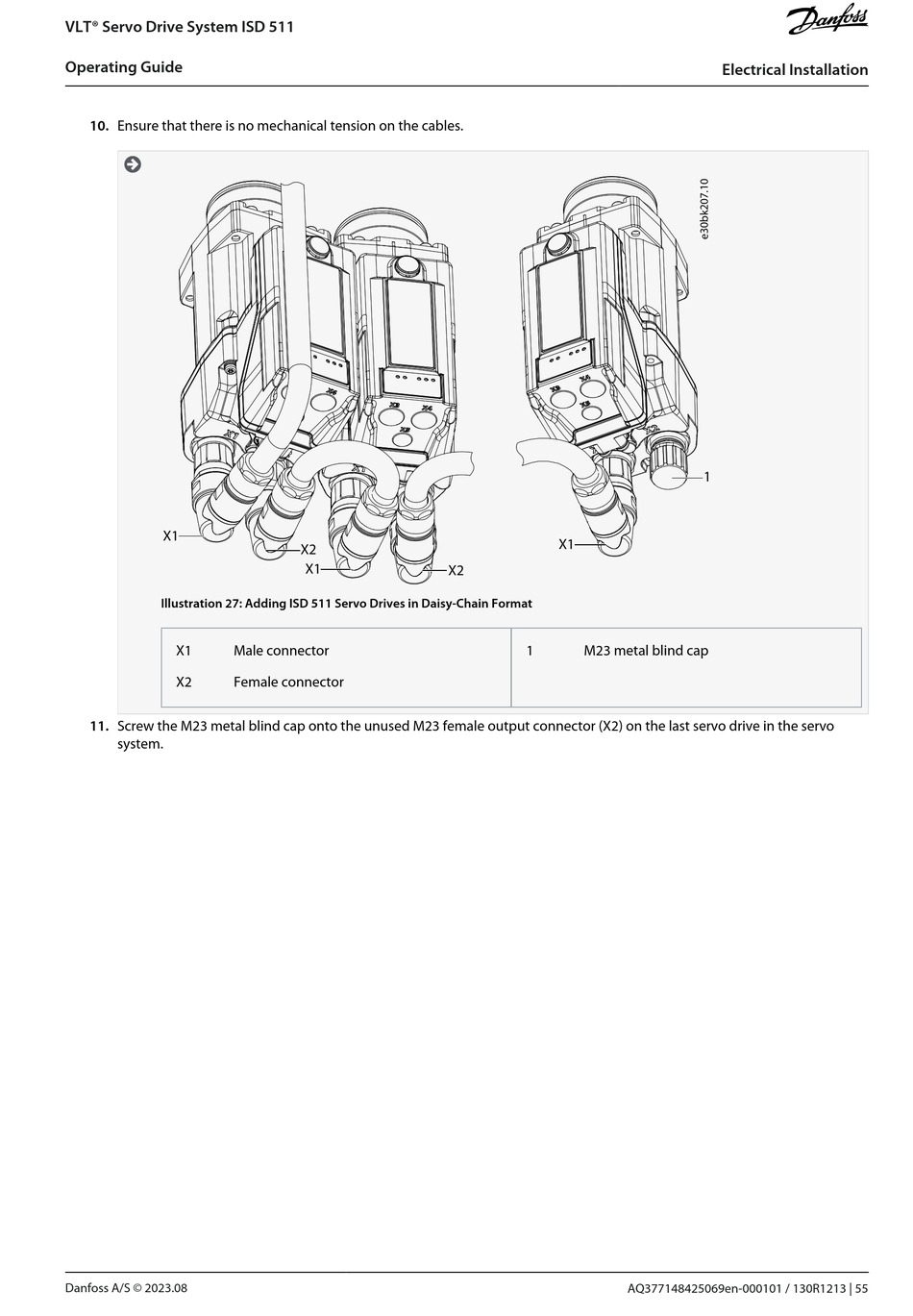

Illustration 27: Adding ISD 511 Servo Drives in Daisy-Chain Format
X1
Male connector
X2
Female connector
11.
Screw the M23 metal blind cap onto the unused M23 female output connector (X2) on the last servo drive in the servo
system.
Danfoss A/S © 2023.08
X2
X1
X2
X1
1
M23 metal blind cap
AQ377148425069en-000101 / 130R1213 | 55
