Mechanical Installation

4.5 Installation Procedure

4.5.1 Installation and Space Requirements

Servo Access Box
•
The SABs can be mounted next to each other but
require a minimum space of 100 mm at the top
and bottom for cooling.
4 4
•
In addition to its own dimensions, the SAB needs
100 mm space between the SAB decoupling plate
and cable duct for connecting cables.
Servo Drive
•
In addition to its own dimensions, the servo drive
needs space for the hybrid cable. Illustration 4.2
shows the necessary space when using the
angled connector. Illustration 4.3 shows the
necessary space when using the straight
connector.
•
The amount of space necessary for installation
depends on the tool used.

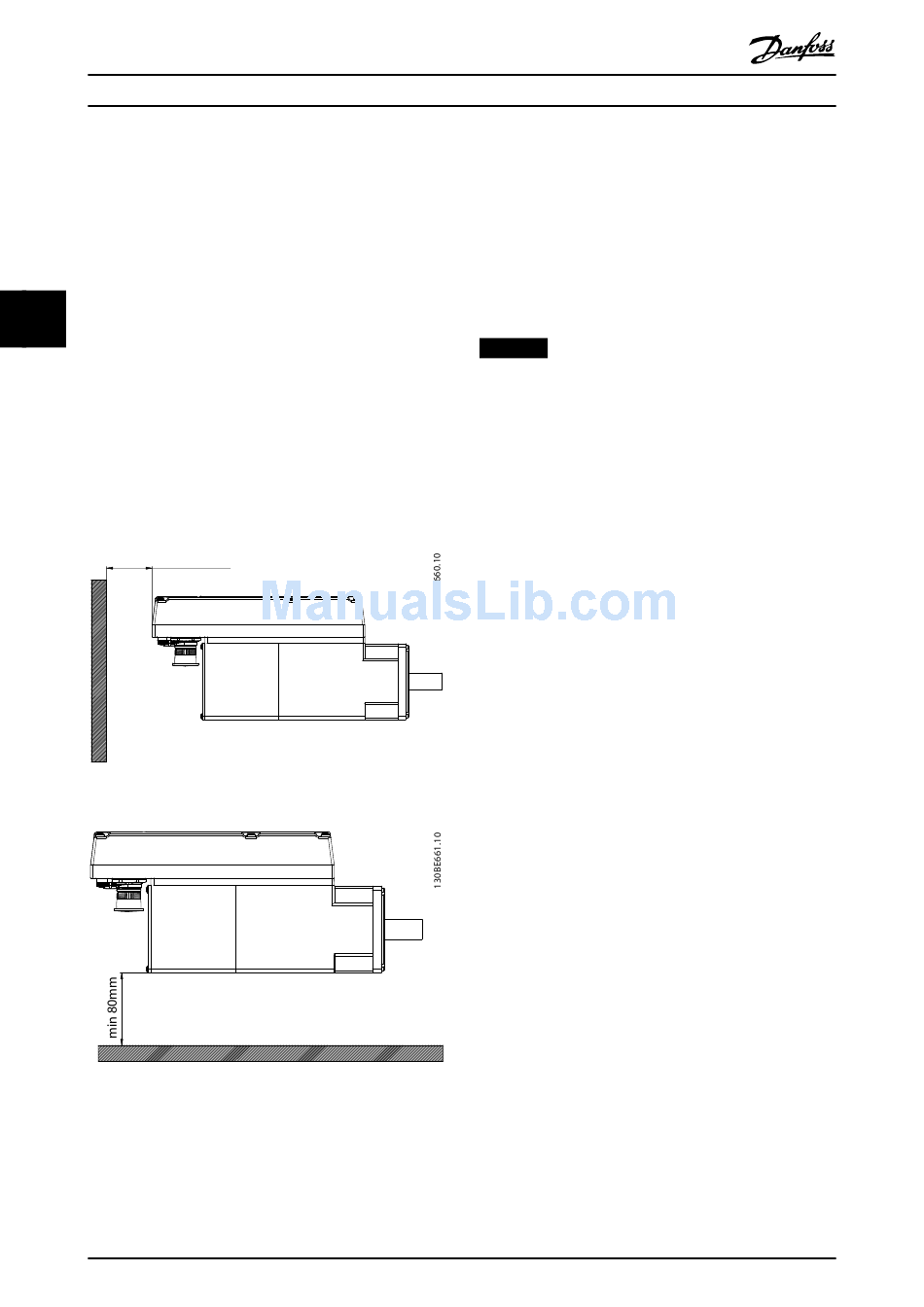

min 100mm
Illustration 4.2 Required Horizontal Space
Illustration 4.3 Required Vertical Space

4.5.2 Installation Aids and Tools Required

For installation of the servo drives, the tools corresponding
to the fixing screws (not included) are required.
32
®
VLT Integrated Servo Drive ISD

4.5.3 Fitting Instructions Servo Drive

The servo drives are delivered with an M23 transport
protection cap. The M23 blind cap used for IP protection
must be ordered separately. The advanced servo drive is
delivered additionally with M8 and M12 blind caps. These
blind caps prevent contamination of the servo drive and
are necessary to achieve the relevant IP protection rating.
Always mount these caps if the connector is not used.
NOTICE
Ensure the machine surface that comes in contact with
the servo flange is unpainted in order to guarantee good
thermal behavior of the servo drive. The surface contact
must also provide sufficient grounding protection.
Clamping
Observe the following fitting instructions to ensure reliable
and effective fitting of the servo drive:
1.
2.
3.
Danfoss A/S © 12/2015 All rights reserved.
®
510 System
Check the counterface of the motor mount and
ensure that it has sufficient heat dispersion
capacity. An unpainted surface is mandatory.
Remove the protective end cap from the shaft.
Fix the servo drive with 4 screws using the 4
mounting holes provided for this purpose in the
machine unit (see Illustration 4.4 and
Illustration 4.5).
•
Always use the designated mounting
holes in the mounting flange to fix the
servo drive.
•
Do not modify the mounting holes.
•
Always use all 4 mounting holes. The
motor may run unevenly if fewer
mounting holes are used.
•
See chapter 4.5.4 Tightening Torques for
tightening torques.
MG75K102
