5.2.8 Instruction Virtual Address Format Register — IVA_FORM
The instruction virtual address format register (IVA_FORM) is a read-only register. It
contains the virtual PTE address derived from the faulting virtual address stored in the
EXC_ADDR register, and from the virtual page table base, VA_48 and VA_FORM_32
bits, stored in the I_CTL register.
Figure 5–13 shows IVA_FORM when I_CTL(VA_48) equals 0 and
I_CTL(VA_FORM_32) equals 0.

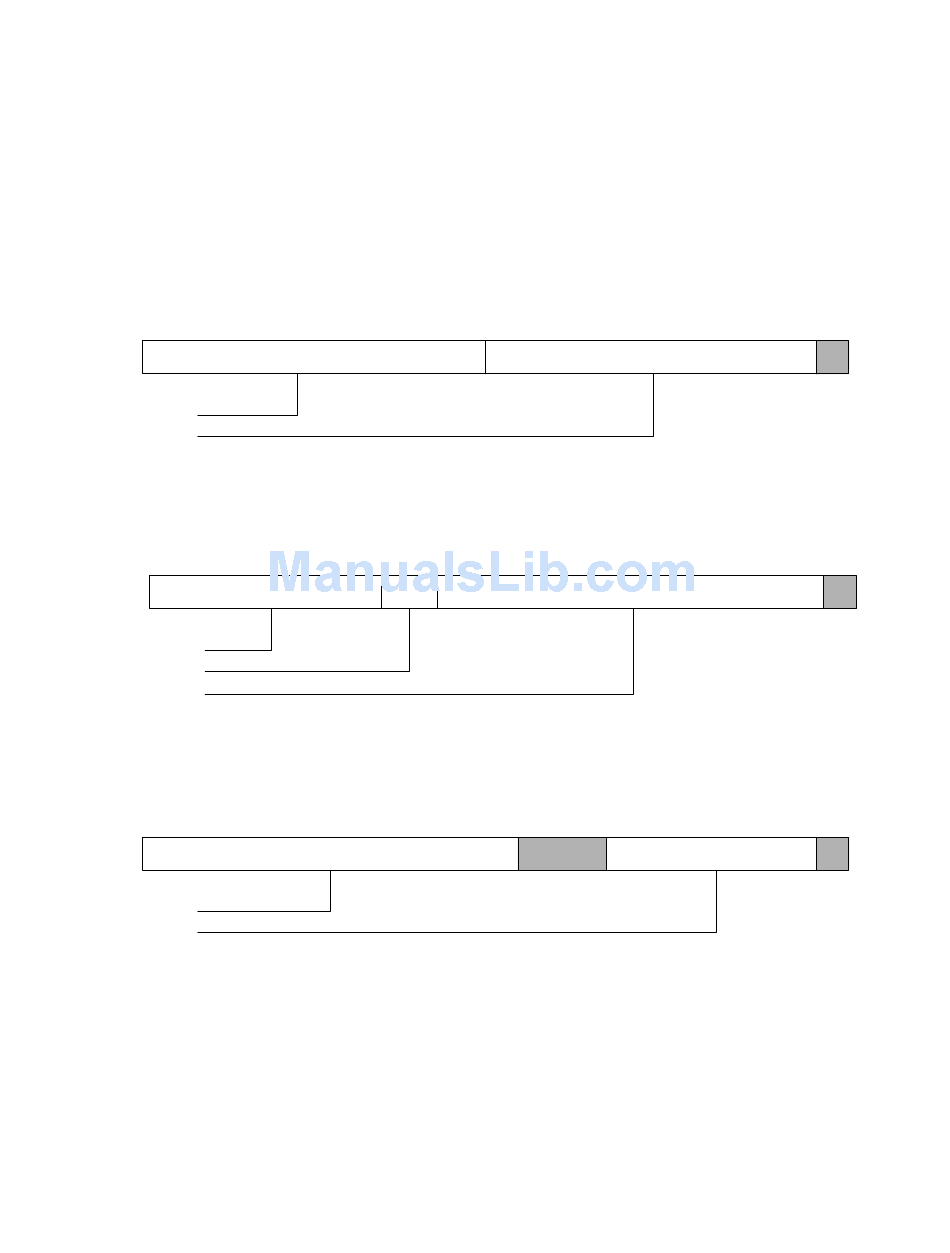

Figure 5–13 Instruction Virtual Address Format Register (VA_48 = 0, VA_FORM_32 = 0)
63
VPTB[63:33]
VA[42:13]
Figure 5–14 shows IVA_FORM when I_CTL(VA_48) equals 1 and
I_CTL(VA_FORM_32) equals 0.
Figure 5–14 Instruction Virtual Address Format Register (VA_48 = 1, VA_FORM_32 = 0)
63
VPTB[63:43]
SEXT(VA[47])
VA[47:13]
Figure 5–15 shows IVA_FORM when I_CTL(VA_48) equals 0 and
I_CTL(VA_FORM_32) equals 1.
Figure 5–15 Instruction Virtual Address Format Register (VA_48 = 0, VA_FORM_32 = 1)
63
VPTB[63:30]
VA[31:13]
5.2.9 Interrupt Enable and Current Processor Mode Register – IER_CM
The interrupt enable and current processor mode register (IER_CM) contains the inter-
rupt enable and current processor mode bit fields. These bit fields can be written either
individually or together with a single HW_MTPR instruction. When bits [7:2] of the
IPR index field of a HW_MTPR instruction contain the value 000010
selected. Bits [1:0] of the IPR index indicate which bit fields are to be written: bit[1]
corresponds to the IER field and bit[0] corresponds to the processor mode field. A
HW_MFPR instruction to this register returns the values in both fields. Figure 5–16
shows the interrupt enable and current processor mode register.
Alpha 21264/EV67 Hardware Reference Manual
33 32
43 42 38 37
30 29 22 21
, this register is
2
Internal Processor Registers
Ibox IPRs
3 2 0
LK99-0019A
3 2 0
LK99-0020A
3 2 0
LK99-0021A
5–9
