How to Programme

2 How to Programme
2 2
2.1 The Graphical and Numerical Local
Control Panels
The easiest programming of the frequency converter is
performed by the Graphical LCP (LCP 102). It is necessary to
consult the frequency converter Design Guide, when using the
Numeric Local Control Panel (LCP 101).
2.1.1 How to Programme on the Graphical
LCP
The following instructions are valid for the graphical LCP (LCP
102):

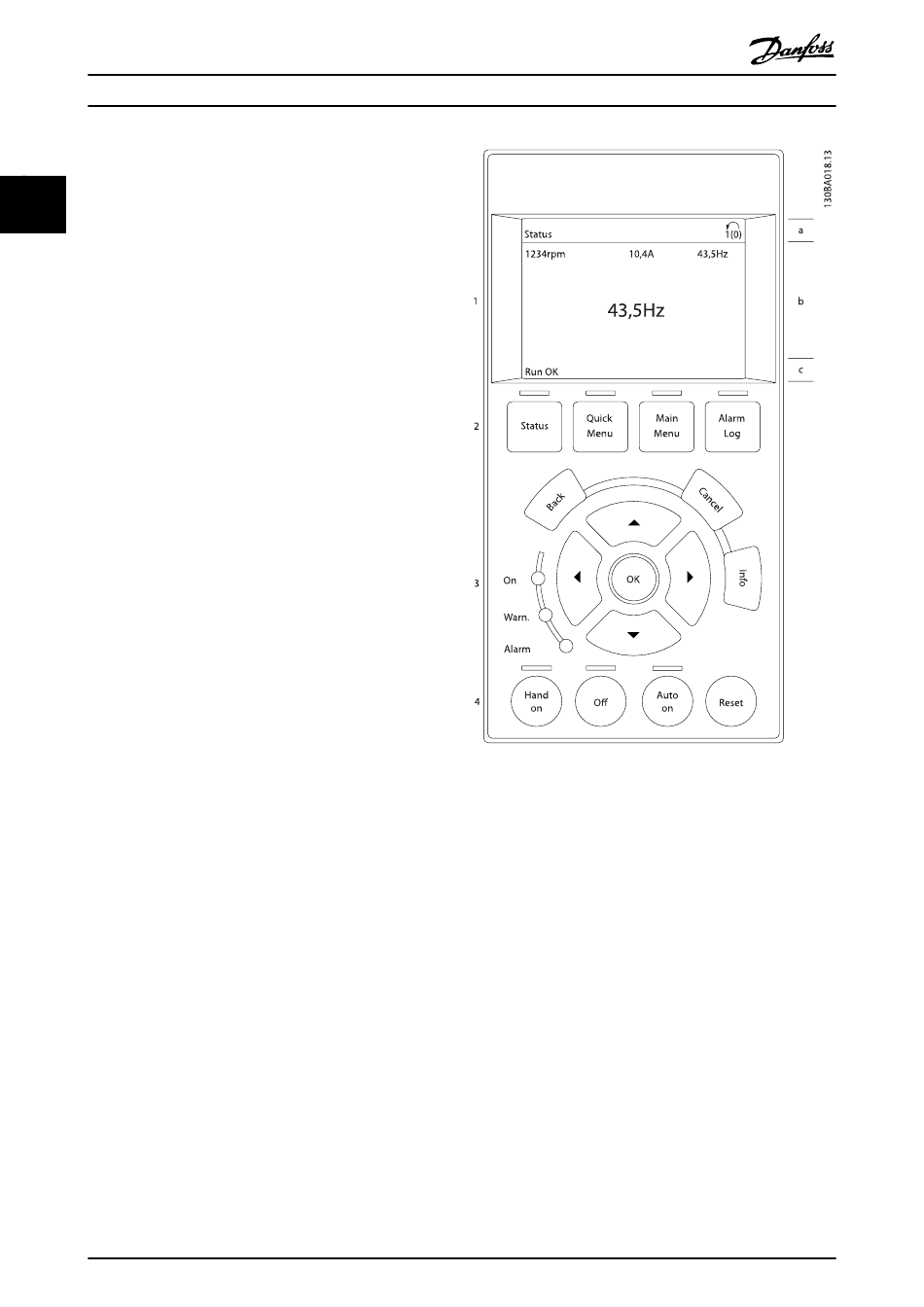

The control panel is divided into four functional groups:
1. Graphical display with Status lines.
2. Menu keys and indicator lights - changing parame-
ters and switching between display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
All data is displayed in a graphical LCP display, which can
show up to five items of operating data while displaying
[Status].
Display lines:
a. Status line: Status messages displaying icons and
graphic.
b. Line 1-2: Operator data lines displaying data defined
or chosen by the user. By pressing the [Status] key,
up to one extra line can be added.
c. Status line: Status messages displaying text.
