Parameter Descriptions
continuing the frequency converter operation in its Active
Setup which can be a different setup to that being edited.
Using par. 0-51 Set-up Copy it is possible to copy parameter
settings between the setups to enable quicker commissioning
if similar parameter settings are required in different setups.
0-10 Active Set-up
Option: Function:
Select the set-up to control the frequency
converter functions.
[0] Factory Cannot be changed. It contains the Danfoss
setup data set, and can be used as a data source
when returning the other set-ups to a known
state.
[1] Set-up 1 Set-up 1 [1] to Set-up 4 [4] are the four separate
*
parameter set-ups within which all parameters
can be programmed.
[2] Set-up 2
[3] Set-up 3
[4] Set-up 4
[9] Multi Set-up Remote selection of set-ups using digital
inputs and the serial communication port. This
set-up uses the settings from par. 0-12 This Set-
up Linked to. Stop the frequency converter
before making changes to open- and closed
loop functions
Use par. 0-51 Set-up Copy to copy a set-up to one or all other
set-ups. Stop the frequency converter before switching
between set-ups where parameters marked 'not changeable
during operation' have different values. To avoid conflicting
settings of the same parameter within two different set-ups,
link the set-ups together using par. 0-12 This Set-up Linked to.
Parameters which are 'not changeable during operation' are
marked FALSE in the parameter lists in the section Parameter
Lists.
0-11 Edit Set-up
Option: Function:
Select the set-up to be edited (i.e. program-
med) during operation; either the active set-
up or one of the inactive set-ups.
[0] Factory setup Cannot be edited but it is useful as a data
source to return the other set-ups to a known
state.
[1] Set-up 1 Set-up 1 [1] to Set-up 4 [4] can be edited freely
*
during operation, independently of the active
set-up.
[2] Set-up 2
[3] Set-up 3
[4] Set-up 4

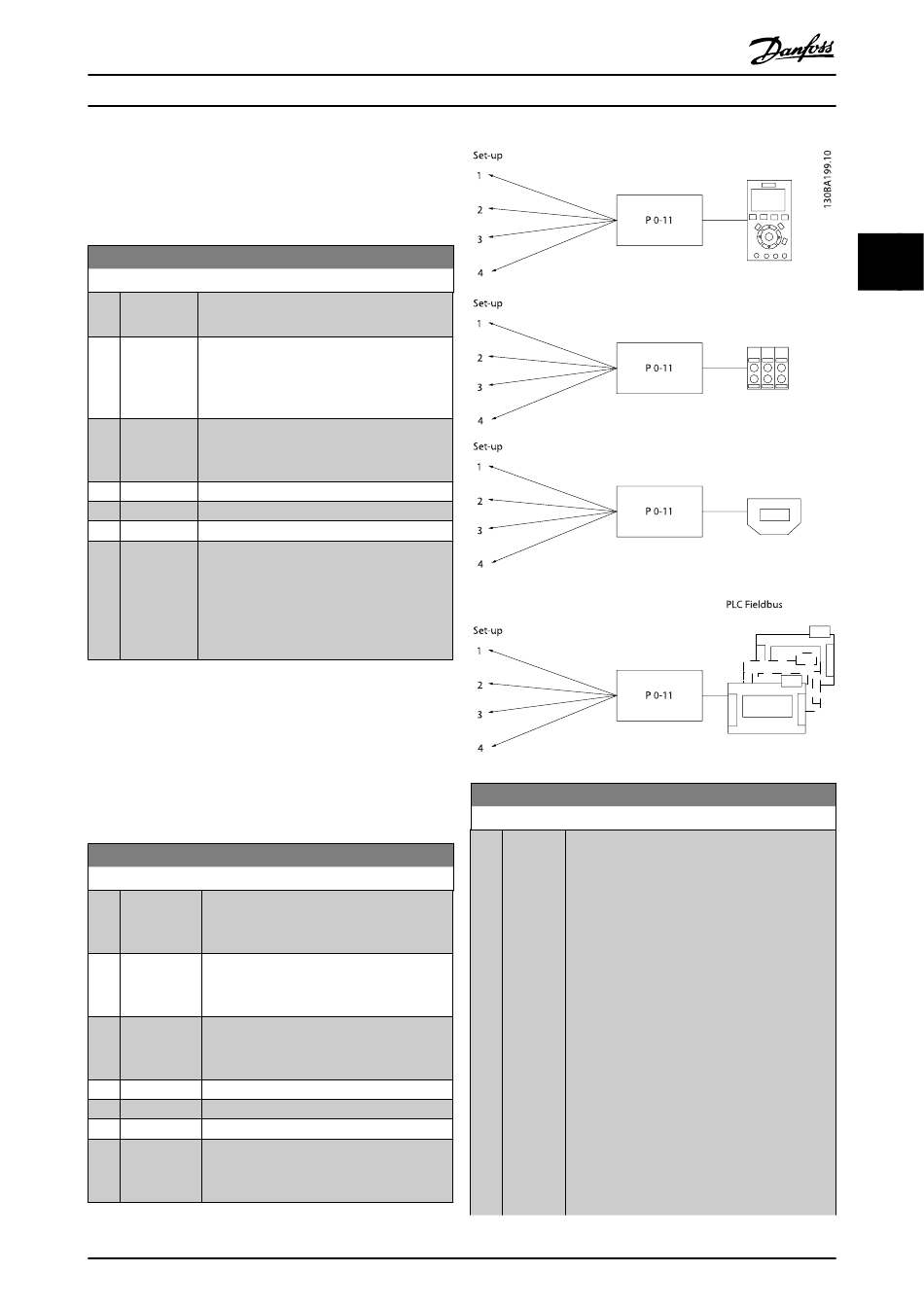

[9] Active Set-up Can also be edited during operation. Edit the
chosen set-up from a range of sources: LCP,
FC RS-485, FC USB or up to five fieldbus sites.
FC 300 Programming Guide
0-12 This Set-up Linked to
Option:
®
MG.33.M9.02 - VLT is a registered Danfoss trademark
Function:
To enable conflict-free changes from one set-up
to another during operation, link set-ups contain-
ing parameters which are not changeable during
operation. The link will ensure synchronising of
the 'not changeable during operation' parameter
values when moving from one set-up to another
during operation. 'Not changeable during
operation' parameters can be identified by the
label FALSE in the parameter lists in the section
Parameter Lists.
Par. 0-12 This Set-up Linked to is used by Multi set-
up in par. 0-10 Active Set-up. Multi set-up is used
to move from one set-up to another during
operation (i.e. while the motor is running).
Example:
Use Multi set-up to shift from Set-up 1 to Set-up 2
whilst the motor is running. Programme in Set-up
1 first, then ensure that Set-up 1 and Set-up 2 are
synchronised (or 'linked'). Synchronisation can be
performed in two ways:
3 3
