How to Programme

How to Programme on the Local Control Panel

In the following instructions we assume you have a
graphical LCP (LCP 102):

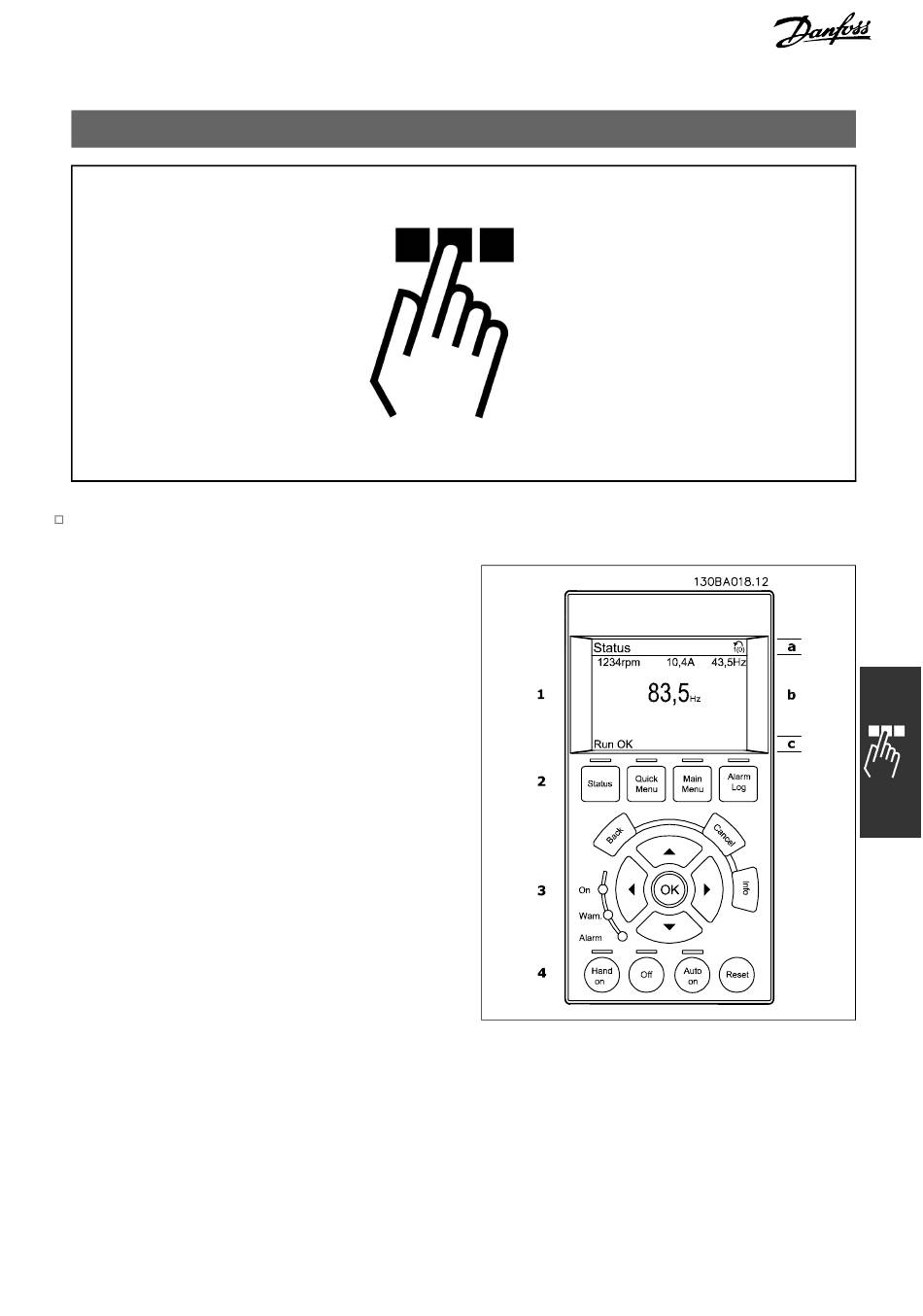

The control panel is divided into four functional
groups:
1. Graphical display with Status lines.
2. Menu keys and indicator lights - changing
parameters and switching between display
functions.
Navigation keys and indicator lights (LEDs).
3.
Operation keys and indicator lights (LEDs).
4.
All data is displayed in a graphical LCP display,
which can show up to five items of operating data
while displaying [Status].
Display lines:
a. Status line:Status messages displaying icons
and graphic.
Line 1-2: Operator data lines displaying data
b.
defined or chosen by the user. By pressing the
[Status] key, up to one extra line can be added.
c. Status line: Status messages displaying text.
Indicator lights (LEDs):
• Green LED/On: Indicates if control section is working.
• Yellow LED/Warn.: Indicates a warning.
Flashing Red LED/Alarm: Indicates an alarm.
•
