3.14 Parameters: 13-** Smart Logic
Control
3.14.1 Prog. Features
3 3
Smart Logic Control (SLC) is essentially a sequence of user
defined actions (see par. 13-52 SL Controller Action [x])
executed by the SLC when the associated user defined event
(see par. 13-51 SL Controller Event [x]) is evaluated as TRUE by
the SLC. Events and actions are each numbered and linked
together in pairs (states). This means that when event [0] is
fulfilled (attains the value TRUE), action [0] is executed. After
this, the conditions of event [1] will be evaluated and if
evaluated TRUE, action [1] will be executed and so on. Only
one event will be evaluated at any time. If an event is evaluated
as FALSE, nothing happens (in the SLC) during the current
scan interval and no other events will be evaluated. This means
that when the SLC starts, it evaluates event [0] (and only event
[0]) each scan interval. Only when event [0] is evaluated TRUE,
will the SLC execute action [0] and start evaluating event [1]. It
is possible to programme from 1 to 20 events and actions.
When the last event / action has been executed, the sequence

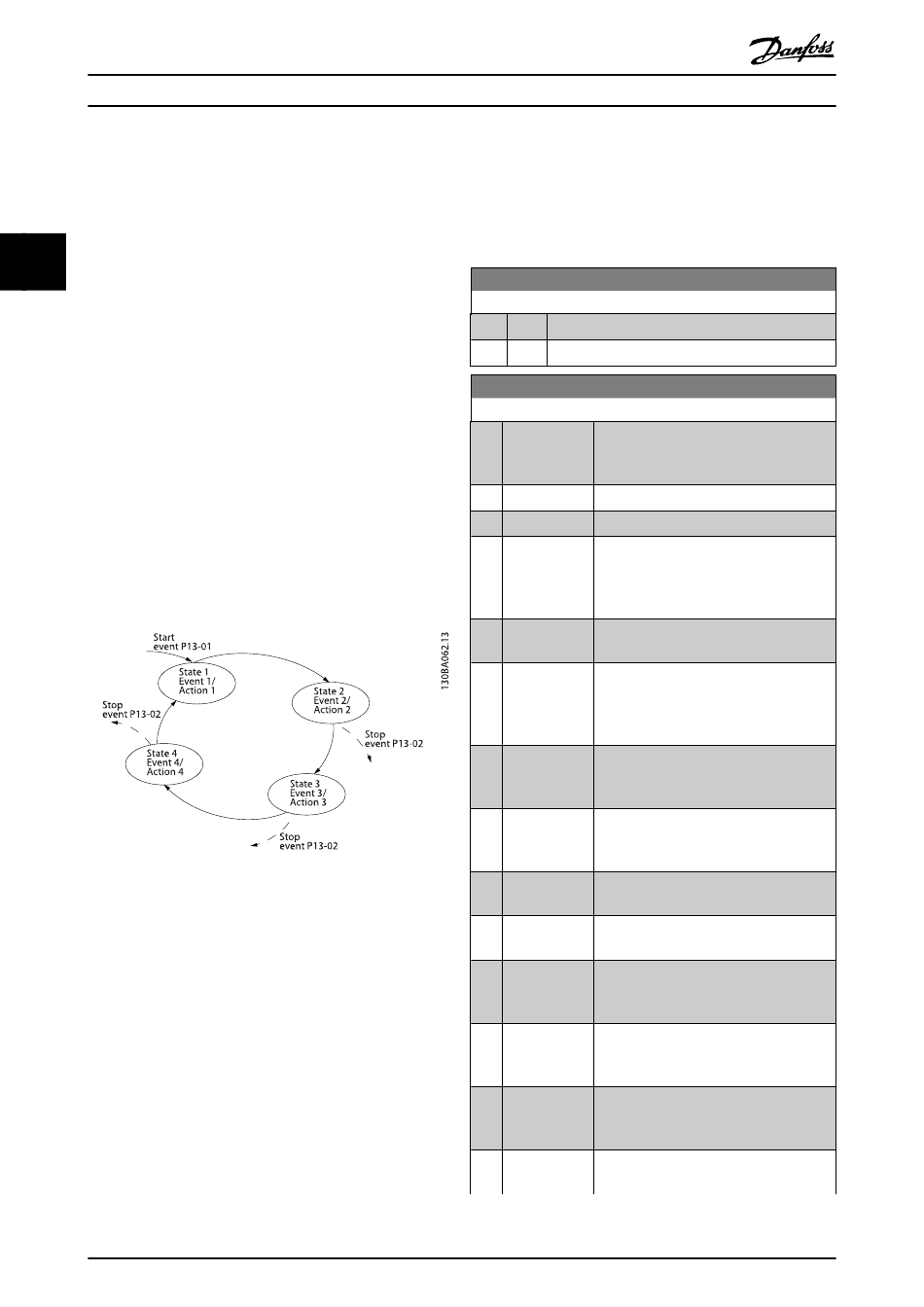

starts over again from event [0] / action [0]. The illustration
shows an example with three event / actions:
Starting and stopping the SLC:
Starting and stopping the SLC can be done by selecting .On
[1]. or .Off [0]. in par. 13-00 SL Controller Mode. The SLC always
starts in state 0 (where it evaluates event [0]). The SLC starts
when the Start Event (defined in par. 13-01 Start Event) is
evaluated as TRUE (provided that On [1] is selected in
par. 13-00 SL Controller Mode). The SLC stops when the Stop
Event (par. 13-02 Stop Event) is TRUE. par. 13-03 Reset SLC
resets all SLC parameters and start programming from scratch.
122
FC 300 Programming Guide
3.14.2 13-0* SLC Settings
Use the SLC settings to activate, deactivate and reset the
Smart Logic Control sequence. The logic functions and
comparators are always running in the background, which
opens for separate control of digital inputs and outputs. .
13-00 SL Controller Mode
Option:
[0]
[1]
13-01 Start Event
Option:
[0]
*
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10] Out of speed
[11] Below speed
[12] Above speed
[13] Out of feedb.
®
MG.33.M9.02 - VLT is a registered Danfoss trademark
Function:
Off Disables the Smart Logic Controller.
On Enables the Smart Logic Controller.
Function:
False Select the boolean (TRUE or FALSE) input to
activate Smart Logic Control.
False [0] enters the fixed value - FALSE
True True [1] enters the fixed value - TRUE.
Running Running [2] The motor is running.
In range In range [3] The motor is running within the
programmed current and speed ranges set
in par. 4-50 Warning Current Low to
par. 4-53 Warning Speed High.
On reference On reference [4] The motor is running on
reference.
Torque limit Torque limit [5] The torque limit, set in
par. 4-16 Torque Limit Motor Mode or
par. 4-17 Torque Limit Generator Mode, has
been exceeded.
Current limit Current limit [6] The motor current limit, set
in par. 4-18 Current Limit, has been
exceeded.
Out of current Out of current range [7] The motor current is
range outside the range set in par. 4-18 Current
Limit.
Below I low Below I low [8] The motor current is lower
than set in par. 4-50 Warning Current Low.
Above I high Above I high [9] The motor current is higher
than set in par. 4-51 Warning Current High.
Out of speed range [10] The speed is outside
range the range set in par. 4-52 Warning Speed Low
and par. 4-53 Warning Speed High.
Below speed low [11] The output speed is
low lower than the setting in par. 4-52 Warning
Speed Low.
Above speed high [12] The output speed is
high higher than the setting in par. 4-53 Warning
Speed High.
Out of feedb. Range [13] The feedback is
range outside the range set in par. 4-56 Warning
