How to Programme

How to Programme on the Graphical
Local Control Panel
The following instructions are valid for the
graphical LCP (LCP 102):

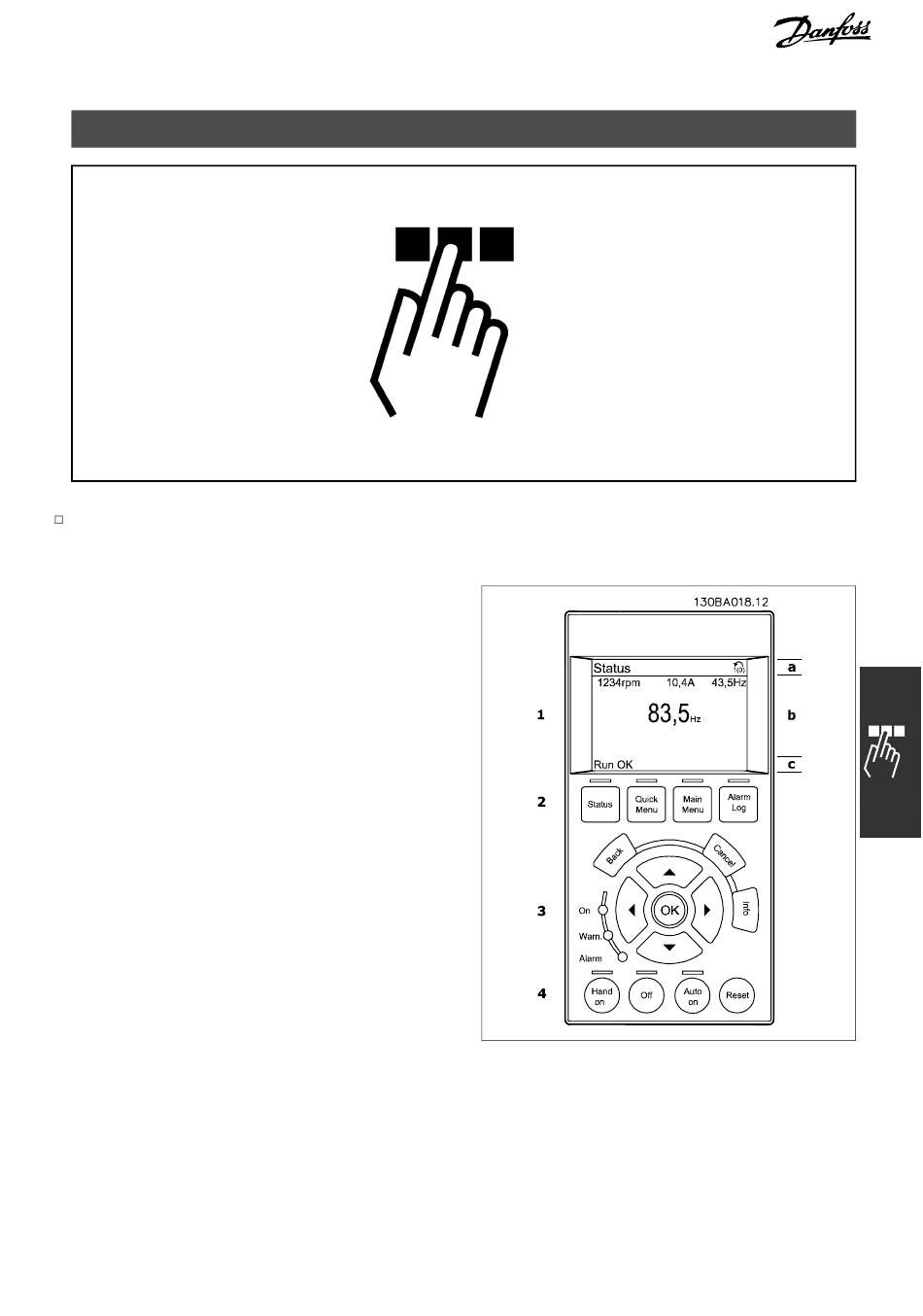

The control panel is divided into four
functional groups:
Graphical display with Status lines.
1.
Menu keys and indicator lights - changing
2.
parameters and switching between
display functions.
Navigation keys and indicator lights (LEDs).
3.
Operation keys and indicator lights (LEDs).
4.
All data is displayed in a graphical LCP display,
which can show up to five items of operating
data while displaying [Status].
Display lines:
Status line:Status messages displaying
a.
icons and graphic.
Line 1-2: Operator data lines displaying data
b.
defined or chosen by the user. By pressing the
[Status] key, up to one extra line can be added.
Status line: Status messages displaying text.
c.
The LCD-display has back light and a total of 6 alpha-numeric lines. The display lines show the direction of
rotation (arrow), the chosen Set-up as well as the programming Set-up. The display is divided into 3 sections:
