Parameter Groups

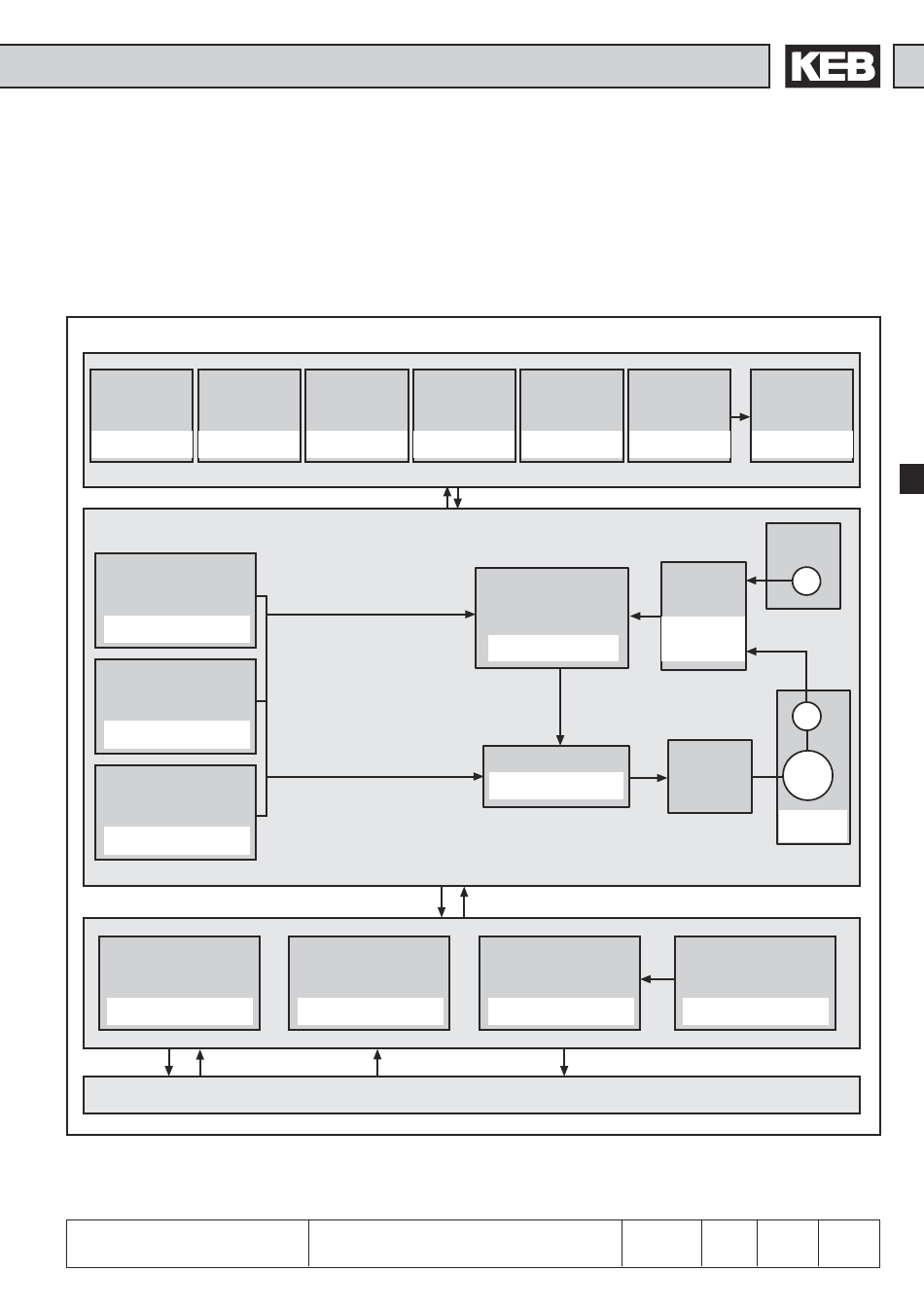

Picture 5.1.1
Adjustment System
Assistant Parameter
Parameter
XY at Basic
Sy-Parameter
AA-only G>=D
Protective and
Special Functions
Pn-Parameter
Ramp Generator
and S-curves
oP-Parameter
Setpoint Calculation
oP-Parameter
Analog In- and Outputs
An-Parameter
© KEB Antriebstechnik, 2002
All Rights reserved
The frequency inverters KEB COMBIVERT F5-GENERAL and F5-BASIC contains 16
(>= D=housing 17) fixed, one free-to-define parameter group. We have already learned
about the free-to-define group (CP). In the fixed parameter groups the parameters are
combined function-related.
