Set Value and Ramp Adjustment
6.4.4 Fixed Frequencies
(oP.18...23)

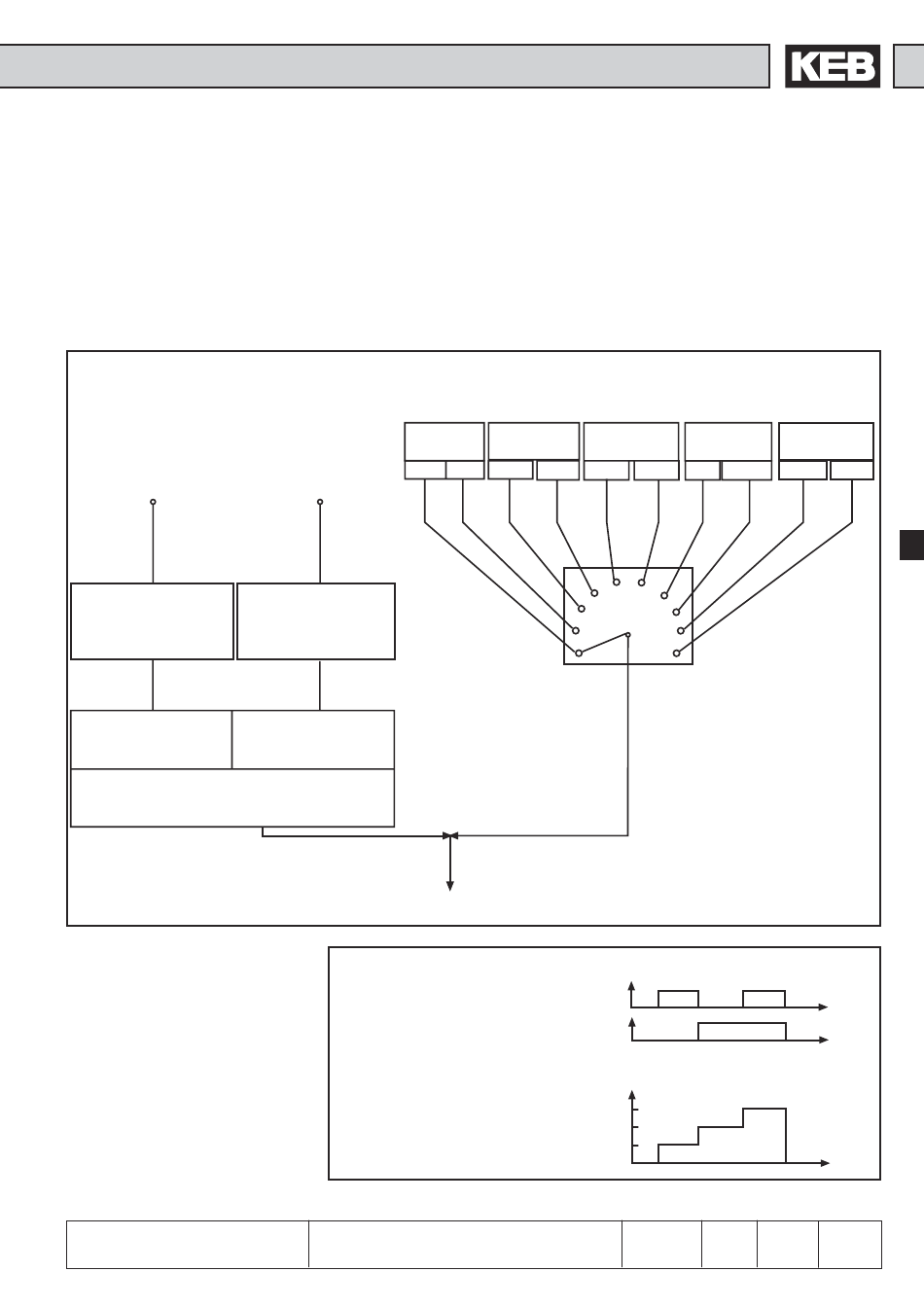

Fig. 6.4.4 Fixed frequencies
Input
Fixed frequency 1
oP.19 Input selection
Fixed frequency 1
0...4095
(according to table)
Fixed frequency 1
oP.21: -400...400 Hz
Fixed frequency 3
oP.23: -400...400 Hz
Selection of fixed frequencies
© KEB Antriebstechnik, 2002
All rights reserved
The KEB COMBIVERT supports up to 3 fixed frequencies for each parameter set,
which can be selected via two digital inputs. With oP.19 and oP.20 the inputs required
for the selection are defined (also see „Digital inputs" Chapt. 6.3.11). The rotation
direction source for fixed frequency mode is defined with oP.18. The adjustment is
independent of oP.1 and is valid exclusively for the fixed frequencies. The adjustment
of a fixed frequency has priority over the „normal" setpoint adjustment.
Input
0-lim. abs. 0-lim. abs.
Fixed frequency 2
oP.20 Input selection
Fixed frequency2
0...4095
(according to table)
Fixed frequency 2
oP.22: -400...400 Hz
Setpoint limits
Fig. 6.4.4.a Selection of fixed frequencies
Name: Basis
KEB COMBIVERT F5-G / B
Functional Description
Terminal strip Terminal strip
Digital
For / Rev Run / Stop
oP.2
0-lim.
3
2
1
0
Input fixed frequency 1
Input fixed frequency 2
Fixed frequencies
f1...f3
Setpoint-
dependent
abs. LS no LS
4 5
6
7
8
9
oP. 18
Fixed value
rotation direction source
Setpoint
f3
f2
f1
