KEB COMBIVERT F5 BASIC Applications Manual page 249

Encoder Interface
6.10 Encoder Inter-
face
(not for B-housing)

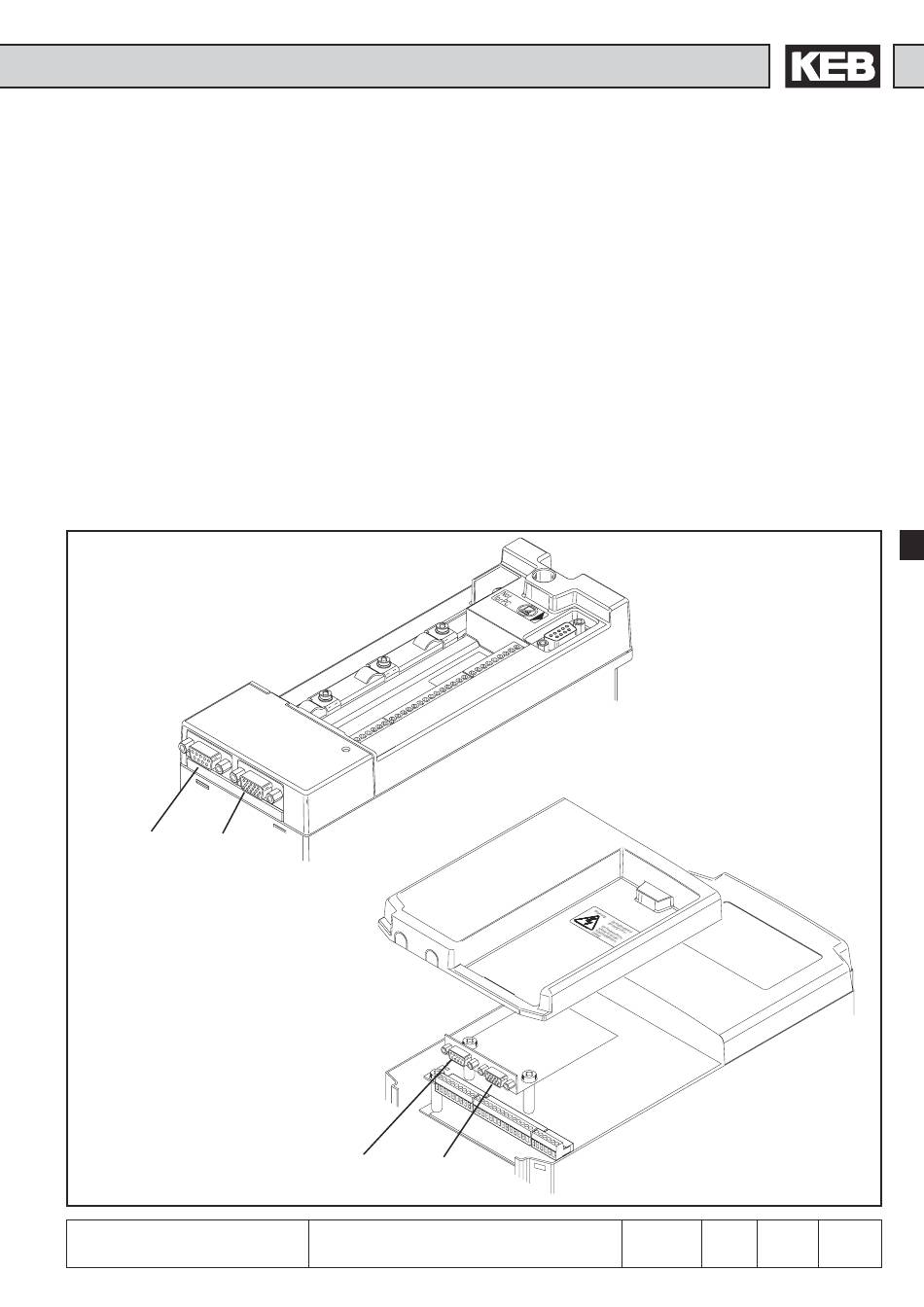

6.10.1 Designs
6.10.1 Encoder interfaces
X3A
X3B
© KEB Antriebstechnik, 2002
All rights reserved
The KEB COMBIVERT F5 supports two from each other separated encoder channels.
Each encoder channel can support following interface dependent on the available
hardware:
Encoder channel 1 (X3A)
• is a 15-pole incremental encoder input for rectangular signals
Encoder channel 2 (X3B) can support following interfaces
• 9-pole incremental encoder input for rectangular singal
• Incremental encoder output
• Incremental encoder In-/Output
Further Interfaces (describes in separate manuals)
• Synchronous serial interface (SSI)
• Tachometer input
• Initiator input
• Hiperface
X3A
X3B
Name: Basis
KEB COMBIVERT F5
Functional Description
Date
28.01.02
Chapter Section Page
6 10 3
6
