COMBIVERT F5
ESCALATOR DRIVE
Application Manual

Advertisement

Table of Contents
loading

Related Manuals for KEB COMBIVERT F5

Summary of Contents for KEB COMBIVERT F5

  • Page 1 COMBIVERT F5 ESCALATOR DRIVE Application Manual...

  • Page 2: Table Of Contents

    9. Operational Problems..........................16 10. Notes...............................18 11. CP Parameter List..........................19 For information regarding power ratings, fusing, certi cations, etc., please reference the F5 power stage manual available from KEB America. Visit our website at www.keb.de or our blog at www.keb- blog.com...

  • Page 3: Startup Procedure

    1. Startup Procedure Select Desired Control Mode Open Loop, V/Hz ASCL Closed Loop Enter Motor Data Perform Motor Learn Set Motor Overload Protection Set Speeds, Acceleration and Deceleration Times Set Encoder PPR and Rotation Set Motor Rated Frequency Direction Adjust Speeds, Acceleration, and Deceleration Times Adjust Speed Control Gains Adjust Torque Boost Startup Complete!

  • Page 4: Keypad Overview

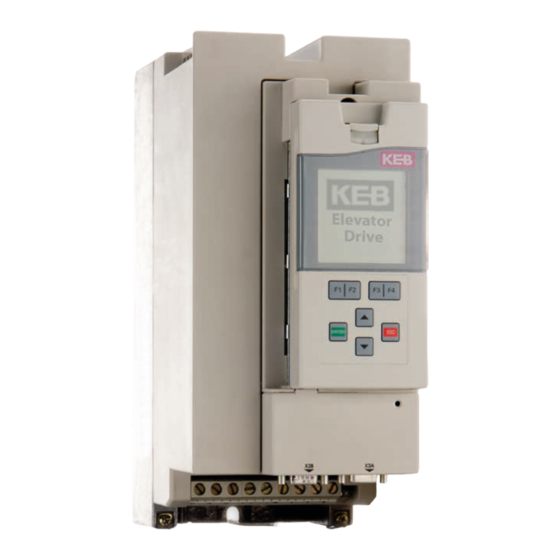

    Escalator 2. Keypad Overview The KEB Escalator drive uses an operator keypad which provides a user interface. Release Tab Graphic Display Hotkeys F1 F2 F3 F4 Enter Enter Escape Down SD Card Slot Button Name Function Increment/Decrement through menu or...

  • Page 5: Control Circuit And Input/Output Logic Tables

    3. Control Circuit and Input/Output Logic Tables Displayed below are the X2A terminal strip connections, input/output logic tables, typical run values and output conditions and functions. The table below shows the Input Status, CP25 numerical value. It is the sum of the individual input weightings. For example, Forward High Speed = 2069 = ST (1) + F (4) + I1 (16) + ID (2048).

  • Page 6: Ascl Control Startup Steps

    Escalator 4. ASCL Control Startup Steps Asynchronous Sensorless Closed Loop (ASCL) uses a control alogrithm to automatically measure and model the motor characteristics without encoder feedback. ASCL offers excellent control in both stable and dynamic motor operation, accurate speed control, and high speed stability without the additional cost and complexity of an encoder.

  • Page 7: Open Loop, V/Hz Startup Steps

    5. Open Loop, V/Hz Startup Steps Open Loop, volts per hertz (V/Hz) control does not use feedback from an encoder for operation. Instead, it relies on a volts per hertz ratio that remains constant over a set speed (frequency) range. Open Loop, V/Hz allows for quick and easy setup and does not require motor data or an encoder to operate.

  • Page 8: Closed Loop Control Startup Steps

    Escalator 6. Closed Loop Control Startup Steps Closed Loop Control uses an encoder to provide feedback for precise motor control. Speed measurements are fed back to the drive real time and constantly compared against commanded values to be adjusted accordingly. Follow the steps below for Closed Loop motor control startup. Set CP02 = 2 for Closed Loop Control.
  • Page 9 6. Closed Loop Control Startup Steps (Continued) 9. Adjust as necessary - CP21 Encoder phasing and direction.*** See table below for phasing information. Setting: Description: Not Inverted No changes are made to A/B or direction of rotation A-B Swapped Encoder channels A and B are swapped internally Inverted Rotation The direction of motor rotation is reversed A-B Swap &...

  • Page 10: Speed Pro Le

    Escalator 7. Speed Pro le and Timing Chart Accel Jerk Decel Jerk Start Jerk Stop Jerk Enable Speed Direction Current Check Acceleration Time CP16 ACTUAL Acceleration Time Deceleration Time CP17 ACTUAL Deceleration Time At Speed Drive On The acceleration and deceleration times (CP16 and CP17) only take into account one jerk time. Therefore, the ACTUAL accel/decel times must add an additional jerk time and are subject to a drive reference speed scalar.

  • Page 11: Drive Faults

    8. Drive Faults Faults and error codes are listed alphabetically. Additional troubleshooting of Operational Problems are listed in Section 9. The last drive fault can be found in CP36. Fault history can be viewed in the Fault Log Screen, accessible through the Menu. After 50 errors the fault log will be written down to the memory of the keypad.
  • Page 12 If the heatsink temperature read by the drive for the diagnostics seems unreasonably high or the heatsink is cool to the touch, then the heatsink temperature sensor may be faulty and would need to be repaired by KEB.
  • Page 13 Error/Message Alt. Description Cause/Solution/Troubleshoot (NUM) Error Motor EOH2 Electronic Current can be monitored in CP30. Possible causes: Protection (30) Motor Overload Incorrect motor data protection was Incorrect encoder data (closed loop only) activated Torque boost too high or too low High mechanical load/issues (friction) Check: CP12 Electronic Motor Overload Protection Current...
  • Page 14 Escalator Error/Message Alt. Description Cause/Solution/Troubleshoot (NUM) Error Over The DC bus The DC bus voltage can be monitored in CP32. Voltage voltage rises above the When using a braking resistor to dissipate regenerated permissible energy from overhauling or deceleration, the braking value either resistor should come on at the following levels: during motor...
  • Page 15 Error/Message Alt. Description Cause/Solution/Troubleshoot (NUM) Error Over Measure DC bus directly and verify against DC bus Voltage voltage read from the CP32. The DC bus should be (continued) approximately 1.41xAC Input phase to phase If there is an issue due to high frequency noise: Verify proper mains grounding.

  • Page 16: Operational Problems

    Escalator 9. Operational Problems Troubleshooting Operational Problems and potential solutions. Problem Cause/Solution/Troubleshoot Motor Does Not Move Check the Motor Current. Refer to Motor Draws High Current for additional troubleshooting. Make sure the brake is picking and/or not dragging. Make sure speeds are set correctly in CP13, CP14, and CP15. Check the Inverter Status, CP01, to determine whether there is indication a run command is being given (i.e.
  • Page 17 Problem Cause/Solution/Troubleshoot Motor does not go the correct Check whether the Command Speed and Encoder Speed match speed or cannot reach high (CP27 command speed and CP28 Encoder 1 speed) . speed. Check Input Status, CP25, to determine whether the correct inputs are being signaled for a run command.

  • Page 18: Notes

    Escalator 10. Notes:...

  • Page 19: Cp Parameter List

    11. CP Parameter List Cp.xx Name Units Default Value Description Password Inverter Status Read Only Control Setting 0 = ASCL, 1 = Open Loop V/Hz, 2 = Closed Loop DASM Rated Power 18.5 kW Motor Nameplate DASM Rated Speed 1170 rpm Motor Nameplate DASM Rated Current 35.0 A...
