KEB COMBIVERT F5 BASIC Applications Manual page 241

Special Functions
6.9.8 Diameter
Correction
(not at F5-B)

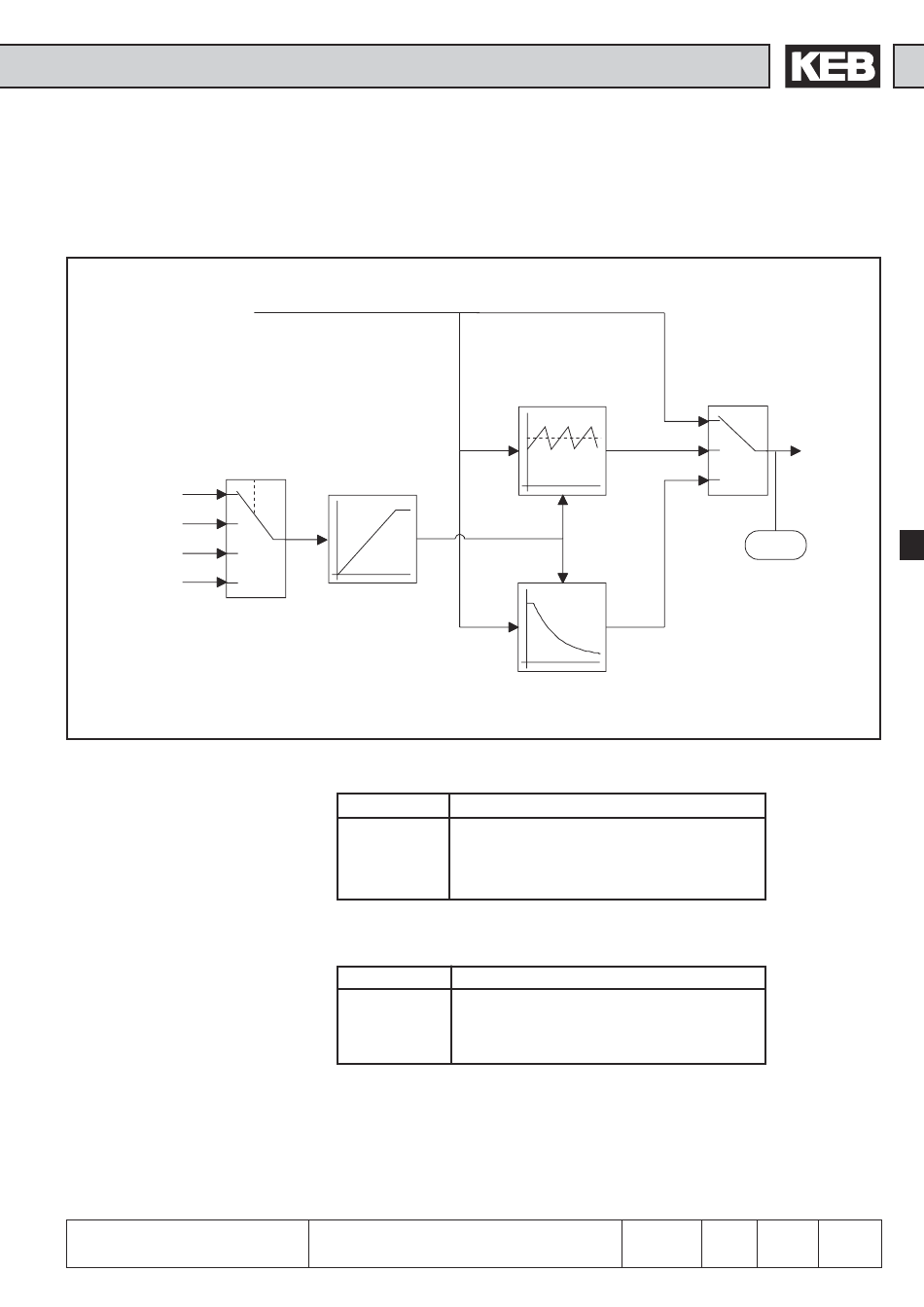

6.9.8 Additional function: Diameter correction
Ramp output value
oP.44
Bit 4...7
0
AN1 (ru.28)
1
AN2 (ru.30)
2
AN3 (ru.32)
3
digital (oP.45)
Additional function / Mode
(oP.44 Bit 0...3)
Additional function / Source
(oP.44 Bit 4...7)
Additonal function
digital presetting (oP.45)
© KEB Antriebstechnik, 2002
All rights reserved
Through the use of the diameter correction the tool path feedrate of a winding product
can be kept constant at changing diameter of the reel bale.
oP.46
Different functions can be activated with oP.44 Bit 0...3. The value is to be added to
Bit 4...7.
oP.44 Bit 0...3 Function
0 no external function activated
1 Wobbel generator (see Chapter 6.9.7)
2 Diameter correction activated
3...15 reserved
The input source for the functions is determined with oP.44 Bit 4...7. The value is to be
added to Bit 0...3.
oP.44 Bit 4...7 Function
0 Analog input AN1
16 Analog input AN2
32 Analog input AN3
48 Digital presetting with oP.45
If the value „50" (diameter correction with digital specification) is adjusted in oP.44,
the diameter signal can be preset with oP.45 within the range of 0...100 %.
Name: Basis
KEB COMBIVERT F5
Functional Description
Wobbel generator
oP.47, 48
Amplitude
Diameter signal
oP.49
Diameter correction
Date
18.04.02
oP.44
Bit 0...3
0
1
Setpoint
value
2
ru.2
Chapter Section Page
6 9 29
6
