Hardware

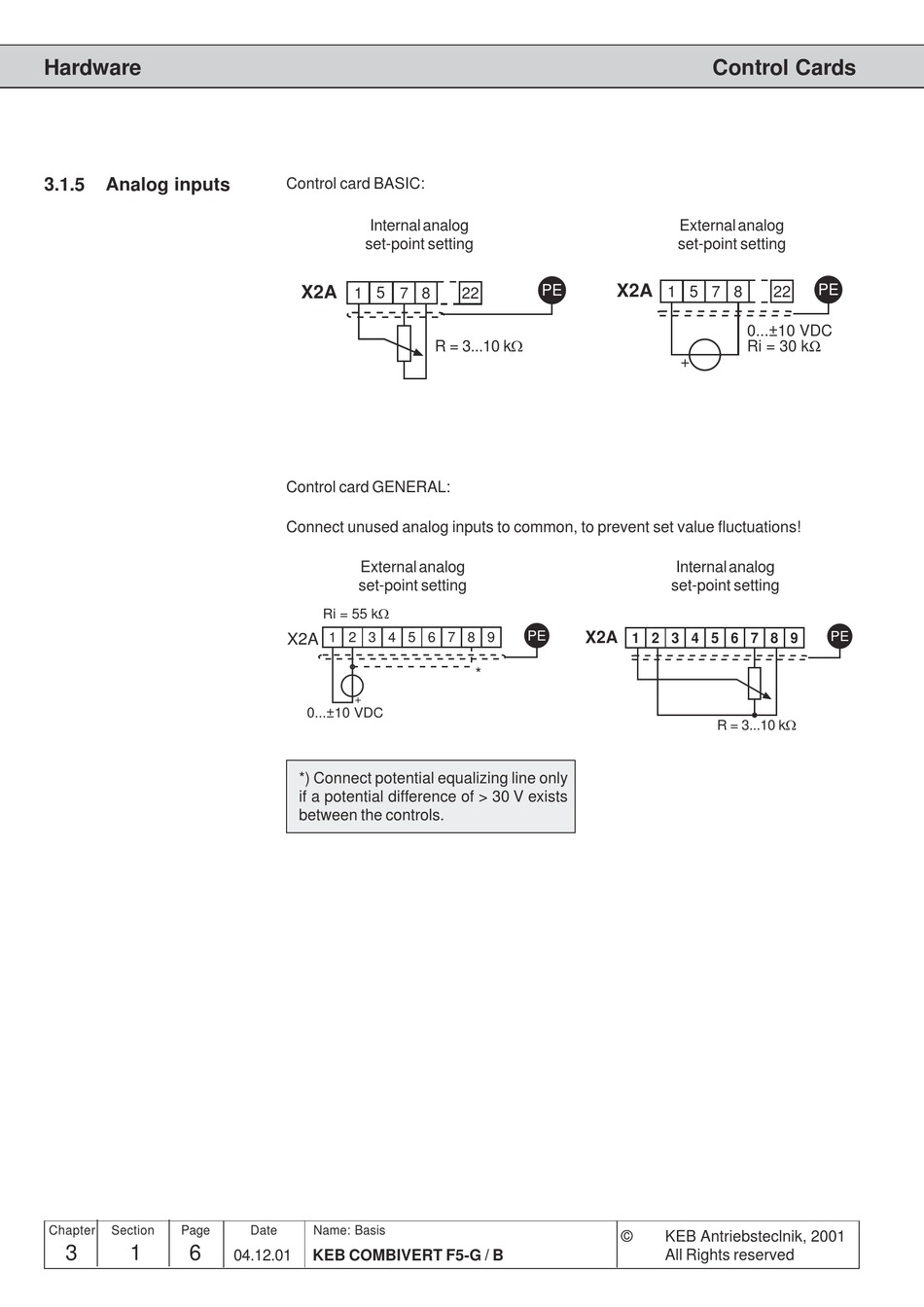

3.1.5 Analog inputs
Chapter Section Page
3 1 6
Control card BASIC:
Internal analog
set-point setting
X2A
1 5 7 8
Control card GENERAL:
Connect unused analog inputs to common, to prevent set value fluctuations!
External analog
set-point setting
Ri = 55 kW
X2A 1 2 3 4 5 6 7 8 9
+
0...±10 VDC
*) Connect potential equalizing line only
if a potential difference of > 30 V exists
between the controls.
Date Name: Basis
04.12.01 KEB COMBIVERT F5-G / B
PE
22
R = 3...10 kW
PE X2A
*
Control Cards
External analog
set-point setting
X2A
1 5 7 8 22
0...±10 VDC
Ri = 30 kΩ
+
Internal analog
set-point setting
1 2 3 4 5 6 7 8 9
R = 3...10 kW
© KEB Antriebsteclnik, 2001
All Rights reserved
PE
PE
