4-3-9

Color Flow Mode Checks

NOTE: Color Flow Mode only support by LOGIQ C5/C5 PRO
4-3-9-1 Preparations
1.) Connect one of the probes listed in
to the System probe connector.
2.) Turn ON the scanner (if it isn't turned on already).
Primary Menu
Frequency
Spatial Filter
Angle Steer
Packet Size
PRF
Map
Threshold
Invert
Wall Filter
Virtual Convex
CF Mode
Gain
9
EVISION

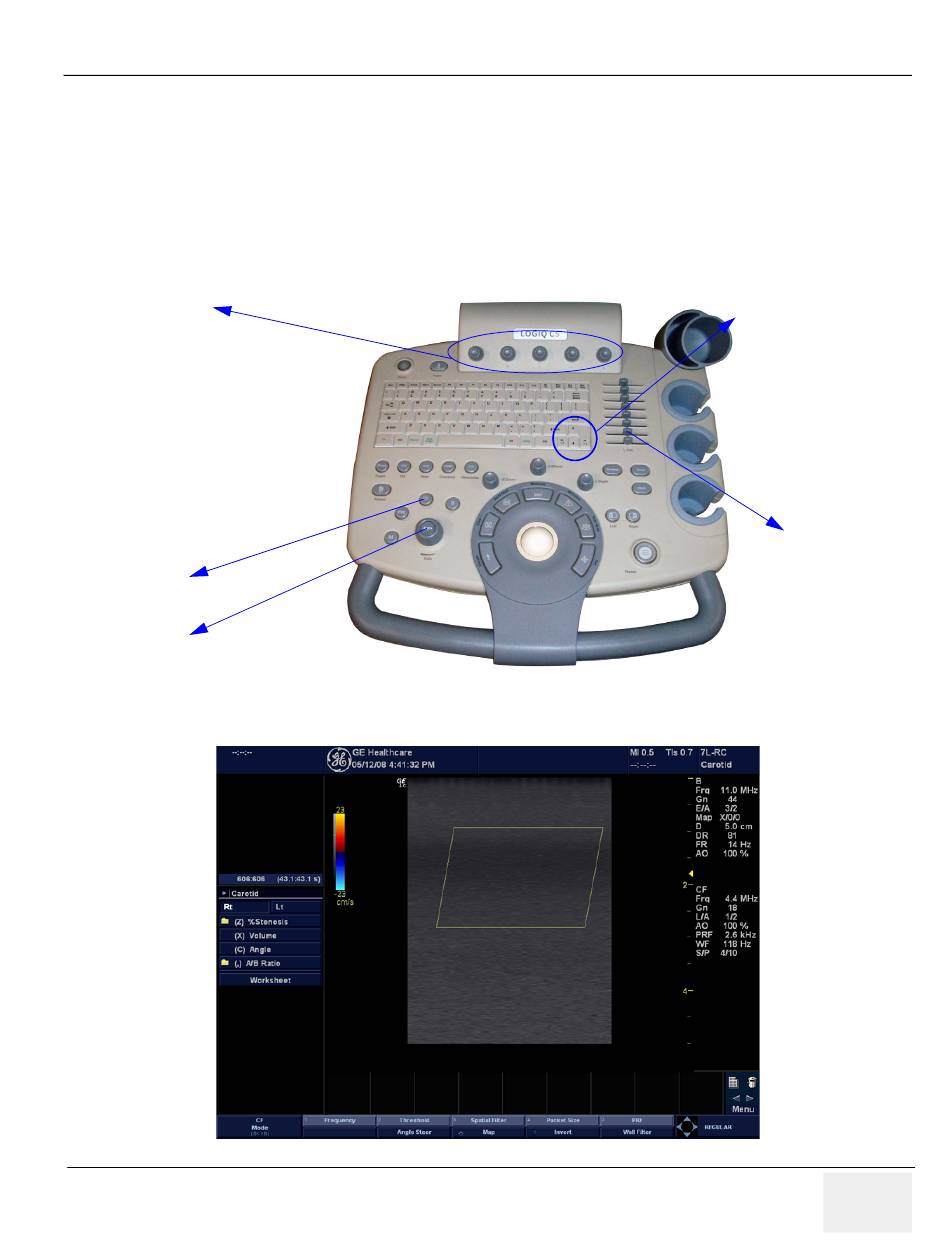

Figure 4-14 Controls available in Color Flow Mode
Figure 4-15 CFM Mode Screen Picture Example
Chapter 4 Functional Checks
LOGIQ C S
3-6-6 "Available Probes" on page
B S M
ERIES ASIC ERVICE ANUAL
3-18, in Chapter 3 Installation
Secondary Menu
Baseline
Line Density
Flash Suppression
Transparency Map
Focus Position
Frame Average
Power Output
TGC
