Operation Software
BZS-7020
User's Guide

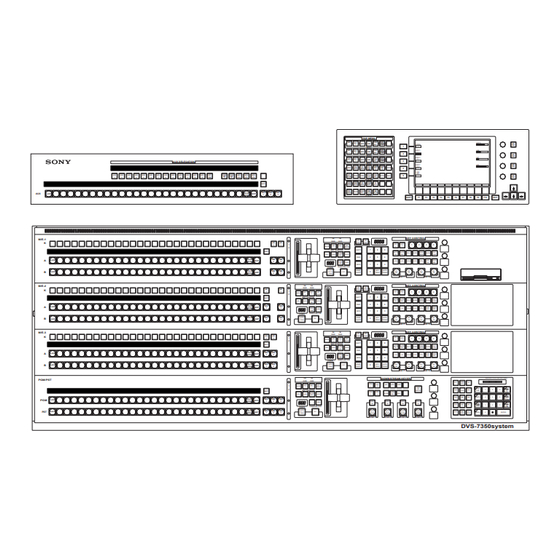

Digital Video Switcher System
DVS-7300/7350 System
2nd Edition [English]
Software Version 3.30 and Later

Advertisement

Table of Contents

   Also See for Sony DVS-7300 System

   Related Manuals for Sony DVS-7300 System

   Summary of Contents for Sony DVS-7300 System

  • Page 1 Operation Software BZS-7020 User’s Guide Digital Video Switcher System DVS-7300/7350 System 2nd Edition [English] Software Version 3.30 and Later...
  • Page 2 NOTICE TO USERS © 1995 Sony Corporation. All rights reserved. This manual or the software described herein, in whole or in part, may not be reproduced, translated or reduced to any machine readable form without prior written approval from Sony Corporation.
  • Page 3: Table Of Contents

    Table of Contents Introduction ................1-2 Chapter 1 Features of the DVS-7300/7350 Switcher System ....1-4 Overview Overall Organization ..............2-2 Chapter 2 Mix/Effects Banks ..............2-7 Location and Signal Selection Section ............. 2-8 Function of Transition Control Section..........2-11 Parts FlexiPad™...
  • Page 4 Table of Contents Before Beginning Image Creation ........... 4-3 Chapter 4 Video Signal Flow .............. 4-3 Basic Signal Selection ..............4-6 Operations for Using the Mix/Effects Banks ..........4-10 Image Creation Backgrounds and Keys ............. 4-10 Basic Operating Procedure ..........4-11 Selecting the Next Transition ...........
  • Page 5 Color Backgrounds ............... 4-137 Chapter 4 Overview ................ 4-137 Basic Color Background Setting Operations ......4-138 Operations for Status Display................ 4-140 Image Creation Basic Status Display Operation ........4-140 (Continued) Overview ..................5-2 Chapter 5 Basic Chroma Key Operations ..........5-3 Chroma Keying Preparations ................
  • Page 6 Table of Contents Overview ..................7-2 Chapter 7 Snapshots and Registers ............. 7-3 Snapshots Snapshot Operations ..............7-6 Snapshot Operations Using the Numeric Keypad Section ..............7-6 M/E Snapshot Operations Using the FlexiPad ....7-10 DME Snapshot Operations ..........7-14 Overview ..................
  • Page 7 Overview ..................9-2 Chapter 9 Functions Relating to Registers .......... 9-3 Registers Basic Register Operations ............9-5 Manipulating Snapshot and Key Frame Effect Registers ... 9-6 Setting Snapshot Attributes ..........9-13 Selecting the Sub-Registers in the “USER” Group ..9-15 Channel-to-Channel Copying of DME Registers .....
  • Page 8 Table of Contents Overview .................. 14-2 Chapter 14 Operations ................14-3 DIAGNOSIS Analog Output Board Adjustments ........14-3 Menu Analog Input Board Adjustments ........14-6 Operations Checking the Board Configuration ........14-7 Displaying Error Messages ..........14-8 Wipe Patterns ................A-2 Appendixes Standard Wipes ..............
  • Page 9 Chapter 1 Overview...
  • Page 10 Chapter 1 Overview Introduction ....................1-2 Features of the DVS-7300/7350 Switcher System ........1-4...
  • Page 11: Introduction

    Introduction This is the User's Guide for the BZS-7020 Operation Software for a DVS- 7300/7350 switcher system. It mainly describes the operation of a DVS-7300 switcher system using the BKDS-7011/7012 control panel or a DVS-7350 switcher system using the BKDS-7021/7022/7023 control panel. DVS-7300/7350 is a system name.
  • Page 12 3.5-M/E system • Switcher system with a DMK-7000 Digital Multi Keyer connected Switcher system using a 3-M/E panel (BKDS-7011/7012) as the DVS-7300 system switcher control panel or 3-M/E system System equipped with an option board and with system settings to...
  • Page 13: Features Of The Dvs-7300/7350 Switcher System

    DMK-7000 Digital Multi Keyer connected to the system. In a DVS-7300 system, by connecting a DMK-7000, and equipping the control panel with a BKDS-7032 DSK Control Panel Unit, you can again control the insertion of a maximum of four downstream keys.
  • Page 14 Convenient interfaces with external equipment Using the DVS-7000 along with the DVS-V6464B Sony Routing Switcher, you can make up a large-scale switcher system. Connecting the BVE-9100 Editing Control Unit to your system will allow you to carry out such advanced editing operations as ISR (System Status Reporting) and EDL (Edit Decision List ) management.
  • Page 15 Chapter 2 Location and Function of Parts...
  • Page 16 Chapter 2 Location and Function of Parts Overall Organization ................. 2-2 Mix/Effects Banks ..................2-7 Signal Selection Section ..............2-8 Transition Control Section ..............2-11 FlexiPad™ ..................2-14 Key Control Section ................2-16 Program/Preset Bank ................2-20 Signal Selection Section ..............2-21 Transition Control Section ..............
  • Page 17 Overall Organization Overall Organization The control panel is divided into several blocks of buttons and other controls, as shown in the illustrations on this and the following pages. See the page numbers indicated in parenthesis for more details. Menu control section and floppy disk drive (page 2-31) M/E-1 bank (page 2-7) Auxiliary bus bank (page 2-27)
  • Page 18 Menu control section and floppy disk drive (page 2-31) M/E-1 bank (page 2-7) Auxiliary bus bank (page 2-27) M/E-1 M/E-2 M/E-3 Numeric keypad section option fitting panel 3 (page 2-29) PGM/PST bank (page 2-20) M/E-3 bank (page 2-7) Option fitting panel 2 M/E-2 bank (page 2-7) Option fitting panel 1 a) It is possible to fit the numeric keypad section in any of the three option fitting panels.
  • Page 19: Overall Organization

    Overall Organization Menu control section and floppy disk drive (page 2-31) M/E-1 bank (page 2-7) Auxiliary bus bank (page 2-27) M/E-1 M/E-2 M/E-3 Numeric keypad section option fitting panel 3 (page 2-29) PGM/PST bank (page 2-20) M/E-3 bank (page 2-7) Option fitting panel 2 M/E-2 bank (page 2-7) Option fitting panel 1...
  • Page 20 Menu control section and floppy disk drive (page 2-31) M/E-1 bank (page 2-7) Auxiliary bus bank (page 2-27) M/E-1 M/E-2 M/E-3 Downstream keyer control section / option fitting panel 3 (page 2-24) Numeric keypad section / option M/E-3 bank (page 2-7) fitting panel 2 (page 2-29) M/E-2 bank (page 2-7)
  • Page 21 Overall Organization Menu control section and floppy disk drive (page 2-31) M/E-1 bank (page 2-7) Auxiliary bus bank (page 2-27) M/E-1 M/E-2 M/E-3 Downstream keyer control section / option fitting panel 3 (page 2-24) Numeric keypad section / option M/E-3 bank (page 2-7) fitting panel 2 (page 2-29) M/E-2 bank (page 2-7)
  • Page 22: Mix/effects Banks

    Mix/Effects Banks The three mix/effects banks (M/E-1, M/E- These three banks are functionally and 2, and M/E-3) provide separate mix/effects structurally similar; the following functionality. illustration shows the M/E-1 bank by way of example. BKDS-7012/7021/7022 Signal selection section Transition control section (page 2-8) (page 2-11) M/E-1...
  • Page 23: Signal Selection Section

    Mix/Effects Banks Signal Selection Section This is used for selecting signals on this M/E bank. BKDS-7012/7021/7022 1 Cross-point buttons M/E-1 COLOR BLACK SHIFT BKGD COLOR BLACK SHIFT BKGD 2 Bus tally indicators BKDS-7011/7023 1 Cross-point buttons M/E-1 SHIFT COLOR BLACK SHIFT BKGD COLOR...
  • Page 24 1 Cross-point buttons K1 (key 1) and K2 (key 2) rows (BKDS- 7012/7021/7022), K (key) row (BKDS- These buttons select the signals used for video making on this M/E bank. 7011/7023): Each row of buttons corresponds to one or These buttons select the key signals to more signal buses within the switcher.
  • Page 25 Mix/Effects Banks 2 Bus tally indicators Visual indications on cross-point buttons These light when the signal from the The currently selected button in a row (i.e. corresponding bus (row of cross-point the last button pressed) lights amber or buttons) forms part of the output from this red.
  • Page 26: Transition Control Section

    Transition Control Section The buttons in this section control transitions on the output from this M/E bank. 1 Key 1 ON/OVER indicator 2 Key 2 ON/OVER indicator OVER OVER 3 Next transition selection buttons BKGD PRIOR NEXT TRANSITION SUPER 4 Transition type selection buttons WIPE 5 Auto transition control section TRANSITION TYPE...
  • Page 27 Mix/Effects Banks 3 Next transition selection buttons SUPER MIX: The old video is reduced from 100% to 0% over the second half These buttons determine what the next transition will apply to. of the transition, and the new video BKGD: Next transition is a background level is increased from 0% to 100% transition.
  • Page 28 5 Auto transition control section 6 Transition indicator Duration display: This shows the This comprises 30 LEDs which show the number of frames in the transition current status of the transition. duration. You can set the duration 7 Fader lever using the numeric keypad.
  • Page 29: Flexipad

    Mix/Effects Banks FlexiPad™ The FlexiPad™ is used for saving and recalling snapshots of this M/E bank. 1 KEY DSBL button 2 XPT DSBL button 7 Numeric display DSBL DSBL 3 SHIFT button SHIFT 4 DME button 8 Numeric keys 5 WIPE button WIPE AUTO SNAP...
  • Page 30 3 SHIFT button 9 AUTO TRANS (transition) button Use this button in combination with the Press this button, turning it on, to save an numeric keypad in the FlexiPad when M/E snapshot with the “AUTO saving and recalling snapshots. TRANSITION” attribute. Recalling a snapshot saved with this attribute will 4 DME button immediately start an auto transition on this...
  • Page 31: Key Control Section

    Mix/Effects Banks Key Control Section Each M/E bank has two keyers (1 and 2); the buttons in this section select the keyer and then control the key operations. 6 Key snapshot buttons 7 Edge type selection buttons KEY CONTROL 1 Keyer delegation buttons 2 Key fill and key source MATTE...
  • Page 32 2 Key fill and key source selection 3 Key type selection buttons buttons LUM (luminance): A hole is cut at a MATTE FILL: Pressing this button, certain level of the Y (luminance) turning it on, selects a color matte signal of the key source, and the key produced by the switcher as the key fill signal inserted.
  • Page 33 Mix/Effects Banks 5 Key insert/remove buttons CHR (chroma key): A particular hue (usually blue) in the key source signal Use these buttons to insert and remove is used to determine the hole to be cut keys 1 and 2. in the background. KEY ON: These buttons You can use the following signals as (instantaneously) cut the respective...
  • Page 34 6 Key snapshot buttons 8 Key parameter setting knobs and displays Use these for saving and recalling separate snapshots for the keyers. Turning the knobs allows you to change For example, to save the key 1 settings, various key parameters. The display with the KEY 1 button of the keyer below each knob shows the initial letter of delegation buttons lit, hold down the...
  • Page 35: Program/preset Bank

    Program/Preset Bank The program/preset (PGM/PST) bank panels) are equipped with this bank, and it provides the final program output from the can only be used when the switcher system switcher. Only the BKDS-7021, BKDS- has a DMK-7000 Digital Multi Keyer 7022 and BKDS-7023 models (3.5-M/E connected.
  • Page 36: Signal Selection Section

    Signal Selection Section SHIFT COLOR BLACK SHIFT BKGD COLOR BLACK SHIFT BKGD 1 Cross-point buttons 2 Bus tally indicators 3 Source name display Signal selection section 1 Cross-point buttons 2 Bus tally indicators These buttons select the signals used for These have the same function as on the video making on the PGM/PST bank.
  • Page 37: Transition Control Section

    Program/Preset Bank Transition Control Section 6 Programmable button 1 Next transition selection BKGD buttons NEXT TRANSITION 2 Transition type selection WIPE buttons 3 Auto transition control TRANSITION TYPE FRAMES section AUTO TRANS 4 Transition indicator 5 Fader lever Transition control section 1 Next transition selection buttons You can press more than one of these buttons simultaneously, and specify...
  • Page 38 2 Transition type selection buttons 3 Auto transition control section Press one of these buttons, turning it on, to This is the same as the auto transition determine the type of the next transition. control section on an M/E bank. If you have specified different transition 4 Transition indicator types on this bank, all of these buttons...
  • Page 39: Downstream Keyer Control Section

    Program/Preset Bank Downstream Keyer Control Section The optional DMK-7000 Digital Multi On a BKDS-7011/7012 model with no Keyer can incorporate a maximum of four PGM/PST bank, fitting the optional keyers. The buttons in the downstream BKDS-7032 DSK control panel unit keyer control section select the keyer and provides the same functions as the then control the key operations.
  • Page 40 1 Keyer delegation buttons 4 Transition type selection buttons Press one of these buttons, turning it on, to Press one of these buttons, turning it on, to delegate the buttons in the downstream determine the type of the next transition. keyer control section to the corresponding MIX: This is the same function as a mix keyer (DSK 1 to DSK 4).
  • Page 41 Program/Preset Bank 5 Wipe direction selection buttons 7 Key parameter setting knobs and displays When you have selected a wipe or DME wipe as the transition type, press one of These have the same basic function as on these buttons, turning it on, to select the the M/E banks (see page 2-19), but the wipe direction.
  • Page 42: Auxiliary Bus Bank

    Auxiliary Bus Bank The auxiliary bus bank controls the selection of signals output from the unit, and of signals used for video masking. 5 SHIFT button 3 Delegation buttons 6 Programmable 4 Selected signal display button AUX DELEGATION FRAME FRAME FDIT M/E1 M/E2...
  • Page 43 Auxiliary Bus Bank 3 Delegation buttons 4 Selected signal display Press one of these buttons, turning it on, to This displays the identifier of the source delegate the cross-point buttons to the signal currently selected on each bus. corresponding bus. 5 SHIFT button AUX 1 to AUX 13 buttons: These correspond to auxiliary buses 1 to 13.
  • Page 44: Numeric Keypad Section

    Numeric Keypad Section The buttons in this section are used for various numerical settings such as transition durations, and for storing and recalling snapshots and other values. 1 EFF button 2 SNAPSHOT button 3 Sub-register selection section 4 Display SNAP SHOT TRANS USER...
  • Page 45 Numeric Keypad Section USER: This button selects the set of sub- TRIM/XPT DSBL (cross-point disable): registers corresponding to the frame Press this button instead of the memory, the auxiliary buses, and the ENTER button if you wish to trim the video processing function settings.
  • Page 46: Menu Control Section And Floppy Disk Drive

    Menu Control Section and Floppy Disk Drive The menu control section provides a variety of functions through the menu screen. 1 Top menu selection buttons 2 Item selection buttons 3 Menu screen 4 Parameter setting section TOP MENU BKGD WIPE TRANS M/E-1 BKGD...
  • Page 47 Menu Control Section and Floppy Disk Drive 1 Top menu selection buttons 6 EXIT button Each of these buttons accesses a top menu. Press this button to exit from the currently displayed menu to its parent menu, or the For details of the menu names and previously displayed menu.
  • Page 48: Key Frame Control Section (bkds-7030 Key Frame Control Panel Unit - Option)

    Key Frame Control Section (BKDS-7030 Key Frame Control Panel Unit – Option) STOP EDIT NEXT ENBL COPY PASTE DELAY FROM WIND PREV NEXT SHIFT 1 Key frame editing section 2 Effect execution section 3 Effect progress indicator 4 Fader lever 1 Key frame editing section KF DUR (key frame duration) button: EDIT ENBL (enable) button: Pressing...
  • Page 49 Key Frame Control Section (BKDS-7030 Key Frame Control Panel Unit – Option) PASTE button: Pressing this button INS (insert) button: While the effect is inserts the key frame from the paste stopped, this inserts a new key frame. buffer into the current position where If the effect is stopped at a key frame, the effect is stopped.
  • Page 50 2 Effect execution section STOP NEXT KF (key frame) button: When this button is lit, effect execution continues up to the next key frame. REV (reverse) button: When this button is lit, effect execution occurs in the reverse direction. REWIND button: This rewinds to the first key frame of the currently recalled effect.
  • Page 51: Dme Control Section (bkds-7031 Dme Control Panel Unit - Option)

    DME Control Section (BKDS-7031 DME Control Panel Unit – Option) MENU SRCE TRGT SKEW PERS SIZE AXIS ORTHG Trackball Z-ring VELO WORK BUFR HOLD BKDS-7031 DME Control Panel Unit Z-ring: Press the MENU button, turning Using the optional DME control panel, it on, to assign the Z-ring to knob 3 you can assign the action of menu operations, and carry out wipe pattern...
  • Page 52 ASP SKEW PERS, LOC SIZE, LOC Assigning the trackball and Z-ring permanently to the control knobs XYZ, AXIS LOC and ROT buttons With the trackball and Z-ring assigned When the MENU button is lit, these to the control knobs, press the MENU buttons have the following functions.
  • Page 53: Shot Box Control Section (bkds-7033 Memory Recall Control Panel Unit - Option)

    SHOT BOX Control Section (BKDS-7033 Memory Recall Control Panel Unit – Option) This section executes the function For more information, see the section preassigned using a setup menu. “Assigning functions to the UTILITY (UTILITY buttons) buttons (UTILITY menu)” (page 13-90). You can assign registers storing such data as snapshots and key frame effects to these buttons so that you can recall them by...
  • Page 54 Chapter 3 Basic Menu Operations...
  • Page 55: Menu Organization

    Chapter 3 Basic Menu Operations Menu Organization ................... 3-2 Basic Menu Operations ................3-6...
  • Page 56 Menu Organization Operations on the DVS-7300/7350 switcher system make frequent use of menu operations. This section describes the menus and their interrelationships. Overview All detailed settings for basic operations such as transitions, keys, or wipes, are made in menus. There are also menus for carrying out general system control, managing setting data, and initial setup.
  • Page 57 Menus accessed from a top menu button Group Button Menus Function See page M/E-1, KEY1, KEY2 M/E-1, -2, -3 Key 1 and key 2 settings for the M/E bank 4-47 M/E-2, KEY1 or KEY2 M/E-3 WIPE M/E-1, -2, -3 Wipe settings for the M/E bank 4-99 WIPE M/E-1, -2, -3...
  • Page 58 Menu Organization Menus accessed by pressing a button twice For certain buttons other than the top menu buttons, pressing twice in rapid succession directly recalls a related menu. The following table lists these buttons, together with the menus they recall. Items listed in parenthesis after the menu names are automatically selected when the menu is recalled.
  • Page 59 Menus accessed by pressing a button twice (Continued) Button location Buttons Menus See page Cross-point button Color M/E-1, M/E-2, M/E-3 BKGD/TRANS 4-138 in M/E-1, M/E-2, background (item 1: COLOR BKGD) M/E-3 or PGM/PST signal (M/E bank (3.5-M/E banks) panels) to which Color PGM/PST WIPE (item 5: COLOR BKGD) 4-139...
  • Page 60 Basic Menu Operations This section describes the basic menu operations, taking the M/E-1 KEY 1 menu as an example. Accessing the menu To access the M/E-1 KEY 1 menu, use either of the following operations. • In the M/E-1 group of the top menu buttons, press the KEY 1 button. •...
  • Page 61 Understanding the menu display The following are the principal components of the menu display. In the menu display, reverse video indicates that an item or function is currently selected (or set to “on”). Items: These are the items to which the menu settings apply. Depending on the item selected, the menu display and function key indications change.
  • Page 62 Basic Menu Operations To select a function Press the corresponding function key. In this manual, for example in the M/E-1 KEY 1 menu shown on page 3-6 pressing F3 to select the “DROP BORDER” function is indicated simply by “Press F3 (DROP BORDER)”. In the figure on page 3-6 there is a single row of function key indications, but in some menus two rows appear.
  • Page 63 Setting parameter values You can change a currently displayed parameter in either of the following ways. • Turn the one of the four control knobs corresponding to the parameter. • Press the KEY PAD (1 to 4) button corresponding to the parameter, then enter the new value using the numeric keypad section.
  • Page 64 Basic Menu Operations Returning a parameter value entered with the numeric keypad to its previous value After setting a parameter by entering a numeric value, you can undo this setting, using what is known as the “LAST X” function. To do this, press the LAST X button in the numeric keypad section.
  • Page 65 Text input In the procedure for assigning a name to a register (page 9-10), assigning a name to a file (pages 10-10), assigning a label to a floppy disk (page 10-10), or assigning a source name to an input signal (page 13-70), the character input screen shown below appears.
  • Page 66 Basic Menu Operations Press F9 (ENTER) or press the ENTER button in the numeric keypad section. This confirms the sequence of characters entered. 3-12 Chapter 3 Basic Menu Operations...
  • Page 67 Chapter 4 Basic Operations for Image Creation...
  • Page 68 Chapter 4 Basic Operations for Image Creation Before Beginning Image Creation ............4-3 Video Signal Flow ................4-3 Signal Selection ................... 4-6 Using the Mix/Effects Banks ..............4-10 Backgrounds and Keys ..............4-10 Basic Operating Procedure ..............4-11 Selecting the Next Transition ............4-14 Selecting the Transition Type ............
  • Page 69 Chapter 4 Basic Operations for Image Creation (Continued) DME Wipes .................... 4-120 Overview ..................4-120 Basic Operation for DME Wipes ............. 4-125 DME Wipe Settings ................. 4-127 Notes on Building a Key Frame Effect With User Programmable DME ............ 4-134 Color Backgrounds ................
  • Page 70: Before Beginning Image Creation

    Before Beginning Image Creation Before considering the operations of image creation proper, this section describes how the various video sources are combined to produce the final program output. For an explanation of the terms “3.5-M/E” and “3-M/E”, see page 1-2. Video Signal Flow The DVS-7300/7350 system has three mix/effects banks and, depending on the system, a program/preset bank and downstream keyer.
  • Page 71 Before Beginning Image Creation Examples of signal flow The following examples show how the outputs of the M/E banks can be fed to each other, in the two principal system types. For convenience it is assumed here that the signals are fed in the fixed order from M/E-1 to M/E-2 to M/E-3, but in fact any of these banks can feed any of the others.
  • Page 72 Example signal flow in a 3-M/E system The following diagram shows an example of the signal flow in a 3-M/E system, with the output from the M/E-3 bank set up to be the switcher program output. M/E-1 bank M/E-1 output video M/E-2 bank M/E-2 output...
  • Page 73: Signal Selection

    Before Beginning Image Creation Signal Selection Pressing a cross-point button selects a signal on the corresponding bus, but in some cases a single row of cross-point buttons is used for more than one bus. In this case it is first necessary to delegate the row of cross-point buttons to the required bus.
  • Page 74 Cross-point buttons and buses for the BKDS-7011/7023 Button row Banks Delegation operation Background A M/E-1, M/E-2, M/E-3 None required. Background B Key 1 and key 2 fill M/E-1, M/E-2, M/E-3 Press the KEY 1 or KEY 2 button in the corresponding key control section, turning it on.
  • Page 75 Before Beginning Image Creation Using the shift function The 29 cross-point buttons in each row are numbered 0 to 28. Normally the rightmost button is the shift button; the buttons to which signals are assigned are then numbered 0 to 27 in the unshifted state, and 30 to 57 in the shifted state.
  • Page 76 Reentry buttons To use the output of one M/E bank as a background input to another M/E bank, press the corresponding button (M/E-1, M/E-2, or M/E-3) at the right of the bank. For example, to use the output of the M/E-1 bank as background B on the M/E-2 bank, press the M/E-1 button in the B row of cross-point buttons in the M/E-2 bank.
  • Page 77: Using The Mix/effects Banks

    Using the Mix/Effects Banks This section describes some of the effects which you can create using mix/ effects banks. Backgrounds and Keys You can use each of the mix/effects banks to insert one or two keys into a background video image. To define a key requires two video signals, the key source, which specifies which part of the background is cut out, and the key fill, which supplies the different video to insert in the cutout.
  • Page 78: Basic Operating Procedure

    Key types For each of the M/E banks, you can use the following key types. See the page numbers indicated in parenthesis for more details. • Luminance key (page 4-39) • Linear key (page 4-40) • Clean key (page 4-40) •...
  • Page 79 Using the Mix/Effects Banks Prepare the new video. • Select a new background on the background B bus, using the cross- point buttons. • When inserting a key, select the key signals and make any other required settings in the key control section. For more details of key signal selection and other settings, see the section “Basic Operation for Key Settings Using a Menu”...
  • Page 80 Background and key transitions Key cut Suppose that in step 2 of the procedure above you pressed just the KEY 1 button, and then in step 6 pressed the CUT button. This cuts key 1 in or out, i.e. instantaneously, and amounts to a cut transition on the M/E bank. On the other hand, using the KEY ON button in the key control section, you can cut the key in (or out) independently of the transition on the M/E bank.
  • Page 81: Selecting The Next Transition

    Using the Mix/Effects Banks Selecting the Next Transition In a transition you can change between the two backgrounds, or insert or remove either of the keys, or carry out any of these operations simultaneously. The following figures illustrate some possible effects. Background transition A background transition switches from the currently selected background A (old video) to background B (new video).
  • Page 82 Key transitions Inserting or removing a single key This inserts or removes key 1 or key 2 in the current video. Key 1 or key 2 Inserting key Removing key Inserting and removing key 1 or key 2 Inserting or removing both keys simultaneously This inserts or removes both key 1 and key 2 in the current video.
  • Page 83 Using the Mix/Effects Banks Carrying out background and key transitions simultaneously You can switch any combination of the background and keys 1 and 2 simultaneously. The following example illustrates leaving key 1 unchanged, while changing both the background and key 2. Key 1 Key 1 Key 2...
  • Page 84: Selecting The Transition Type

    Selecting the Transition Type The most basic distinction is between an instantaneous transition, or cut, and the various types of gradual transition. The system provides the following types of gradual transition; to select one of these, press the corresponding button in the transition control section, turning it on.
  • Page 85 Using the Mix/Effects Banks Super Mix dissolve This is another variant dissolve, in which again the new video level is increased from 0% to 100% over the first half of the transition, and the old video is reduced from 100% to 0% over the second half. It is also possible to set the video levels at the mid-point of the transition to a value other than 100%.
  • Page 86: Setting A Transition Limit

    Setting a Transition Limit Normally the range of a transition corresponds to a complete switch from the old video to the new video. Alternatively, using the transition limit function, you can restrict the extent to which the transition is executed, so that in the state corresponding to a 100% movement of the fader lever, the transition is still incomplete.
  • Page 87: Super Mix Settings

    Using the Mix/Effects Banks Turn control knob 4 to set the transition limit. Knob Parameter Setting Trans Limit 0.00 to 100.00% • At the minimum limit setting (0%), moving the fader lever has no effect at all. • At the maximum limit setting (100%), the entire transition occurs as normal, but the background A and B buses do not flip-flop.
  • Page 88: Using The Program/preset Bank

    Using the Program/Preset Bank A 3.5-M/E system includes a program/preset (PGM/PST) bank, which provides control of the final program output, with background transitions and up to four downstream key insertions. You can control downstream key transitions either from the transition control section or from the downstream keyer control section, but this section concentrates on operations using the transition control section.
  • Page 89 Using the Program/Preset Bank Select whether the transition is a background or key transition with the next transition selection buttons in the transition control section. • For a background transition: press the BKGD button, turning it on. • To insert or remove a downstream key: press the corresponding one of the DSK 1, DSK 2, DSK 3, and DSK 4 buttons, turning it on.
  • Page 90 If you selected a wipe or DME wipe, make the necessary settings. For details of the settings, see the sections on the pages indicated in the following table. Wipe “PGM/PST Wipes and Downstream Keyer Wipes” (4-112) DME wipe “DME Wipe Settings” (4-127) Use the transition control section to execute the transition.
  • Page 91: Basic Downstream Key Operations

    Basic Downstream Key Operations Using a 3.5-M/E system or a 3-M/E system equipped with a downstream keyer, you can insert up to four keys into the final background output. The following table identifies the final background output on each of these systems.
  • Page 92 Types of key transition which can be carried out You can carry out any of the following types of key transition. • Cut • Dissolve (normal mix dissolve only) • Wipe • DME wipe (single mode only) • Fade-to-black All of these transitions except DME wipe and fade-to-black can be applied to any combination of the four keyers independently and simultaneously.
  • Page 93 Basic Downstream Key Operations Parallel configuration Each of the four downstream keys is inserted into a single background image to provide four different final outputs. Final output 1 DSK 1 Final output 2 DSK 2 Background video Final output 3 DSK 3 Final output 4 DSK 4...
  • Page 94 Dual cascade configuration Two downstream keys are inserted successively into each of two background images, giving two final output images. One key Background video 1 inserted Final output 1 DSK 1 DSK 2 One key inserted Final output 2 Background video 2 DSK 4 DSK 3 For more details of these configurations, refer to the Operation Manual...
  • Page 95: Basic Operating Procedure

    Basic Downstream Key Operations Basic Operating Procedure First delegate the buttons in the downstream keyer control section to the required keyer, then control the downstream key transition using the downstream keyer control section and associated menus. The following is the basic procedure for carrying out a downstream key transition.
  • Page 96 If you selected a wipe or DME wipe as the transition type, make the necessary settings. For details of the settings, see the sections on the pages indicated in the following table. Wipe “PGM/PST Wipes and Downstream Keyer Wipes” (4-112) DME wipe “DME Wipe Settings”...
  • Page 97 Basic Downstream Key Operations Fade-to-black You can carry out a fade-to-black on the output of a keyer for which you have selected “ENBL” (enabled) in the SETUP menu. To carry out a fade-to-black, press the FADE TO BLACK button in the downstream keyer control section.
  • Page 98: Executing A Transition

    Executing a Transition This section describes the transition execution modes, transition rate setting, and the procedure for executing a transition. Overview Transition execution modes There are two modes: the auto transition mode, carried out by pressing buttons, and the manual transition mode, using the fader levers. It is also possible to combine these two techniques.
  • Page 99: Setting The Transition Rate

    Executing a Transition Setting the Transition Rate You can set the rate of an auto transition, by specifying the duration as the number of frames required. Use the following procedure to set the transition rate before pressing the AUTO TRANS button to carry out an auto transition. To set the transition rate, first specify the bank or keyer for which you wish to carry out the setting, then enter the numeric value from the numeric keypad section.
  • Page 100 Specifying the keyer when using a KEY MIX button When using a KEY MIX button to carry out a key transition on an M/E bank keyer, to specify what the transition rate setting applies to, hold down the TRANS RATE button in the numeric keypad section, then press the keyer delegation button in the key control section of the corresponding M/E bank.
  • Page 101: Executing A Transition

    Executing a Transition Executing a Transition This section describes how to execute a transition on an M/E bank or the PGM/PST bank of a 3.5-M/E system. Note that for the PGM/PST bank, it is only possible to execute the transition using the transition control section.
  • Page 102 Fading a key in or out on an M/E bank using the KEY MIX button Press the corresponding KEY MIX button in the key control section. This begins the transition at the preset rate. During the fade in or fade out, when the key is inserted in the output from the M/E bank, the KEY ON button lights amber, and if it is present in the final program output, the KEY ON button lights red.
  • Page 103 Executing a Transition Switching from manual to auto transition control • If you press the CUT button, the transition completes instantaneously. • If you press the AUTO TRANS button while using the fader lever to control a transition, auto transition control starts from the transition state represented by the current fader lever position, and completes the transition at the set rate (taking a time proportional to the remaining transition).
  • Page 104 Bus fixed mode and bus flip-flop mode The default operating mode for the switcher is bus flip-flop mode, in which an M/E background transition always proceeds from background A to background B, and at the end of the transition the signal selections on the two background buses flip-flop.
  • Page 105 Executing a Transition Fader lever operation in bus fixed mode • In the bus fixed mode there is a fixed relationship between the position of the fader lever and the signal output on each bus. Depending on the direction of the transition, the fader lever must therefore always be moved in a particular direction, as shown in the following table.
  • Page 106: Keys

    Keys This section describes the settings for keying operations (excluding chroma keying) which you can make on the M/E banks. It also describes the settings for downstream keying on a 3.5-M/E system, or 3-M/E system equipped with a downstream keyer. For details of chroma key operations and settings, see Chapter 5.
  • Page 107 Keys Linear key This is a variant type of luminance key, but with reduced variability in gain. • In a D2 system, the key source signal including the chrominance component is used to determine the key. • In a D1 system, the key source Y signal is used to determine the key. Clean key In a luminance or linear key the key source is used as a mask on both the background (i.e.
  • Page 108 Edge modifications It is possible to modify the edge of the key in several ways, for example adding a border or softening the edge. Edge modifications require the optional BKDS-7270 Key Border Board to be Option fitted. The following figures illustrate some of the edge modifications. Normal (unmodified) edge Border: You can apply a constant-width border to the edge of the key.
  • Page 109 Keys Drop border or shadow: There are eight positions (numbered 1 to 8) to apply a drop border or shadow. Drop border (position code 1) Shadow (position code 1) Outline: You can apply an outline to the edge of the key. There are nine possibilities (numbered 0 to 8) for the outline position.
  • Page 110 Edge fill: When using a border, drop border or shadow effect, you can select the edge fill signal to be inserted in this area. On each of the M/E banks, you can select either the dedicated color matte generator, or the signal selected on the utility bus. On the downstream keyer a color matte signal is automatically selected for the edge fill.
  • Page 111 Keys Processed key function The term “processed key” refers to the function whereby a keyer in a switcher operates in combination with an external DME unit to apply a DME effect to a key. This function is not available on the downstream keyer. When the processed key function is enabled, before combination with the background, the key fill and key source signals produced by the switcher keyer (with borders, shadows and other processing already effected) are...
  • Page 112 Saving and recalling default values of parameters You can make default values of key parameter settings saved in memory for a particular combination of signal selected as the key source on the M/E bank, keyer, and key type. Use a setup menu to save the values (see page 13-42). To recall the default values for M/E-1 key 1, for example, select the signal as key source with the M/E-1 KEY 1 menu displayed on screen, and hold down the function key for the required key type.
  • Page 113: Basic Operation For Key Settings Using A Menu

    Keys Basic Operation for Key Settings Using a Menu You can carry out key setting operations either by using a menu, or by using the key control section of the control panel. This section describes the basic menu operations for key settings for the M/E banks.
  • Page 114 M/E-1 KEY 1 DROP BORDER (1/2) TYPE Width KEY TYPE : PATTERN MAIN MASK KEY MASK Key type selection MASK INVERT :OFF (see page 4-47) KEY INV :OFF : BOX MASK SOURCE FILL/ SOURCE Key fill and key source Position selection (see page 4-50) FULL EDGE...
  • Page 115 Keys Press one of F1 through F5 to select the key type. F1 (LUM): luminance key F2 (LINEAR): linear key F3 (CLEAN): clean key F4 (CHROMA): chroma key F5 (PATTERN): pattern key You can now adjust the parameters for the selected key type. Using chroma keying requires the optional BKDS-2031 Chroma Key Option Board.
  • Page 116 Adjust the parameter values. When you have selected a luminance key, linear key, or clean key: Knob Parameter Setting Clip Set clip level on the key signal (–10.00 to +110.00) Gain Set key sharpness (0.00 to 100.00) Density Set key density (0.00 to 100.00) Filter Select filter coefficient (1 to 5) When you have selected a chroma key:...
  • Page 117 Keys Selecting the key source and key fill Use the following procedure to select the key source and key fill signals for keyer 1 on the M/E-1 bank. For details of the operations for the processed key function, see the section “Using the processed key function”...
  • Page 118 Press one of F4 through F6 to select the type of signal used for key source: the same as the key fill signal, or a different signal. F4 (KEY BUS): Use the signal selected on the key fill bus for the key source (self-keying).
  • Page 119 Keys Modifying the key edge Edge modifications require the optional BKDS-7270 Key Border Board to be Option fitted. Use the following procedure to modify the key edge, for example adding a border to the M/E-1 key 1. In the M/E-1 KEY 1 menu, select item 3 (EDGE). The EDGE menu appears.
  • Page 120 Adjust the parameter settings as necessary. When you selected border, drop border or shadow in step 2, when F9 (MATTE) is on (a color matte is selected as the edge fill), you can adjust the parameters for matte 1 regardless of whether the color mix function is on or off.
  • Page 121 Keys Press F8 or F9 to select the edge fill signal. F8 (UTILITY BUS): signal selected on the utility bus. To select the signal on the M/E-1 utility bus, press the M/E-1 UTIL button in the auxiliary delegation section, and select the cross-point button assigned to the required signal.
  • Page 122 If you do not wish to use the color mix function, press F1 (FLAT), turning it on, and set the parameters for matte 1. Knob Parameter Setting Luminance Set luminance (0.00 to 100.00) Saturation Set saturation (0.00 to 100.00) Set hue (0.00 to 359.99) For details of the operations for using the color mix function, see the next page.
  • Page 123 Keys Using a color mix matte for the key edge fill When you have selected a color matte as the edge fill signal for a border, drop border, or shadow, you can combine mattes 1 and 2, using the dedicated pattern generator.
  • Page 124 Press any of F4 through F8 as required, turning them on, to adjust the pattern modifiers. F4 (POS): adjust the pattern position. Knob Parameter Setting H Pos Horizontal position (–50.00 to +50.00) V Pos Vertical position (–50.00 to +50.00) F5 (ASPECT): adjust the pattern aspect ratio. Knob Parameter Setting...
  • Page 125 Keys Masking To mask unwanted portions or defects in the key or background, there are two masks you can use: the main mask and the subsidiary mask. • The main mask uses as source signal the box generator built into the M/E bank keyer, or a dedicated mask pattern generator.
  • Page 126 Adjust the mask source parameters. When you have selected a box mask: Knob Parameter Setting Top edge position of box (0.00 to 100.00) Left Left edge position of box (0.00 to 100.00) Right Right edge position of box (0.00 to 100.00) Bottom Bottom edge position of box (0.00 to 100.00) Softness...
  • Page 127 Keys Press any of F3 through F6 as required, turning them on, to adjust the pattern modifiers. F3 (POS): adjust the pattern position. Knob Parameter Setting H Pos Horizontal position (–50.00 to +50.00) V Pos Vertical position (–50.00 to +50.00) To return the pattern position to the center of the screen Hold down the SHIFT button (the indication above F3 changes to “CENTER”), and press F3 (CENTER).
  • Page 128 Using the subsidiary mask By way of example, the following procedure uses the subsidiary mask on keyer 1 of the M/E-1 bank. Note You cannot use the subsidiary mask for applying a border or outline with a pattern key. In the M/E-1 KEY 1 menu, select item 5 (SUB MASK). The SUB MASK menu appears.
  • Page 129 Keys Adjust the mask source parameters. When you have selected a wipe pattern: Knob Parameter Setting Size Set pattern size (0.00 to 100.00) Softness Set the degree of edge softness (0.00 to 100.00) When you have selected a signal selected on the utility bus: Knob Parameter Setting...
  • Page 130 On the DME, set up the required processing to be carried out on the key fill signal (PROCV) and key source signal (PROCK). On the DME, make the settings so that the PROCK signal level is not affected by a DME external key signal (so that the through output is obtained from the keyer for the external key).
  • Page 131: Basic Operation For Key Settings Using The Key Control Section

    Keys Basic Operation for Key Settings Using the Key Control Section You can carry out some M/E bank key setting operations using the buttons and knobs (numbered 1 to 3 from top to bottom) in the key control section. Selecting the keyer To make settings for keyer 1, first press the KEY 1 button in the key control section to delegate the key control section to keyer 1.
  • Page 132 While the PTN button is lit green: Knob Parameter Setting Size Set pattern size (0 to 100) Softness Set degree of edge softness (0 to 100) Density Set key density (0 to 100) Selecting the key fill To use a color matte To use a color matte generated internally by the keyer as key fill, press the MATTE FILL button.
  • Page 133 Keys To invert the sense (black/white) of the key source signal Press the KEY INV button, turning it on. This allows you to use a key source which would normally correspond to black text on a white background as a key source for white text on a black background.
  • Page 134 Selecting an unmodified edge When all four of the edge type selection buttons are off, an unmodified (“normal”) edge is selected. If one of the buttons is lit, press it, turning it off. Using the processed key function To use the processed key function to apply special effects to the key using a DME, press the PROC KEY button, turning it on.
  • Page 135: Downstream Keys

    Keys Downstream Keys This section describes the setting operations for downstream keying on a 3.5- M/E system or 3-M/E system equipped with a downstream keyer. To use the downstream keyer, depending on the function used various option Option boards must be installed in the DMK-7000 Digital Multi Keyer, as shown in the following table.
  • Page 136 DSK menu To make the settings for a downstream key, first select the keyer (DSK 1 to DSK 4), then access the DSK menu. Accessing the DSK menu For example, to make the settings for downstream key 1, carry out one of the following operations.
  • Page 137 Keys Selecting the key type You can use the following key types on the downstream keyers: • Luminance key (see page 4-39) • Linear key (see page 4-40) • Clean key (see page 4-40) • Color vector key: this uses a signal combining the luminance and chrominance signals as the key source.
  • Page 138 Press one of F1 through F4 to select the key type. F1 (LUM): luminance key F2 (LINEAR): linear key F3 (CLEAN): clean key F4 (COLOR VECTOR): color vector key You can now adjust the parameters for the selected key type. Adjust the parameters as required.
  • Page 139 Keys If necessary, make the following settings. • To adjust the width or horizontal position of the key source, press F6 (KEY POS), turning it on, and set the parameters. Knob Parameter Setting Left Pos Move the left edge of the key (–3.00 to +3.00) Right Pos Move the right edge of the key (–3.00 to +3.00) Phase...
  • Page 140 When you have selected a color vector key, if necessary press F5 (COLOR VECTOR ADJUST) to display the COLOR VECTOR ADJUST menu, and carry out the following settings. CLEAN CHROMA VECTOR INVERT Function key indications in the COLOR VECTOR ADJUST menu •...
  • Page 141 Keys Selecting the key source and key fill • As key fill for a downstream key, you can use a video signal input to one of the VIDEO INPUTS connectors on the rear panel of the downstream keyer (video input), or a signal generated by the internal color matte generator of the downstream keyer.
  • Page 142 Press F4 or F5 to select the signal used for key source. For a color vector key, the video input signal is automatically selected as key source, so this operation is not required. F4 (VIDEO): video input F5 (KEY): key input When you have selected a color matte as the key fill signal, to adjust the color matte press F3 (MATTE ADJUST).
  • Page 143 Keys Using a color mix matte for the key fill When you have selected a color matte as the key fill signal, you can combine mattes 1 and 2, using a pattern from the dedicated pattern generator. On the border of the pattern, the two mattes are mixed, forming a color gradation. To carry out a color mix, use the following procedure.
  • Page 144 Press any of F4 through F8 as required, turning them on, to adjust the pattern modifiers. F4 (POS): adjust the pattern position. Knob Parameter Setting H Pos Horizontal position (–50.00 to +50.00) V Pos Vertical position (–50.00 to +50.00) F5 (ASPECT): adjust the pattern aspect ratio. Knob Parameter Setting...
  • Page 145 Keys Modifying the key edge Edge modifications require the optional BKDS-7320 Luminance Keyer and Option Border Board. Use the following procedure to modify the key edge, for example adding a border to the downstream key. In the DSK menu, select item 3 (EDGE). The EDGE menu appears.
  • Page 146 Adjust the parameter settings as necessary. When you selected border, drop border or shadow in step 2, you can adjust the color matte 1 parameters regardless of whether the color mix function is on or off. When applying a border: Knob Parameter Setting...
  • Page 147 Keys When applying a drop border or shadow: Knob Parameter Setting Width Set edge width (in “4H DROP ON” mode: 0 to 4; in “4H DROP OFF” mode: 0 to 8) Position Set edge position (in “4H DROP ON ” mode: 0 to ;...
  • Page 148 To adjust the color matte, press F10 (MATTE ADJUST). The EDGE MATTE menu appears. MATTE FLAT Function key indications in the EDGE MATTE menu (when F1 is set to ON) If you do not wish to use the color mix function, press F1 (FLAT), turning it on, and set the parameters for matte 1.
  • Page 149 Keys Masking You can use one mask on each of DSK 1 to DSK 4. Masking requires the BKDS-7320. Option To use the mask function, select item 4 (MASK) in the DSK menu. The MASK menu appears. MASK TYPE MASK SOURCE BKGD MASK MASK...
  • Page 150 Using the blink function Using the blink function you can obtain the following effects. • Blinking a downstream key on and off at regular intervals. • Periodically interchanging the key fill and key edge fill. The blink function requires the BKDS-7320 board. Option For example, to use the blink function for downstream key 1, use the following procedure.
  • Page 151 Keys Using DSK frame memory DSK frame memory provides a function whereby you can write key fill and key source freeze frames, including key transformations and modifications, to memory, then use them as DSK key fill and key source. There is a frame memory function for each of DSK1 to DSK4. There are two modes: MANUAL and MOVE.
  • Page 152 Press F7 (FILL MEMORY) and F8 (SOURCE MEMORY), turning them F7 (FILL MEMORY): DSK frame memory for key fill F8 (SOURCE MEMORY): DSK frame memory for key source Press F10 (MEMORY). The DSK MEMORY menu appears. Press F9 (MANUAL). The following function key indications appear. FREEZE MODE [VIEWER] [CLEAR]...
  • Page 153 Keys Select the way in which you wish to combine the input image (key source and key fill selected in step 1) with the memory image (the freeze frame already captured in the DSK frame memory). The methods of combination include NAM (non-additive mix) and masking;...
  • Page 154 Set the mask source parameters. When you have selected BOX: Knob Parameter Setting Top edge position (0.00 to 100.00) Left Left edge position (0.00 to 100.00) Right Right edge position (0.00 to 100.00) Bottom Bottom edge position (0.00 to 100.00) Softness Degree of edge softness (0.00 to 100.00) When you have selected PTN:...
  • Page 155 Keys Moving the memory image – MOVE mode Use the following procedure to move the memory image vertically or horizontally. In the DSK MEMORY menu select F10 (MOVE). The function key indications change as follows. FREEZE MODE PICTURE INPUT MASK MASK PATTERN MOVE...
  • Page 156 Adjust the parameters until the selected image is in the desired position. Knob Parameter Setting H Move Horizontal position (–50.00 to +50.00) V Move Vertical position (–50.00 to +50.00) Note In a D2 system when you have selected F2 (LIVE), an operation to move the image horizontally may in some cases result in a vertical movement.
  • Page 157 Keys Using the ZABTON/flying shadow function To the key fill and source recalled from DSK frame memory, you can apply a matte underlay (the ZABTON function) or flying shadows. Applying an underlay with the ZABTON function Note When “VIEWER” is set to ON (see step 8 in the procedure on page 4-86) in the DSK MEMORY menu, the ZABTON function does not operate.
  • Page 158 Set the parameters. When you selected BOX: Knob Parameter Setting Top edge position (0.00 to 100.00) Left Left edge position (0.00 to 100.00) Right Right edge position (0.00 to 100.00) Bottom Bottom edge position (0.00 to 100.00) Softness Degree of edge softness (0.00 to 100.00) When you selected a pattern: Knob Parameter...
  • Page 159 Wipes Wipes This section describes the setting operations for carrying out wipes. Overview A wipe is a transition in which the old video is replaced by the new video according to the progressively changing shape of a wipe pattern. A wipe which forms a transition between two backgrounds is called a background wipe, and a wipe which inserts or removes a key is called a key wipe.
  • Page 160 Diamond dust: An effect like a scatter of small particles. This appears in the list of wipe patterns as “DIAMOND DUST”. By adjusting the parameters, you can change the size of the particles and the rate of twinkling. Pattern mix This refers to a combination of two different wipe patterns (referred to as the “main”...
  • Page 161: Wipes

    Wipes Main and subsidiary modifier link function When carrying out a pattern mix, you can link the modifier settings for the main and subsidiary patterns. This function has two modes, as follows. “FULL LINK” mode: All modifier settings for the main and subsidiary patterns are the same.
  • Page 162 Modifying the wipe pattern You can modify wipe patterns in the following ways. The block-capital expressions in parenthesis show how the modification is indicated on the menu screen. Wipe direction (DIRECTION): The wipe can proceed in the forward (“normal”) direction, or the reverse direction. There is also an alternating option, in which the wipe direction reverses each time it is executed.
  • Page 163 Wipes Edge modifications (EDGE): You can apply a border to the edge, or soften the edge. It is also possible to soften the applied border (soft border function). For a downstream keyer, the only available modification is to soften the edges.
  • Page 164 Replicated patterns (MULTI): This tiles the video space with multiple copies of the pattern, with a maximum of 63 copies in both horizontal and vertical directions. There are four different arrangements for the tiling (1 to 4). Pattern rotation (ROTATION): this rotates the pattern, in any of three ways.
  • Page 165: Basic Operation For Wipe Settings

    Wipes Combinations of patterns and modifiers Depending on the pattern you have selected, not all modifiers may be usable. The following table shows which modification settings can be applied to which wipe patterns, with the wipe patterns arranged in groups by their numbers.
  • Page 166 Accessing the wipe setting menus For example, to access the M/E-1 WIPE 1 menu, use any of the following operations: • In the M/E-1 group of the menu control section, press the WIPE top menu button. • In the transition control section of the M/E-1 bank, press the WIPE button twice in rapid succession.
  • Page 167 Wipes Selecting the wipe pattern Move the cursor to select the required wipe pattern from those displayed on the menu screen. The wipe pattern display comprises two pages. Alternatively, you can enter the wipe pattern number directly using the numeric keypad. For details of input from the numeric keypad, see page 4-102.
  • Page 168 Combining two wipe patterns in a pattern mix Carrying out a pattern mix requires the optional BKDS-2070 Enhanced Wipe Option Generator Board to be installed. To combine the main pattern with the subsidiary pattern in a pattern mix, use the following procedure. In the PATTERN menu, press F3 (SUB), turning it on.
  • Page 169 Wipes Press F1 (MIX) once again, turning it on. The main and subsidiary patterns are now combined, and function key indications for F5 to F7 now appear. Press one of F5 to F7, to make the main and subsidiary modifier link function setting.
  • Page 170 Applying wipe modifiers You can modify wipe patterns, for example to reverse the wipe direction, or change the position of the pattern. Note, however, that depending on the pattern you have selected, not all modifiers may be usable. For details of possible combinations of wipe patterns and modifiers, see the table on page 4-98.
  • Page 171 Wipes Press F5 or F6 (for the main pattern) or F8 or F9 (for the subsidiary pattern) to select whether or not the pattern moves toward the center as the transition progresses. F5/F8 (NORMAL): The wipe pattern center is stationary throughout the transition.
  • Page 172 Adjust the parameter settings as necessary. When you selected border or soft border in step 2, when F6 (MATTE) is on (a color matte is selected as the edge fill), you can adjust the parameters for matte 1 regardless of whether the color mix function is on or off.
  • Page 173 Wipes When you selected a color matte as the edge fill signal, press F7 (MATTE ADJUST) to make the matte adjustments. The EDGE MATTE menu appears. MATTE PATTERN WIPE FLAT Function key indications in the EDGE MATTE menu If you do not wish to use the color mix function, press F1 (FLAT), turning it on, and set the parameters for matte 1.
  • Page 174 Using a color mix matte for the edge fill When you have selected a color matte as the edge fill signal for a border or soft border, you can combine mattes 1 and 2, using a pattern produced by the dedicated pattern generator or the wipe generator for the particular M/E bank.
  • Page 175 Wipes When using a wipe pattern: Note When you select a wipe pattern for the color mix, the following wipe modifier settings become invalid. • Direction • Edge • The “magnitude” setting for rotation For details of the wipe modifiers, see page 4-95. In step 6 of the procedure described above under “Modifying the edge of the wipe pattern”...
  • Page 176 Changing the aspect ratio of the wipe pattern Replicating the wipe pattern Rotating the wipe pattern Applying a modulation to the edge of the wipe pattern To apply these modifiers, use the following procedure. Applying modulation requires the optional BKDS-2070 Enhanced Wipe Option Generator Board to be installed.
  • Page 177 Wipes F4 (ANGLE): rotate the pattern. Knob Parameter Setting Angle Rotation angle (–50.00 to +50.00) (maximum one whole turn) a) To avoid problems at the fader limits, depending on the angle, the pattern size is automatically corrected. F5 (SPEED): rotate the pattern at a constant angular speed. Knob Parameter Setting...
  • Page 178 Resetting all of the wipe modifiers to the default settings It is possible to reset all of the wipe modifiers for the currently selected wipe pattern to the default settings. For example, to do this for the wipe pattern selected on the M/E-1 bank, in the menu control section, hold down the WIPE top menu button in the M/E-1 group for about two or three seconds.
  • Page 179: Pgm/pst Wipes And Downstream Keyer Wipes

    Wipes PGM/PST Wipes and Downstream Keyer Wipes This section describes the basic operations for PGM/PST wipe and downstream keyer wipe settings. PGM/PST wipe setting menu You carry out the settings for PGM/PST wipes in the PGM/PST WIPE menu. To access the PGM/PST WIPE menu Use either of the following operations: •...
  • Page 180 Downstream keyer wipe setting menu You carry out the settings for downstream keyer wipes by first selecting the appropriate keyer (DSK 1 to DSK 4) and then using the DSK WIPE menu. To access the DSK WIPE menu For example, to make settings for DSK 1, use either of the following operations: •...
  • Page 181 Wipes Selecting the wipe pattern Move the cursor to select the required wipe pattern from those displayed on the menu screen. Alternatively, you can enter the wipe pattern number directly using the numeric keypad. For PGM/PST and downstream keyer wipes, it is only possible to use the standard wipes, and further excluding number 24.
  • Page 182 Applying wipe modifiers You can modify wipe patterns, for example to reverse the wipe direction, or change the position of the pattern. For PGM/PST wipes and downstream keyer wipes, you can use the following modifiers. For an overview of the modifiers, see the section “Modifying the wipe pattern”...
  • Page 183 Wipes To specify the wipe direction, press one of F1 through F3, turning it on. (For a downstream keyer wipe, you can also use the NORM, NORM/ REV and REV buttons in the downstream keyer control section.) F1 (NORMAL): carry out the wipe in the forward direction. F2 (NORMAL/REVERSE): carry out alternate wipes in opposite directions.
  • Page 184 Modifying the edge of the wipe pattern To modify the edge of the wipe pattern, use the following procedure. • For a PGM/PST wipe In the PGM/PST WIPE menu, select item 3 (EDGE). The EDGE menu appears. EDGE TYPE SOFT BORDER SOFT BORDER...
  • Page 185 Wipes • For a downstream wipe In the DSK WIPE menu, select item 3 (MODIFY), to display the MODIFY menu (see the next section). Press F8 (SOFT), turning it on, and adjust the following parameter. Knob Parameter Setting Softness Set the degree of edge softness (0.00 to 100.00) Changing the aspect ratio of the wipe pattern Replicating the wipe pattern Rotating the wipe pattern...
  • Page 186 F3 (OFF): do not apply any of the rotation modifiers (ANGLE, SPEED, or MAGNITUDE). F4 (ANGLE): rotate the pattern. Knob Parameter Setting Angle Rotation angle (–50.00 to +50.00) (maximum one whole turn) a) To avoid problems at the fader limits, depending on the angle, the pattern size is automatically corrected.
  • Page 187: Dme Wipes

    DME Wipes This section describes the basic operations and settings for DME wipes. Overview By connecting one or more DME-7000 or other Digital Multi Effects units to the switcher system, it is possible to carry out wipe transitions using the DME effects.
  • Page 188 DME wipe patterns The DME wipe patterns can be divided into the following groups. For details of the patterns in each group and impressions of the wipes, see the Appendix “DME Wipe Patterns” (page A-4). The following descriptions apply when the wipe direction is “Normal” (i.e. forward).
  • Page 189 DME Wipes DME wipe modes There are two DME wipe operating modes: single mode, using a single DME unit, and dual mode, using two DME units. Single mode The DME is dedicated to manipulating the background, key 1, key 2, or one of the four downstream keys.
  • Page 190 Modifying a DME wipe You can execute a transition with the following modifications applied to the DME wipe. Wipe direction (DIRECTION): The wipe can proceed in the forward direction (NORMAL), or reverse direction (REVERSE), or in alternating directions for each execution (NORMAL/REVERSE). Note For a key transition, the forward and reverse executions may not be the same as for a background transition.
  • Page 191 DME Wipes Adjustments on the DME Unit • When you have selected a page turn or page roll pattern, you can adjust the nonlinear “Angle” and “Radius” parameters, using the control panel for the DME unit. • In a DME wipe, part of the image may be filled by the DME background color.
  • Page 192: Basic Operation For Dme Wipes

    Relation with processed keys On each M/E bank, if you are using the same DME for both a DME wipe and a processed key, the first selected function takes precedence. Basic Operation for DME Wipes Using a DME wipe for a background transition To use a DME wipe for a background transition, use the following procedure.
  • Page 193 DME Wipes Using a DME wipe for a key transition To use a DME wipe for a key transition, use the following procedure. Select the key for the next transition. M/E key: In the transition control section, press the next transition selection button KEY 1 or KEY 2, turning it on.
  • Page 194: Dme Wipe Settings

    Carry out the transition. M/E key: Use the fader lever or AUTO TRANS button in the transition control section. Downstream key: In the downstream keyer control section, press one of the DSK 1 to DSK 4 AUTO TRANS buttons. In a 3.5-M/E system, you can alternatively use the fader lever or AUTO TRANS button in the transition control section in the PGM/ PST bank.
  • Page 195 DME Wipes Currently selected pattern Selectable DME wipe patterns. appears here. This example shows slide, split, and squeeze patterns. DME wipe pattern selection (see page 4-129) M/E-1 DME WIPE 1000 1001 1002 1003 1004 1005 PATTERN 1000 DIRECT/ 1006 1007 1008 1009 1010...
  • Page 196 Accessing the P/P DSK DME WIPE menu Use any of the following operations: • Press the P/P DSK DME top menu button in the SYSTEM group of the menu control section. • Press the DME button in the transition control section of the PGM/PST bank twice in rapid succession (in 3.5-M/E systems only).
  • Page 197 DME Wipes Use the cursor movement buttons (> . ? /) to align the cursor with the required pattern number. Press F10 (ENTER), or press the ENTER button on the numeric keypad. The selected pattern now appears in the current pattern box. To select a DME wipe pattern using the numeric keypad With the PATTERN menu displayed, enter the number of the required pattern, using the numeric keypad, then press the ENTER button.
  • Page 198 To specify the wipe direction, press one of F1 through F3, turning it on. (For a downstream keyer wipe, you can also use the NORM, NORM/ REV and REV buttons in the downstream keyer control section.) F1 (NORMAL): carry out the wipe in the forward direction. F2 (NORMAL/REVERSE): carry out alternate wipes in opposite directions.
  • Page 199 DME Wipes Depending on the bank on which you are carrying out the transition, in the M/E-1 DME WIPE menu or P/P DSK DME WIPE menu, select item 3 (BORDER). The BORDER menu appears. EDGE TYPE SOFT BORDER SOFT BORDER Function key indications in the BORDER menu Press one of F1 through F4, and adjust the parameter settings as necessary.
  • Page 200 DME wipe snapshot operations When you have finalized an M/E DME wipe pattern, complete with its various modifications, you can save the whole setting using a numeric key in the FlexiPad, for instant recall when required. To save a DME wipe snapshot For example, to save the DME wipe settings on the M/E-1 bank, hold down the DME button in the FlexiPad of the M/E-1 bank and press one of the numeric keys 1 to 9 which is not lit.
  • Page 201: Notes On Building A Key Frame Effect With User

    DME Wipes Notes on Building a Key Frame Effect With User Programmable DME A user programmable DME effect uses an effect built on the DME from key frames as a transition on the switcher. To obtain the required transition effect, it is important to note the following points. Note It is not possible to use a user programmable DME effect with the DME- 3000.
  • Page 202 Key frame effects for pattern numbers 1951 to 1956 and 1961 to 1966 Normally, for DME wipe transitions with pattern numbers 1901 to 1912, at the end point of the transition the A bus image has been completely replaced by the B bus image. For pattern numbers 1951 to 1956 and 1961 to 1966, however, at the end of the transition the A bus image remains within the B bus image, rather than being completely replaced.
  • Page 203 DME Wipes Creating frame effects for pattern numbers 1961 to 1966 With pattern numbers 1961 to 1966, as the transition progresses the A bus image gradually shrinks, to reveal the B bus image from underneath. NORMAL REVERSE Create a key frame effect for the above patterns as follows. •...
  • Page 204: Color Backgrounds

    Color Backgrounds This section describes the various settings which are possible for color backgrounds used on the M/E banks and PGM/PST bank (3.5-M/E systems only). Overview The M/E banks and PGM/PST bank have dedicated color matte generators for producing color backgrounds, which can then be used in creating video effects.
  • Page 205: Color Background Setting Operations

    Color Backgrounds Color Background Setting Operations The color background settings are carried out in a dedicated color background setting menu for the bank concerned. M/E bank color background settings Accessing the M/E bank color background setting menus For example, to access the M/E-1 color background setting menu (COLOR BKGD), use either of the following operations: •...
  • Page 206 To adjust matte 1 (when not using the color mix function) In the COLOR BKGD menu, press F1 (FLAT), turning it on, and adjust the parameters. Knob Parameter Setting Luminance Set luminance (0.00 to 100.00) Saturation Set saturation (0.00 to 100.00) Set hue (0.00 to 359.99) To carry out a color mix In the COLOR BKGD menu, press F2 (PATTERN MIX) or F3 (WIPE MIX),...
  • Page 207: Status Display

    Status Display This section describes the function for displaying the current status of the selections for transitions and wipes on the M/E banks. It also describes how to change signal selections on the auxiliary buses, and how to set the transition rate. Basic Status Display Operation Displaying the ALL STATUS menu From among the top menu selection buttons in the menu block, press the...
  • Page 208 To display the status for a single bank Select one of items 1 to 3 (M/E-1 to M/E-3) to display the status of the snapshot or wipe information stored in the FlexiPad for the bank. For example, selecting item 1 displays the M/E-1 STATUS menu. The status information displayed depends on which of F1 (SNAPSHOT) to F3 (DME WIPE) is selected.
  • Page 209 Status Display BLOCK SELECT TRANS RATE AUTO KEY 1 KEY 2 M/E-1 M/E2 M/E3 TRANS Function key indications in the ALL STATUS menu (when one of F1 to F3 is selected) BLOCK SELECT TRANS RATE AUTO M/E-1 M/E2 M/E3 TRANS DSK 1 DSK 3 DSK 4...
  • Page 210 Displaying the status of snapshot or wipe information stored in the FlexiPad To display the status of snapshot information stored in the FlexiPad In the required M/E bank, press the SNAPSHOT button in the FlexiPad twice in rapid succession. Alternatively, display the status for the corresponding bank (e.g. for the M/E- 1 bank, display the M/E-1 STATUS menu), and press F1 (SNAPSHOT).
  • Page 211 Status Display To display the status of wipe snapshot information stored in the FlexiPad In the required M/E bank, press the WIPE button in the FlexiPad twice in rapid succession. Alternatively, display the status for the corresponding bank (e.g. for the M/E- 1 bank, display the M/E-1 STATUS menu), and press F2 (WIPE).
  • Page 212 To display the status of DME wipe snapshot information stored in the FlexiPad In the required M/E bank, press the DME button in the FlexiPad twice in rapid succession. Alternatively, display the status for the corresponding bank (e.g. for the M/E- 1 bank, display the M/E-1 STATUS menu), and press F3 (DME WIPE).
  • Page 213 Chapter 5 Chroma Keying...
  • Page 214 Chapter 5 Chroma Keying Overview ..................... 5-2 Basic Chroma Key Operations ..............5-3 Preparations ..................5-3 CHROMA KEY Menu ................ 5-4 Basic Operations .................. 5-5 Adjusting the Chroma Key Image ............5-7 Video Signal Adjustment ..............5-12 Chroma Key Masking ................ 5-13 Upgrade Board Mode Selection .............
  • Page 215: Overview

    Overview Chroma keying uses a specific color in a foreground image to create a key signal, which is then used to combine another image by keying. The following figure illustrates this combination of a foreground image and background image to create a chroma key combined image. Foreground Background Chroma key combined image...
  • Page 216: Basic Chroma Key Operations

    Basic Chroma Key Operations This section describes chroma key operations with the BKDS-2031 board only installed. Note that the operation is slightly different in D1 and D2 systems. Preparations Dedicated chroma key inputs and settings • In a D2 system, since one of four analog component signals (the signals input to the CRK INPUTS connectors on the rear panel of the processor) is used as the foreground video, inputs and settings for these signals are required.
  • Page 217: Chroma Key Menu

    Basic Chroma Key Operations CHROMA KEY Menu For most chroma key operations, you use a dedicated chroma key menu for the keyer concerned. Accessing the chroma key menu For example, to access the M/E-1 CHROMA KEY menu, use any of the following operations: •...
  • Page 218: Basic Operations

    Basic Operations You select the foreground from the dedicated chroma key signals, and select the background on the cross-point buttons, then combine them by means of a key transition. In a D1 system only, you can also select the foreground with a cross-point button.
  • Page 219 Basic Chroma Key Operations Press any of F4 to F8 to select the foreground video. In a D2 system, however, F8 (KEY BUS) does not appear. F4 (CH1) to F7 (CH4): input signal to one of the CRK INPUT connectors (CH 1 to CH 4) on the rear panel of the processor. F8 (KEY BUS): signal selected on the key bus.
  • Page 220: Adjusting The Chroma Key Image

    Adjusting the Chroma Key Image There are two ways of adjusting the output from chroma keying: automatically, using the auto chroma key function, or manually, making individual adjustments from the menu. In general the most effective and time-efficient method is to use the auto chroma key function for the initial adjustment, and then only if further adjustment is still required, use the manual facilities.
  • Page 221 Basic Chroma Key Operations Adjust the parameter settings so that the sample frame is entirely within the area being used for chroma keying (usually the blue background). Knob Parameter Setting H Pos Set the horizontal position of the frame (–50.00 to +50.00) V Pos Set the vertical position of the frame (–50.00 to...
  • Page 222 Making manual color cancel adjustment If the background color is affecting the foreground image, by turning the color cancel function on you can eliminate this effect. Use the following procedure. In the ADJUST menu, set F4 (KEY ACTIVE) to “OFF”. The foreground only appears on the monitor.
  • Page 223 Basic Chroma Key Operations Making the window adjustment You can adjust the detection range of the information used to produce the key signal. When this function is off, the default range is used for image adjustment. Chroma keying uses a particular hue (typically a blue background color) in the foreground signal to produce the key signal, and the window function specifies the range of signal values to be regarded as this background hue.
  • Page 224 In the ADJUST menu, press F4 (KEY ACTIVE), F5 (COLOR CANCEL) and F6 (WINDOW) to turn them on. Turn control knobs 1 and 2 clockwise. Knob Parameter Setting Crop Set the CROP value (0.00 to 100.00) Angle Set the ANGLE value (0.00 to 180.00) This sets the CROP and ANGLE values to zero.
  • Page 225: Video Signal Adjustment

    Basic Chroma Key Operations Video Signal Adjustment You can adjust the gain and hue delay (offset) of the foreground video signal. You can either adjust the overall gain of the signal or adjust the Y and C components separately. The following procedure is the same in both D1 and D2 systems. In the CHROMA KEY menu, select item 3 (VIDEO CORRECT).
  • Page 226: Chroma Key Masking

    Chroma Key Masking If there are unwanted background “holes” in the chroma key image, you can mask these areas off. For chroma key masking you can use the main and subsidiary masks independently or simultaneously on the selected keyer (KEY 1 or KEY 2). The following procedures are thus the same in both D1 and D2 systems.
  • Page 227 Basic Chroma Key Operations Adjust the mask source parameters. When you have selected a box mask: Knob Parameter Setting Top edge position of box (0.00 to 100.00) Left Left edge position of box (0.00 to 100.00) Right Right edge position of box (0.00 to 100.00) Bottom Bottom edge position of box (0.00 to 100.00) Softness...
  • Page 228: Upgrade Board Mode Selection

    Upgrade Board Mode Selection Single mode and dual mode By fitting both the BKDS-2031 and BKDS-2032 options, you can upgrade Option the chroma key function in either of the following ways: • By adding an extra chroma keyer, allowing you to use two chroma keys on the M/E banks.
  • Page 229: Dual Mode Chroma Keying

    Dual Mode Chroma Keying Dual Mode CHROMA KEY Menu When you have selected dual mode, the CHROMA KEY menu appears as shown below. In this menu, select item 5 (CH) to select the appropriate chroma key. Key 1 is identified as channel (“CH”) 1, and key 2 is identified as channel 2. The other items, 1 to 4, are the same as described in the section “Basic Chroma Key Operations”...
  • Page 230: Enhanced Chroma Keying (single Mode)

    Enhanced Chroma Keying (Single Mode) This section describes the principal extra functions gained by adding a BKDS-2032 upgrade board. Overview The enhanced chroma key function is made possible by adding the BKDS- 2032 option, and adds the following functions: • Clean chroma key function •...
  • Page 231: Single Mode Chroma Key Menu

    Enhanced Chroma Keying (Single Mode) Single Mode CHROMA KEY Menu When you have selected the chroma key single mode, each of the CHROMA KEY menus appears as below. See the page numbers in parenthesis for details of the additional functions. M/E-1 CHROMA KEY Clean chroma key POSITION...
  • Page 232: Clean Chroma Key

    Clean Chroma Key When you are using the enhanced chroma key function, in the SETUP (CHROMA KEY) menu a clean chroma key is possible. Using 4:4:4 format signals for the background and foreground enables you to obtain a higher quality keyed image than with conventional chroma keying. Clean chroma keying produces an already combined image, so it is not possible to carry out a key transition.
  • Page 233 Enhanced Chroma Keying (Single Mode) Forming a combined image using clean chroma key Use the following procedure. In the CHROMA KEY menu, select item 1 (SETUP). The SETUP menu appears. FRGD INPUT SELECT FRGD FRGD/ FORMAT MODE TYPE BKGD SINGLE CLEAN FRGD Function key indications in the CHROMA KEY SETUP menu...
  • Page 234 Press F3 (FRGD/BKGD) to select “BKGD”. Press one of F4 (CH1) to F7 (CH4) to select the background signal. Note The background signals are common to M/E-1 to M/E-3. Whichever M/E bank you select the background on, the same background will also be used on other M/E banks.
  • Page 235: Additive Mix

    Enhanced Chroma Keying (Single Mode) Additive Mix When you are using the enhanced chroma key function, in the SETUP (CHROMA KEY) menu an additive mix is possible. Using an additive mix to combine images In normal chroma keying, a key signal is used to cut a hole in a background, and this is combined with a foreground cut out by the key signal.
  • Page 236: Image Adjustment Functions

    Adjust the parameter. Knob Parameter Setting Luminance Set luminance (0.00 to 10.00) Within the blue background, portions of intensity lower than the specified value are changed to black. Image Adjustment Functions When you are using the enhanced chroma key function, the following image adjustment functions are the same as when the BKDS-2032 board is not fitted: auto chroma key, window, and key position functions.
  • Page 237 Enhanced Chroma Keying (Single Mode) Select F4 (KEY ADJUST). The KEY ADJUST menu appears. DUAL KEY ADJUST DUAL SAMPLE AUTO AREA MARK INVERT ACTIVE START AREA PATTERN Function key indications in the KEY ADJUST menu (using the enhanced chroma key function) Press F5 (AREA), turning it on.
  • Page 238 Set the parameters for the boundary between the main key and subsidiary key areas. When you have selected BOX: Knob Parameter Setting Top edge position of box (0.00 to 100.00) Left Left edge position of box (0.00 to 100.00) Right Right edge position of box (0.00 to 100.00) Bottom Bottom edge position of box (0.00 to 100.00)
  • Page 239 Enhanced Chroma Keying (Single Mode) Press EXIT button to return to the ADJUST menu, and using F1 (SAMPLE MARK) and F2 (AUTO START) to adjust the main key with the auto chroma key function. For details, see page 5-7. Press F4 (KEY ADJUST), to display the KEY ADJUST menu. Press F1 (KEY ACTIVE), turning it on, and adjust the parameters for the main key as required.
  • Page 240 Press F4 (AUTO START). The subsidiary key is adjusted automatically, and F2 (DUAL KEY) turns on. The combined picture then appears on the monitor. Adjusting the color cancel key It is possible to adjust the key signal for the color cancel function. Use the following procedure.
  • Page 241 Enhanced Chroma Keying (Single Mode) Adjust the color cancel key parameters. Knob Parameter Setting Clip Set clip level on the color cancel key signal (0.00 to 100.00) Gain Set color cancel key gain (0.00 to 100.00) Press any of F4 to F6 as necessary and adjust the parameters. F4 (WINDOW): Adjust the detection range for the key signal.
  • Page 242 Adjusting the Y balance In conventional chroma keying, the key signal is formed using the chroma component alone, and therefore if there are portions of the foreground of the same hue they will all be replaced by the background video. Using the Y balance function, however, it is possible to restrict the replacement to a specified intensity range even for the matching hue.
  • Page 243 Enhanced Chroma Keying (Single Mode) Adjusting the chroma key shadow This function provides a more realistic treatment when the shadow of an object in the field of view falls on the blue background. Since parts of the blue background darker than a specified intensity are treated as shadows, there is no effect on cutting out of the foreground.
  • Page 244: Video Signal Adjustment And Spot Color Adjustment

    Video Signal Adjustment and Spot Color Adjustment When you are using the enhanced chroma key function, it is possible to carry out both overall and localized adjustments to the video signal. The following procedures are the same in both D1 and D2 systems. Making overall color adjustment for the foreground and the background You can change the gain and hue for the whole foreground, and for the whole...
  • Page 245 Enhanced Chroma Keying (Single Mode) Making spot color adjustment for the foreground You can make video adjustments for a portion of a specified color (for example red) within the foreground, changing it to a different color (for example yellow), without affecting portions of other colors. Use the following procedure.
  • Page 246 Press F7 (WINDOW), turning it on, and adjust the detection range for the spot color key. Knob Parameter Setting Luminance Set luminance (0.00 to 100.00) Saturation Set saturation (0.00 to 100.00) Set the range of hue (0.00 to 100.00) Press any of F8 to F10 as necessary, to restrict the area for spot color adjustment.
  • Page 247: Dual Masking

    Enhanced Chroma Keying (Single Mode) Dual Masking With the enhanced chroma key function, you can use two masks, main and subsidiary, simultaneously. You can also use these masks simultaneously with the main mask and subsidiary mask set for the selected keyer (KEY 1 or KEY 2).
  • Page 248 Chapter 6 Frame Memory Operations...
  • Page 249 Chapter 6 Frame Memory Overview ..................... 6-2 Frame Memory Functions ..............6-2 Basic Frame Memory Operations ............6-5 Preparations ..................6-5 FRAME MEMORY Menus ..............6-6 Selecting the Input Video ..............6-7 Writing a Frame to Memory – MANUAL .......... 6-7 Writing a Frame With a Trail to Memory –...
  • Page 250: Overview

    Overview The frame memory function, as its name suggests, captures a frame of video input (whether movie or still), and holds it in memory for use in effects. In a D2 system, it is also possible to carry out a field freeze, by use of Y/C separation of the input signals.
  • Page 251 The following figure illustrates how to build up a freeze frame progressively using a variety of mask patterns to combine the input video with the stored frame. The example uses the dedicated patterns, but you can also use a box frame.
  • Page 252 Overview Paint mode In this mode you can move the masked input video, leaving a trail, and writing the result to memory. In this case, use the dedicated pattern for the mask. It is not possible to use this mode concurrently with the manual mode. Input video Stored frame Move mode...
  • Page 253: Basic Frame Memory Operations

    Basic Frame Memory Operations Preparations Assigning the output signal to a cross-point button Before you can see the output of frame memory on a monitor, for example, it is necessary to assign the output signals of frame memory 1 and frame memory 2 (FM1 and FM2) to cross-point buttons.
  • Page 254: Frame Memory Menus

    Basic Frame Memory Operations FRAME MEMORY Menus Operations on frame memory 1 are carried out from the FRAME MEMORY 1 menu. Operations on frame memory 2 are carried out from the FRAME MEMORY 2 menu. The following description applies mainly to frame memory 1, but the operations for frame memory 2 are similar.
  • Page 255: Selecting The Input Video

    Selecting the Input Video For the input video to frame memory, you can select either a signal selected on the frame memory bus, or a dedicated color matte signal. To select a frame memory bus signal as input video, use the following procedure to select the signal.
  • Page 256 Basic Frame Memory Operations Select item 1 (MANUAL). The MANUAL menu appears. OUTPUT MEMORY FREEZE INPUT INPUT MASK MASK PATTERN FREEZE SELECT CLEAR MODE SELECT MASK SOURCE INVERT MODIFY FRAME Function key indications in the MANUAL menu Set F2 (OUTPUT SELECT) to “IN”. The input video about to be written to the frame memory is now output from the frame memory.
  • Page 257 Select the method of combining the stored frame with the input video. There are four possibilities, involving a non-additive mix (NAM) and a mask; select the appropriate combination of settings of F6 (NAM) and F7 (INPUT MASK) as shown in the table below. Note When F5 (INPUT SELECT) is set to “MATTE”, it is not possible to set F6 (NAM) to “ON”.
  • Page 258 Basic Frame Memory Operations Adjust the mask source parameters. When you have selected BOX: Knob Parameter Setting name Top edge position of box (0.00 to 100.00) Left Left edge position of box (0.00 to 100.00) Right Right edge position of box (0.00 to 100.00) Bottom Bottom edge position of box (0.00 to 100.00) Softness...
  • Page 259 When you are ready to freeze the frame, press F1 (FREEZE). This writes the freeze frame to memory. Outputting the stored frame only To output the frame currently stored in frame memory to a monitor, for example, use the following procedure. In the FRAME MEMORY 1 menu, select item 1 (MANUAL).
  • Page 260: Writing A Frame With A Trail To Memory - Paint

    Basic Frame Memory Operations Writing a Frame With a Trail to Memory – PAINT Writing a frame with a trail to memory To freeze an image with a trail and write it to memory, use the following procedure. In the FRAME MEMORY 1 menu, select item 2 (PAINT). The PAINT menu appears.
  • Page 261 Press F7 (PATTERN), and adjust the parameters. Knob Parameter Setting name Size Size of pattern (0.00 to 100.00) Softness Degree of edge softness (0.00 to 100.00) Pattern No. Pattern number (1 to 27) To apply a pattern modifier to the selected pattern, press F10 (PATTERN MODIFY), displaying the PATTERN MODIFY menu.
  • Page 262: Moving The Frame - Move

    Basic Frame Memory Operations Moving the Frame – MOVE Moving the stored frame To move the stored frame horizontally or vertically, use the following procedure. In the FRAME MEMORY 1 menu, select item 3 (MOVE). The MOVE menu appears. PICTURE MOVE MODE INPUT MASK...
  • Page 263: Linking Frame Memories - Link

    Adjust the parameters to move the selected image to the desired position. Knob Parameter Setting name H Move Amount of horizontal movement (–50.00 to +50.00) V Move Amount of vertical movement (–50.00 to +50.00) If you selected F2 (LIVE) in step 2, press F7 (INPUT MASK) to select whether or not to mask the input video.
  • Page 264: Write-protect Setting - Lock

    Basic Frame Memory Operations Set F1 (MEMORY LINK) to “ON”. Frame memory 2 is now linked to frame memory 1. To link the dedicated patterns, set F2 (PATTERN LINK) to “ON”. This makes all of the pattern settings for frame memory 2 the same as those for frame memory 1.
  • Page 265 Chapter 7 Snapshots...
  • Page 266 Chapter 7 Snapshots Overview ..................... 7-2 Snapshots and Registers ..............7-3 Snapshot Operations ................. 7-6 Snapshot Operations Using the Numeric Keypad Section ....7-6 M/E Snapshot Operations Using the FlexiPad ........7-10 DME Snapshot Operations ..............7-14...
  • Page 267: Overview

    Overview Taking a snapshot means making a copy of the current settings of the system, and saving it in memory so that you can instantly restore the same setting state at a later time. Types of snapshot Snapshots can be divided into the following two types: •...
  • Page 268: Snapshots And Registers

    Snapshots and Registers Snapshots are held in units of memory termed registers, numbered from 1 to 99. As shown below, each register comprises eight sub-registers. Registers 1 to 99 Registers 01 to 99 For channel 1 M/E-1 M/E-2 M/E-3 For channel 2 Sub- P/P &...
  • Page 269 Overview Four of these eight sub-registers – Frame Mem 1 and 2, AUX Buses, and Video Process – are grouped together in what is known as the USER group. For manipulating the USER group, however, it is possible to select which of these four are actually included, by using a setting in the REGISTER menu.
  • Page 270 Attribute restrictions Not all attributes can be applied to all sub-registers. The following table shows which combinations are possible. Sub-register Attribute “EFFECT “AUTO “XPT “KEY DISSOLVE” TRANSITION” DISABLE” DISABLE” M/E-1, M/E-2, M/E-3 USER group Frame Mem 1 and 2 AUX Buses Video Process P/P &...
  • Page 271: Snapshot Operations

    Snapshot Operations You can use the numeric keypad section or the FlexiPad in one of the M/E banks for saving and recalling snapshots. Using the numeric keypad section you can carry out all snapshot operations except applying (or removing) the “KEY DISABLE” attribute. Using the FlexiPad in an M/E bank, you can carry out snapshot operations for this particular M/E bank.
  • Page 272 Select the sub-register or sub-registers. You can press any combination of the sub-register selection buttons, turning them on, as follows. M/E1, M/E2, M/E3 button: Select sub-registers M/E-1, M/E-2, and M/E-3, respectively. P/P DSK button: Select the P/P & DSK sub-register. USER button: Select the currently selected sub-registers of the USER group (Frame Mem 1 and 2, AUX Buses, and Video Process).
  • Page 273 Snapshot Operations Recalling a snapshot To recall a snapshot using the numeric keypad section, use the following procedure. Press the SNAPSHOT button, turning it on. Select the sub-register or sub-registers, using the sub-register selection buttons. For details, see step 3 in the previous section “Saving a snapshot” (page 7-7).
  • Page 274 Press the ENTER button. This recalls the specified snapshot, restoring the relevant sections of the control panel to their states when the snapshot was saved. This only affects settings relating to the signals, however, and does not change the currently displayed menu, for example. After recalling the snapshot, the RCALL button remains on, and you can recall a different snapshot immediately by repeating from step 2 above.
  • Page 275: M/e Snapshot Operations Using The Flexipad

    Snapshot Operations M/E Snapshot Operations Using the FlexiPad Overview You can use the FlexiPad for M/E snapshot operations. Since each M/E bank is equipped with its own FlexiPad, there is no need to specify the corresponding sub-register (M/E-1, M/E-2, or M/E-3). By changing the FlexiPad operating mode, you can carry out operations by a different procedure from that described below.
  • Page 276 Set up the M/E bank in the state you wish to save in the snapshot. To apply the “EFFECT DISSOLVE” attribute press the EFF DISS button in the FlexiPad, turning it on, and to apply the “AUTO TRANSITION” attribute press the AUTO TRANS button, turning it on. Use the following method to select the number of the register in which you wish to save the snapshot.
  • Page 277 Snapshot Operations Recalling an M/E snapshot To recall an M/E snapshot using the FlexiPad, use the following procedure. Press the SNAPSHOT button in the FlexiPad of the M/E bank concerned. To apply the “XPT DISABLE” attribute press the XPT DSBL button in the FlexiPad, turning it on, and to apply the “KEY DISABLE”...
  • Page 278 Restoring the state before an M/E snapshot was recalled When you recall an M/E snapshot, the immediately previous settings are saved in a register which is known as “LAST X”. By recalling the settings from this register, you can return to the state immediately before recalling an M/E snapshot;...
  • Page 279: Dme Snapshot Operations

    Snapshot Operations DME Snapshot Operations From the control panel of the switcher, you can save and recall DME snapshots on up to six channels. Each DME has registers for 99 snapshots, numbered 01 to 99 as on the switcher. To save or recall a DME snapshot In the numeric keypad section press one of the DME 1 to DME 6 sub-register selection buttons, to select the corresponding DME.
  • Page 280 Chapter 8 Key Frame Operations...
  • Page 281 Chapter 8 Key Frame Effects Overview ..................... 8-2 Key Frames and Effects ............... 8-2 Control of DME Effects ..............8-3 Organization of Registers for Key Frame Effects ....... 8-4 Operation Sequence ................8-5 Key Frame Creation and Editing ............. 8-6 Accessing a Register ................
  • Page 282: Overview

    Overview Fitting the optional BKDS-7030 Key Frame Control Panel Unit (also referred to in the following description as the “key frame control section”) in the control panel allows you to build key frame effects. This section gives an overview of key frame effects and the associated operations.
  • Page 283: Control Of Dme Effects

    Control of DME Effects From the key frame control section you can also control key frames and effects held DME-7000/3000 units (up to six channels) connected to the switcher. Basically operations, from the creation of key frames to the execution of effects, are the same as on the switcher.
  • Page 284: Organization Of Registers For Key Frame Effects

    Overview Organization of Registers for Key Frame Effects The collection of key frames making up an effect is stored in memory, and identified by a register number from 01 to 99. On the switcher each register is divided into eight sub-registers, each holding its allotted data. In a switcher register, the four sub-registers for frame memory 1, frame memory 2, the AUX buses, and for video processing are handled together under the name “USER”.
  • Page 285: Operation Sequence

    Operation Sequence The following diagram shows the principal steps in the process from creating the key frames to the execution of the effect. Selecting a register (see page 8-6) When creating a new effect, select an empty register; to edit an existing effect, select the corresponding register.
  • Page 286: Key Frame Creation And Editing

    Key Frame Creation and Editing Accessing a Register To recall the contents of a register, use the following procedure. Press the EFF button in the numeric keypad section, turning it on. This delegates the numeric keypad section to key frame operations. In the sub-register selection section, press the button or buttons corresponding to the sub-register or DME channel(s) you wish to use.
  • Page 287: Specifying Sub-registers And Edit Points

    Specifying Sub-Registers and Edit Points Selecting the sub-register to which editing applies To select the sub-register (or channel) to which key frame editing applies, press one of the sub-register selection buttons (M/E-1 to M/E-3, P/P DSK, USER, and DME 1 to DME 6). Specifying edit points To insert, modify, or delete a key frame, it is necessary to stop the effect at the appropriate point on the time axis.
  • Page 288: Creation

    Key Frame Creation and Editing Changing the reference channel When for example you use the NEXT KF button to move a key frame, one sub-register is used to determine where the next key frame is, and the other sub-registers follow suit. The sub-register used for reference is termed the reference channel, and only the corresponding sub-register selection button lights green.
  • Page 289: Insertion

    Press the INS button. This inserts the new key frame (key frame 2) after key frame 1. Repeat steps 4 and 5 as necessary, until the required number of key frames are created. Insertion Inserting a key frame Use the following procedure to insert a key frame in an existing effect. Press the EDIT ENBL button, turning it on.
  • Page 290: Modification

    Key Frame Creation and Editing Modification Modifying key frames Use the following procedure to modify already created key frames. Press the EDIT ENBL button, turning it on. Stop the effect at the required edit point. If the edit point is on a key frame, that key frame will be modified; if the edit point is between key frames, the previous key frame will be modified.
  • Page 291 Press the FROM TO button, turning it on. Press the MOD button. This simultaneously modifies all key frames including and after the specified key frame. Modifying all of the key frames Press the EDIT ENBL button, turning it on. Carry out the necessary changes on any key frame. Press the FROM TO button, turning it on.
  • Page 292: Deletion

    Key Frame Creation and Editing Press the MOD button. This simultaneously modifies all key frames in the specified range. Deletion Deleting key frames Use the following procedure to delete key frames. Press the EDIT ENBL button, turning it on. Stop the effect at the required edit point. If the edit point is on a key frame, that key frame will be deleted;...
  • Page 293: Movement

    Movement Moving key frames Use the following procedure to move key frames. Stop the effect on the key frame to be moved. To move a number of key frames together, press the FROM TO button, and specify the key frames. For details of the procedure for specifying the key frames, see the section “Modifying more than one key frame simultaneously”...
  • Page 294: Copying

    Key Frame Creation and Editing Copying Copying key frames Use the following procedure to copy key frames. Press the EDIT ENBL button, turning it on. Stop the effect on the key frame you wish to copy. To copy more than one key frame, press the FROM TO button, and specify the key frames to be copied.
  • Page 295: Time Settings

    Time Settings Key Frame Duration and Effect Duration Effect execution times are determined by the effect duration and the key frame durations. • A key frame duration is the execution time from a key frame until the next key frame. •...
  • Page 296 Time Settings Setting the effect duration Press the EDIT ENBL button, turning it on. Press the EFF DUR button. Enter the numerical value in minutes, seconds and frames (mm.ss.ff) from the numeric keypad, and press the ENTER button. For example, enter 3.7.15 to set a duration of 3 minutes, 7 seconds and 15 frames.
  • Page 297: Changes In Effect Duration Due To Inserted Key Frames

    Changes in Effect Duration Due to Inserted Key Frames • When the effect is stopped on a key frame, then if you insert a key frame, the effect duration is increased by the duration of the inserted key frame. • When the effect is stopped between key frames, then inserting a key frame does not change the effect duration.
  • Page 298: Changes In Effect Duration Due To Key Frame Deletion

    Time Settings Changes in Effect Duration Due to Key Frame Deletion When you delete a key frame, regardless of where the effect is stopped, the effect duration is always decreased by the duration of the deleted key frame. Deletion on the first key frame Deletion on an intermediate key frame Deletion between two key...
  • Page 299: Delay Setting

    Delay Setting Setting the delay time The delay time is the delay from the beginning of effect execution until the first key frame, that is, until the effect proper begins. The delay is not included in the effect duration, which therefore does not change when you change the delay.
  • Page 300: Path Settings

    Path Settings These settings determine the way in which interpolation from one key frame to the next is carried out, or in other words the nature of the path followed between key frames. Use the following procedures. Displaying the PATH Menu Make the path settings for key frames created on the switcher by using the SWER KF PATH menu.
  • Page 301: Basic Path Setting Operations

    Press one of F1 (ALL) to F6 (PGM/PST DSK), to select the sub-register to which the settings apply. For example, selecting F2 (M/E-1) allows you to make path settings separately for the items (KEY 1, KEY 2, WIPE, etc.) on the M/E-1 bank. To make path settings for the whole M/E-1 bank without separating items, press F1 (ALL).
  • Page 302 Path Settings SPLINE: Use a spline curve to provide a smooth interpolation. The selected interpolation path type is shown on the menu display by an icon. In order not to switch the input signals, set F8 (XPT DSBL) to “ON”. Press F10 (HUE PATH).
  • Page 303 Path settings within an M/E bank Making path settings for individual items within an M/E bank For example, in the case of the M/E-1 bank, use the following procedure. For the M/E-2 and M/E-3 banks, use a corresponding procedure. In the SWER KF PATH menu, press F2 (M/E-1). The function key indications change as follows.
  • Page 304 Path Settings Path settings within the “USER” group Making detailed settings for individual items within the “USER” group In the SWER KF PATH menu, press F5 (USER). The function key indications change as follows. CURVE VIDEO FRAME FRAME BUSES PROC MEM1 MEM2 STEP...
  • Page 305 Path settings within the PGM/PST bank or downstream keyer (DSK) Making detailed settings for individual items within PGM/PST or In the SWER KF PATH menu, press F6 (PGM/PST DSK). The function key indications change as follows. CURVE COLOR DSK1 DSK2 DSK3 DSK4 WIPE...
  • Page 306: Executing And Saving Effects

    Executing and Saving Effects Executing Effects You can execute, or play back, the currently recalled effect, using either the RUN button or the fader lever, to obtain a continuous segment of video. Use the following procedures. Note For the following operations, first press and light the appropriate buttons for the sub-registers to which execution is to apply.
  • Page 307 Execution in auto mode during fader lever operation After executing part of the effect with the fader lever, if you stop moving the fader lever then press the RUN button, the effect execution resumes. At this point the effect duration setting applies to the duration of the whole effect. Therefore if set to 100 frames, for example, and if a portion of the effect corresponding to 25 frames has been executed with the fader lever, the remaining 75 frames are executed in auto mode.
  • Page 308: Run Mode Settings

    Executing and Saving Effects In the KEY FRAME menu, press F5 (PAUSE). The function key indication switches to reverse video, and the current position of the current effect is set as the pause point. Thereafter, if you execute this effect by using the RUN button, it pauses at the set point.
  • Page 309 Executing an effect without cross-point changes Key frames normally include cross-point selection information, but if you set F1 (XPT DSBL) in the RUN MODE menu to “ON”, the effect is executed with the current input signal selection state unchanged. Setting the execution timing of several channels To operate according to the reference channel When executing effects in a number of channels simultaneously, to carry out the operations of all channels according to the reference channel settings...
  • Page 310: Saving Effects

    Executing and Saving Effects Saving Effects When you recall another effect, the current effect is automatically saved in the currently recalled register. In place of this automatic saving, it is also possible to save an effect in a specified register. Saving an effect in a specified register Use the following procedure.
  • Page 311: Displaying Effect Information

    Displaying Effect Information You can check the key frame and effect state, using the menu screen. Displaying the KEY FRAME menu Press the KEY FRAME top menu button in the SYSTEM group of the menu control section. The KEY FRAME menu appears. DISPLAY MODE DISPLAY TIME...
  • Page 312 Displaying Effect Information Time line display Displaying the time line screen In the KEY FRAME menu, press F1 (TIME LINE). This screen displays the state of the currently recalled effect, with a time line for each of the sub-registers or channels. Effect number Effect name Reference channel...
  • Page 313 Enlarging the time line display Use the following procedure. In the KEY FRAME menu, press F2 (EXPAND). F7 (START) and F8 (END) appear. (See the previous page.) Press F7 (START), then turn knob 4 to set the start point. Press F8 (END), then turn knob 4 to set the end point. Setting the mode in which an effect is recalled When an effect is recalled, you can select whether or not the first key frame image is reproduced.
  • Page 314 Displaying Effect Information Displaying the detailed screen Pressing F3 (DETAIL) displays the screen shown in the figure below. This screen gives detailed information for each key frame on the reference sub- register. Key frame number Time code Key frame duration KEY FRAME RECALL EFF=...
  • Page 315 Chapter 9 Register Operations...
  • Page 316 Chapter 9 Registers Overview ..................... 9-2 Functions Relating to Registers ............9-3 Basic Register Operations ................. 9-5 Manipulating Snapshot and Key Frame Effect Registers ....9-6 Setting Snapshot Attributes ............... 9-13 Selecting the Sub-Registers in the “USER” Group ......9-15 Channel-to-Channel Copying of DME Registers ......
  • Page 317: Overview

    Overview Registers are areas of memory (RAM) in the switcher used to hold snapshots and key frame effects; there are 99 registers for each of these purposes, numbered from 01 to 99. Each register is further divided into eight sub- registers (note, however, that a “P/P &...
  • Page 318: Functions Relating To Registers

    Functions Relating to Registers To carry out operations on registers, you use the REGISTER menu. This section describes the functions of the REGISTER menu. Note The REGISTER menu does not provide functions for manipulating the registers used to hold the key snapshots controlled from the key control section, and the wipe and DME wipe snapshots controlled from the the FlexiPad.
  • Page 319 Overview Register manipulation functions You can use the following functions to manipulate the data within registers. (It is not possible to apply these to separate switcher sub-registers, but you can manipulate DME channels separately.) MOVE: Move the contents of one register to another. SWAP: Swap the contents of two registers.
  • Page 320: Basic Register Operations

    Basic Register Operations This section describes the basic register operations carried out from the REGISTER menu. Accessing the REGISTER menu To access the REGISTER menu, press the REGS top menu button in the SYSTEM group of the menu control section. When item 2 is selected, the register numbers and names appear as shown below.
  • Page 321: Manipulating Snapshot And Key Frame Effect Registers

    Basic Register Operations Manipulating Snapshot and Key Frame Effect Registers This section describes how to manipulate snapshot and key frame effect registers, and how to apply a name to a register. Selecting the channels to which operations apply When manipulating registers, with the EFF button or SNAPSHOT button in the numeric keypad section lit, it is necessary to press the sub-register selection buttons, and select the channels to which the manipulations apply.
  • Page 322 Press one of F1 to F4, F11, and F12 according to the operation you wish to carry out, turning it on. F1 (MOVE): Move the contents of one register to another. F2 (SWAP): Swap the contents of two registers. F3 (COPY): Copy the contents of one register to another. F4 (DELETE): Delete the contents of a register.
  • Page 323 Basic Register Operations Depending on the operation you are carrying out, enter a register number using the numeric keypad (using the numeric keys, then pressing the ENTER button) as shown in the following table. Input position Operation Register number Reverse video position Move Register whose contents are to be moved to the right of “FROM”...
  • Page 324 Deleting Individual Sub-registers Not in the “USER” Group from Snapshot Registers For snapshot registers, by using the following operation you can delete the data of individual M/E-1, M/E-2, M/E-3, and P/P & DSK sub-registers. In the REGISTER menu, select item 3 (ATTRIB EDIT). The ATTRIB EDIT menu appears.
  • Page 325 Basic Register Operations Assigning a name to a register Use the following procedure to assign a name to a register. In the REGISTER menu, select either of the following items, depending on the type of register you wish to name. Item 1 (EFFECT): key frame effect registers Item 2 (SNAPSHOT): snapshot registers Depending on the item you select, the EFFECT or SNAPSHOT menu...
  • Page 326 Using the keyboard displayed on the screen and the numeric keys in the numeric keypad section, enter a name of up to eight characters, and press the F9 (ENTER) or the ENTER button in the numeric keypad section to confirm the name. This assigns the name to the register.
  • Page 327 Basic Register Operations To combine two key frame effect registers the merge function, use the following procedure. In the REGISTER menu, select item 1 (EFFECT). The EFFECT menu appears. EDIT [LOCK] [UNLOCK] MOVE SWAP COPY DELETE NAME MERGE Function key indications in the EFFECT menu Press F6 (MERGE), turning it on.
  • Page 328: Setting Snapshot Attributes

    Setting Snapshot Attributes Except for the GPI output attributes, you can apply attributes to a snapshot when saving or recalling the snapshot. In the REGISTER menu you can set these attributes separately for each sub-register. Since the sub-registers within the “USER” group are saved and recalled together, it is not possible to make separate attribute settings for them, except that this is possible when using the REGISTER menu.
  • Page 329 Basic Register Operations Press the function key for the attribute you wish to change. • To operate F11 to F16 to display the attributes of auxiliary bus sub- registers, hold down the SHIFT button in the menu control section and press F1 to F6.
  • Page 330: Selecting The Sub-registers In The "user" Group

    Selecting the Sub-Registers in the “USER” Group To select the sub-registers in the “USER” group, use the following procedure. In the REGISTER menu, select item 4 (CONFIG USER). The function key indications change to correspond to the sub-registers which can be included in the “USER” group. Use F1 to F4 to select the sub-registers in the “USER”...
  • Page 331: Channel-to-channel Copying Of Dme Registers

    Basic Register Operations Channel-to-Channel Copying of DME Registers To copy DME registers from one channel to another, use the following procedure. In the REGISTER menu, select item 5 (CH COPY). A menu for the channel-to-channel copy appears. Depending on what you wish to copy, press one of F1 to F3, turning it on (reverse video).
  • Page 332 Enter the destination register number in the reverse video area to the right of “TO”. If in step 5 you pressed the F8 (BLOCK) button, enter the number of the first destination register. Press F10 (EXEC). The function key indications change, and F9 (YES) and F10 (NO) functions appear.
  • Page 333 Chapter 10 Disk Operations...
  • Page 334 Chapter 10 Floppy Disk Operations Overview ....................10-2 Disks and Data Held ................10-2 Disk Functions ................... 10-3 Disk Operations ..................10-4...
  • Page 335: Overview

    Overview You can use the floppy disk drive to save the contents of registers and setup data, for reloading when required. This chapter describes the procedures for saving and loading data, and other floppy disk operations. Disks and Data Held The floppy disk drive uses 3.5-inch 2HD disks.
  • Page 336: Disk Functions

    Disk Functions The following disk operations are provided by the system. SAVE: Transferring register contents or the current setup data to files on the floppy disk. One floppy disk can hold up to 99 files containing snapshot or key frame effect register contents, or up to four files of setup data, key memory data, chroma key memory data, wipe snapshots, DME wipe snapshots, or key snapshots.
  • Page 337: Disk Operations

    Disk Operations To carry out disk operations, first access the DISK menu, then depending on the type of data you wish to carry out operations on, access the EFFECT, SNAPSHOT, SETUP, or MISC menu from the DISK menu. This section first describes how to access the DISK menu and gives an example of the DISK menu display, then describes the disk operations in the following two groups, according to the type of data being handled.
  • Page 338 Accessing the DISK menu To access the DISK menu, press the DISK top menu button in the menu control section. The channels selected in the numeric keypad section appear in reverse video, indicating that List of files they will be the object of disk operations. List of registers DISK Disk operations on...
  • Page 339 Disk Operations Selecting the channels to which operations apply You can apply disk operations to the data of more than one channel at a time. The FORMAT and LABEL functions, however, do not require a channel specification. The RENAME operation applies the same name to all files of the same number, even on different channels;...
  • Page 340 Disk operations on key frame effect and snapshot data To carry out a disk operation on key frame effect or snapshot data, use the following procedure. In the DISK menu, select either of the following items, depending on the type of data you wish to operate on. Item 1 (EFFECT): key frame effect data Item 2 (SNAPSHOT): snapshot data Depending on the item you select, the EFFECT or SNAPSHOT menu...
  • Page 341 Disk Operations Function key indications for F7 to F10 now appear. (If you selected F3 (COPY), the indication for F7 (ALL) does not appear.) FUNCTION FILE SELECT [FORMAT] [LABEL] LOAD COPY DELETE BLOCK EXEC SAVE RENAME Function key indications after selecting one of F1 to F5 Press one of F7 to F9 to select the way in which you specify the registers or files to which the operation applies.
  • Page 342 Depending on the operation you are carrying out, enter a register or file number, as shown in the following table, in the reverse video position using the numeric keypad, then press the ENTER button. Operation Register or file to be specified Save Register whose contents are to be saved Load...
  • Page 343 Disk Operations To execute the operation, press F9 (YES). To abandon the operation without executing it, press F10 (NO). Using the keyboard displayed on the screen and the numeric keys in the numeric keypad section, enter a name of up to eight characters, and press F9 (ENTER) or the ENTER button in the numeric keypad section to confirm the name.
  • Page 344 Press F10 (EXEC). • If you selected F11 (FORMAT) in step 1, the function key indications change, and function keys F9 (YES) and F10 (NO) appear. In this case go to step 3. • If you selected F12 (LABEL) in step 1, the function key indications change, and a text input screen appears.
  • Page 345 Disk Operations Disk operations on setup, key memory, chroma key memory, wipe snapshot, DME wipe snapshot, and key snapshot data To carry out a disk operation on any of these data types, use the following procedure. In the DISK menu, select either of the following items depending on the type of data you wish to operate on.
  • Page 346 The function key indications change as follows. FUNCTION FILE SELECT [FORMAT] [LABEL] MEMORY SAVE LOAD COPY DELETE RENAME SETUP MEMORY EXEC Function key indications after selecting item 3 (SETUP) in step 1 FUNCTION FILE SELECT [FORMAT] [LABEL] SAVE LOAD COPY DELETE RENAME WIPE...
  • Page 347 Disk Operations To execute the operation, press F9 (YES). To abandon the operation without executing it, press F10 (NO). Using the keyboard displayed on the screen and the numeric keys in the numeric keypad section, enter a name of up to eight characters, and press F9 (ENTER) or the ENTER button in the numeric keypad section to confirm the name.
  • Page 348 Chapter 11 Copy and Swap Operations...
  • Page 349 Chapter 11 Copy and Swap Operations Overview ....................11-2 Basic Copy and Swap Operations ............11-5 Copy and Swap Using Menu Operations .......... 11-5 Copying Using Button Operations ............ 11-7...
  • Page 350: Overview

    Overview It is possible to copy the settings on one M/E bank or keyer to another, or to swap the settings between a pair of M/E banks or keyers. There are four different ways you can make a copy or swap to affect different sets of settings, as follows: •...
  • Page 351 Keyer copy and keyer swap Keyers copied or swapped The following 10 keyers can be copied or swapped: • M/E-1 bank keys 1 and 2 • M/E-2 bank keys 1 and 2 • M/E-3 bank keys 1 and 2 • Downstream keyers 1 to 4 It is not, however, possible to copy or swap between an M/E keyer and a downstream keyer.
  • Page 352 Overview Wipe copy and wipe swap Wipe generators copied or swapped The settings of the following eight wipe generators can be copied or swapped: • The wipe generator for each of M/E-1 banks 1 to 3 • The wipe generator for the PGM/PST bank •...
  • Page 353: Basic Copy And Swap Operations

    Basic Copy and Swap Operations Copy and Swap Using Menu Operations For copy and swap operations, use the COPY menu. The basic menu operation is as follows. Press the MISC button in the SYSTEM group of the menu control section. Select item 5 (COPY).
  • Page 354 Basic Copy and Swap Operations Press F7 (TO) or turn control knob 3 to align the cursor on the “TO” side with the destination of the copy or swap. You can also use the cursor keys ( > . ? / ). When you selected F3 (M/E) or F4 (KEYER) in step 1, set F5 (XPT DSBL) to ON or OFF.
  • Page 355: Copying Using Button Operations

    Copying Using Button Operations There are simple button operations for the following copy operations: • M/E copy • M/E keyer copy • M/E wipe copy • DSK copy • Color background copy Basic button operation The basic button operation is to hold down the button assigned to the source, then press the button assigned to the destination.
  • Page 356 Basic Copy and Swap Operations Downstream keyer copy button operation Use the keyer delegation buttons (DSK 1 to DSK 4) in the downstream keyer control section (see page 2-24). Copying from DSK 1 to DSK 2 (example operation) Hold down the DSK 1 button, then press the DSK 2 button. Color background copy button operation For each M/E bank, use the COLOR BKGD button of the cross-point buttons (see page 2-8).
  • Page 357 Chapter 12 MISC Menu Operations...
  • Page 358 Chapter 12 MISC Menu Operations Overview ....................12-2 Port Enable Settings ................12-3 Controlling the Positioner Function With a Tablet ......12-5 Safe Title Settings ..................12-8 Video Input Adjustments (Video Process Function) ......12-10...
  • Page 359: Overview

    Overview This section describes the functions controlled from the MISC (for “miscellaneous”) menu: the port enable function, the safe title function, the video process function and the copy and swap function. Accessing the MISC menu To access the MISC menu, press the MISC top menu button in the SYSTEM group of the menu control section.
  • Page 360: Port Enable Settings

    Port Enable Settings Overview The port enable function controls the enabling and disabling of ports on the switcher from external devices. You can make these settings for the following ports. Switcher ports: • GPI (parallel port, D-sub 25-pin) You can carry out the GPI input/output settings in a setup menu (see pages 13-57 and 13-60).
  • Page 361 Port Enable Settings Carrying out port enable settings Use the following procedure to enable and disable ports. In the MISC menu, select item 1 (ENABLE). The ENABLE menu appears. SWER DME1 DME2 DME3 EDIT A EDIT B PANEL 2 PANEL B TABLET DME4 ENBL...
  • Page 362: Controlling The Positioner Function With A Tablet

    Controlling the Positioner Function With a Tablet By connecting a tablet to the control panel, it is possible to control the positioner function using an electronic stylus in place of the trackball in the BKDS-7031 DME Control Panel Unit. This gives finer control of the positioner movement, and improves operation quality for the frame memory paint function for example.
  • Page 363 Port Enable Settings Connector pin assignments The connector pin assignments are as follows. TERMINAL 1 connector on the control panel Tablet cable connector Signal Pin number Pin number Signal Tablet settings Using the menu sheet supplied with the tablet, make the following settings. For more details of the settings, refer to the documentation supplied with the tablet.
  • Page 364 Functions which can be controlled from the tablet You can use the tablet for the following purposes. • As the wipe positioner for the wipe generator currently selected in the wipe control block. Note In this case, the entire tablet area corresponds to the positioner range, and the absolute stylus position is input as the data value.
  • Page 365: Safe Title Settings

    Safe Title Settings Overview The safe title display provides an indication on a monitor of the maximum area in which it is safe to put titling, to guarantee that it can be seen on a domestic television. This function provides two different indications, a box outlining the safe title area, and a cross indicating the center of the screen, and you can select either or both, and also adjust the dimensions of the box indication in a setup menu.
  • Page 366 F5 (DSK3): DSK3 program output (video output from the DSK3 PGM OUTPUTS connectors on the downstream keyer) F6 (DSK4): DSK4 program output (video output from the DSK4 PGM OUTPUTS connectors on the downstream keyer) Note In a 3.5-M/E system, you cannot use F1 (SWER PGM). 12-9 Chapter 12 MISC Menu Operations...
  • Page 367: Video Input Adjustment (video Process Function)

    Video Input Adjustments (Video Process Function) Overview The video process function allows you to make separate adjustments of brightness, hue, and so forth, for each input video signal. Adjustments in a D1 system In a D1 system, you can adjust the following five parameters: •...
  • Page 368 Press a cross-point button for the signal you wish to adjust. As long as the cross-point button is assigned to the same signal, it can be in any bank. The current settings for this signal appear on the screen in a pop-up, and you can now adjust them as required.
  • Page 369 Video Input Adjustments (Video Process Function) Copying and swapping settings You can select two signals, then copy or swap the parameter settings between the two signals. Use the following procedure. With the VIDEO PROCESS menu displayed, select the two signals on which you wish to carry out the copy or swap.
  • Page 370 To turn the video process function off for all signals Hold down the SHIFT button (the indication above F10 changes to “CLEAR”), and press F10 (STATUS). This turns the video process function off for all signals. 12-13 Chapter 12 MISC Menu Operations...
  • Page 371 Chapter 13 Setup...
  • Page 372 Chapter 13 Setup Overview ....................13-2 Saving and Recalling Setup Data ............13-2 Displaying the SETUP Menu ............13-3 Setup Relating to the Overall Switcher System (SYSTEM Menu) ..13-4 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) ............. 13-17 Setup Relating to Keyers, Wipes and Other Effects (EFFECT Menu) ................
  • Page 373: Overview

    Overview To operate a system comprising a switcher unit, control panel and DMK- 7000 connected together, it is necessary to access the various setup menus, and make various settings. These settings are referred to as setup data. For details of menu operation, see the section “Basic Menu Operations” (page 3-6).
  • Page 374: Displaying The Setup Menu

    Displaying the SETUP Menu To carry out a setup operation, first press the SETUP button in the SYSTEM group of the menu control section of the control panel to display the SETUP menu. Function key indications for Item each item displayed D2 525 SETUP Setup relating to the overall...
  • Page 375: Setup Relating To The Overall Switcher System (system Menu)

    Setup Relating to the Overall Switcher System (SYSTEM Menu) To carry out setup operations relating to the overall switcher system, access the SYSTEM menu. Accessing the SYSTEM menu In the SETUP menu, select item 1 (SYSTEM). The SYSTEM menu appears. SYSTEM SYSTEM INITI-...
  • Page 376 Menus accessed from the SYSTEM menu (Continued) Menu Functions Function key See page SYSTEM • Setting the system configuration F4(SYSTEM 13-10 CONFIGU- • Setting the DMK-7000 CONFIG) RAION configuration • Setting the switcher program output (3M/E system only) • Setting the final M/E controlled from the remote panel •...
  • Page 377 Setup Relating to the Overall Switcher System (SYSTEM Menu) Installing software (INSTALL menu) To install the BZS-7020 operation software, which is supplied on three floppy disks, use the following procedure. In the SYSTEM menu, press F10 (INSTALL). The INSTALL menu appears. DVS7000 EXEC SYSTEM...
  • Page 378 Making various system settings (SYSTEM SETUP menu) You can use the SYSTEM SETUP menu for the following settings. • Setting the date: Set the calendar in the switcher. • Setting the time: Set the clock in the switcher. • Selecting the signal format: Select the signal format as one of D2-525, D1-525 and D1-625.
  • Page 379 Setup Relating to the Overall Switcher System (SYSTEM Menu) Carry out the operation in the following table to make the required setting. Setting Operation Setting the date Press F1 (DATE), then enter the date from the numeric keypad, in the American order (mm-dd- yy), but separating the items by periods.
  • Page 380 • To select a required signal format, press the corresponding function key (F2, F3 or F4). Signal format Function key to press D2-525 F2 (D2-525) D1-525 F3 (D1-525) D1-625 F4 (D1-625) • To set the screen aspect ratio, press F5 (4:3) or F6 (16:9). •...
  • Page 381 Setup Relating to the Overall Switcher System (SYSTEM Menu) Setting the system configuration (SYSTEM CONFIGURATION menu) You can use the SYSTEM CONFIGURATION menu for the following settings. • Selecting the system configuration: Select a switcher system configuration, SEPA (switcher system without including the DMK-7000) or PAIR (switcher system including the DMK-7000).
  • Page 382 Carry out the operation in the following table to make the required setting. Setting Operation Selecting the system Press F2 (SYSTEM CONFIG). configuration This toggles the setting between SEPA and PAIR. Selecting the DMK-7000 Press F3 (DMK CONFIG). configuration This cycles the setting through CASCAD, PARA, INDPND and DUAL.
  • Page 383 Setup Relating to the Overall Switcher System (SYSTEM Menu) Press F1 (PORT SELECT) or turn control knob 2 to align the cursor with the required 9-pin port. Press F4 (TABLE SELECT) or turn control knob 3 to align the cursor with the required table number.
  • Page 384 Saving setup data and making data write-protected or not (BACKUP menu) You can use the BACKUP menu for the following settings. • Saving the setup data: Save the setup data to be restored when the switcher is next powered on with F7(RESUME) and F8(PANEL RESUME) off in the SYSTEM SETUP menu.
  • Page 385 Setup Relating to the Overall Switcher System (SYSTEM Menu) Press F10 (EXEC). The function key indications change as follows. Function key indications in the BACKUP menu (after pressing F10) To carry out the operation you selected in step 2, press F9 (YES), and to cancel the operation press F10 (NO).
  • Page 386 Resetting and initializing the switcher, control panel, and DMK- 7000 (INITIALIZE menu) You can use the INITIALIZE menu for the following settings. • Resetting the switcher and control panel: Reset the switcher and control panel to the state at power on. •...
  • Page 387 Setup Relating to the Overall Switcher System (SYSTEM Menu) Press F10 (EXEC). The function key indications change as follows. Function key indications in the INITIALIZE menu (after pressing F10) To carry out the reset or initialization you selected in step 2, press F9 (YES), and to cancel the reset or initialization press F10 (NO).
  • Page 388: Setup Relating To Input/output Signals (input/output Menu)

    Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) To carry out setup operations relating to input/output signals, access the INPUT/OUTPUT menu. Accessing the INPUT/OUTPUT menu In the SETUP menu, select item 2 (INPUT/OUTPUT). The INPUT/OUTPUT menu appears. SWER SWER THRU OUTPUT INPUT MODE INPUT...
  • Page 389 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Menus accessed from the INPUT/OUTPUT menu (Continued) Menu Functions Function key See page Making settings relating to chroma key input CHROMA F4 (CRK 13-24 signals KEYER INPUT) INPUT • Selecting the input signal format •...
  • Page 390 Menus accessed from the INPUT/OUTPUT menu (Continued) Menu Functions Function key See page SWITCH- Making settings relating to switcher output F6 (SWER 13-28 signals OUTPUT) OUTPUT • Setting the phase relation between the external sync input signal and the output reference signal •...
  • Page 391 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Menus accessed from the INPUT/OUTPUT menu (Continued) Menu Functions Function key See page THROUGH Making settings relating to through mode (the F8 (THRU 13-33 MODE mode in which sync signals included in output MODE) signals are passed through unchanged, instead of being replaced by an internally...
  • Page 392 To carry out these settings, use the following procedure. In the INPUT/OUTPUT menu, press F3 (SWER INPUT). The SWITCHER INPUT menu appears. BUTTON GEN- PHASE VIDEO BITS LOCK ADJUST ADJUST ADJUST SHIFT AUTO ENBL Function key indications in the SWITCHER INPUT menu For details of indications other than for the function keys in the SWITCHER INPUT menu, see the next item “Indications in the SWITCHER INPUT menu”.
  • Page 393 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Carry out the operation in the following table to make the required setting. Setting Operation Selecting 8- or 10-bit mode Press F3 (BITS). for a digital input signal This toggles the setting between 8 bits and 10 bits. Selecting the GEN LOCK Press F4 (GEN LOCK).
  • Page 394 Carrying out setup relating to switcher input signals (SWITCHER INPUT menu) (in a D1 system) You can use the SWITCHER INPUT menu for the following settings. • Selecting 8- or 10-bit mode for a digital input signal • Adjusting the horizontal phase of an input signal: Adjust the horizontal phase of the input signal in the range –16 to +16 CK (clock cycles).
  • Page 395 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Carry out the operation in the following table to make the required setting. Setting Operation Selecting 8- or 10-bit mode for Press F3 (BITS). a digital input signal This toggles the setting between 8 bits and 10 bits.
  • Page 396 To carry out these settings, use the following procedure. In the INPUT/OUTPUT menu, press F4 (CRK INPUT). The CHROMA KEYER INPUT menu appears. INPUT SIGNAL GEN- PHASE SELECT FORMAT LOCK ADJUST BCAM0 SELF Function key indications in the CHROMA KEYER INPUT menu For details of indications other than for the function keys in the CHROMA KEYER INPUT menu, see the next item “Indications in the CHROMA KEYER INPUT menu”.
  • Page 397 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Carrying out setup relating to DMK-7000 input signals (DMK INPUT menu) (in a D2 system) You can use the DMK INPUT menu to make the same settings as the SWITCHER INPUT menu (see page 13-20) relating to the DMK-7000 input signals.
  • Page 398 Carrying out setup relating to DMK-7000 input signals (DMK INPUT menu) (in a D1 system) You can use the DMK INPUT menu to make the same settings as the SWITCHER INPUT menu (see page 13-23) relating to the DMK-7000 input signals.
  • Page 399 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Carrying out setup relating to switcher output signals (SWITCHER OUTPUT menu) You can use the two menu screens accessible from the SWITCHER OUTPUT menu for the following settings. Settings in screen 1 • Setting the phase relation between the external sync input signal and the output reference signal: Adjust in the range –28 to +84 µs.
  • Page 400 • Adjusting the vertical blanking interval: Adjust the vertical blanking interval in the range 10H to 20H (lines) (525-line systems) or 13H to 25H (lines) (625-line systems). Depending on the output signal selection, the vertical blanking interval setting applies to the signals from the following three groups of connectors: •...
  • Page 401 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Carry out the operation in the following table according to the type of setting you wish to make. Setting Operation Setting made in adjustment Press F3 (OUTPUT ADJUST1) to switch to screen 1 adjustment screen 1, then continue to step 3.
  • Page 402 Settings in adjustment screen 2 Before proceding to the operation in the following table to make the required setting, press F1 (OUTPUT SELECT) or turn control knob 2 to move the cursor and select the input signal to which the settings apply. Selectable output signals PGM OUTPUTS, PST OUTPUT, ME-1 OUTPUT, ME-2 OUTPUT, ME-3 OUTPUT, CLEAN OUTPUT, AUX BUS OUTPUT 1 to AUX...
  • Page 403 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Carrying out setup relating to DMK-7000 output signals (DMK OUTPUT menu) You can use the two menu screens accessible from the DMK OUTPUT menu for the following settings. Settings in screen 1 You can make the same settings as in screen 1 of the SWITCHER OUTPUT menu (see page 13-28) relating to the DMK-7000 output signals.
  • Page 404 Carrying out setup relating to through mode (THROUGH MODE menu) You can use the THROUGH MODE menu for the following settings relating to through mode (the mode in which sync signals included in output signals are passed through unchanged, instead of being replaced by an internally generated sync signal).
  • Page 405 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Press F5 (INPUT THROUGH) to set the input through mode on or off. Pressing F5 toggles the setting on and off. Press F7 (BUS SELECT) to move the cursor and select the output bus to which the output through mode setting applies.
  • Page 406 Carrying out setup relating to switcher and DMK-7000 output signal assignment (OUTPUT ASSIGN menu) You can use the OUTPUT ASSIGN menu for the following settings. • Output signal selection: Assign the following two groups of signals. Switcher clean output (SWER CLEAN): Select one of the following nine signals for output from the switcher’s CLEAN OUTPUT connector.
  • Page 407 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) • The above signal selection operation can only be carried out from a switcher control panel (BKDS-7011/7012/7021/7022/7023) or editor which can be directly connected to both the DVS-7000 and DMK-7000 processors. It cannot be carried out from other controllers (such as an M/E remote panel using the BKDS-2010).
  • Page 408 • F-PVW (full-key preview) F-PVW can be selected only when the keyer configuration is set to CASCAD. The F-PVW output consists of the preview output of the preceding downstream keyer in which the keys of the preceding and current downstream keyers have been inserted. For DSK4, therefore, you can obtain F-PVW output with four keys inserted.
  • Page 409 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) • Auto preview function: When you press the NEXT TRANSITION button in the transition control section of an M/E bank, the preview signal for that M/E bank is output from the CLEAN OUT connector of the DVS- 7000.
  • Page 410 In a 3-M/E system, the effect depends on the final M/E setting. For example, if M/E-3 is the final M/E, when you select the M/E1 PVW, M/ E2 PVW, or PRESET signal on the EDIT PVW bus, then depending on the signal which is on air, the output signal from the EDIT PVW bus is switched as shown in the following table.
  • Page 411 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Carry out the operation in the following table to make the required setting. Setting Operation Output signal selection Use the following procedure. 1 Press F1 (OUTPUT SELECT), and move the cursor to select the output signal group from SWER CLEAN (switcher clean output), and DMK CLEAN (DMK- 7000 clean output).
  • Page 412: Setup Relating To Keyers, Wipes And Other Effects (effect Menu)

    Setup Relating to Keyers, Wipes and Other Effects (EFFECT Menu) To carry out setup operations relating to keyers, wipes and other effects, access the EFFECT menu. Accessing the EFFECT menu In the SETUP menu, select item 3 (EFFECT). The EFFECT menu appears. SAFE KEYER WIPE...
  • Page 413 Setup Relating to Keyers, Wipes and Other Effects (EFFECT Menu) Carrying out setup relating to keyers (KEYER menu) You can use the KEYER menu for the following settings. • Toggling the key memory function on and off • Saving default values of clip, gain and density for individual keyers •...
  • Page 414 Setting Operation Making the chroma Use the following procedure. key memory 1 Press F5 (CRK MEMORY ASSIGN), to display the settings CHROMA KEY MEMORY ASSIGN menu. 2 Either press F1 (MEMORY SELECT) or turn control knob 2 to align the cursor with one of the six chroma key memories.
  • Page 415 Setup Relating to Keyers, Wipes and Other Effects (EFFECT Menu) Carrying out setup relating to wipes (WIPE menu) You can use the WIPE menu for the following settings. • Adjusting the wipe pattern center position: For the three types of wipe listed below, you can adjust the center position of the wipe pattern horizontally and vertically in the range –15.0 to +15.0 pixels.
  • Page 416 Carrying out setup relating to matte generators (MATTE menu) You can use the MATTE menu for the following settings relating to the matte generators built into the switcher and DMK-7000. • Toggling the illegal color limiter function on and off •...
  • Page 417 Setup Relating to Keyers, Wipes and Other Effects (EFFECT Menu) Carrying out setup relating to the safe title function (SAFE TITLE menu) You can use the SAFE TITLE menu for the following settings. • Toggling the safe title box on and off: Toggle on and off the superimposition of the safe title box on the output video.
  • Page 418: Setup Relating To Interfaces With Peripheral Devices (periph Menu)

    Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) To carry out setup operations relating to interfaces with peripheral devices, access the PERIPH menu. To access the PERIPH menu In the SETUP menu, select item 4 (PERIPH). The PERIPH menu appears. PORT ROUTER PANEL...
  • Page 419: Setup Relating To Interfaces With Peripheral Devices

    Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) Menus accessed from the PERIPH menu (Continued) Menu Functions Function key See page ROUTER Making settings relating to the interface F6 (ROUTER 13-53 INTERFACE to the routing switcher GPI INPUT Making the following settings relating to F7 (GPI 13-57 switcher and DMK-7000 GPI inputs...
  • Page 420 Selecting the type of device connected to an RS-422A port of the switcher (PORT ASSIGN menu) You can use the PORT ASSIGN menu to select the type of device connected to an RS-422A port of the switcher. Select the type of device from the following. •...
  • Page 421 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) Carrying out setup relating to auxiliary bus control from an RS-422A port of the switcher (AUX CONTROL menu) You can use the AUX CONTROL menu for the following settings. • Setting the control function for bus control from an RS-422A port: For the control of the bus outputs from each of the following switcher ports, select ENBL (control enabled), DSBL (control disabled) or MANUAL (status determined by the ENABLE menu setting (see page 12-4)).
  • Page 422 Carry out the operation in the following table to make the required setting. Setting Operation Setting the control According to the switcher port for which you wish to make function for bus the setting, press one of F2 (PANEL) to F9 (PANEL2). control from an RS- •...
  • Page 423 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) To carry out these settings, use the following procedure. In the PERIPH menu, press F5 (DME IF). The DME INTERFACE menu appears. RE-ENTRY BUTTON ON AIR ASSIGN SELECT TALLY SELECT SELECT SELF Function key indications in the DME INTERFACE menu Press F1 (DME SELECT) or turn conrol knob 2 to move the cursor and...
  • Page 424 Carrying out setup relating to the interface to a routing switcher (ROUTER INTERFACE menu) When the output of a DVS-B series routing switcher is input to the switcher, you can set the correspondence in a menu. In this way, for example, the signal names assigned on the routing switcher can be displayed on the control panel.
  • Page 425 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) Functions enabled when the routing switcher is connected When a DVS-B series routing switcher is connected to the switcher via the BKDS-7700 Tally Interface Unit, the following functions are enabled besides signal names set on the routing switcher are automatically displayed on the switcher control panel.
  • Page 426 Serial port cross-point assignment for the routing switcher interface Button Source Button Source number number INHIBIT PRIMARY32 PRIMARY1 PRIMARY33 PRIMARY2 PRIMARY34 PRIMARY3 PRIMARY35 PRIMARY4 PRIMARY36 PRIMARY5 INHBIT PRIMARY6 INHBIT PRIMARY7 INHBIT PRIMARY8 INHBIT PRIMARY9 INHBIT PRIMARY10 INHBIT PRIMARY11 INHBIT PRIMARY12 INHBIT PRIMARY13 INHBIT...
  • Page 427 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) To switch a cross-point on the routing switcher from the control panel Use the following procedure. Press the top menu selection button assigned to the ROUTER menu. Use the UTILITY menu (page 13-90) to assign the menu to the top menu selection button.
  • Page 428 Carrying out setup relating to GPI inputs (GPI INPUT menu) You can use the GPI INPUT menu for the following settings relating to switcher and DMK-7000 GPI inputs. • Selecting the trigger polarity: Select the trigger polarity from the following five kinds. : Trigger on the rising edge of an input pulse.
  • Page 429 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) For the DMK-7000: • On the PGM/PST bank: CUT, AUTO TRANS (auto transition) • On each DSK: CUT, AUTO TRANS (auto transition), FTB CUT (cut-to-black), FTB (fade-to-black) • SS RECALL (recall snapshot), EFF RECALL (recall effect), RECALL &...
  • Page 430 Press F2 (PORT SELECT) or turn control knob 2 to move the cursor and select the required GPI input port of the device selected in step 2. Press F3 (TRIGGER TYPE), and select the trigger polarity. Pressing F3 cycles the setting through , NOP, and LEVEL.
  • Page 431 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) Carrying out setup relating to GPI outputs (GPI OUTPUT menu) You can use the GPI OUTPUT menu for the following settings relating to switcher and DMK-7000 GPI outputs. • Selecting the operation to cause the GPI output: Select the operation to cause the GPI output from the following.
  • Page 432 Press F1 (DEVICE SELECT) to move the cursor and select the switcher (SWER) or DMK-7000 (DMK) as the device to which the settings apply. The menu display changes according to the selection you make. Press F2 (PORT SELECT) or turn control knob 2 to move the cursor and select the required GPI output port of the device selected in step 2.
  • Page 433 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) Carrying out setup relating to protocol for the control panel REMOTE2, REMOTE3 and GPI output ports (PANEL PORT ASSIGN menu) Normally, when controlling a DME-7000/3000 with the DME3 to DME6 buttons in the numeric keypad section, the interface uses the REMOTE2 and REMOTE3 ports, and the communications protocol is the DME protocol.
  • Page 434 Setting the communications port linkage of the DME3 to DME6 buttons Use the following procedure. Note It is not possible to link the DME3 and DME4 buttons to different communications ports. The same applies to the DME5 and DME6 buttons. In the PANEL PORT ASSIGN menu, press F1 (I/F SELECT).
  • Page 435 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) Setting the GPI output ports When the DME3 to DME6 buttons are linked to the GPI output ports, use the following procedure to set the GPI output ports. In the PANEL PORT ASSIGN menu, press F2 (GPI OUTPUT). The GPI OUTPUT menu appears.
  • Page 436 Press F4 (FIELD) to select the GPI trigger output timing. Pressing this button cycles through the settings: ANY (arbitrary timing), F1 (first field), and F2 (second field). Press F9 (ACTION SELECT) or turn control knob 3 to align the cursor with the desired action causing the GPI output.
  • Page 437: Setup Relating To Operations From The Control Panel (operation Menu)

    Setup Relating to Operations From the Control Panel (OPERATION Menu) To carry out setup operations relating to operations from the control panel, access the OPERATION menu. Accessing the OPERATION menu In the SETUP menu, select item 5 (OPERATION). The OPERATION menu appears. AUTO OPERAT PANEL...
  • Page 438 Menus accessed from the OPERATION menu (Continued) Menu Functions Function key See page F6 (PANEL PANEL • Setting the screen saver delay time 13-81 ENABLE) ENABLE • Selecting the control over M/E banks given to the control panel • Setting the fade-to-black function on the DMK-7000 LINK Making the following settings for linking...
  • Page 439 Setup Relating to Operations From the Control Panel (OPERATION Menu) Carrying out setup relating to assigning an input signal to a cross-point button (XPT ASSIGN menu) You can use the XPT ASSIGN menu for the following settings. • Input signal assignment: Select the input signal which you wish to assign to the selected cross-point button number.
  • Page 440 To carry out these settings, use the following procedure. In the OPERATION menu, press F3 (XPT ASSIGN). The XPT ASSIGN menu appears. BUTTON SOURCE SOURCE INHIBIT SELECT SELECT NAME Function key indications in the XPT ASSIGN menu Select the cross-point button to which you wish to assign an input signal, using either of the following methods.
  • Page 441 Setup Relating to Operations From the Control Panel (OPERATION Menu) Press F10 (SOURCE NAME). The SOURCE NAME menu appears. USER SOURCE NAME NAME USER SELECT SELECT SELECT SELECT NAME Function key indications in the SOURCE NAME menu Press F2 (SOURCE SELECT) or turn control knob 2 to move the cursor and select the signal to which you wish to assign a name.
  • Page 442 To create or change the signal name selected with F9 (USER NAME SELECT) Use the following procedure. Press F10 (SET USER NAME). A text input screen appears. Press F1 (SET USER NAME) or turn control knob 2 to move the cursor and select free space for creating a new signal name or select the existing signal name to be corrected.
  • Page 443 Setup Relating to Operations From the Control Panel (OPERATION Menu) Allocating a key source signal to a key fill (AUTO SELECT ASSIGN menu) You can use the AUTO SELECT ASSIGN menu to allocate a key source signal to a key fill. When you carry out a key operation on an M/E bank in AUTO SELECT mode, this key source signal is automatically used.
  • Page 444 Select the key source signal you wish to allocate to the key fill, using either of the following methods. • Hold down F6 (SOURCE) and press the required cross-point button in the auxiliary bus bank. • Hold down F6 (SOURCE) and use the cursor movement keys to select the required cross-point button.
  • Page 445 Setup Relating to Operations From the Control Panel (OPERATION Menu) ON: When you press the shift button it lights, and locks, shifting the cross-point button selection. To release the lock, press the shift button once more. When the signal selection in the bank changes with the progress of the transition, the state of the shift button automatically changes so that the cross-point button for the currently selected signal lights.
  • Page 446 Programmable button Functions available for allocation AUX BLANK: NO ASSIGN: No function allocated. (Factory default Unlabeled button to setting) the right of the M/E-3 AUX/ROUTER: When you press the button, turning it UTIL button (above on, the auxiliary bus bank control switches to the the shift button) in the routing switcher.
  • Page 447 Setup Relating to Operations From the Control Panel (OPERATION Menu) • Setting custom modes: You can make the following custom settings for the operating mode of parts of the control panel. a) Switching the operating mode of the FlexiPad: You can switch the operating mode of the FlexiPad in each of the M/E banks.
  • Page 448 b) Setting the linkage of the transition type selection buttons and the FlexiPad: Select whether or not pressing one of the WIPE, DME1, and DME2 transition type selection buttons in the transition control section of an M/E bank causes the WIPE button or DME button in the FlexiPad of the same M/E bank to light automatically.
  • Page 449 Setup Relating to Operations From the Control Panel (OPERATION Menu) f) LAST X function setting for FlexiPad snapshot recall: select whether or not to disable the LAST X function, activated on each of the M/E banks, when using the FlexiPad to recall a snapshot, by entering 00 then pressing.
  • Page 450 To carry out these settings, use the following procedure. In the OPERATION menu, press F5 (OPERAT MODE). The OPERATION MODE menu appears. DSK AUTO SHIFT CUSTOM PROGRAM TOGGLE DROP SHIFT LOCK MODE BUTTON RIGHT Function key indications in the OPERATION MODE menu Carry out the operation in the following table to make the required setting.
  • Page 451 Setup Relating to Operations From the Control Panel (OPERATION Menu) Press F7 (CUSTOM MODE). The CUSTOM MODE menu appears. Carry out the operation shown in the following table corresponding to the desired setting. Setting Operation Setting the operating Press F1 (FLX PAD MODE). mode for the FlexiPad This toggles between MODE1 and MODE2.
  • Page 452 Making settings relating to control panel operation, screen saver and fade-to-black function (PANEL ENABLE menu) You can use the PANEL ENABLE menu for the following settings. • Setting the screen saver delay time: Select the delay time until the screen saver comes into operation after the last control panel operation.
  • Page 453 Setup Relating to Operations From the Control Panel (OPERATION Menu) Carry out the operation in the following table to make the required setting. Operation Setting Setting the screen saver Press F1 (SCREEN SAVER). delay time This cycles the setting through OFF, 1, 3, 5, and 10. Selecting the control over Press one of F3 (M/E-1), F4 (M/E-2), F5 (M/E-3), and each of banks given to the...
  • Page 454 Linking two functions (LINK menu) You can make the following settings in the LINK menu. • Linking operations on two buses: You can set up one bus (the master bus) so that operations on another bus are linked to it. You can set up a maximum of 16 such linkages.
  • Page 455 Setup Relating to Operations From the Control Panel (OPERATION Menu) Press F2 (TYPE) to select the type of link. OFF: No operation. BUS: Link two buses. GPI: Link a button on the control panel to a GPI output port. • When you select “BUS”, proceed to step 5. •...
  • Page 456 Press F3 (AUTOSEL SETUP). The AUTO SEL SETUP menu appears. AUTOSEL TABLE SETUP AUTOSEL SELECT TYPE SWER Function key indications in the AUTOSEL SETUP menu Press F2 (AUTOSEL SELECT), or turn control konb 2 to align the cursor with the auto select table you wish to select. Press F3 (TYPE) to select whether the cross-point auto select function applies to the internal bus (the DVS-7000 switcher bus) or only to the external bus (the bus of the routing switcher connected to the DVS-...
  • Page 457 Setup Relating to Operations From the Control Panel (OPERATION Menu) Press F10 (MASTER SELECT) or turn control knob 3 to align the cursor with the button you wish to select as the master button (the button causing the GPI output), then press F8 (SELECT). This selects the button with which the cursor is aligned as the “master button”.
  • Page 458 Linking a number of downstream keyers Use the following procedure. In the OPERATION menu press F7 (LINK). The LINK menu appears. Press F2 (DSK BUTTON). The DKS BUTTON LINK menu appears. LINK BUTTON MASTER SELECT DSK 1 DSK 2 DSK 3 DSK 4 DSBL DSBL...
  • Page 459 Setup Relating to Operations From the Control Panel (OPERATION Menu) Adjusting the trackball and Z-ring (TRACK BALL menu) This menu adjusts various functions of the trackball and Z-ring on the BKDS-7031 DME Control Panel Unit. Selecting the speed of image movement This selects the speed of movement of the image under trackball and Z-ring control.
  • Page 460 Selecting the speed of image movement produced by the VELO HOLD button There are three options for the maintained speed of image movement produced by the VELO HOLD button, selected by pressing F7 (VELOCTY HOLD) as follows. ×1:The image continues moving at the detected speed (the speed before you removed your hand from the trackball or Z-ring) /2: The image continues moving at 1/2 of the detected speed.
  • Page 461 Setup Relating to Operations From the Control Panel (OPERATION Menu) Assigning functions to the UTILITY buttons (UTILITY menu) To assign menu recall or command execution functions to the 14 UTILITY buttons and 32 buttons on BKDS-7033 Memory Recall Control Panel Unit installed in the switcher control panel, use the following procedure.
  • Page 462 Press the one of the buttons to which you wish to assign the function. The buttons which were lit continuously go off, and the assignment is complete. Returning the top menu assignment to the default state (only when F2 is selected) In the default state, the top menus shown below are assigned to the UTILITY buttons.
  • Page 463 Setup Relating to Operations From the Control Panel (OPERATION Menu) Assigning registers to the SHOT BOX buttons (SHOT BOX menu) You can assign switcher or DME registers storing such data as snapshots and key frame effects to the 14 UTILITY button or the 32 buttons on BKDS- 7033 Memory Recall Control Panel Unit.
  • Page 464 Connecting BKDS-8061 Memory Recall Remote Panel Units to the switcher control panel You can connect up to two BKDS-8061 units to the switcher control panel; with one unit there are 20 buttons, and with two units a maximum of 40 buttons.
  • Page 465 Setup Relating to Operations From the Control Panel (OPERATION Menu) To assign switcher registers to buttons Use the following procedure. In the OPERATION menu, press F10 (SHOTBOX). The SHOTBOX menu appears. If in the screen “SWITCHER” is not selected, press the cursor movement button (?) to select it.
  • Page 466 To assign DME registers to buttons Use the following procedure. If in the SHOTBOX menu “DME” is not selected, press the cursor movement button (/) to select it. The menu appears as follows. RCALL REGS CHANNEL SELECT S. S BUTTON GLBL Function key indications in the SHOTBOX menu (with “DME”...
  • Page 467 Chapter 14 DIAGNOSIS Menu Operations...
  • Page 468 Chapter 14 DIAGNOSIS Menu Operations Overview ....................14-2 Operations ....................14-3 Analog Output Board Adjustments ........... 14-3 Analog Input Board Adjustments ............14-6 Checking the Board Configuration ............ 14-7 Displaying Error Messages ..............14-8...
  • Page 469: Overview

    Overview The DIAGNOSIS menu supports the following functions. • Gain and offset adjustments for optional analog output and input boards • Display of the board configuration installed in the switcher and the DMK- 7000. • Displaying Error Messages 14-2 Chapter 14 DIAGNOSIS Menu Operations...
  • Page 470: Operations

    Operations This section describes the operations carried out from the DIAGNOSIS menu. Analog Output Board Adjustments In a D2 system, when using an optional BKDS-7161 Analog Composite Output Board, use the following procedure to adjust the gain and offset of the output signal.
  • Page 471 Operations Press F2 (SELECT) or turn control knob 2 to align the cursor with the output signal for which you wish to make the adjustment. Press F4 (GAIN). The indication “100 IRE” appears for F8, and you can now adjust the gain using control knob 4.
  • Page 472 Press F10 (SAVE). This writes the adjustment values to non-volatile memory on the output board. The settings are now maintained by the BKDS-7161 board even when the power is turned off and on. Repeat steps 4 to 12 to make the adjustments for all outputs. Parameter indications In the DIAGNOSIS menu screen, in addition to the current settings of parameters, the values saved in non-volatile memory are also shown in...
  • Page 473: Analog Input Board Adjustments

    Operations Analog Input Board Adjustments In a D2 system, when using an optional BKDS-7111 Analog Composite Input board, use the following procedure to adjust the gain of the input signal. In the DIAGNOSIS menu, select item 1 (SWER PROC) to adjust an analog input board installed in the switcher, or select item 2 (DMK PROC) to adjust an analog input board installed in the DMK-7000.
  • Page 474: Checking The Board Configuration

    Press F10 (SAVE). This writes the adjustment values to non-volatile memory on the input board. The settings are now maintained by the BKDS-7111 board even when the power is turned off and on. Repeat steps 3 to 5 to make the adjustments for all inputs. About the parameter indications in the DIAGNOSIS menu screen, see page 14-5.
  • Page 475: Displaying Error Messages

    Operations Displaying Error Messages You can use the ERROR MESSAGE menu to display error messages for the switcher and DME connected to the control panel. To display error messages, use the following procedure. In the DIAGNOSIS menu, select item 5 (ERROR), and then press F3 (ERROR MESSAGE).
  • Page 476 Appendixes...
  • Page 477 Appendixes Wipe Patterns .................... A-2 Standard Wipes ................... A-2 Enhanced Wipes ................A-3 Mosaic Wipes (including diamond dust wipe) ........A-3 DME Wipe Patterns ................. A-4 Menu System ..................... A-7 M/E-1, M/E-2, and M/E-3 KEY 1 Menus, and M/E-1, M/E-2, and M/E-3 KEY 2 Menus ......A-7 DSK Menu ..................
  • Page 478: Wipe Patterns

    Wipe Patterns Standard Wipes Appendixes...
  • Page 479: Enhanced Wipes

    Enhanced Wipes Mosaic Wipes (including diamond dust wipe) RANDOM RANDOM2 RANDOM3 DIAMOND DUST Appendixes...
  • Page 480: Dme Wipe Patterns

    DME Wipe Patterns Slide 1000 1001 1002 1003 1004 1005 1006 1007 Split 1008 1009 1010 Squeeze 1100 1101 1102 1103 1104 1105 1106 1107 1108 1109 1111 Appendixes...
  • Page 481 Door (BG: Background color) 1200 1201 1202 1203 1204 1205 Page turn 1300 1301 1302 1303 1304 1305 1306 1307 Page roll 1400 1401 1402 1403 1404 1405 1406 1407 Appendixes...
  • Page 482: Dme Wipe Patterns

    DME Wipe Patterns User programmable 1901 1902 1903 1904 PROG PROG PROG PROG 1905 PROG 1906 PROG 1907 PROG 1908 PROG PROG PROG PROG PROG 1909 1910 1911 1912 1951 PROG 1952 PROG 1953 PROG 1954 PROG 1955 1956 PROG PROG 1961 PROG...
  • Page 483: Menu System

    Menu System This Appendix shows the organization of each menu, and the top menu buttons in the menu control section used to recall each menu. In addition to the top menu buttons, for some menus there are particular buttons which recall the menu when pressed twice in rapid succession. For details of menus accessed by pressing a button twice, see page 3-4.
  • Page 484 Menu System Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 NORMAL Item TYPE BORDER EDGE FILL/SOURCE DROP BORDER TYPE EDGE SHADOW MAIN MASK OUTLINE SUB MASK 4H DROP SOFT EDGE UTILITY BUS EDGE FLAT MATTE FILL...
  • Page 485: Dsk Menu

    DSK Menu Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM Item TYPE LINEAR FILL/SOURCE KEY TYPE CLEAN EDGE COLOR VECTOR MASK COLOR VECTOR ZABTON/SHADOW ADJUST CLEAN VECTOR KEY POS Y INVERT FINE KEY CHROMA POS KEY INVERT BLINK...
  • Page 486 Menu System Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK DIAG MISC SETUP FRAME SYSTEM NORMAL FLAT BORDER MATTE EDGE TYPE DROP BORDER Item (F1 selected) SHADOW TYPE OUTLINE FILL/SOURCE 4H DROP EDGE SOFT EDGE FLAT MATTE MASK SEP EDGE ZABTON/SHADOW MATTE ADJUST...
  • Page 487: M/e-1, M/e-2, And M/e-3 Dme Wipe Menus

    M/E-1, M/E-2, and M/E-3 WIPE Menus Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 Item PATTERN MAIN PATTERN DIRECT/POS EDGE NORMAL PAGE1 PAGE DIRECTION MAIN MODIFY NORMAL/ PAGE2 REVERSE SUB MODIFY ENTER REVERSE (F2 selected) MAIN NORMAL...
  • Page 488 Menu System Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 FLAT Item PATTERN BORDER PATTERN MIX MATTE EDGE TYPE DIRECT/POS SOFT WIPE MIX EDGE SOFT BORDER (F1 selected) MAIN MODIFY UTILITY BUS EDGE FILL SUB MODIFY MATTE...
  • Page 489: Pgm/pst Wipe Menu

    PGM/PST WIPE Menu Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM Item F10 ENTER PATTERN DIRECT/POS EDGE NORMAL MODIFY NORMAL/ COLOR BKGD DIRECTION REVERSE REVERSE NORMAL POSITIONER AUTO CENTER CENTER BORDER EDGE TYPE SOFT SOFT BORDER ASPECT...
  • Page 490: Dsk Wipe Menu

    Menu System DSK WIPE Menu Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM Item F10 ENTER PATTERN DIRECT/POS MODIFY NORMAL NORMAL/ DIRECTION REVERSE REVERSE NORMAL POSITIONER AUTO CENTER CENTER ASPECT MULTI ANGLE ROTATION SPEED SOFT A-14...
  • Page 491: M/e-1, M/e-2, And M/e-3 Dme Wipe Menus

    M/E-1, M/E-2, and M/E-3 DME WIPE Menus, and P/P DSK DME WIPE Menu Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 FRAME FRAME STATS WIPE WIPE DISK REGS MISC DIAG SETUP FRAME SYSTEM SL/SQ Item PATTERN...
  • Page 492: M/e-1, M/e-2, And M/e-3 Bkgd/trans Menus

    Menu System M/E-1, M/E-2, and M/E-3 BKGD/TRANS Menus Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 Item FLAT COLOR BKGD PATTERN MIX MATTE LIMIT/S-MIX WIPE MIX (F1 selected) FLAT MATTE PATTERN MIX WIPE MIX ASPECT MULTI ANGLE...
  • Page 493: Status Menu

    STATUS Menus Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM Item M/E-1 SNAPSHOT WIPE M/E-2 M/E-3 DME WIPE NORMAL NORMAL/REVERSE DIRECTION REVERSE a) Displayed only when F2 or F3 is selected AUX1 AUX SELECT AUX2 TRANS RATE AUX3...
  • Page 494: M/e-1, M/e-2, And M/e-3 Chroma Key Menus

    Menu System M/E-1, M/E-2, and M/E-3 CHROMA KEY Menus • Chroma keying using only a BKDS-2031, and • Chroma keying using a BKDS-2032 as a second chroma key channel (dual mode) Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD...
  • Page 495 • Chroma keying using a BKDS-2031 and BKDS-2032 for the enhanced chroma key function (single mode) Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 Item MODE SETUP TYPE ADJUST FRGD/BKGD VIDEO CORRECT MAIN MASK INPUT SUB MASK SELECT...
  • Page 496 Menu System Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 Item FRGD SETUP BKGD ADJUST SPOT CCR VIDEO CORRECT SAMPLE MARK MAIN MASK AUTO START SUB MASK KEY ADJUST WINDOW SPOT CCR MASK MASK SOURCE MASK INVERT KEY MASK...
  • Page 497: Frame Memory 1, Frame Memory 2 Menus

    FRAME MEMORY 1, FRAME MEMORY 2 Menus Top menu button: FRAME FRAME STATS WIPE WIPE DISK REGS MISC DIAG SETUP FRAME SYSTEM Item FREEZE MANUAL OUTPUT SELECT PAINT MEMORY CLEAR MOVE FREEZE MODE LINK INPUT SELECT LOCK INPUT MASK a) FRAME MEMORY 1 only MASK SOURCE MASK INVERT...
  • Page 498: Key Frame Menu

    Menu System KEY FRAME Menu Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM TIME LINE DISPLAY EXPAND XPT DSBL MODE DETAIL LOOP MODE RUN MODE END TIME PAUSE KF FADER RECALL MODE START DISPLAY See the next page SWER PATH...
  • Page 499 Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM TIME LINE M/E-1 M/E-1 DISPLAY EXPAND M/E-2 M/E-2 MODE DETAIL CURVE M/E-3 M/E-3 RUN MODE USER USER PAUSE PGM/PST DSK PGM/PST DSK RECALL MODE XPT DSBL START HUE PATH DISPLAY...
  • Page 500 Menu System Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM TIME LINE DISPLAY EXPAND TRANSFORM See the next page MODE DETAIL BKGD EDGE RUN MODE FREEZE RECUR PAUSE PIC MODIFY RECALL MODE BORDER VIDEO MODIFY START SOFT...
  • Page 501 Continued from the previous page, F2(TRANS ALL). LOCATE SIZE PERS SIZE ASPECT ROTATION SKEW AXIS SPIN PERS TRANS1 TRANS2 SKEW AXIS SPIN A-25 Appendixes...
  • Page 502: Register Menu

    Menu System REGISTER Menu Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM Item EFFECT SNAPSHOT MOVE ATTRIB EDIT SWAP CONFIG USER COPY EDIT CH COPY DELETE NAME MERGE SELECT BLOCK EXEC LOCK UNLOCK MOVE SWAP EDIT...
  • Page 503 Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM With cursor on “GPI” With cursor on “EXT” Item PORT1 EFFECT PORT2 SNAPSHOT F9 EXT PORT3 ATTRIB EDIT PORT4 GPI OUTPUT CONFIG USER PORT5 PORT No. F7 XPT DISABLE CH COPY PORT6...
  • Page 504: Disk Menu

    Menu System DISK Menu Top menu button: FRAME FRAME STATS WIPE WIPE DISK REGS MISC SETUP DIAG FRAME SYSTEM Item SAVE SAVE EFFECT LOAD LOAD SNAPSHOT FUNCTION COPY FUNCTION COPY SETUP DELETE DELETE MISC RENAME RENAME BLOCK BLOCK FILE SELECT FILE SELECT EXEC EXEC...
  • Page 505: Misc Menu

    MISC Menu Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM Item ENABLE DME1 DME2 SAFE TITLE VIDEO PROCESS DME3 COPY DME4 EDIT A EDIT B SWER PANEL 2 DMK PANEL B a) Display depends on setup. TABLET SWER PGM EDIT PVW...
  • Page 506: Setup Menu

    Menu System SETUP Menu Top menu button: DATE FRAME FRAME STATS WIPE WIPE TIME SIGNAL FORMAT REGS DISK MISC DIAG SETUP 7.5 IRE FRAME SCREEN FORMAT SYSTEM SWITCH TIMING RESUME Item PANEL RESUME SYSTEM SETUP SYSTEM ALARM SYSTEM CONFIG INPUT/OUTPUT a) D2 systems only.
  • Page 507 Top menu button: FRAME FRAME STATS WIPE WIPE DISK REGS MISC DIAG SETUP FRAME SYSTEM D2 systems Item SWER INPUT SYSTEM CRK INPUT BUTTON No. INPUT/OUTPUT DMK INPUT BITS EFFECT SWER OUTPUT GENLOCK PERIPH DMK OUTPUT HUE ADJUST OPERATION THRU MODE SCH ADJUST OUTPUT ASSIGN PHASE ADJUST...
  • Page 508 Menu System Continued from the previous page, F7 (DMK OUTPUT). OUTPUT ADJUST1 OUTPUT ADJUST2 REF OUT PHASE REF OUT FORMAT D2 systems OUTPUT SELECT WHITE CLIP DARK VIDEO V BLKG BIT ROUND D1 systems OUTPUT SELECT WHITE DARK CLIP CHROMA V BLKG Y BIT ROUND C BIT ROUND...
  • Page 509 Top menu button: FRAME FRAME STATS WIPE WIPE DISK REGS MISC DIAG SETUP FRAME SYSTEM Item SYSTEM INPUT/OUTPUT EFFECT KEYER PERIPH KEY MEMORY WIPE OPERATION CRK MEMORY MATTE DEFAULT LEARN CRK MEMORY SAFE TITLE M/E-1 KEY1 ASSIGN M/E-1 KEY2 M/E-2 KEY1 M/E-2 KEY2 M/E-3 KEY1 M/E-3 KEY2...
  • Page 510 Menu System Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK DIAG MISC SETUP FRAME SYSTEM Item PORT ASSIGN PORT SELECT SYSTEM AUX CTRL SELECT INPUT/OUTPUT DME IF PERIPH SELECT EFFECT GPI INPUT PERIPH GPI OUTPUT OPERATION PANEL PORT BUS SELECT PANEL1 DME1...
  • Page 511 FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM Item SYSTEM INPUT/OUTPUT BUTTON No. SOURCE SELECT SELECT EFFECT INHIBIT SELECT NAME SELECT PERIPH OPERATION SOURCE SELECT USERNAME SELECT SET USER NAME SOURCE NAME XPT ASIGN AUTO SELECT FILL SET USER NAME OPERAT MODE...
  • Page 512 Menu System Continued from the previous page, F7(LINK). LINK AUTOSEL SELECT DSK BUTTON TYPE LINK SELECT Continued from the previous TYPE page, F8(TRACK BALL). SELECT AUTO SEL When F2 is set to SETUP 3D MOVEMENT TABLE FINE MODE VELOCTY HOLD LINK SELECT XY MOVE SNSTVTY...
  • Page 513: Diagnosis Menu

    DIAGNOSIS Menu Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SELECT SYSTEM GAIN SAVE Item BOARD CONFIG SELECT SWER PROC ANALOG INPUT GAIN DMK PROC ANALOG OUTPUT OFFSET ERROR TERM MODE 0 IRE a) D2 systems only. 100 IRE SAVE TERMINAL MODE...
  • Page 514: Index

    Index BKDS-7161 14-3 Color mix BKDS-7180 4-21, 4-120 for color background 4-137 BKDS-7270 4-41 for key edge fill (DSK) 4-81 Additive mix (chroma key) 5-22 BKDS-7300 4-68 for key edge fill (M/E) 4-56 ADJUST menu 5-7 BKDS-7320 4-68 for key fill (DSK) 4-76 enhanced chroma key 5-23 BKDS-7430 4-68 for wipe edge fill (M/E) 4-107...
  • Page 515 Index modifier settings 4-130 DSK menu 4-69, A-9 4:4:4 digital component video pattern see “DME wipe DSK WIPE menu 4-113, A-14 signal 5-6 pattern” Dual cascade configuration Frame memory selection 4-17 (DSK) 4-27 DSK 4-84 settings 4-127 Dual key 5-23 link 6-15 single mode 4-122 Dual mode (chroma key) 5-16...
  • Page 516 default values, saving/recalling chroma key 5-13 4-45 main 4-58 setting knobs 2-16 settings (DSK) 4-82 Key position 5-11 settings (M/E) 4-58 cut 4-13, 4-34 Key preview 13-36 subsidiary 4-61, 5-34 edge fill 4-43 Key source 4-10 MASK menu 5-13 edge modification see “Key allocation to key fill 13-72 Matte see also “Color mix”...
  • Page 517 Index Phase, output adjustment 13-10 SAFE TITLE menu 13-46 Plane function 5-22 Screen saver setting 13-81 PORT ASSIGN menu 13-49 Self-keying 4-10, 4-51 OPERAT MODE menu 13-73 Port enable function 12-3 SEMI LINK mode 4-94 OPERATION menu 13-66 Power on state selection 13-7 Setup 13-2 Operation software Preview...
  • Page 518 Status display 4-140 rate (duration) 4-32 WIPE menu 13-44 STATUS menu A-17 transition control section 2-11, Wipe modifiers 4-95, 4-98 Sub-register see “Register” 2-22 canceling all (M/E) 4-111 Subcarrier phase adjustment for type selection 4-17, 4-23 canceling all (PGM/PST, DSK) analog input 13-17 type selection buttons 2-11 4-119...
  • Page 520 The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the equipment described in this manual. Sony Corporation expressly prohibits the duplication of any...
  • Page 521 BZS-7020 Printed in Japan Sony Corporation (WW, 1999.07.13 © 1995 Broadcasting & Professional Systems Company 3-810-078-11(3)

This manual is also suitable for:

Dvs-7350 system

Comments to this Manuals

Symbols: 0
Latest comments:
