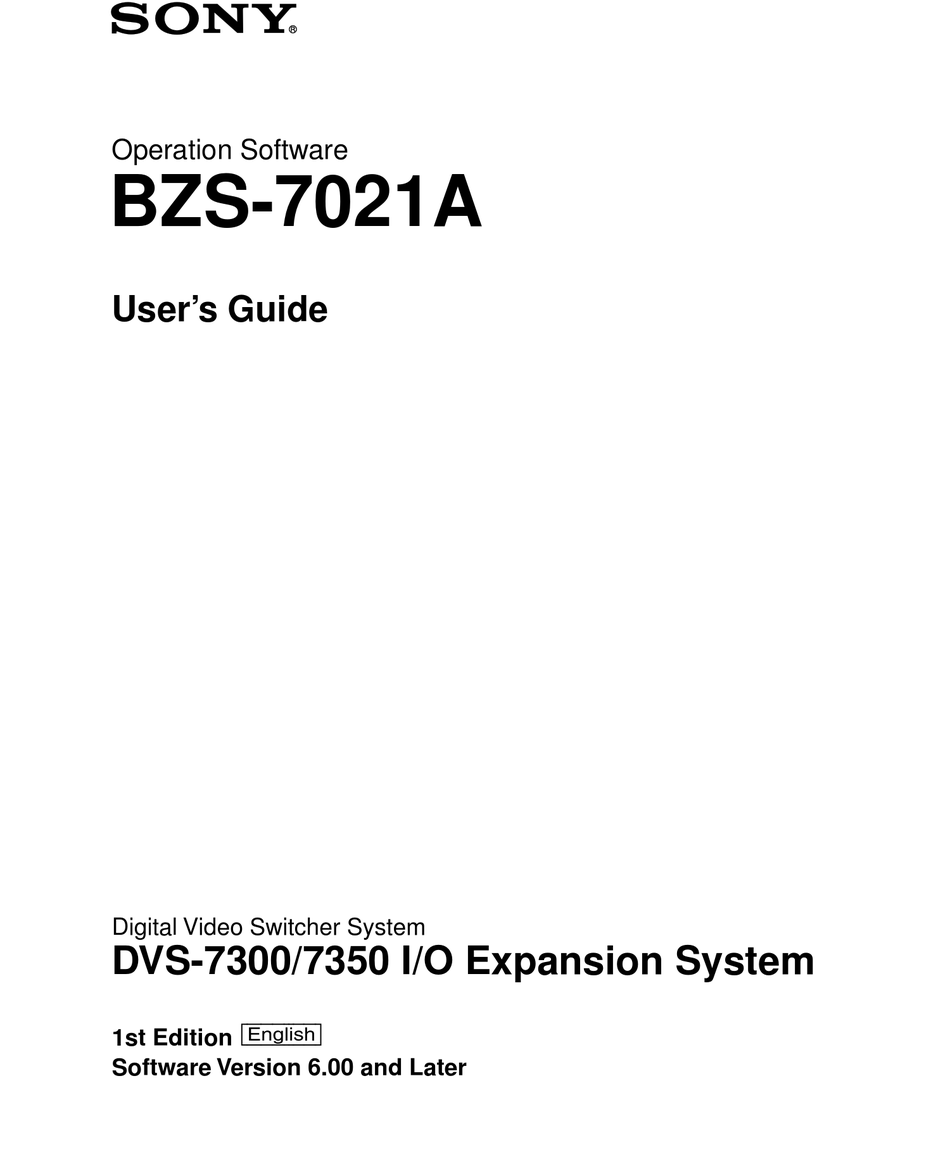

Operation Software
BZS-7021A
User's Guide
Digital Video Switcher System
DVS-7300/7350 I/O Expansion System
1st Edition [English]
Software Version 6.00 and Later

Advertisement

Table of Contents

   Also See for Sony DVS-7300

   Related Manuals for Sony DVS-7300

No related manuals

   Summary of Contents for Sony DVS-7300

  • Page 1 Operation Software BZS-7021A User’s Guide Digital Video Switcher System DVS-7300/7350 I/O Expansion System 1st Edition [English] Software Version 6.00 and Later...
  • Page 2 NOTICE TO USERS © 1999 Sony Corporation. All rights reserved. This manual or the software described herein, in whole or in part, may not be reproduced, translated or reduced to any machine readable form without prior written approval from Sony Corporation.
  • Page 3: Table Of Contents

    System Configuration and Terminology ......1-4 About the BZS-7021A Operation Software ....... 1-5 Related Manuals ..............1-6 Features of the DVS-7300/7350 I/O Expansion System ..1-7 Features ................1-7 Role of the DVS-V6464M or HDS-X3600 as an I/O Expansion Unit ............1-10 Input and Output Signals to the DVS-7300/7350 I/O Expansion System ..........
  • Page 4 Table of Contents Menu Organization ..............3-2 Chapter 3 Basic Menu Operations ............3-6 Basic Menu Operations Before Beginning Image Creation ........... 4-3 Chapter 4 Video Signal Flow .............. 4-3 Basic Signal Selection ..............4-6 Operations for Using the Mix/Effects Banks ..........4-10 Image Creation Backgrounds and Keys .............
  • Page 5 DME Wipes ................4-124 Chapter 4 Overview ................ 4-124 Basic Basic Operation for DME Wipes........4-129 Operations for DME Wipe Settings ............4-131 Image Creation Notes on Building a Key Frame Effect With (Continued) User Programmable DME ........4-138 Color Backgrounds ............... 4-141 Overview ................
  • Page 6 Table of Contents Overview ..................6-2 Chapter 6 Frame Memory Functions ..........6-2 Frame Memory Basic Frame Memory Operations ........... 6-5 Preparations ................ 6-5 FRAME MEMORY Menus ..........6-6 Selecting the Input Video ........... 6-7 Writing a Frame to Memory – MANUAL ......6-7 Writing a Frame With a Trail to Memory –...
  • Page 7 Time Settings ................8-15 Chapter 8 Key Frame Duration and Effect Duration ......8-15 Key Frame Changes in Effect Duration Due to Inserted Effects Key Frames ............8-17 (Continued) Changes in Effect Duration Due to Key Frame Deletion ..............8-18 Delay Setting ..............
  • Page 8 Table of Contents Overview .................. 11-2 Chapter 11 Basic Copy and Swap Operations ......... 11-5 Copy and Swap Copy and Swap Using Menu Operations ......11-5 Operations Copying Using Button Operations ........11-7 Overview .................. 12-2 Chapter 12 Port Enable Settings ............... 12-3 MISC Menu Controlling the Positioner Function With a Tablet ..
  • Page 9 Setup Relating to Interfaces With Peripheral Devices Chapter 14 (PERIPH Menu) ............14-44 Setup Setup Relating to Operations From the Control Panel (Continued) (OPERATION Menu) ..........14-60 Overview .................. 15-2 Chapter 15 Operations ................15-3 DIAGNOSIS Checking the Board Configuration ........15-3 Menu Displaying Error Messages ..........
  • Page 10 Table of Contents About PERIPHERALL II Protocol ........A-43 Appendixes PERIPHERALL II Protocol ..........A-45 (Continued) PERIPHERALL II Commands ........A-47 Index ................... I-1 viii Table of Contents...
  • Page 11: Overview

    System Configuration and Terminology ..........1-4 About the BZS-7021A Operation Software ........1-5 Related Manuals .................. 1-6 Features of the DVS-7300/7350 I/O Expansion System ......1-7 Features ....................1-7 Role of the DVS-V6464M or HDS-X3600 as an I/O Expansion Unit ..................1-10 Input and Output Signals to the DVS-7300/7350 I/O Expansion System ..................
  • Page 12: Introduction

    BKDS-7011/7012 Switcher Control Panel (3-M/E) DMK-7000 Digital Multi Keyer BKDS-7700 Tally Interface Unit DVS-V6464M or HDS-X3600 DVS-7000A Digital Video Switcher Digital Video Routing Switcher a) These units can be included as options in a DVS-7300 I/O expansion system. Chapter 1 Overview...
  • Page 13 Configuration of a DVS-7350 I/O expansion system (3.5-M/E) BKDS-7021/7022/7023 Switcher Control Panel (3.5-M/E) DMK-7000 Digital Multi Keyer BKDS-7700 Tally Interface Unit DVS-V6464M or HDS-X3600 Digital Video Routing Switcher DVS-7000A Digital Video Switcher a) The BKDS-7700 Tally Interface Unit can be included as an option in a DVS-7350 I/O expansion system.
  • Page 14: System Configuration And Terminology

    Introduction System Configurations and Terminology This manual refers to the principal components of the DVS-7300/7350 I/O expansion system by the terms listed below. Terms for system components The following table lists the full model names of system components and the terms used to identify them in this manual.
  • Page 15: About The Bzs-7021a Operation Software

    The BZS-7021A Operation Software is a program for operating the DVS- 7300/7350 I/O expansion system hardware from the control panel. For the BKDS-7700 Tally Interface Unit, the special-purpose BZS-7721 Operation Software for incorporation into a DVS-7300/7350 I/O expansion system is supplied. The BZS-7021A comprises the following: (1) BZS-7021A User’s Guide (this volume)
  • Page 16: Related Manuals

    Introduction Related Manuals Model Name Supplied Manuals DVS-7000A Digital Video Switcher Operation Manual Installation Manual Maintenance Manual Part 1 DMK-7000 Digital Multi Keyer Operation Manual Installation Manual Maintenance Manual Part 1 DVS-V6464M Digital Video Routing Switcher Operation Manual Installation Manual Maintenance Manual Part 1 HDS-X3600 Digital Video Routing Switcher Operation Manual...
  • Page 17: Features Of The Dvs-7300/7350 I/o Expansion System

    Features of the DVS-7300/7350 I/O Expansion System The DVS-7300/7350 I/O expansion system comprises a DVS-7300/7350 system centered on a DVS-7000A, in combination with a DVS-V6464M or HDS-X3600 Digital Video Routing Switcher. The primary inputs, signal matrix, and so on of the DVS-7000A are replaced by the DVS-V6464M or HDS-X3600, thus increasing the number of inputs and outputs.
  • Page 18 DMK-7000 Digital Multi Keyer connected to the system. In a DVS-7300 I/O expansion system, by connecting a DMK-7000, and equipping the control panel with a BKDS-7032 DSK Control Panel Unit, you can again control the insertion of a maximum of four downstream keys.
  • Page 19 DVS-7000A to remote-control the auxiliary bus and Shot Box operations. Operation adapted to live operation The DVS-7300/7350 I/O expansion system control panel is designed to provide the necessary rapid operability for the live broadcast environment. Combined use of menu settings and button operation...
  • Page 20: Role Of The Dvs-v6464m Or Hds-x3600 As An I/o

    DVS-7000A. If you attempt to use an S-BUS interface to another routing switcher system, this system will no longer operate correctly. Input and Output Signals to the DVS-7300/7350 I/O Expansion System The principal input/output signal names and the devices and connector names are shown in the following table.
  • Page 21: Connections Between Devices Within The Dvs-7300/ 7350 I/o Expansion System

    Connections Between Devices Within the DVS-7300/ 7350 I/O Expansion System Video signal connections Video signal connections from DVS-V6464M or HDS-X3600 to DVS-7000A DVS-V6464M or HDS-X3600 output DVS-7000A input name name OUTPUT 1 to 36 PRIMARY INPUT 1 to 36 The signal names and connector names correspond one-to-one. For example, the signal name “Primary input 1”...
  • Page 22 Features of the DVS-7300/7350 I/O Expansion System Video signal connections from DMK-7000 to DVS-V6464M or HDS-X3600 DVS-7000A output name DVS-V6464M or HDS-X3600 input name DSK4 PGM OUTPUT INPUT 64 a) This depends on the system configuration, but connect the final program output.
  • Page 23: Settings On The Dvs-v6464m/hds-x3600 Routing

    Settings on the DVS-V6464M/HDS-X3600 Routing Switcher The following are the settings on the DVS-V6464M/HDS-X3600 routing switcher for use in the DVS-7300/7350 I/O expansion system. DVS-V6464M CPU board switch settings Switch S1 (STATION ADDRESS) Bit No Setting 0(OFF) 1(OPEN) 0(OFF) 0(OFF)
  • Page 24 Features of the DVS-7300/7350 I/O Expansion System Switch S3 (TEST): 0 Switch S4 Bit No Setting 1(SYNC/ASYNC) OFF(SYNC) 2(M/S) OFF(S) 3(TERMINAL/ISR) OFF(TERMINAL) Terminal setting initialization After making the above switch settings, be sure to carry out the following procedure. If a backup CPU board is installed, carry this out with one CPU board removed, and carry out the same procedure for each of the CPU boards.
  • Page 25 Switch S2 Bit No Setting 1(REMOTE1 BAUD) 0(CLOSE:312Kbps) 2(P/S) 0(CLOSE:S) 3(SYNC/ASYNC) 0(CLOSE:SYNC) 4(REMOTE3 BAUD) 0(CLOSE:38.4Kbps) 5(TABLE DATA SIZE) 0(CLOSE:128bytes) 0(CLOSE) 0(CLOSE 8(DEBUG MODE) 0(CLOSE:NORMAL) Switch S5 (TEST): 0 Terminal setting initialization After making the above switch settings, be sure to carry out the following procedure.
  • Page 26: Principal Functions

    Principal Functions Video level and key level The DVS-7300/7350 I/O expansion system has 60 primary inputs, and among these will be paired video (key fill) and key (key source) signals, including signals from CGs, DMEs, and so on. A key signal is principally used only for keying, and is not normally selected on a background bus.
  • Page 27 Auxiliary (AUX) buses There are two sets of auxiliary buses: auxiliary buses 1 to 8 output from the DVS-7000A, and auxiliary buses 9 to 28 output from the DVS-V6464M or HDS-X3600. Note the following characteristics of these two sets. Auxiliary buses 1 to 8 Any signal, including switcher internal signals, can be output.
  • Page 28 Features of the DVS-7300/7350 I/O Expansion System Show key function By means of the show key function you can preview the key source signal to an M/E keyer with a simple button operation. Holding down the keyer selection button in the M/E keyer control section for at least one second outputs the key source signal from the keyer to EDIT PVW for a predetermined period.
  • Page 29: Bkds-7700 Tally Interface Unit

    BKDS-7700 Tally Interface Unit The BZS-7721 software supplied with the BZS-7021A is required when a BKDS-7700 is connected to this system. It provides equivalent functions to BZS-7720 V1.21. Changes in the BKDS-7700 System Setup Manual When using a BKDS-7700 in this system, there are changes in the source and destination assignments.
  • Page 30: Function Of

    BKDS-7700 Tally Interface Unit 8-1-4 Switcher Matrix (BKDS-7700 System Setup Manual replacement page) The switcher matrix is assigned as shown below. Source Destination Function Function PRIMARY1 M/E-1 PGM PRIMARY2 (Reserved) PRIMARY3 M/E-2 PGM (Reserved) M/E-3 PGM PRIMARY60 (Reserved) 61~64 (Reserved) PROGRAM BLACK 8 to 16...
  • Page 31 8-1-7 Switcher Source Name Setting (BKDS-7700 System Setup Manual replacement page) To perfrom the source name interface operation using an S-bus connection, set the switcher source name in the S-bus according to the list shown below. Function M/E-3 KEY2 PROC VIDEO PRIMARY1 M/E-3 KEY2 PROC KEY PRIMARY2...
  • Page 32 BKDS-7700 Tally Interface Unit 8-1-9 Switcher Crosspoint Control (BKDS-7700 System Setup Manual replacement page) To control the switcher crosspoint using an S-bus connection, specify the destination according to the list shown below. Note In the following table, the auxiliary buses are not assigned. When controlling the auxiliary buses from S-BUS, specify the destination within the switcher matrix.
  • Page 33 Chapter 2 Location and Function of Parts Overall Organization ................. 2-2 Mix/Effects Banks ..................2-7 Signal Selection Section ..............2-8 Transition Control Section ..............2-11 FlexiPad™ ..................2-14 Key Control Section ................2-16 Program/Preset Bank ................2-20 Signal Selection Section ..............2-21 Transition Control Section ..............
  • Page 34 Overall Organization Overall Organization The control panel is divided into several See the page numbers indicated in blocks of buttons and other controls, as parenthesis for more details. shown in the illustrations on this and the following pages. Menu control section and floppy disk drive (page 2-31) M/E-1 bank (page 2-7) Auxiliary bus bank (page 2-27)
  • Page 35 Menu control section and floppy disk drive (page 2-31) M/E-1 bank (page 2-7) Auxiliary bus bank (page 2-27) M/E-1 M/E-2 M/E-3 Numeric keypad section option fitting panel 3 (page 2-29) PGM/PST bank (page 2-20) M/E-3 bank (page 2-7) Option fitting panel 2 Option fitting panel 1 M/E-2 bank (page 2-7) a) It is possible to fit the numeric keypad section in any of the three option fitting panels.
  • Page 36: Overall Organization

    Overall Organization Menu control section and floppy disk drive (page 2-31) M/E-1 bank (page 2-7) Auxiliary bus bank (page 2-27) M/E-1 M/E-2 M/E-3 Numeric keypad section option fitting panel 3 (page 2-29) PGM/PST bank (page 2-20) M/E-3 bank (page 2-7) Option fitting panel 2 M/E-2 bank (page 2-7) Option fitting panel 1...
  • Page 37 Menu control section and floppy disk drive (page 2-31) M/E-1 bank (page 2-7) Auxiliary bus bank (page 2-27) M/E-1 M/E-2 M/E-3 Downstream keyer control section / option fitting panel 3 (page 2-24) Numeric keypad section / option M/E-3 bank (page 2-7) fitting panel 2 (page 2-29) M/E-2 bank (page 2-7)
  • Page 38 Overall Organization Menu control section and floppy disk drive (page 2-31) M/E-1 bank (page 2-7) Auxiliary bus bank (page 2-27) M/E-1 M/E-2 M/E-3 Downstream keyer control section / option fitting panel 3 (page 2-24) Numeric keypad section / option M/E-3 bank (page 2-7) fitting panel 2 (page 2-29) M/E-2 bank (page 2-7)
  • Page 39: Mix/effects Banks

    Mix/Effects Banks The three mix/effects banks (M/E-1, M/E- These three banks are functionally and 2, and M/E-3) provide separate mix/effects structurally similar; the following functionality. illustration shows the M/E-1 bank by way of example. BKDS-7012/7021/7022 Signal selection section Transition control section (page 2-8) (page 2-11) M/E-1...
  • Page 40: Signal Selection Section

    Mix/Effects Banks Signal Selection Section This is used for selecting signals on this M/E bank. BKDS-7012/7021/7022 1 Cross-point buttons M/E-1 COLOR BLACK SHIFT BKGD COLOR BLACK SHIFT BKGD 2 Bus tally indicators BKDS-7011/7023 1 Cross-point buttons M/E-1 SHIFT COLOR BLACK SHIFT BKGD COLOR...
  • Page 41 1 Cross-point buttons K1 (key 1) and K2 (key 2) rows (BKDS- These buttons select the signals used for 7012/7021/7022), K (key) row (BKDS- video making on this M/E bank. 7011/7023): Each row of buttons corresponds to one or These buttons select the key signals to more signal buses within the switcher.
  • Page 42 Mix/Effects Banks Visual indications on cross-point 2 Bus tally indicators buttons These light when the signal from the The currently selected button in a row (i.e. corresponding bus (row of cross-point the last button pressed) lights amber or buttons) forms part of the output from this red.
  • Page 43: Transition Control Section

    Transition Control Section The buttons in this section control transitions on the output from this M/E bank. 1 Key 1 ON/OVER indicator 2 Key 2 ON/OVER indicator OVER OVER 3 Next transition selection buttons BKGD PRIOR NEXT TRANSITION SUPER 4 Transition type selection buttons WIPE TRANSITION TYPE 5 Auto transition control section...
  • Page 44 Mix/Effects Banks 3 Next transition selection buttons You can also use this button as a These buttons determine what the next programmable button. transition will apply to. For details, see “Changing switcher BKGD: Next transition is a background functions (OPERATION MODE transition.
  • Page 45 DME 2: The transition will be a wipe-like 6 Transition indicator effect, using the effects provided by This comprises 30 LEDs which show the DME channel 2. This requires at least current status of the transition. two DME-7000 or other DME units to be connected to the switcher system.
  • Page 46: Flexipad

    Mix/Effects Banks FlexiPad™ The FlexiPad™ is used for saving and recalling snapshots of this M/E bank. 1 KEY DSBL button 2 XPT DSBL button 7 Numeric display DSBL DSBL 3 SHIFT button SHIFT 4 DME button 8 Numeric keys 5 WIPE button WIPE AUTO SNAP...
  • Page 47 3 SHIFT button 9 AUTO TRANS (transition) button Use this button in combination with the Press this button, turning it on, to save an numeric keypad in the FlexiPad when M/E snapshot with the “AUTO saving and recalling snapshots. TRANSITION” attribute. Recalling a snapshot saved with this attribute will 4 DME button immediately start an auto transition on this...
  • Page 48: Key Control Section

    Mix/Effects Banks Key Control Section Each M/E bank has two keyers (1 and 2); the buttons in this section select the keyer and then control the key operations. 6 Key snapshot buttons 7 Edge type selection buttons KEY CONTROL 1 Keyer delegation buttons MATTE AUTO...
  • Page 49 2 Key fill and key source selection 3 Key type selection buttons buttons LUM (luminance): A hole is cut at a MATTE FILL: Pressing this button, certain level of the Y (luminance) turning it on, selects a color matte signal of the key source, and the key produced by the switcher as the key fill signal inserted.
  • Page 50 Mix/Effects Banks CHR (chroma key): A particular hue 5 Key insert/remove buttons (usually blue) in the key source signal Use these buttons to insert and remove is used to determine the hole to be cut keys 1 and 2. in the background. KEY ON: These buttons You can use the following signals as (instantaneously) cut the respective...
  • Page 51 6 Key snapshot buttons 8 Key parameter setting knobs and Use these for saving and recalling separate displays snapshots for the keyers. Turning the knobs allows you to change For example, to save the key 1 settings, various key parameters. The display with the KEY 1 button of the keyer below each knob shows the initial letter of delegation buttons lit, hold down the...
  • Page 52: Program/preset Bank

    Program/Preset Bank The program/preset (PGM/PST) bank panels) are equipped with this bank, and it provides the final program output from the can only be used when the switcher system switcher. Only the BKDS-7021, BKDS- has a DMK-7000 Digital Multi Keyer 7022 and BKDS-7023 models (3.5-M/E connected.
  • Page 53: Signal Selection Section

    Signal Selection Section SHIFT COLOR BLACK SHIFT BKGD COLOR BLACK SHIFT BKGD 1 Cross-point buttons 2 Bus tally indicators 3 Source name display Signal selection section 1 Cross-point buttons 2 Bus tally indicators These buttons select the signals used for These have the same function as on the video making on the PGM/PST bank.
  • Page 54: Transition Control Section

    Program/Preset Bank Transition Control Section 6 Programmable button 1 Next transition selection BKGD buttons NEXT TRANSITION 2 Transition type selection WIPE buttons TRANSITION TYPE 3 Auto transition control FRAMES section AUTO TRANS 4 Transition indicator 5 Fader lever Transition control section 1 Next transition selection buttons You can press more than one of these These buttons determine what the next...
  • Page 55 2 Transition type selection buttons 3 Auto transition control section Press one of these buttons, turning it on, to This is the same as the auto transition determine the type of the next transition. control section on an M/E bank. If you have specified different transition types on this bank, all of these buttons 4 Transition indicator...
  • Page 56: Downstream Keyer Control Section

    Program/Preset Bank Downstream Keyer Control Section The optional DMK-7000 Digital Multi On a BKDS-7011/7012 model with no Keyer can incorporate a maximum of four PGM/PST bank, fitting the optional keyers. The buttons in the downstream BKDS-7032 DSK control panel unit keyer control section select the keyer and provides the same functions as the then control the key operations.
  • Page 57 1 Keyer delegation buttons 4 Transition type selection buttons Press one of these buttons, turning it on, to Press one of these buttons, turning it on, to delegate the buttons in the downstream determine the type of the next transition. keyer control section to the corresponding MIX: This is the same function as a mix keyer (DSK 1 to DSK 4).
  • Page 58 Program/Preset Bank 5 Wipe direction selection buttons 7 Key parameter setting knobs and When you have selected a wipe or DME displays wipe as the transition type, press one of These have the same basic function as on these buttons, turning it on, to select the the M/E banks (see page 2-19), but the wipe direction.
  • Page 59: Auxiliary Bus Bank

    Auxiliary Bus Bank The auxiliary bus bank controls the selection of signals output from the unit, and of signals used for video masking. 5 SHIFT button 3 Delegation buttons 6 Programmable 4 Selected signal display button 7 PV/K button AUX DELEGATION FRAME FRAME FDIT...
  • Page 60 Auxiliary Bus Bank 3 Delegation buttons 6 Programmable button Press one of these buttons, turning it on, to By means of a SETUP menu setting, you delegate the cross-point buttons to the can use this button for switching the corresponding bus. auxiliary bus bank between controlling the AUX 1 to AUX 13 buttons: These auxiliary buses and controlling a routing...
  • Page 61: Numeric Keypad Section

    Numeric Keypad Section The buttons in this section are used for various numerical settings such as transition durations, and for storing and recalling snapshots and other values. 1 EFF button 2 SNAPSHOT button 3 Sub-register selection section 4 Display SNAP SHOT TRANS USER...
  • Page 62 Numeric Keypad Section M/E 1 to M/E 3 and P/P DSK: These CLR/AUTO TRANS (clear/auto select the sub-registers corresponding transition): This clears an entered to the respective banks. value, and returns to the state before USER: This button selects the set of sub- starting input.
  • Page 63: Menu Control Section And Floppy Disk Drive

    Menu Control Section and Floppy Disk Drive The menu control section provides a variety of functions through the menu screen. 1 Top menu selection buttons 2 Item selection buttons 3 Menu screen 4 Parameter setting section TOP MENU BKGD WIPE TRANS M/E-1 BKGD...
  • Page 64 Menu Control Section and Floppy Disk Drive 1 Top menu selection buttons 6 EXIT button Each of these buttons accesses a top menu. Press this button to exit from the currently displayed menu to its parent menu, or the For details of the menu names and previously displayed menu.
  • Page 65: Key Frame Control Section (bkds-7030 Key Frame Control Panel Unit - Option)

    Key Frame Control Section (BKDS-7030 Key Frame Control Panel Unit – Option) STOP EDIT NEXT ENBL COPY PASTE DELAY FROM WIND PREV NEXT SHIFT 1 Key frame editing section 2 Effect execution section 3 Effect progress indicator 4 Fader lever Key frame control section 1 Key frame editing section KF DUR (key frame duration) button:...
  • Page 66 Key Frame Control Section (BKDS-7030 Key Frame Control Panel Unit – Option) PASTE button: Pressing this button INS (insert) button: While the effect is inserts the key frame from the paste stopped, this inserts a new key frame. buffer into the current position where If the effect is stopped at a key frame, the effect is stopped.
  • Page 67 2 Effect execution section STOP NEXT KF (key frame) button: When this button is lit, effect execution continues up to the next key frame. REV (reverse) button: When this button is lit, effect execution occurs in the reverse direction. REWIND button: This rewinds to the first key frame of the currently recalled effect.
  • Page 68: Dme Control Section (bkds-7031 Dme Control Panel Unit - Option)

    DME Control Section (BKDS-7031 DME Control Panel Unit – Option) 1 Function allocation 2 Operating buttons buttons MENU SRCE TRGT SKEW PERS SIZE AXIS ORTHG 3 Trackball 4 Z-ring VELO WORK BUFR HOLD DME control section In addition to DME operations, the MENU: Allocate to knob operations in the optional DME control panel unit can be menu control section.
  • Page 69 For details of the effect of controls 2 to CLR WORK BUFR: Not used. 4 when the MENU or ORTHG button is CTR (center): When the ASP SKEW pressed and lit, see below. PERS (M/E-1), LOC SIZE (M/E-2) or LOC XYZ (M/E-3) button is lit, Effect of controls 2 to 4 when the returns the wipe pattern to the default MENU button is lit...
  • Page 70 DME Control Section (BKDS-7031 DME Control Panel Unit – Option) To keep the knob controls allocated to the trackball and Z-ring With the knob controls allocated to the trackball and Z-ring, press the MENU button twice in rapid succession. The MENU button lights green, and even if you change to another menu, the allocation of the trackball and Z-ring remains...
  • Page 71: Shot Box Control Section (bkds-7033 Memory Recall Control Panel Unit - Option)

    SHOT BOX Control Section (BKDS-7033 Memory Recall Control Panel Unit – Option) This section executes the function For more information, see the section preassigned using a setup menu. “Assigning functions to the UTILITY (UTILITY buttons) buttons (UTILITY menu)” (page 14-86). You can assign registers storing such data as snapshots and key frame effects to these buttons so that you can recall them by...
  • Page 73: Menu Organization

    Chapter 3 Basic Menu Operations Menu Organization ................... 3-2 Basic Menu Operations ................3-6...
  • Page 74 Menu Organization Operations on the DVS-7300/7350 I/O expansion system make frequent use of menu operations. This section describes the menus and their interrelationships. Overview All detailed settings for basic operations such as transitions, keys, or wipes, are made in menus. There are also menus for carrying out general system control, managing setting data, and initial setup.
  • Page 75 Menus accessed from a top menu button Group Button Menus Function See page M/E-1, KEY1, KEY2 M/E-1, -2, -3 Key 1 and key 2 settings for the M/E bank 4-47 M/E-2, KEY1 or KEY2 M/E-3 WIPE M/E-1, -2, -3 Wipe settings for the M/E bank 4-103 WIPE M/E-1, -2, -3...
  • Page 76 Menu Organization Menus accessed by pressing a button twice For certain buttons other than the top menu buttons, pressing twice in rapid succession directly recalls a related menu. The following table lists these buttons, together with the menus they recall. Items listed in parenthesis after the menu names are automatically selected when the menu is recalled.
  • Page 77 Menus accessed by pressing a button twice (Continued) Button location Buttons Menus See page Cross-point button Color M/E-1, M/E-2, M/E-3 BKGD/TRANS 4-142 in M/E-1, M/E-2, background (item 1: COLOR BKGD) M/E-3 or PGM/PST signal (M/E bank (3.5-M/E banks) panels) to which Color PGM/PST WIPE (item 5: COLOR BKGD) 4-143...
  • Page 78 Basic Menu Operations This section describes the basic menu operations, taking the M/E-1 KEY 1 menu as an example. Accessing the menu To access the M/E-1 KEY 1 menu, use either of the following operations. • In the M/E-1 group of the top menu buttons, press the KEY 1 button. •...
  • Page 79 Understanding the menu display The following are the principal components of the menu display. In the menu display, reverse video indicates that an item or function is currently selected (or set to “on”). Items: These are the items to which the menu settings apply. Depending on the item selected, the menu display and function key indications change.
  • Page 80 Basic Menu Operations To select a function Press the corresponding function key. In this manual, for example in the M/E-1 KEY 1 menu shown on page 3-6 pressing F3 to select the “DROP BORDER” function is indicated simply by “Press F3 (DROP BORDER)”. In the figure on page 3-6 there is a single row of function key indications, but in some menus two rows appear.
  • Page 81 Setting parameter values You can change a currently displayed parameter in either of the following ways. • Turn the one of the four control knobs corresponding to the parameter. • Press the KEY PAD (1 to 4) button corresponding to the parameter, then enter the new value using the numeric keypad section.
  • Page 82 Basic Menu Operations Returning a parameter value entered with the numeric keypad to its previous value After setting a parameter by entering a numeric value, you can undo this setting, using what is known as the “LAST X” function. To do this, press the LAST X button in the numeric keypad section.
  • Page 83 Text input In the procedure for assigning a name to a register (page 9-11), assigning a name to a file (page 10-7), assigning a label to a floppy disk (page 10-10), or assigning a source name to an input signal (page 14-64), the character input screen shown below appears.
  • Page 84 Basic Menu Operations Press F9 (ENTER) or press the ENTER button in the numeric keypad section. This confirms the sequence of characters entered. 3-12 Chapter 3 Basic Menu Operations...
  • Page 85 Chapter 4 Basic Operations for Image Creation Before Beginning Image Creation ............4-3 Video Signal Flow ................4-3 Signal Selection ................... 4-6 Using the Mix/Effects Banks ..............4-10 Backgrounds and Keys ..............4-10 Basic Operating Procedure ..............4-11 Selecting the Next Transition ............4-14 Selecting the Transition Type ............
  • Page 86 Chapter 4 Basic Operations for Image Creation (Continued) DME Wipes .................... 4-124 Overview ..................4-124 Basic Operation for DME Wipes ............. 4-129 DME Wipe Settings ................. 4-131 Notes on Building a Key Frame Effect With User Programmable DME ............ 4-138 Color Backgrounds ................
  • Page 87: Before Beginning Image Creation

    For an explanation of the terms “3.5-M/E” and “3-M/E”, see page 1-2. Video Signal Flow The DVS-7300/7350 I/O expansion system has three mix/effects banks and, depending on the system, a program/preset bank and downstream keyer. Final program output Strictly speaking, it is possible to distinguish the “switcher program output”...
  • Page 88 Before Beginning Image Creation Examples of signal flow The following examples show how the outputs of the M/E banks can be fed to each other, in the two principal system types. For convenience it is assumed here that the signals are fed in the fixed order from M/E-1 to M/E-2 to M/E-3, but in fact any of these banks can feed any of the others.
  • Page 89: Signal Selection

    Example signal flow in a 3-M/E system The following diagram shows an example of the signal flow in a 3-M/E system, with the output from the M/E-3 bank set up to be the switcher program output. M/E-1 bank M/E-1 output video M/E-2 bank M/E-2 output...
  • Page 90 Before Beginning Image Creation Cross-point buttons and buses The relation between cross-point buttons and buses depends on the model of control panel, as shown in the following tables. Cross-point buttons and buses for the BKDS-7012/7021/7022 Button row Banks Delegation operation Background A M/E-1, M/E-2, M/E-3 None required.
  • Page 91 Cross-point buttons and buses for the BKDS-7011/7023 Button row Banks Delegation operation Background A M/E-1, M/E-2, M/E-3 None required. Background B Key 1 and key 2 fill M/E-1, M/E-2, M/E-3 Press the KEY 1 or KEY 2 button in the corresponding key control section, turning it on.
  • Page 92 Before Beginning Image Creation Assigning signals to cross-point button columns Each row of cross-point buttons in the M/E banks, PGM/PST bank (3.5-M/E systems only), and auxiliary bus bank includes 29 basic buttons for signal assignment. It is also possible to assign a shift function to one button, allowing a maximum total of 56 assignable signals.
  • Page 93 Source name indications Using a setup menu operation, you can assign an identifier of up to eight characters to each signal, for display on the control panel. For details of the procedure for assigning signal names, see page 14-64. The source name display on the control panel shows the first two and the last two characters of the specified identifier.
  • Page 94: Using The Mix/effects Banks

    Using the Mix/Effects Banks This section describes some of the effects which you can create using mix/ effects banks. Backgrounds and Keys You can use each of the mix/effects banks to insert one or two keys into a background video image. To define a key requires two video signals, the key source, which specifies which part of the background is cut out, and the key fill, which supplies the different video to insert in the cutout.
  • Page 95: Basic Operating Procedure

    Key types For each of the M/E banks, you can use the following key types. See the page numbers indicated in parenthesis for more details. • Luminance key (page 4-39) • Linear key (page 4-40) • Clean key (page 4-40) •...
  • Page 96 Using the Mix/Effects Banks Prepare the new video. • Select a new background on the background B bus, using the cross- point buttons. • When inserting a key, select the key signals and make any other required settings in the key control section. For more details of key signal selection and other settings, see the section “Basic Operation for Key Settings Using a Menu”...
  • Page 97 Background and key transitions Key cut Suppose that in step 2 of the procedure above you pressed just the KEY 1 button, and then in step 6 pressed the CUT button. This cuts key 1 in or out, i.e. instantaneously, and amounts to a cut transition on the M/E bank. On the other hand, using the KEY ON button in the key control section, you can cut the key in (or out) independently of the transition on the M/E bank.
  • Page 98: Selecting The Next Transition

    Using the Mix/Effects Banks Selecting the Next Transition In a transition you can change between the two backgrounds, or insert or remove either of the keys, or carry out any of these operations simultaneously. The following figures illustrate some possible effects. Background transition A background transition switches from the currently selected background A (old video) to background B (new video).
  • Page 99 Key transitions Inserting or removing a single key This inserts or removes key 1 or key 2 in the current video. Key 1 or key 2 Inserting key Removing key Inserting and removing key 1 or key 2 Inserting or removing both keys simultaneously This inserts or removes both key 1 and key 2 in the current video.
  • Page 100 Using the Mix/Effects Banks Carrying out background and key transitions simultaneously You can switch any combination of the background and keys 1 and 2 simultaneously. The following example illustrates leaving key 1 unchanged, while changing both the background and key 2. Key 1 Key 1 Key 2...
  • Page 101: Selecting The Transition Type

    Selecting the Transition Type The system provides the following types of transition; to select one of these, press the corresponding button in the transition control section, turning it on. Selecting the transition type Transition type Selection button Normal mix dissolve NAM (non-additive mix) dissolve Super Mix dissolve SUPER MIX...
  • Page 102 Using the Mix/Effects Banks Super Mix dissolve This is another variant dissolve, in which again the new video level is increased from 0% to 100% over the first half of the transition, and the old video is reduced from 100% to 0% over the second half. It is also possible to set the video levels at the mid-point of the transition to a value other than 100%.
  • Page 103: Setting A Transition Limit

    Setting a Transition Limit Normally the range of a transition corresponds to a complete switch from the old video to the new video. Alternatively, using the transition limit function, you can restrict the extent to which the transition is executed, so that in the state corresponding to a 100% movement of the fader lever, the transition is still incomplete.
  • Page 104: Super Mix Settings

    Using the Mix/Effects Banks Turn control knob 4 to set the transition limit. Knob Parameter Setting Trans Limit 0.00 to 100.00% • At the minimum limit setting (0%), moving the fader lever has no effect at all. • At the maximum limit setting (100%), the entire transition occurs as normal, but the background A and B buses do not flip-flop.
  • Page 105: Using The Program/preset Bank

    Using the Program/Preset Bank A 3.5-M/E system includes a program/preset (PGM/PST) bank, which provides control of the final program output, with background transitions and up to four downstream key insertions. You can control downstream key transitions either from the transition control section or from the downstream keyer control section, but this section concentrates on operations using the transition control section.
  • Page 106 Using the Program/Preset Bank Select whether the transition is a background or key transition with the next transition selection buttons in the transition control section. • For a background transition: press the BKGD button, turning it on. • To insert or remove a downstream key: press the corresponding one of the DSK 1, DSK 2, DSK 3, and DSK 4 buttons, turning it on.
  • Page 107 If you selected a wipe or DME wipe, make the necessary settings. For details of the settings, see the sections on the pages indicated in the following table. Wipe “PGM/PST Wipes and Downstream Keyer Wipes” (4-116) DME wipe “DME Wipe Settings” (4-131) Use the transition control section to execute the transition.
  • Page 108: Basic Downstream Key Operations

    Basic Downstream Key Operations Using a 3.5-M/E system or a 3-M/E system equipped with a downstream keyer, you can insert up to four keys into the final background output. The following table identifies the final background output on each of these systems.
  • Page 109 Types of key transition which can be carried out You can carry out any of the following types of key transition. • Cut • Dissolve (normal mix dissolve only) • Wipe • DME wipe (single mode only) • Fade-to-black All of these transitions except DME wipe and fade-to-black can be applied to any combination of the four keyers independently and simultaneously.
  • Page 110 Basic Downstream Key Operations Parallel configuration Each of the four downstream keys is inserted into a single background image to provide four different final outputs. Final output 1 DSK 1 Final output 2 DSK 2 Background video Final output 3 DSK 3 Final output 4 DSK 4...
  • Page 111 Dual cascade configuration Two downstream keys are inserted successively into each of two background images, giving two final output images. One key inserted Final output 1 Background video 1 DSK 2 DSK 1 One key inserted Final output 2 Background video 2 DSK 4 DSK 3 For more details of these configurations, refer to the Operation Manual...
  • Page 112: Basic Operating Procedure

    Basic Downstream Key Operations Basic Operating Procedure First delegate the buttons in the downstream keyer control section to the required keyer, then control the downstream key transition using the downstream keyer control section and associated menus. The following is the basic procedure for carrying out a downstream key transition.
  • Page 113 If you selected a wipe or DME wipe as the transition type, make the necessary settings. For details of the settings, see the sections on the pages indicated in the following table. Wipe “PGM/PST Wipes and Downstream Keyer Wipes” (4-116) DME wipe “DME Wipe Settings”...
  • Page 114 Basic Downstream Key Operations Carrying out a fade-to-black You can carry out a fade-to-black on the output of a keyer for which you have selected “ENBL” (enabled) in the SETUP menu. To carry out a fade-to-black, press the FADE TO BLACK button in the downstream keyer control section.
  • Page 115: Executing A Transition

    Executing a Transition This section describes the transition execution modes, transition rate setting, and the procedure for executing a transition. Overview Transition execution modes There are two modes: the auto transition mode, carried out by pressing buttons, and the manual transition mode, using the fader levers. It is also possible to combine these two techniques.
  • Page 116: Setting The Transition Rate

    Executing a Transition Setting the Transition Rate You can set the rate of an auto transition, by specifying the duration as the number of frames required. Use the following procedure to set the transition rate before pressing the AUTO TRANS button to carry out an auto transition. To set the transition rate, first specify the bank or keyer for which you wish to carry out the setting, then enter the numeric value from the numeric keypad section.
  • Page 117 Specifying the keyer when using a KEY MIX button When using a KEY MIX button to carry out a key transition on an M/E bank keyer, to specify what the transition rate setting applies to, hold down the TRANS RATE button in the numeric keypad section, then press the keyer delegation button in the key control section of the corresponding M/E bank.
  • Page 118: Executing A Transition

    Executing a Transition Executing a Transition This section describes how to execute a transition on an M/E bank or the PGM/PST bank of a 3.5-M/E system. Note that for the PGM/PST bank, it is only possible to execute the transition using the transition control section.
  • Page 119 Fading a key in or out on an M/E bank using the KEY MIX button Press the corresponding KEY MIX button in the key control section. This begins the transition at the preset rate. During the fade in or fade out, when the key is inserted in the output from the M/E bank, the KEY ON button lights amber, and if it is present in the final program output, the KEY ON button lights red.
  • Page 120 Executing a Transition Switching from manual to auto transition control • If you press the CUT button, the transition completes instantaneously. • If you press the AUTO TRANS button while using the fader lever to control a transition, auto transition control starts from the transition state represented by the current fader lever position, and completes the transition at the set rate (taking a time proportional to the remaining transition).
  • Page 121 A which feeds the output of each of the mix/effects banks, and always a background A bus tally indicator which is lit. The DVS-7300/7350 I/O expansion system can also, however, operate in bus fixed mode. This treats the two background buses A and B equally: a transition may go from A to B, or back from B to A, and there is no automatic flip-flop.
  • Page 122 Executing a Transition Fader lever operation in bus fixed mode • In the bus fixed mode there is a fixed relationship between the position of the fader lever and the signal output on each bus. Depending on the direction of the transition, the fader lever must therefore always be moved in a particular direction, as shown in the following table.
  • Page 123: Keys

    Keys This section describes the settings for keying operations (excluding chroma keying) which you can make on the M/E banks. It also describes the settings for downstream keying on a 3.5-M/E system, or 3-M/E system equipped with a downstream keyer. For details of chroma key operations and settings, see Chapter 5.
  • Page 124 Keys Linear key This is a variant type of luminance key, but with reduced variability in gain. • In a D2 system, the key source signal including the chrominance component is used to determine the key. • In a D1 system, the key source Y signal is used to determine the key. Clean key In a luminance or linear key the key source is used as a mask on both the background (i.e.
  • Page 125 Edge modifications It is possible to modify the edge of the key in several ways, for example adding a border or softening the edge. Edge modifications require the optional BKDS-7270 Key Border Board or Option BKDS-7271 Fine Key/Key Border Board to be fitted. The following figures illustrate some of the edge modifications.
  • Page 126 Keys Drop border or shadow: When using the BKDS-7270, there are eight positions (numbered 1 to 8) to apply a drop border or shadow. When using the BKDS-7271, you can adjust the drop border or shadow position continuously through the eight positions. Drop border (position code 1) Shadow (position code 1) Outline: You can apply an outline to the edge of the key.
  • Page 127 Edge fill: When using a border, drop border or shadow effect, you can select the edge fill signal to be inserted in this area. On each of the M/E banks, you can select either the dedicated color matte generator, or the signal selected on the utility bus. On the downstream keyer a color matte signal is automatically selected for the edge fill.
  • Page 128 Keys Processed key function The term “processed key” refers to the function whereby a keyer in a switcher operates in combination with an external DME unit to apply a DME effect to a key. This function is not available on the downstream keyer. When the processed key function is enabled, before combination with the background, the key fill and key source signals produced by the switcher keyer (with borders, shadows and other processing already effected) are...
  • Page 129 Saving and recalling default values of parameters You can make default values of key parameter settings saved in memory for a particular combination of signal selected as the key source on the M/E bank, keyer, and key type. Use a setup menu to save the values (see page 14-38). To recall the default values for M/E-1 key 1, for example, select the signal as key source with the M/E-1 KEY 1 menu displayed on screen, and hold down the function key for the required key type.
  • Page 130: Basic Operation For Key Settings Using A Menu

    Keys Basic Operation for Key Settings Using a Menu You can carry out key setting operations either by using a menu, or by using the key control section of the control panel. This section describes the basic menu operations for key settings for the M/E banks.
  • Page 131 M/E-1 KEY 1 DROP BORDER (1/2) TYPE Width MAIN MASK KEY TYPE : PATTERN KEY MASK Key type selection MASK INVERT :OFF (see page 4-47) KEY INV :OFF : BOX MASK SOURCE FILL/ SOURCE Key fill and key source Position selection (see page 4-51) FULL EDGE...
  • Page 132 Keys Press one of F1 through F5 to select the key type. F1 (LUM): luminance key F2 (LINEAR): linear key F3 (CLEAN): clean key F4 (CHROMA): chroma key F5 (PATTERN): pattern key You can now adjust the parameters for the selected key type. Using chroma keying requires the optional BKDS-2031 Chroma Key Option Board.
  • Page 133 When you have selected a chroma key: Knob Parameter Setting Density Set key density (0.00 to 100.00) When you have selected a pattern key: Knob Parameter Setting Size Set pattern size (0.00 to 100.00) Softness Set degree of edge softness (0.00 to 100.00) Density Set key density (0.00 to 100.00) If necessary, make the following settings.
  • Page 134 Keys To use the FineKey function requires the optional BKDS-7271 Fine Option Key/Key Border Board. • To invert the sense of the key source signal, press F8 (KEY INVERT), turning it on. • To reverse the priority of key 1 and key 2, press F9 (KEY PRIORTY), to interchange the OVER and UNDER indications.
  • Page 135 Selecting the key source and key fill Use the following procedure to select the key source and key fill signals for keyer 1 on the M/E-1 bank. For details of the operations for the processed key function, see the section “Using the processed key function”...
  • Page 136 Keys Press one of F4 through F6 to select the type of signal used for key source: the same as the key fill signal, or a different signal. F4 (KEY BUS): Use the signal selected on the key fill bus for the key source (self-keying).
  • Page 137 Modifying the key edge Edge modifications require the optional BKDS-7270 Key Border Board or Option BKDS-7271 Fine Key/Key Border Board to be fitted. Use the following procedure to modify the key edge, for example adding a border to the M/E-1 key 1. In the M/E-1 KEY 1 menu, select item 3 (EDGE).
  • Page 138 Keys Adjust the parameter settings as necessary. When you selected border, drop border or shadow in step 2, when F9 (MATTE) is on (a color matte is selected as the edge fill), you can adjust the parameters for matte 1 regardless of whether the color mix function is on or off.
  • Page 139 When using the outline function: Knob Parameter Setting Width Set width (0 to 4; for a pattern key: 0.00 to 100.00) Position Set position (0 to 8) Density Set density (0.00 to 100.00) a) For a pattern key the Position setting is not available. b) For the relationship between the code numbers and positions, see page 4-42.
  • Page 140 Keys When applying a drop border or shadow: Knob Parameter Setting Width Set edge width (in “4H DROP ON” mode: 0 to 4; in “4H DROP OFF” mode: 0 to 8) Position Set edge position (in “4H DROP ON ” mode: 0 to ;...
  • Page 141 To soften the edge, press F7 (SOFT EDGE), turning it on, and adjust the degree of softness. Knob Parameter Setting Softness Set the degree of edge softness (0.00 to 100.00) Note When you selected a “normal” edge, drop border, or shadow in “4H DROP OFF”...
  • Page 142 Keys Edge types and key fill/key source positions The edge modification functions have two modes: the “4H DROP ON” mode, in which the key fill/key source position moves down by four scan lines, and the “4H DROP OFF” mode, in which the key fill/key source position does not move down (with the exception of a border and an outline, for which the key fill/key source moves down by four scan lines irrespective of the modes).
  • Page 143 Using a color mix matte for the key edge fill When you have selected a color matte as the edge fill signal for a border, drop border, or shadow, you can combine mattes 1 and 2, using the dedicated pattern generator. On the border of the pattern, the two mattes are mixed, forming a color gradation.
  • Page 144 Keys Press any of F4 through F8 as required, turning them on, to adjust the pattern modifiers. F4 (POS): adjust the pattern position. Knob Parameter Setting H Pos Horizontal position (–50.00 to +50.00) V Pos Vertical position (–50.00 to +50.00) F5 (ASPECT): adjust the pattern aspect ratio.
  • Page 145 Masking To mask unwanted portions or defects in the key or background, there are two masks you can use: the main mask and the subsidiary mask. • The main mask uses as source signal the box generator built into the M/E bank keyer, or a dedicated mask pattern generator.
  • Page 146 Keys Adjust the mask source parameters. When you have selected a box mask: Knob Parameter Setting Top edge position of box (0.00 to 100.00) Left Left edge position of box (0.00 to 100.00) Right Right edge position of box (0.00 to 100.00) Bottom Bottom edge position of box (0.00 to 100.00) Softness...
  • Page 147 Press any of F3 through F6 as required, turning them on, to adjust the pattern modifiers. F3 (POS): adjust the pattern position. Knob Parameter Setting H Pos Horizontal position (–50.00 to +50.00) V Pos Vertical position (–50.00 to +50.00) To return the pattern position to the center of the screen Hold down the SHIFT button (the indication above F3 changes to “CENTER”), and press F3 (CENTER).
  • Page 148 Keys Using the subsidiary mask By way of example, the following procedure uses the subsidiary mask on keyer 1 of the M/E-1 bank. Note You cannot use the subsidiary mask for applying a border or outline with a pattern key. In the M/E-1 KEY 1 menu, select item 5 (SUB MASK).
  • Page 149 Adjust the mask source parameters. When you have selected a wipe pattern: Knob Parameter Setting Size Set pattern size (0.00 to 100.00) Softness Set the degree of edge softness (0.00 to 100.00) When you have selected a signal selected on the utility bus: Knob Parameter Setting...
  • Page 150 Keys On the DME, set up the required processing to be carried out on the key fill signal (PROCV) and key source signal (PROCK). On the DME, make the settings so that the PROCK signal level is not affected by a DME external key signal (so that the through output is obtained from the keyer for the external key).
  • Page 151: Basic Operation For Key Settings Using The Key Control

    Basic Operation for Key Settings Using the Key Control Section You can carry out some M/E bank key setting operations using the buttons and knobs (numbered 1 to 3 from top to bottom) in the key control section. Selecting the keyer To make settings for keyer 1, first press the KEY 1 button in the key control section to delegate the key control section to keyer 1.
  • Page 152 Keys While the PTN button is lit green: Knob Parameter Setting Size Set pattern size (0 to 100) Softness Set degree of edge softness (0 to 100) Density Set key density (0 to 100) Selecting the key fill To use a color matte To use a color matte generated internally by the keyer as key fill, press the MATTE FILL button.
  • Page 153 To invert the sense (black/white) of the key source signal Press the KEY INV button, turning it on. This allows you to use a key source which would normally correspond to black text on a white background as a key source for white text on a black background.
  • Page 154 Keys Parameter adjustments with the BKDS-7271 installed • While the BORD or OUTLINE button is lit green: Knob Parameter Setting Width Set width (0 to 100) Density Set density (0 to 100) • While the DROP BORD or SHDW button is lit green: Knob Parameter Setting...
  • Page 155: Downstream Keys

    Note If the key snapshot button is lit, this indicates that there is already a snapshot saved in this particular register. If with the SNAPSHOT button held down you press a key snapshot button which is lit, this overwrites the previous information in the register.
  • Page 156 Keys DSK menu To make the settings for a downstream key, first select the keyer (DSK 1 to DSK 4), then access the DSK menu. Accessing the DSK menu For example, to make the settings for downstream key 1, carry out one of the following operations.
  • Page 157 Selecting the key type You can use the following key types on the downstream keyers: • Luminance key (see page 4-39) • Linear key (see page 4-40) • Clean key (see page 4-40) • Color vector key: this uses a signal combining the luminance and chrominance signals as the key source.
  • Page 158 Keys Press one of F1 through F4 to select the key type. F1 (LUM): luminance key F2 (LINEAR): linear key F3 (CLEAN): clean key F4 (COLOR VECTOR): color vector key You can now adjust the parameters for the selected key type. Adjust the parameters as required.
  • Page 159 If necessary, make the following settings. • To adjust the width or horizontal position of the key source, press F6 (KEY POS), turning it on, and set the parameters. Knob Parameter Setting Left Pos Move the left edge of the key (–3.00 to +3.00) Right Pos Move the right edge of the key (–3.00 to +3.00) Phase...
  • Page 160 Keys When you have selected a color vector key, if necessary press F5 (COLOR VECTOR ADJUST) to display the COLOR VECTOR ADJUST menu, and carry out the following settings. CLEAN CHROMA VECTOR INVERT Function key indications in the COLOR VECTOR ADJUST menu •...
  • Page 161 Selecting the key source and key fill • As key fill for a downstream key you can use a video signal input to one of the INPUT 1 to 60 connectors on the rear panel of the I/O expansion unit (DVS-V6464M or HDS-X3600) (only inputs assigned as video sources in the XPT ASSIGN menu), or a signal generated by the internal color matte generator of the downstream keyer.
  • Page 162 Keys • If in step 2 you pressed F1 (KEY BUS), select the key fill signal using the cross-point buttons. Holding down the DSK 1 button in the downstream keyer control section to delegate the cross-point buttons in the auxiliary bus bank to the DSK 1 fill bus, then press the required cross-point button.
  • Page 163 When you have selected a color matte as the key fill signal, to adjust the color matte press F3 (MATTE ADJUST). The MATTE ADJUST menu appears. MATTE FLAT Function key indications in the MATTE ADJUST menu If you do not wish to use the color mix function, press F1 (FLAT), turning it on, and set the parameters for matte 1.
  • Page 164 Keys Using a color mix matte for the key fill When you have selected a color matte as the key fill signal, you can combine mattes 1 and 2, using a pattern from the dedicated pattern generator. On the border of the pattern, the two mattes are mixed, forming a color gradation. To carry out a color mix, use the following procedure.
  • Page 165 Press any of F4 through F8 as required, turning them on, to adjust the pattern modifiers. F4 (POS): adjust the pattern position. Knob Parameter Setting H Pos Horizontal position (–50.00 to +50.00) V Pos Vertical position (–50.00 to +50.00) F5 (ASPECT): adjust the pattern aspect ratio. Knob Parameter Setting...
  • Page 166 Keys Modifying the key edge Edge modifications require the optional BKDS-7320 Luminance Keyer and Option Border Board. Use the following procedure to modify the key edge, for example adding a border to the downstream key. In the DSK menu, select item 3 (EDGE). The EDGE menu appears.
  • Page 167 Adjust the parameter settings as necessary. When you selected border, drop border or shadow in step 2, you can adjust the color matte 1 parameters regardless of whether the color mix function is on or off. When applying a border: Knob Parameter Setting...
  • Page 168 Keys When using the outline function: Knob Parameter Setting Width Set width (0 to 4) Density Set density (0.00 to 100.00) To adjust separately the width of the top, bottom, left and right sides of the edge, press F8 (SEP EDGE), turning it on, and adjust the parameters. Knob Parameter Setting...
  • Page 169 If you do not wish to use the color mix function, press F1 (FLAT), turning it on, and set the parameters for matte 1. Knob Parameter Setting Luminance Set luminance (0.00 to 100.00) Saturation Set saturation (0.00 to 100.00) Set hue (0.00 to 359.99) For details of the operations for using the color mix function, see the next section.
  • Page 170 Keys Masking You can use one mask on each of DSK 1 to DSK 4. Masking requires the BKDS-7320. Option To use the mask function, select item 4 (MASK) in the DSK menu. The MASK menu appears. MASK TYPE MASK SOURCE BKGD MASK MASK...
  • Page 171 Using the blink function Using the blink function you can obtain the following effects. • Blinking a downstream key on and off at regular intervals. • Periodically interchanging the key fill and key edge fill. The blink function requires the BKDS-7320 board. Option For example, to use the blink function for downstream key 1, use the following procedure.
  • Page 172 Keys Using DSK frame memory DSK frame memory provides a function whereby you can write key fill and key source freeze frames, including key transformations and modifications, to memory, then use them as DSK key fill and key source. There is a frame memory function for each of DSK1 to DSK4. There are two modes: MANUAL and MOVE.
  • Page 173 Press F7 (FILL MEMORY) and F8 (SOURCE MEMORY), turning them F7 (FILL MEMORY): DSK frame memory for key fill F8 (SOURCE MEMORY): DSK frame memory for key source Press F10 (MEMORY). The DSK MEMORY menu appears. Press F9 (MANUAL). The following function key indications appear. FREEZE MODE [VIEWER] [CLEAR]...
  • Page 174 Keys Select the way in which you wish to combine the input image (key source and key fill selected in step 1) with the memory image (the freeze frame already captured in the DSK frame memory). The methods of combination include NAM (non-additive mix) and masking;...
  • Page 175 Set the mask source parameters. When you have selected BOX: Knob Parameter Setting Top edge position (0.00 to 100.00) Left Left edge position (0.00 to 100.00) Right Right edge position (0.00 to 100.00) Bottom Bottom edge position (0.00 to 100.00) Softness Degree of edge softness (0.00 to 100.00) When you have selected PTN:...
  • Page 176 Keys Moving the memory image – MOVE mode Use the following procedure to move the memory image vertically or horizontally. In the DSK MEMORY menu select F10 (MOVE). The function key indications change as follows. PICTURE FREEZE MODE INPUT MASK MASK PATTERN MOVE...
  • Page 177 Adjust the parameters until the selected image is in the desired position. Knob Parameter Setting H Move Horizontal position (–50.00 to +50.00) V Move Vertical position (–50.00 to +50.00) Note In a D2 system when you have selected F2 (LIVE), an operation to move the image horizontally may in some cases result in a vertical movement.
  • Page 178 Keys Using the ZABTON/flying shadow function To the key fill and source recalled from DSK frame memory, you can apply a matte underlay (the ZABTON function) or flying shadows. Applying an underlay with the ZABTON function Note When “VIEWER” is set to ON (see step 8 in the procedure on page 4-90) in the DSK MEMORY menu, the ZABTON function does not operate.
  • Page 179 Set the parameters. When you selected BOX: Knob Parameter Setting Top edge position (0.00 to 100.00) Left Left edge position (0.00 to 100.00) Right Right edge position (0.00 to 100.00) Bottom Bottom edge position (0.00 to 100.00) Softness Degree of edge softness (0.00 to 100.00) When you selected a pattern: Knob Parameter...
  • Page 180 Wipes Wipes This section describes the setting operations for carrying out wipes. Overview A wipe is a transition in which the old video is replaced by the new video according to the progressively changing shape of a wipe pattern. A wipe which forms a transition between two backgrounds is called a background wipe, and a wipe which inserts or removes a key is called a key wipe.
  • Page 181 Diamond dust: An effect like a scatter of small particles. This appears in the list of wipe patterns as “DIAMOND DUST”. By adjusting the parameters, you can change the size of the particles and the rate of twinkling. Pattern mix This refers to a combination of two different wipe patterns (referred to as the “main”...
  • Page 182: Wipes

    Wipes Main and subsidiary modifier link function When carrying out a pattern mix, you can link the modifier settings for the main and subsidiary patterns. This function has two modes, as follows. “FULL LINK” mode: All modifier settings for the main and subsidiary patterns are the same.
  • Page 183 Modifying the wipe pattern You can modify wipe patterns in the following ways. The block-capital expressions in parenthesis show how the modification is indicated on the menu screen. Wipe direction (DIRECTION): The wipe can proceed in the forward (“normal”) direction, or the reverse direction. There is also an alternating option, in which the wipe direction reverses each time it is executed.
  • Page 184 Wipes Edge modifications (EDGE): You can apply a border to the edge, or soften the edge. It is also possible to soften the applied border (soft border function). For a downstream keyer, the only available modification is to soften the edges.
  • Page 185 Replicated patterns (MULTI): This tiles the video space with multiple copies of the pattern, with a maximum of 63 copies in both horizontal and vertical directions. There are four different arrangements for the tiling (1 to 4). Pattern rotation (ROTATION): this rotates the pattern, in any of three ways.
  • Page 186: Basic Operation For Wipe Settings

    Wipes Combinations of patterns and modifiers Depending on the pattern you have selected, not all modifiers may be usable. The following table shows which modification settings can be applied to which wipe patterns, with the wipe patterns arranged in groups by their numbers.
  • Page 187 Accessing the wipe setting menus For example, to access the M/E-1 WIPE 1 menu, use any of the following operations: • In the M/E-1 group of the menu control section, press the WIPE top menu button. • In the transition control section of the M/E-1 bank, press the WIPE button twice in rapid succession.
  • Page 188 Wipes Selecting the wipe pattern Move the cursor to select the required wipe pattern from those displayed on the menu screen. The wipe pattern display comprises two pages. Alternatively, you can enter the wipe pattern number directly using the numeric keypad. For details of input from the numeric keypad, see page 4-106.
  • Page 189 Combining two wipe patterns in a pattern mix Carrying out a pattern mix requires the optional BKDS-2070 Enhanced Wipe Option Generator Board to be installed. To combine the main pattern with the subsidiary pattern in a pattern mix, use the following procedure. In the PATTERN menu, press F3 (SUB), turning it on.
  • Page 190 Wipes Press F1 (MIX) once again, turning it on. The main and subsidiary patterns are combined, and function key indications for F5 to F7 appear. Press one of F5 to F7, to make the main and subsidiary modifier link function setting. F5 (OFF): Do not use the link function.
  • Page 191 Applying wipe modifiers You can modify wipe patterns, for example to reverse the wipe direction, or change the position of the pattern. Note, however, that depending on the pattern you have selected, not all modifiers may be usable. For details of possible combinations of wipe patterns and modifiers, see the table on page 4-102.
  • Page 192 Wipes Press F5 or F6 (for the main pattern) or F8 or F9 (for the subsidiary pattern) to select whether or not the pattern moves toward the center as the transition progresses. F5/F8 (NORMAL): The wipe pattern center is stationary throughout the transition.
  • Page 193 Adjust the parameter settings as necessary. When you selected border or soft border in step 2, when F6 (MATTE) is on (a color matte is selected as the edge fill), you can adjust the parameters for matte 1 regardless of whether the color mix function is on or off.
  • Page 194 Wipes When you selected a color matte as the edge fill signal, press F7 (MATTE ADJUST) to make the matte adjustments. The EDGE MATTE menu appears. MATTE PATTERN WIPE FLAT Function key indications in the EDGE MATTE menu If you do not wish to use the color mix function, press F1 (FLAT), turning it on, and set the parameters for matte 1.
  • Page 195 Using a color mix matte for the edge fill When you have selected a color matte as the edge fill signal for a border or soft border, you can combine mattes 1 and 2, using a pattern produced by the dedicated pattern generator or the wipe generator for the particular M/E bank.
  • Page 196 Wipes When using a wipe pattern: Note When you select a wipe pattern for the color mix, the following wipe modifier settings become invalid. • Direction • Edge • The “magnitude” setting for rotation For details of the wipe modifiers, see page 4-99. In step 6 of the procedure described above under “Modifying the edge of the wipe pattern”...
  • Page 197 Changing the aspect ratio of the wipe pattern Replicating the wipe pattern Rotating the wipe pattern Applying a modulation to the edge of the wipe pattern To apply these modifiers, use the following procedure. Applying modulation requires the optional BKDS-2070 Enhanced Wipe Option Generator Board to be installed.
  • Page 198 Wipes F4 (ANGLE): rotate the pattern. Knob Parameter Setting Angle Rotation angle (–50.00 to +50.00) (maximum one whole turn) a) To avoid problems at the fader limits, depending on the angle, the pattern size is automatically corrected. F5 (SPEED): rotate the pattern at a constant angular speed. Knob Parameter Setting...
  • Page 199 Resetting all of the wipe modifiers to the default settings It is possible to reset all of the wipe modifiers for the currently selected wipe pattern to the default settings. For example, to do this for the wipe pattern selected on the M/E-1 bank, in the menu control section, hold down the WIPE top menu button in the M/E-1 group for about two or three seconds.
  • Page 200: Pgm/pst Wipes And Downstream Keyer Wipes

    Wipes PGM/PST Wipes and Downstream Keyer Wipes This section describes the basic operations for PGM/PST wipe and downstream keyer wipe settings. PGM/PST wipe setting menu You carry out the settings for PGM/PST wipes in the PGM/PST WIPE menu. To access the PGM/PST WIPE menu Use either of the following operations: •...
  • Page 201 Downstream keyer wipe setting menu You carry out the settings for downstream keyer wipes by first selecting the appropriate keyer (DSK 1 to DSK 4) and then using the DSK WIPE menu. To access the DSK WIPE menu For example, to make settings for DSK 1, use either of the following operations: •...
  • Page 202 Wipes Selecting the wipe pattern Move the cursor to select the required wipe pattern from those displayed on the menu screen. Alternatively, you can enter the wipe pattern number directly using the numeric keypad. For PGM/PST and downstream keyer wipes, it is only possible to use the standard wipes, and further excluding number 24.
  • Page 203 Applying wipe modifiers You can modify wipe patterns, for example to reverse the wipe direction, or change the position of the pattern. For PGM/PST wipes and downstream keyer wipes, you can use the following modifiers. For an overview of the modifiers, see the section “Modifying the wipe pattern”...
  • Page 204 Wipes To specify the wipe direction, press one of F1 through F3, turning it on. (For a downstream keyer wipe, you can also use the NORM, NORM/ REV and REV buttons in the downstream keyer control section.) F1 (NORMAL): carry out the wipe in the forward direction. F2 (NORMAL/REVERSE): carry out alternate wipes in opposite directions.
  • Page 205 Modifying the edge of the wipe pattern To modify the edge of the wipe pattern, use the following procedure. • For a PGM/PST wipe In the PGM/PST WIPE menu, select item 3 (EDGE). The EDGE menu appears. EDGE TYPE SOFT BORDER SOFT BORDER...
  • Page 206 Wipes • For a downstream wipe In the DSK WIPE menu, select item 3 (MODIFY), to display the MODIFY menu (see the next section). Press F8 (SOFT), turning it on, and adjust the following parameter. Knob Parameter Setting Softness Set the degree of edge softness (0.00 to 100.00) Changing the aspect ratio of the wipe pattern Replicating the wipe pattern Rotating the wipe pattern...
  • Page 207 F3 (OFF): do not apply any of the rotation modifiers (ANGLE, SPEED, or MAGNITUDE). F4 (ANGLE): rotate the pattern. Knob Parameter Setting Angle Rotation angle (–50.00 to +50.00) (maximum one whole turn) a) To avoid problems at the fader limits, depending on the angle, the pattern size is automatically corrected.
  • Page 208: Dme Wipes

    DME Wipes This section describes the basic operations and settings for DME wipes. Overview By connecting one or more DME-7000 or other Digital Multi Effects units to the switcher system, it is possible to carry out wipe transitions using the DME effects.
  • Page 209 DME wipe patterns The DME wipe patterns can be divided into the following groups. For details of the patterns in each group and impressions of the wipes, see the Appendix “DME Wipe Patterns” (page A-8). The following descriptions apply when the wipe direction is “Normal” (i.e. forward).
  • Page 210 DME Wipes DME wipe modes There are two DME wipe operating modes: single mode, using a single DME unit, and dual mode, using two DME units. Single mode The DME is dedicated to manipulating the background, key 1, key 2, or one of the four downstream keys.
  • Page 211 Modifying a DME wipe You can execute a transition with the following modifications applied to the DME wipe. Wipe direction (DIRECTION): The wipe can proceed in the forward direction (NORMAL), or reverse direction (REVERSE), or in alternating directions for each execution (NORMAL/REVERSE). Note For a key transition, the forward and reverse executions may not be the same as for a background transition.
  • Page 212 DME Wipes Adjustments on the DME Unit • When you have selected a page turn or page roll pattern, you can adjust the nonlinear “Angle” and “Radius” parameters, using the control panel for the DME unit. • In a DME wipe, part of the image may be filled by the DME background color.
  • Page 213: Basic Operation For Dme Wipes

    Relation with processed keys On each M/E bank, if you are using the same DME for both a DME wipe and a processed key, the first selected function takes precedence. Basic Operation for DME Wipes Using a DME wipe for a background transition To use a DME wipe for a background transition, use the following procedure.
  • Page 214 DME Wipes Using a DME wipe for a key transition To use a DME wipe for a key transition, use the following procedure. Select the key for the next transition. M/E key: In the transition control section, press the next transition selection button KEY 1 or KEY 2, turning it on.
  • Page 215: Dme Wipe Settings

    Carry out the transition. M/E key: Use the fader lever or AUTO TRANS button in the transition control section. Downstream key: In the downstream keyer control section, press one of the DSK 1 to DSK 4 AUTO TRANS buttons. In a 3.5-M/E system, you can alternatively use the fader lever or AUTO TRANS button in the transition control section in the PGM/ PST bank.
  • Page 216 DME Wipes Currently selected pattern Selectable DME wipe patterns. appears here. This example shows slide, split, and squeeze patterns. DME wipe pattern selection (see page 4-133) M/E-1 DME WIPE 1000 1001 1002 1003 1004 1005 PATTERN 1000 DIRECT/ 1006 1007 1008 1009 1010...
  • Page 217 Accessing the P/P DSK DME WIPE menu Use any of the following operations: • Press the P/P DSK DME top menu button in the SYSTEM group of the menu control section. • Press the DME button in the transition control section of the PGM/PST bank twice in rapid succession (in 3.5-M/E systems only).
  • Page 218 DME Wipes Use the cursor movement buttons (M m < ,) to align the cursor with the required pattern number. Press F10 (ENTER), or press the ENTER button on the numeric keypad. The selected pattern now appears in the current pattern box. To select a DME wipe pattern using the numeric keypad With the PATTERN menu displayed, enter the number of the required pattern, using the numeric keypad, then press the ENTER button.
  • Page 219 To specify the wipe direction, press one of F1 through F3, turning it on. (For a downstream keyer wipe, you can also use the NORM, NORM/ REV and REV buttons in the downstream keyer control section.) F1 (NORMAL): carry out the wipe in the forward direction. F2 (NORMAL/REVERSE): carry out alternate wipes in opposite directions.
  • Page 220 DME Wipes In the M/E-1 DME WIPE menu or P/P DSK DME WIPE menu, select item 3 (BORDER). The BORDER menu appears. EDGE TYPE SOFT BORDER SOFT BORDER Function key indications in the BORDER menu Press one of F1 through F4, and adjust the parameter settings as necessary.
  • Page 221 DME wipe snapshot operations When you have finalized an M/E DME wipe pattern, complete with its various modifications, you can save the whole setting using a numeric key in the FlexiPad, for instant recall when required. To save a DME wipe snapshot For example, to save the DME wipe settings on the M/E-1 bank, hold down the DME button in the FlexiPad of the M/E-1 bank and press one of the numeric keys 1 to 9 which is not lit.
  • Page 222: Notes On Building A Key Frame Effect With

    DME Wipes Notes on Building a Key Frame Effect With User Programmable DME A user programmable DME effect uses an effect built on the DME from key frames as a transition on the switcher. To obtain the required transition effect, it is important to note the following points. Note It is not possible to use a user programmable DME effect with the DME- 3000.
  • Page 223 Key frame effects for pattern numbers 1951 to 1956 and 1961 to 1966 Normally, for DME wipe transitions with pattern numbers 1901 to 1912, at the end point of the transition the A bus image has been completely replaced by the B bus image. For pattern numbers 1951 to 1956 and 1961 to 1966, however, at the end of the transition the A bus image remains within the B bus image, rather than being completely replaced.
  • Page 224 DME Wipes Creating frame effects for pattern numbers 1961 to 1966 With pattern numbers 1961 to 1966, as the transition progresses the A bus image gradually shrinks, to reveal the B bus image from underneath. NORMAL REVERSE Create a key frame effect for the above patterns as follows. •...
  • Page 225: Color Backgrounds

    Color Backgrounds This section describes the various settings which are possible for color backgrounds used on the M/E banks and PGM/PST bank (3.5-M/E systems only). Overview The M/E banks and PGM/PST bank have dedicated color matte generators for producing color backgrounds, which can then be used in creating video effects.
  • Page 226: Color Background Setting Operations

    Color Backgrounds Color Background Setting Operations The color background settings are carried out in a dedicated color background setting menu for the bank concerned. M/E bank color background settings Accessing the M/E bank color background setting menus For example, to access the M/E-1 color background setting menu (COLOR BKGD), use either of the following operations: •...
  • Page 227 To adjust matte 1 (when not using the color mix function) In the COLOR BKGD menu, press F1 (FLAT), turning it on, and adjust the parameters. Knob Parameter Setting Luminance Set luminance (0.00 to 100.00) Saturation Set saturation (0.00 to 100.00) Set hue (0.00 to 359.99) To carry out a color mix In the COLOR BKGD menu, press F2 (PATTERN MIX) or F3 (WIPE MIX),...
  • Page 228: Status Display

    Status Display This section describes the function for displaying the current status of the selections for transitions and wipes on the M/E banks. It also describes how to change signal selections on the auxiliary buses, and how to set the transition rate. Basic Status Display Operation Displaying the ALL STATUS menu From among the top menu selection buttons in the menu block, press the...
  • Page 229 To display the status for a single bank Select one of items 1 to 3 (M/E-1 to M/E-3) to display the status of the snapshot or wipe information stored in the FlexiPad for the bank. For example, selecting item 1 displays the M/E-1 STATUS menu. The status information displayed depends on which of F1 (SNAPSHOT) to F3 (DME WIPE) is selected.
  • Page 230 Status Display Setting the transition rate To set the transition rate in the ALL STATUS menu (see page 4-144), use the following procedure. Press F10 (TRANS RATE). The function key indications change as follows. The indications for F5 to F10 depend on the selections of F1 to F4. BLOCK SELECT TRANS RATE AUTO...
  • Page 231 • If you pressed one of F1 to F3 in step 2, now press one of F5 to F7, to select the transition rate setting from the following: F5 (AUTO TRANS): The auto transition rate set in the M/E transition control section F6 (KEY1 MIX): The mix rate for key 1 in the M/E key control section...
  • Page 232 Status Display Displaying the status of snapshot or wipe information stored in the FlexiPad To display the status of snapshot information stored in the FlexiPad In the required M/E bank, press the SNAPSHOT button in the FlexiPad twice in rapid succession. Alternatively, display the status for the corresponding bank (e.g.
  • Page 233 To display the status of wipe snapshot information stored in the FlexiPad In the required M/E bank, press the WIPE button in the FlexiPad twice in rapid succession. Alternatively, display the status for the corresponding bank (e.g. for the M/E- 1 bank, display the M/E-1 STATUS menu), and press F2 (WIPE).
  • Page 234 Status Display To display the status of DME wipe snapshot information stored in the FlexiPad In the required M/E bank, press the DME button in the FlexiPad twice in rapid succession. Alternatively, display the status for the corresponding bank (e.g. for the M/E- 1 bank, display the M/E-1 STATUS menu), and press F3 (DME WIPE).
  • Page 235: Wipes Using A Bkds-7370 Board

    Wipes Using a BKDS-7370 Board This section describes the setting operations for carrying out wipes when the BKDS-7370 Advanced Wipe Board is installed. Overview A wipe is a transition in which the old video is replaced by the new video according to the progressively changing shape of a wipe pattern.
  • Page 236 Wipes Using a BKDS-7370 Board Pattern mix The term “pattern mix” refers to a new pattern formed by combining two selected wipe patterns (known as the “main” and “subsidiary” patterns). There are four different methods of combination, as follows. Mix (MIX): The effect of the subsidiary pattern is added to the main pattern, modifying its appearance.
  • Page 237 The following table shows whether you can use a particular combination of wipe patterns with the pattern mix function. Wipe pattern used as the Standard Enhanced Rotary Mosaic Random/ subsidiary pattern wipes wipes wipes wipes dust Wipe pattern used wipes as the main pattern Standard wipes Enhanced wipes...
  • Page 238 Wipes Using a BKDS-7370 Board Modifying the wipe pattern You can modify wipe patterns in the following ways. The block-capital expressions in parenthesis show how the modification is indicated on the menu screen. Wipe direction (DIRECTION): The wipe can proceed in the forward (“normal”) direction, or the reverse direction.
  • Page 239 Edge modifications (EDGE): You can apply a border to the edge, or soften the edge. It is also possible to soften the applied border (soft border function). Soft border When you select a border or soft border, the signal which fills these border portions is termed edge fill.
  • Page 240 Wipes Using a BKDS-7370 Board Changing the aspect ratio (ASPECT): This allows you to vary the aspect ratio of the pattern. Aspect ratio function disabled Aspect ratio changed Pattern rotation (ROTATION): This rotates the pattern, in any of three ways. These are shown in the following figure, along with the names of the parameters used to control them.
  • Page 241 Spiral (SPIRAL): The pattern is deformed like a whirlpool. Spiral off Spiral on Pairing (PAIRING): The pattern is deformed like a venetian blind. Pairing off Pairing on Replicated patterns (MULTI): This tiles the video space with multiple copies of the pattern, with a maximum of 63 copies in both horizontal and vertical directions.
  • Page 242 Wipes Using a BKDS-7370 Board Combinations of patterns and modifiers Depending on the pattern you have selected, not all modifiers may be usable. The following table shows which modification settings can be applied to which wipe patterns, with the wipe patterns arranged in groups by their numbers.
  • Page 243: Basic Operation For Wipe Settings

    Basic Operation for Wipe Settings Most wipe settings are carried out in a dedicated menu for the bank concerned. This section describes the basic operations for wipe settings for the M/E banks. Accessing the wipe setting menus For example, to access the M/E-1 WIPE 1 menu, use any of the following operations: •...
  • Page 244 Wipes Using a BKDS-7370 Board Selecting the wipe pattern Move the cursor to select the required wipe pattern from those displayed on the menu screen. The wipe pattern display comprises six pages. Alternatively, you can enter the wipe pattern number directly using the numeric keypad.
  • Page 245 Change the parameters, according to the selected pattern, to set the shape of the pattern. When a polygon wipe (pattern number 49) is selected: Knob Parameter Setting Number of points (3 to 64) Star Sharpness (0.00 to 100.00) When a mosaic wipe (pattern numbers 200 to 203, 206 to 213, 224 to 247, 250 to 257, and 260 to 269) is selected: Knob Parameter...
  • Page 246 Wipes Using a BKDS-7370 Board Combining two wipe patterns in a pattern mix To combine the main pattern with the subsidiary pattern in a pattern mix, use the following procedure. In the PATTERN menu, press F3 (SUB), turning it on. You can now select the subsidiary pattern.
  • Page 247 Press F1 (MIX) once again, turning it on. The main and subsidiary patterns are combined. Press one of F4 to F7 to select the type of pattern combination. F4 (MIX): Combine the main and subsidiary patterns by a “mix”. F5 (+NAM): Combine the main and subsidiary patterns by a “positive NAM”.
  • Page 248 Wipes Using a BKDS-7370 Board Press one of F8 to F10, to set the main/subsidiary link function. F8 (OFF): Do not use the link function. F9 (SEMI): Select “SEMI LINK” mode. F10 (FULL): Select “FULL LINK” mode. Note To carry out a wipe transition, select F10 (FULL). Mixing a diamond dust wipe with a pattern created by a pattern mix (“dust mix”) Use the following procedure to create a “dust mix”.
  • Page 249 Applying wipe modifiers You can modify wipe patterns, for example to reverse the wipe direction, or change the position of the pattern. Note, however, that depending on the pattern you have selected, not all modifiers may be usable. For details of possible combinations of wipe patterns and modifiers, see the table on page 4-158.
  • Page 250 Wipes Using a BKDS-7370 Board Press F5 or F6 (for the main pattern) or F8 or F9 (for the subsidiary pattern) to select whether or not the pattern moves toward the center as the transition progresses. F5/F8 (NORMAL): The wipe pattern center is stationary throughout the transition.
  • Page 251 Adjust the parameter settings as necessary. When you selected border or soft border in step 2, when F6 (MATTE) is on (a color matte is selected as the edge fill), you can adjust the parameters for matte 1 regardless of whether the color mix function is on or off.
  • Page 252 Wipes Using a BKDS-7370 Board When you selected a color matte as the edge fill signal, press F7 (MATTE ADJUST) to make the matte adjustments. The EDGE MATTE menu appears. MATTE PATTERN WIPE FLAT Function key indications in the EDGE MATTE menu If you do not wish to use the color mix function, press F1 (FLAT), turning it on, and set the parameters for matte 1.
  • Page 253 Using a color mix matte for the edge fill When you have selected a color matte as the edge fill signal for a border or soft border, you can combine mattes 1 and 2, using a pattern produced by the dedicated pattern generator or the wipe generator for the particular M/E bank.
  • Page 254 Wipes Using a BKDS-7370 Board When using a wipe pattern: Note When you select a wipe pattern for the color mix, the following wipe modifier settings become invalid. • Direction • Edge • The “magnitude” setting for rotation For details of the wipe modifiers, see page 4-154. In step 6 of the procedure described above under “Modifying the edge of the wipe pattern”...
  • Page 255 Splitting a wipe pattern Leaving a trail behind a pattern To apply these modifiers, use the following procedure. Select item 3 (EDGE) in the M/E-1 WIPE menu. The EDGE menu appears. EDGE TYPE EDGE FILL SOFT MATTE UTILITY BORDER SOFT BORDER MATTE ADJUST...
  • Page 256 Wipes Using a BKDS-7370 Board Changing the aspect ratio of the wipe pattern Rotating the wipe pattern Deforming the edges of a pattern inward or outward (SPRING) Deforming the pattern like a whirlpool (SPIRAL) Deforming the pattern like a venetian blind (PAIRING) Replicating the wipe pattern Applying a modulation to the edge of the wipe pattern To apply these modifiers, use the following procedure.
  • Page 257 F3 (ANGLE): Rotate the pattern. Knob Parameter Setting Angle Rotation angle (–50.00 to +50.00) (maximum one whole turn) F4 (SPEED): Rotate the pattern at a constant angular speed. Knob Parameter Setting Speed Rotation speed (–50.00 to +50.00) F5 (MAG): Specify angle through which pattern turns through the course of the transition.
  • Page 258 Wipes Using a BKDS-7370 Board F8 (PAIR): Making the wipe like a venetian blind Knob Parameter Setting Width Width of strips (1 to 128) H Offset Interval in the horizontal direction (–50.00 to +50.00) V Offset Interval in the vertical direction (–50.00 to +50.00) Changing the slit direction Hold down the SHIFT button (the indication above F8 changes to “SLIT”), and press F8 (SLIT).
  • Page 259 F5 (MULTI POS): Move the position of the pattern within the region divided with F1. Knob Parameter Setting H Pos Move the pattern horizontally (–50.00 to +50.00) V Pos Move the pattern vertically (–50.00 to +50.00) Press F10 (MOD). The function key display changes as follows. MODULATION FRINGE Press the function key corresponding to the modifier you want to apply,...
  • Page 260 Wipes Using a BKDS-7370 Board F3 (FRINGE): Modulate the pattern, applying a wavy effect to the edges, in the radial direction. Knob Parameter Setting Amplitude Set the modulation amplitude (0.00 to 100.00) Frequency Set the modulation frequency (0.00 to 100.00) Speed Set the modulation speed (–50.00 to +50.00) Shape...
  • Page 261 Chapter 5 Chroma Keying Overview ..................... 5-2 Basic Chroma Key Operations ..............5-3 Preparations ..................5-3 CHROMA KEY Menu ................ 5-4 Basic Operations .................. 5-5 Adjusting the Chroma Key Image ............5-7 Video Signal Adjustment ..............5-12 Chroma Key Masking ................ 5-13 Upgrade Board Mode Selection .............
  • Page 262: Overview

    Overview Chroma keying uses a specific color in a foreground image to create a key signal, which is then used to combine another image by keying. The following figure illustrates this combination of a foreground image and background image to create a chroma key combined image. Foreground Background Chroma key combined image...
  • Page 263: Basic Chroma Key Operations

    Basic Chroma Key Operations This section describes chroma key operations with the BKDS-2031 board only installed. Note that the operation is slightly different in D1 and D2 systems. Preparations Dedicated chroma key inputs and settings • In a D2 system, since one of four analog component signals (the signals input to the CRK INPUTS connectors on the rear panel of the processor) is used as the foreground video, inputs and settings for these signals are required.
  • Page 264: Chroma Key Menu

    Basic Chroma Key Operations CHROMA KEY Menu For most chroma key operations, you use a dedicated chroma key menu for the keyer concerned. Accessing the chroma key menu For example, to access the M/E-1 CHROMA KEY menu, use any of the following operations: •...
  • Page 265: Basic Operations

    Basic Operations You select the foreground from the dedicated chroma key signals, and select the background on the cross-point buttons, then combine them by means of a key transition. In a D1 system only, you can also select the foreground with a cross-point button.
  • Page 266 Basic Chroma Key Operations Press any of F4 to F8 to select the foreground video. In a D2 system, however, F8 (KEY BUS) does not appear. F4 (1) to F7 (4): input signal to one of the CRK INPUT connectors (CH 1 to CH 4) on the rear panel of the processor.
  • Page 267: Adjusting The Chroma Key Image

    Adjusting the Chroma Key Image There are two ways of adjusting the output from chroma keying: automatically, using the auto chroma key function, or manually, making individual adjustments from the menu. In general the most effective and time-efficient method is to use the auto chroma key function for the initial adjustment, and then only if further adjustment is still required, use the manual facilities.
  • Page 268 Basic Chroma Key Operations Adjust the parameter settings so that the sample frame is entirely within the area being used for chroma keying (usually the blue background). Knob Parameter Setting H Pos Set the horizontal position of the frame (–50.00 to +50.00) V Pos Set the vertical position of the frame (–50.00 to...
  • Page 269 Making manual color cancel adjustment If the background color is affecting the foreground image, by turning the color cancel function on you can eliminate this effect. Use the following procedure. In the ADJUST menu, set F4 (KEY ACTIVE) to “OFF”. The foreground only appears on the monitor.
  • Page 270 Basic Chroma Key Operations Making the window adjustment You can adjust the detection range of the information used to produce the key signal. When this function is off, the default range is used for image adjustment. Chroma keying uses a particular hue (typically a blue background color) in the foreground signal to produce the key signal, and the window function specifies the range of signal values to be regarded as this background hue.
  • Page 271 In the ADJUST menu, press F4 (KEY ACTIVE), F5 (COLOR CANCEL) and F6 (WINDOW) to turn them on. Turn control knobs 1 and 2 clockwise. Knob Parameter Setting Crop Set the CROP value (0.00 to 100.00) Angle Set the ANGLE value (0.00 to 180.00) This sets the CROP and ANGLE values to zero.
  • Page 272: Video Signal Adjustment

    Basic Chroma Key Operations Video Signal Adjustment You can adjust the gain and hue delay (offset) of the foreground video signal. You can either adjust the overall gain of the signal or adjust the Y and C components separately. The following procedure is the same in both D1 and D2 systems. In the CHROMA KEY menu, select item 3 (VIDEO CORRECT).
  • Page 273: Chroma Key Masking

    Chroma Key Masking If there are unwanted background “holes” in the chroma key image, you can mask these areas off. For chroma key masking you can use the main and subsidiary masks independently or simultaneously on the selected keyer (KEY 1 or KEY 2). The following procedures are thus the same in both D1 and D2 systems.
  • Page 274 Basic Chroma Key Operations Adjust the mask source parameters. When you have selected a box mask: Knob Parameter Setting Top edge position of box (0.00 to 100.00) Left Left edge position of box (0.00 to 100.00) Right Right edge position of box (0.00 to 100.00) Bottom Bottom edge position of box (0.00 to 100.00) Softness...
  • Page 275: Upgrade Board Mode Selection

    Upgrade Board Mode Selection Single mode and dual mode By fitting both the BKDS-2031 and BKDS-2032 options, you can upgrade Option the chroma key function in either of the following ways: • By adding an extra chroma keyer, allowing you to use two chroma keys on the M/E banks.
  • Page 276: Dual Mode Chroma Keying

    Dual Mode Chroma Keying Dual Mode CHROMA KEY Menu When you have selected dual mode, the CHROMA KEY menu appears as shown below. In this menu, select item 5 (CH) to select the appropriate chroma key. Key 1 is identified as channel (“CH”) 1, and key 2 is identified as channel 2. The other items, 1 to 4, are the same as described in the section “Basic Chroma Key Operations”...
  • Page 277: Enhanced Chroma Keying (single Mode)

    Enhanced Chroma Keying (Single Mode) This section describes the principal extra functions gained by adding a BKDS-2032 upgrade board. Overview The enhanced chroma key function is made possible by adding the BKDS- 2032 option, and adds the following functions: • Clean chroma key function •...
  • Page 278: Single Mode Chroma Key Menu

    Enhanced Chroma Keying (Single Mode) Single Mode CHROMA KEY Menu When you have selected the chroma key single mode, each of the CHROMA KEY menus appears as below. See the page numbers in parenthesis for details of the additional functions. M/E-1 CHROMA KEY Clean chroma key POSITION...
  • Page 279: Clean Chroma Key

    Clean Chroma Key When you are using the enhanced chroma key function, in the SETUP (CHROMA KEY) menu a clean chroma key is possible. Using 4:4:4 format signals for the background and foreground enables you to obtain a higher quality keyed image than with conventional chroma keying. Clean chroma keying produces an already combined image, so it is not possible to carry out a key transition.
  • Page 280 Enhanced Chroma Keying (Single Mode) Forming a combined image using clean chroma key Use the following procedure. In the CHROMA KEY menu, select item 1 (SETUP). The SETUP menu appears. FRGD INPUT SELECT FRGD/ FRGD MODE TYPE BKGD FORMAT SINGLE CLEAN FRGD Function key indications in the CHROMA KEY SETUP menu...
  • Page 281 Press F3 (FRGD/BKGD) to select “BKGD”. Press one of F4 (1) to F7 (4) to select the background signal. Note The background signals are common to M/E-1 to M/E-3. Whichever M/E bank you select the background on, the same background will also be used on other M/E banks.
  • Page 282: Additive Mix

    Enhanced Chroma Keying (Single Mode) Additive Mix When you are using the enhanced chroma key function, in the SETUP (CHROMA KEY) menu an additive mix is possible. Using an additive mix to combine images In normal chroma keying, a key signal is used to cut a hole in a background, and this is combined with a foreground cut out by the key signal.
  • Page 283: Image Adjustment Functions

    Adjust the parameter. Knob Parameter Setting Luminance Set luminance (0.00 to 10.00) Within the blue background, portions of intensity lower than the specified value are changed to black. Image Adjustment Functions When you are using the enhanced chroma key function, the following image adjustment functions are the same as when the BKDS-2032 board is not fitted: auto chroma key, window, and key position functions.
  • Page 284 Enhanced Chroma Keying (Single Mode) Select F4 (KEY ADJUST). The KEY ADJUST menu appears. DUAL KEY ADJUST DUAL SAMPLE AUTO AREA ACTIVE MARK START AREA PATTERN INVERT Function key indications in the KEY ADJUST menu (using the enhanced chroma key function) Press F5 (AREA), turning it on.
  • Page 285 Set the parameters for the boundary between the main key and subsidiary key areas. When you have selected BOX: Knob Parameter Setting Top edge position of box (0.00 to 100.00) Left Left edge position of box (0.00 to 100.00) Right Right edge position of box (0.00 to 100.00) Bottom Bottom edge position of box (0.00 to 100.00)
  • Page 286 Enhanced Chroma Keying (Single Mode) Press EXIT button to return to the ADJUST menu, and using F1 (SAMPLE MARK) and F2 (AUTO START) to adjust the main key with the auto chroma key function. For details, see page 5-7. Press F4 (KEY ADJUST), to display the KEY ADJUST menu. Press F1 (KEY ACTIVE), turning it on, and adjust the parameters for the main key as required.
  • Page 287 Press F4 (AUTO START). The subsidiary key is adjusted automatically, and F2 (DUAL KEY) turns on. The combined picture then appears on the monitor. Adjusting the color cancel key It is possible to adjust the key signal for the color cancel function. Use the following procedure.
  • Page 288 Enhanced Chroma Keying (Single Mode) Adjust the color cancel key parameters. Knob Parameter Setting Clip Set clip level on the color cancel key signal (0.00 to 100.00) Gain Set color cancel key gain (0.00 to 100.00) Press any of F4 to F6 as necessary and adjust the parameters. F4 (WINDOW): Adjust the detection range for the key signal.
  • Page 289 Adjusting the Y balance In conventional chroma keying, the key signal is formed using the chroma component alone, and therefore if there are portions of the foreground of the same hue they will all be replaced by the background video. Using the Y balance function, however, it is possible to restrict the replacement to a specified intensity range even for the matching hue.
  • Page 290 Enhanced Chroma Keying (Single Mode) Adjusting the chroma key shadow This function provides a more realistic treatment when the shadow of an object in the field of view falls on the blue background. Since parts of the blue background darker than a specified intensity are treated as shadows, there is no effect on cutting out of the foreground.
  • Page 291: Video Signal Adjustment And Spot Color Adjustment

    Video Signal Adjustment and Spot Color Adjustment When you are using the enhanced chroma key function, it is possible to carry out both overall and localized adjustments to the video signal. The following procedures are the same in both D1 and D2 systems. Making overall color adjustment for the foreground and the background You can change the gain and hue for the whole foreground, and for the whole...
  • Page 292 Enhanced Chroma Keying (Single Mode) Making spot color adjustment for the foreground You can make video adjustments for a portion of a specified color (for example red) within the foreground, changing it to a different color (for example yellow), without affecting portions of other colors. Use the following procedure.
  • Page 293 Press F7 (WINDOW), turning it on, and adjust the detection range for the spot color key. Knob Parameter Setting Luminance Set luminance (0.00 to 100.00) Saturation Set saturation (0.00 to 100.00) Set the range of hue (0.00 to 100.00) Press any of F8 to F10 as necessary, to restrict the area for spot color adjustment.
  • Page 294: Dual Masking

    Enhanced Chroma Keying (Single Mode) Dual Masking With the enhanced chroma key function, you can use two masks, main and subsidiary, simultaneously. You can also use these masks simultaneously with the main mask and subsidiary mask set for the selected keyer (KEY 1 or KEY 2).
  • Page 295 Chapter 6 Frame Memory Overview ..................... 6-2 Frame Memory Functions ..............6-2 Basic Frame Memory Operations ............6-5 Preparations ..................6-5 FRAME MEMORY Menus ..............6-6 Selecting the Input Video ..............6-7 Writing a Frame to Memory – MANUAL .......... 6-7 Writing a Frame With a Trail to Memory –...
  • Page 296: Overview

    Overview The frame memory function, as its name suggests, captures a frame of video input (whether movie or still), and holds it in memory for use in effects. In a D2 system, it is also possible to carry out a field freeze, by use of Y/C separation of the input signals.
  • Page 297 The following figure illustrates how to build up a freeze frame progressively using a variety of mask patterns to combine the input video with the stored frame. The example uses the dedicated patterns, but you can also use a box frame.
  • Page 298 Overview Paint mode In this mode you can move the masked input video, leaving a trail, and writing the result to memory. In this case, use the dedicated pattern for the mask. It is not possible to use this mode concurrently with the manual mode. Input video Stored frame Move mode...
  • Page 299: Basic Frame Memory Operations

    Basic Frame Memory Operations Preparations Assigning the output signal to a cross-point button Before you can see the output of frame memory on a monitor, for example, it is necessary to assign the output signals of frame memory 1 and frame memory 2 (FM1 and FM2) to cross-point buttons.
  • Page 300: Frame Memory Menus

    Basic Frame Memory Operations FRAME MEMORY Menus Operations on frame memory 1 are carried out from the FRAME MEMORY 1 menu. Operations on frame memory 2 are carried out from the FRAME MEMORY 2 menu. The following description applies mainly to frame memory 1, but the operations for frame memory 2 are similar.
  • Page 301: Selecting The Input Video

    Selecting the Input Video For the input video to frame memory, you can select either a signal selected on the frame memory bus, or a dedicated color matte signal. To select a frame memory bus signal as input video, use the following procedure to select the signal.
  • Page 302 Basic Frame Memory Operations Select item 1 (MANUAL). The MANUAL menu appears. OUTPUT MEMORY FREEZE INPUT INPUT MASK MASK PATTERN FREEZE SELECT CLEAR MODE SELECT MASK SOURCE INVERT MODIFY FRAME Function key indications in the MANUAL menu Set F2 (OUTPUT SELECT) to “IN”. The input video about to be written to the frame memory is now output from the frame memory.
  • Page 303 Select the method of combining the stored frame with the input video. There are four possibilities, involving a non-additive mix (NAM) and a mask; select the appropriate combination of settings of F6 (NAM) and F7 (INPUT MASK) as shown in the table below. Note When F5 (INPUT SELECT) is set to “MATTE”, it is not possible to set F6 (NAM) to “ON”.
  • Page 304 Basic Frame Memory Operations Adjust the mask source parameters. When you have selected BOX: Knob Parameter Setting name Top edge position of box (0.00 to 100.00) Left Left edge position of box (0.00 to 100.00) Right Right edge position of box (0.00 to 100.00) Bottom Bottom edge position of box (0.00 to 100.00) Softness...
  • Page 305 When you are ready to freeze the frame, press F1 (FREEZE). This writes the freeze frame to memory. Outputting the stored frame only To output the frame currently stored in frame memory to a monitor, for example, use the following procedure. In the FRAME MEMORY 1 menu, select item 1 (MANUAL).
  • Page 306: Writing A Frame With A Trail To Memory - Paint

    Basic Frame Memory Operations Writing a Frame With a Trail to Memory – PAINT Writing a frame with a trail to memory To freeze an image with a trail and write it to memory, use the following procedure. In the FRAME MEMORY 1 menu, select item 2 (PAINT). The PAINT menu appears.
  • Page 307 Press F7 (PATTERN), and adjust the parameters. Knob Parameter Setting name Size Size of pattern (0.00 to 100.00) Softness Degree of edge softness (0.00 to 100.00) Pattern No. Pattern number (1 to 27) To apply a pattern modifier to the selected pattern, press F10 (PATTERN MODIFY), displaying the PATTERN MODIFY menu.
  • Page 308: Moving The Frame - Move

    Basic Frame Memory Operations Moving the Frame – MOVE Moving the stored frame To move the stored frame horizontally or vertically, use the following procedure. In the FRAME MEMORY 1 menu, select item 3 (MOVE). The MOVE menu appears. PICTURE MOVE MODE INPUT MASK...
  • Page 309: Linking Frame Memories - Link

    Adjust the parameters to move the selected image to the desired position. Knob Parameter Setting name H Move Amount of horizontal movement (–50.00 to +50.00) V Move Amount of vertical movement (–50.00 to +50.00) If you selected F2 (LIVE) in step 2, press F7 (INPUT MASK) to select whether or not to mask the input video.
  • Page 310: Write-protect Setting - Lock

    Basic Frame Memory Operations Set F1 (MEMORY LINK) to “ON”. Frame memory 2 is now linked to frame memory 1. To link the dedicated patterns, set F2 (PATTERN LINK) to “ON”. This makes all of the pattern settings for frame memory 2 the same as those for frame memory 1.
  • Page 311 Recalling the image before a memory was overwritten – UNDO After overwriting the contents of memory with F1 (FREEZE) in MANUAL mode or F1 (PAINT) in PAINT mode, you can use the UNDO function to return to the previous state. To carry out the UNDO function, hold down the SHIFT button (the indication above button 5 changes to “UNDO”), and press button 5 (UNDO).
  • Page 312: Still File

    STILL FILE Overview When the BKDS-7444 Frame Memory Expansion Board is installed, you can use the functions of the BKDS-2041 Frame Memory Board to save frozen images. Memory available You can save image data in dynamic RAM (DRAM) or flash memory (FLASH).
  • Page 313: Basic Operations In The Still File Menu

    Basic operations in the STILL FILE menu This section describes basic operations in the STILL FILE menu. Accessing the STILL FILE menu Press the STILL FILE menu button in the SYSTEM row of the menu control block. Writing and recalling images Use the following procedure to write (save) and recall (load) images in frame memory.
  • Page 314 STILL FILE Select the frame memory to be used for saving or loading. F7 (FMEM1): Frame memory 1 F8 (FMEM2): Frame memory 2 Enter the file number for the save or load, using the numeric keypad, and press the ENTER button. Press the F10 (EXEC) button.
  • Page 315 Operations on files Use the following procedure to copy, delete, or rename files which have been saved. In the STILL FILE menu, select item 1 (FILE). The FILE menu appears. FUNCTION SAVE LOAD COPY DELETE NAME RENAME Function key indications in the FILE menu (1) Press one of F3 to F6, turning it to reverse video, to select the operation.
  • Page 316 STILL FILE Press one of F7 to F9, turning it to reverse video, to select the method of specifying files. F7 (ALL): To specify all files F8 (BLOCK): To specify a range of consecutive file numbers F9 (ONE): To specify a single file If you pressed F7 (ALL), skip to step 6.
  • Page 317 Applying a name to an image frozen in frame memory To apply a name to the image frozen in frame memory 1 or frame memory 2, use the following procedure. In the STILL FILE menu, select item 1 (FILE). The FILE menu appears. FUNCTION SAVE LOAD...
  • Page 318 STILL FILE QUICK LOADER operation You can recall a saved image with a simple operation. This function is called “QUICK LOADER”, and you use it as follows. In the STILL FILE menu, to recall to frame memory 1 select item 2 (QUICK LOAD 1), and to recall to frame memory 2 select item 3 (QUICK LOAD 2).
  • Page 319 Note on snapshots and key frame effect operations By a snapshot or key frame effect operation, you can recall an image saved in a file to frame memory 1 or frame memory 2. For snapshots • When you save frame memory 1 or frame memory 2 in a snapshot, the file number of the image in the frame memory is also automatically saved.
  • Page 321 Chapter 7 Snapshots Overview ..................... 7-2 Snapshots and Registers ..............7-3 Snapshot Operations ................. 7-6 Snapshot Operations Using the Numeric Keypad Section ....7-6 M/E Snapshot Operations Using the FlexiPad ........7-10 DME Snapshot Operations ..............7-14...
  • Page 322: Overview

    Overview Taking a snapshot means making a copy of the current settings of the system, and saving it in memory so that you can instantly restore the same setting state at a later time. Types of snapshot Snapshots can be divided into the following two types: •...
  • Page 323: Snapshots And Registers

    Snapshots and Registers Snapshots are held in units of memory termed registers, numbered from 1 to 99. As shown below, each register comprises eight sub-registers. Registers 1 to 99 Registers 01 to 99 For channel 1 M/E-1 M/E-2 M/E-3 For channel 2 Sub- P/P &...
  • Page 324 Overview Four of these eight sub-registers – Frame Mem 1 and 2, AUX Buses, and Video Process – are grouped together in what is known as the USER group. For manipulating the USER group, however, it is possible to select which of these four are actually included, by using a setting in the REGISTER menu.
  • Page 325 Attribute restrictions Not all attributes can be applied to all sub-registers. The following table shows which combinations are possible. Sub-register Attribute “EFFECT “AUTO “XPT “KEY DISSOLVE” TRANSITION” DISABLE” DISABLE” M/E-1, M/E-2, M/E-3 USER group Frame Mem 1 and 2 AUX Buses P/P &...
  • Page 326: Snapshot Operations

    Snapshot Operations You can use the numeric keypad section or the FlexiPad in one of the M/E banks for saving and recalling snapshots. Using the numeric keypad section you can carry out all snapshot operations except applying (or removing) the “KEY DISABLE” attribute. Using the FlexiPad in an M/E bank, you can carry out snapshot operations for this particular M/E bank.
  • Page 327 Select the sub-register or sub-registers. You can press any combination of the sub-register selection buttons, turning them on, as follows. M/E1, M/E2, M/E3 button: Select sub-registers M/E-1, M/E-2, and M/E-3, respectively. P/P DSK button: Select the P/P & DSK sub-register. USER button: Select the currently selected sub-registers of the USER group (Frame Mem 1 and 2, AUX Buses, and CCR).
  • Page 328 Snapshot Operations Recalling a snapshot To recall a snapshot using the numeric keypad section, use the following procedure. Press the SNAPSHOT button, turning it on. Select the sub-register or sub-registers, using the sub-register selection buttons. For details, see step 3 in the previous section “Saving a snapshot” (page 7-7).
  • Page 329 Press the ENTER button. This recalls the specified snapshot, restoring the relevant sections of the control panel to their states when the snapshot was saved. This only affects settings relating to the signals, however, and does not change the currently displayed menu, for example. After recalling the snapshot, the RCALL button remains on, and you can recall a different snapshot immediately by repeating from step 2 above.
  • Page 330: M/e Snapshot Operations Using The Flexipad

    Snapshot Operations M/E Snapshot Operations Using the FlexiPad Overview You can use the FlexiPad for M/E snapshot operations. Since each M/E bank is equipped with its own FlexiPad, there is no need to specify the corresponding sub-register (M/E-1, M/E-2, or M/E-3). By changing the FlexiPad operating mode, you can carry out operations by a different procedure from that described below.
  • Page 331 Set up the M/E bank in the state you wish to save in the snapshot. To apply the “EFFECT DISSOLVE” attribute press the EFF DISS button in the FlexiPad, turning it on, and to apply the “AUTO TRANSITION” attribute press the AUTO TRANS button, turning it on. Use the following method to select the number of the register in which you wish to save the snapshot.
  • Page 332 Snapshot Operations Recalling an M/E snapshot To recall an M/E snapshot using the FlexiPad, use the following procedure. Press the SNAPSHOT button in the FlexiPad of the M/E bank concerned. To apply the “XPT DISABLE” attribute press the XPT DSBL button in the FlexiPad, turning it on, and to apply the “KEY DISABLE”...
  • Page 333 Restoring the state before an M/E snapshot was recalled When you recall an M/E snapshot, the immediately previous settings are saved in a register which is known as “LAST X”. By recalling the settings from this register, you can return to the state immediately before recalling an M/E snapshot;...
  • Page 334: Dme Snapshot Operations

    Snapshot Operations DME Snapshot Operations From the control panel of the switcher, you can save and recall DME snapshots on up to four channels. Each DME has registers for 99 snapshots, numbered 01 to 99 as on the switcher. To save or recall a DME snapshot In the numeric keypad section press one of the DME 1 to DME 4 sub-register selection buttons, to select the corresponding DME.
  • Page 335 Chapter 8 Key Frame Effects Overview ..................... 8-2 Key Frames and Effects ............... 8-2 Control of DME Effects ..............8-3 Organization of Registers for Key Frame Effects ....... 8-4 Operation Sequence ................8-5 Key Frame Creation and Editing ............. 8-6 Accessing a Register ................
  • Page 336: Overview

    Overview Fitting the optional BKDS-7030 Key Frame Control Panel Unit (also referred to in the following description as the “key frame control section”) in the control panel allows you to build key frame effects. This section gives an overview of key frame effects and the associated operations.
  • Page 337: Control Of Dme Effects

    Control of DME Effects From the key frame control section you can also control key frames and effects held DME-7000/3000 units (up to four channels) connected to the switcher. Basically operations, from the creation of key frames to the execution of effects, are the same as on the switcher.
  • Page 338: Organization Of Registers For Key Frame Effects

    Overview Organization of Registers for Key Frame Effects The collection of key frames making up an effect is stored in memory, and identified by a register number from 01 to 99. On the switcher each register is divided into eight sub-registers, each holding its allotted data. In a switcher register, the four sub-registers for frame memory 1, frame memory 2, the AUX buses, and for color correction are handled together under the name “USER”.
  • Page 339: Operation Sequence

    Operation Sequence The following diagram shows the principal steps in the process from creating the key frames to the execution of the effect. Selecting a register (see page 8-6) When creating a new effect, select an empty register; to edit an existing effect, select the corresponding register.
  • Page 340: Key Frame Creation And Editing

    Key Frame Creation and Editing Accessing a Register To recall the contents of a register, use the following procedure. Press the EFF button in the numeric keypad section, turning it on. This delegates the numeric keypad section to key frame operations. In the sub-register selection section, press the button or buttons corresponding to the sub-register or DME channel(s) you wish to use.
  • Page 341: Specifying Sub-registers And Edit Points

    Specifying Sub-Registers and Edit Points Selecting the sub-register to which editing applies To select the sub-register (or channel) to which key frame editing applies, press one of the sub-register selection buttons (M/E-1 to M/E-3, P/P DSK, USER, DME 1 to DME 4, and DME GLBL). Specifying edit points To insert, modify, or delete a key frame, it is necessary to stop the effect at the appropriate point on the time axis.
  • Page 342: Creation

    Key Frame Creation and Editing Changing the reference channel When for example you use the NEXT KF button to move a key frame, one sub-register is used to determine where the next key frame is, and the other sub-registers follow suit. The sub-register used for reference is termed the reference channel, and only the corresponding sub-register selection button lights green.
  • Page 343: Insertion

    Press the INS button. This inserts the new key frame (key frame 2) after key frame 1. Repeat steps 4 and 5 as necessary, until the required number of key frames are created. Insertion Inserting a key frame Use the following procedure to insert a key frame in an existing effect. Press the EDIT ENBL button, turning it on.
  • Page 344: Modification

    Key Frame Creation and Editing Modification Modifying key frames Use the following procedure to modify already created key frames. Press the EDIT ENBL button, turning it on. Stop the effect at the required edit point. If the edit point is on a key frame, that key frame will be modified; if the edit point is between key frames, the previous key frame will be modified.
  • Page 345 Press the FROM TO button, turning it on. Press the MOD button. This simultaneously modifies all key frames including and after the specified key frame. Modifying all of the key frames Press the EDIT ENBL button, turning it on. Carry out the necessary changes on any key frame. Press the FROM TO button, turning it on.
  • Page 346: Deletion

    Key Frame Creation and Editing Press the MOD button. This simultaneously modifies all key frames in the specified range. Deletion Deleting key frames Use the following procedure to delete key frames. Press the EDIT ENBL button, turning it on. Stop the effect at the required edit point. If the edit point is on a key frame, that key frame will be deleted;...
  • Page 347: Movement

    Movement Moving key frames Use the following procedure to move key frames. Stop the effect on the key frame to be moved. To move a number of key frames together, press the FROM TO button, and specify the key frames. For details of the procedure for specifying the key frames, see the section “Modifying more than one key frame simultaneously”...
  • Page 348: Copying

    Key Frame Creation and Editing Copying Copying key frames Use the following procedure to copy key frames. Press the EDIT ENBL button, turning it on. Stop the effect on the key frame you wish to copy. To copy more than one key frame, press the FROM TO button, and specify the key frames to be copied.
  • Page 349: Time Settings

    Time Settings Key Frame Duration and Effect Duration Effect execution times are determined by the effect duration and the key frame durations. • A key frame duration is the execution time from a key frame until the next key frame. •...
  • Page 350 Time Settings Setting the effect duration Use the following procedure. Press the EDIT ENBL button, turning it on. Press the EFF DUR button. Enter the numerical value in minutes, seconds and frames (mm.ss.ff) from the numeric keypad, and press the ENTER button. For example, enter 3.7.15 to set a duration of 3 minutes, 7 seconds and 15 frames.
  • Page 351: Key Frames

    Changes in Effect Duration Due to Inserted Key Frames • When the effect is stopped on a key frame, then if you insert a key frame, the effect duration is increased by the duration of the inserted key frame. • When the effect is stopped between key frames, then inserting a key frame does not change the effect duration.
  • Page 352: Deletion

    Time Settings Changes in Effect Duration Due to Key Frame Deletion When you delete a key frame, regardless of where the effect is stopped, the effect duration is always decreased by the duration of the deleted key frame. Deletion on the first key frame Deletion on an intermediate key frame Deletion between two key...
  • Page 353: Delay Setting

    Delay Setting Setting the delay time The delay time is the delay from the beginning of effect execution until the first key frame, that is, until the effect proper begins. The delay is not included in the effect duration, which therefore does not change when you change the delay.
  • Page 354: Path Settings

    Path Settings These settings determine the way in which interpolation from one key frame to the next is carried out, or in other words the nature of the path followed between key frames. Displaying the PATH Menu Make the path settings for key frames created on the switcher by using the SWER KF PATH menu.
  • Page 355: Basic Path Setting Operations

    Press one of F1 (ALL) to F6 (PGM/PST DSK), to select the sub-register to which the settings apply. For example, selecting F2 (M/E-1) allows you to make path settings separately for the items (KEY 1, KEY 2, WIPE, etc.) on the M/E-1 bank. To make path settings for the whole M/E-1 bank without separating items, press F1 (ALL).
  • Page 356 Path Settings SPLINE: Use a spline curve to provide a smooth interpolation. The selected interpolation path type is shown on the menu display by an icon. In order not to switch the input signals, set F8 (XPT DSBL) to “ON”. Press F10 (HUE PATH).
  • Page 357 Path settings within an M/E bank Making path settings for individual items within an M/E bank For example, in the case of the M/E-1 bank, use the following procedure. For the M/E-2 and M/E-3 banks, use a corresponding procedure. In the SWER KF PATH menu, press F2 (M/E-1). The function key indications change as follows.
  • Page 358 Path Settings Path settings within the “USER” group Making detailed settings for individual items within the “USER” group In the SWER KF PATH menu, press F5 (USER). The function key indications change as follows. CURVE FRAME FRAME BUSES PATH MEM1 MEM2 LINEAR STEP...
  • Page 359 Path settings within the PGM/PST bank or downstream keyer (DSK) Making detailed settings for individual items within PGM/PST or In the SWER KF PATH menu, press F6 (PGM/PST DSK). The function key indications change as follows. CURVE COLOR DSK2 DSK3 DSK4 TRANS BKGD...
  • Page 360: Executing And Saving Effects

    Executing and Saving Effects Executing Effects You can execute, or play back, the currently recalled effect, using either the RUN button or the fader lever, to obtain a continuous segment of video. Use the following procedures. Note For the following operations, first press and light the appropriate buttons for the sub-registers to which execution is to apply.
  • Page 361 Execution with a combination of the fader lever and the RUN button Fader lever operation during execution in auto mode If at an intermediate point of execution of an effect started by pressing the RUN button you operate the fader lever, when the fader lever reaches the position corresponding to the current position of the effect execution, the auto mode ends, the RUN button goes off, and the fader lever takes over control of the execution of the effect.
  • Page 362: Run Mode Settings

    Executing and Saving Effects Setting a pause point Use the following procedure. Stop the effect at the desired pause point. In the KEY FRAME menu, press F5 (PAUSE). The function key indication switches to reverse video, and the current position of the current effect is set as the pause point. Thereafter, if you execute this effect by using the RUN button, it pauses at the set point.
  • Page 363 Press the RUN button to execute the effect. The effect execution loops around from the last key frame to the first key frame, and repeats the effect indefinitely. There is no interpolation between the last key frame and the first key frame.
  • Page 364: Saving Effects

    Executing and Saving Effects Notes • In INDPND mode, even when completion times in different channels are different, moving the fader lever through its complete travel causes a simultaneous completion of execution, and the effect is thus different from that of using the RUN button. •...
  • Page 365: Displaying Effect Information

    Displaying Effect Information You can check the key frame and effect state, using the menu screen. Displaying the KEY FRAME menu Press the KEY FRAME top menu button in the SYSTEM group of the menu control section. The KEY FRAME menu appears. DISPLAY MODE DISPLAY [P2&GPI]...
  • Page 366 Displaying Effect Information Time line display Displaying the time line screen In the KEY FRAME menu, press F1 (TIME LINE). This screen displays the state of the currently recalled effect, with a time line for each of the sub-registers or channels. Effect number Effect name Reference channel...
  • Page 367 Enlarging the time line display Use the following procedure. In the KEY FRAME menu, press F2 (EXPAND). F7 (START) and F8 (END) appear. (See page 8-31.) Press F7 (START), then turn knob 4 to set the start point. Press F8 (END), then turn knob 4 to set the end point. Setting the mode in which an effect is recalled When an effect is recalled, you can select whether or not the first key frame image is reproduced.
  • Page 368 Displaying Effect Information Displaying the detailed screen Pressing F3 (DETAIL) displays the screen shown in the figure below. This screen gives detailed information for each key frame on the reference sub- register. Key frame number Time code Key frame duration KEY FRAME EFF= : EFFECT 50...
  • Page 369: Peripheral 2 And Gpi Timeline Function

    Peripheral 2 and GPI Timeline Function Overview In the SETUP menus, by setting the DME3/DME4 buttons to “P2TL,” you can use the Peripheral 2 and GPI timeline function, also referred to as the “P2&GPI” timeline function. At the same time, the REMOTE 2 port of the switcher control panel is automatically assigned to the Peripheral 2 and GPI timeline function.
  • Page 370: Creating Effects With The P2&gpi Timeline Function

    Peripheral 2 and GPI Timeline Function Creating Effects With the P2&GPI Timeline Function Selecting the P2&GPI timeline function Use the following procedure. In the numeric keypad section, press the EFF button, turning it on. Press the DME3 button or DME4 button, turning it on. (The DME3 and DME4 buttons operate together.) Recalling a register To recall a register in which an effect has been saved, use the following...
  • Page 371 On the Key Frame Control Panel, press the EDIT ENABLE button, turning it on. • To select a Peripheral 2 device, press F1 (DEVICE SELECT) or turn knob 2. • To select a GPI port, press F8 (PORT SELECT) or turn knob 3. •...
  • Page 372: Example Of Control With The Peripheral 2 Timeline Function

    Peripheral 2 and GPI Timeline Function For more details, see “Key Frame Creation and Editing” (page 8-6). Notes • P2&GPI timeline effects are not backed up on the switcher itself. Resetting the control panel destroys the data. Save any important data on a 3.5-inch floppy disk.
  • Page 373 Settings on the switcher With the disk recorder to be controlled as DEVICE 1, make the following settings in the P2&GPI timeline menu, and save as EFFECT #1. EFFECT #1 KF#1:RECALL #2(DEVICE#1), KF DURATION:0.00 KF#2:TRIGGER #1(DEVICE#1), KF DURATION:10.00 KF#3:TRIGGER #4(DEVICE#1), KF DURATION:1.00 Recalling and executing Use the following procedure.
  • Page 375: Registers

    Chapter 9 Registers Overview ..................... 9-2 Functions Relating to Registers ............9-3 Basic Register Operations ................. 9-6 Manipulating Snapshot and Key Frame Effect Registers ....9-7 Setting Snapshot Attributes ............... 9-14 Selecting the Sub-Registers in the “USER” Group ......9-16 Channel-to-Channel Copying of DME Registers ......
  • Page 376: Overview

    Overview Registers are areas of memory (RAM) in the switcher used to hold snapshots and key frame effects; there are 99 registers for each of these purposes, numbered from 01 to 99. Each register is further divided into eight sub- registers (note, however, that a “P/P &...
  • Page 377: Functions Relating To Registers

    Functions Relating to Registers To carry out operations on registers, you use the REGISTER menu. This section describes the functions of the REGISTER menu. Note The REGISTER menu does not provide functions for manipulating the registers used to hold the key snapshots controlled from the key control section, and the wipe and DME wipe snapshots controlled from the the FlexiPad.
  • Page 378 Overview Register manipulation functions You can use the following functions to manipulate the data within registers. (It is not possible to apply these to separate switcher sub-registers, but you can manipulate DME channels separately.) MOVE: Move the contents of one register to another. SWAP: Swap the contents of two registers.
  • Page 379 Displaying and setting VTR control registers For VTRs (a maximum of two) connected to the control panel, you can save and recall sets of data including the start point, stop point, and start offset point (the time from pressing the RUN button in the key frame section until the VTR starts), in the same way as saving and recalling key frame effects.
  • Page 380: Basic Register Operations

    Basic Register Operations This section describes the basic register operations carried out from the REGISTER menu. Accessing the REGISTER menu To access the REGISTER menu, press the REGS top menu button in the SYSTEM group of the menu control section. When item 2 is selected, the register numbers and names appear as shown below.
  • Page 381: Manipulating Snapshot And Key Frame Effect Registers

    Manipulating Snapshot and Key Frame Effect Registers This section describes how to manipulate snapshot and key frame effect registers, and how to apply a name to a register. Selecting the channels to which operations apply When manipulating registers, with the EFF button or SNAPSHOT button in the numeric keypad section lit, it is necessary to press the sub-register selection buttons, and select the channels to which the manipulations apply.
  • Page 382 Basic Register Operations Press one of F1 to F4, F11, and F12 according to the operation you wish to carry out, turning it on. F1 (MOVE): Move the contents of one register to another. F2 (SWAP): Swap the contents of two registers. F3 (COPY): Copy the contents of one register to another.
  • Page 383 Depending on the operation you are carrying out, enter a register number using the numeric keypad (using the numeric keys, then pressing the ENTER button) as shown in the following table. Operation Register number Input position Move Register whose contents are to be moved Reverse video position to the right of “FROM”...
  • Page 384 Basic Register Operations Deleting Individual Sub-registers Not in the “USER” Group from Snapshot Registers For snapshot registers, by using the following operation you can delete the data of individual M/E-1, M/E-2, M/E-3, and P/P & DSK sub-registers. In the REGISTER menu, select item 3 (ATTRIB EDIT). The ATTRIB EDIT menu appears.
  • Page 385 Assigning a name to a register Use the following procedure to assign a name to a register. In the REGISTER menu, select either of the following items, depending on the type of register you wish to name. Item 1 (EFFECT): key frame effect registers Item 2 (SNAPSHOT): snapshot registers Depending on the item you select, the EFFECT or SNAPSHOT menu appears.
  • Page 386 Basic Register Operations Using the keyboard displayed on the screen and the numeric keys in the numeric keypad section, enter a name of up to eight characters, and press the F9 (ENTER) or the ENTER button in the numeric keypad section to confirm the name.
  • Page 387 To combine two key frame effect registers the merge function, use the following procedure. In the REGISTER menu, select item 1 (EFFECT). The EFFECT menu appears. EDIT [UNLOCK] [LOCK] MOVE SWAP COPY DELETE NAME MERGE Function key indications in the EFFECT menu Press F6 (MERGE), turning it on.
  • Page 388: Setting Snapshot Attributes

    Basic Register Operations Setting Snapshot Attributes Except for the GPI output attributes, you can apply attributes to a snapshot when saving or recalling the snapshot. In the REGISTER menu you can set these attributes separately for each sub-register. Since the sub-registers within the “USER” group are saved and recalled together, it is not possible to make separate attribute settings for them, except that this is possible when using the REGISTER menu.
  • Page 389 Press the function key for the attribute you wish to change. • To operate F11 to F16 to display the attributes of auxiliary bus sub- registers, hold down the SHIFT button in the menu control section and press F1 to F6. •...
  • Page 390: Selecting The Sub-registers In The "user" Group

    Basic Register Operations Selecting the Sub-Registers in the “USER” Group To select the sub-registers in the “USER” group, use the following procedure. In the REGISTER menu, select item 4 (CONFIG USER). The function key indications change to correspond to the sub-registers which can be included in the “USER”...
  • Page 391: Channel-to-channel Copying Of Dme Registers

    Channel-to-Channel Copying of DME Registers To copy DME registers from one channel to another, use the following procedure. In the REGISTER menu, select item 5 (CH COPY). A menu for the channel-to-channel copy appears. Depending on what you wish to copy, press one of F1 to F3, turning it on (reverse video).
  • Page 392: Displaying And Setting Vtr Control Registers

    Basic Register Operations Enter the destination register number in the reverse video area to the right of “TO”. If in step 5 you pressed the F8 (BLOCK) button, enter the number of the first destination register. Press F10 (EXEC). The function key indications change, and F9 (YES) and F10 (NO) functions appear.
  • Page 393 Chapter 10 Floppy Disk Operations Overview ....................10-2 Disks and Data Held ................10-2 Disk Functions ................... 10-3 Disk Operations ..................10-4...
  • Page 394: Floppy Disk Operations

    Overview You can use the floppy disk drive to save the contents of registers and setup data, for reloading when required. This chapter describes the procedures for saving and loading data, and other floppy disk operations. Disks and Data Held The floppy disk drive uses 3.5-inch 2HD disks.
  • Page 395: Disk Functions

    Disk Functions The following disk operations are provided by the system. SAVE: Transferring register contents or the current setup data to files on the floppy disk. One floppy disk can hold up to 99 files containing snapshot or key frame effect register contents, or up to four files of setup data, key memory data, chroma key memory data, wipe snapshots, DME wipe snapshots, key snapshots, or VTR control data.
  • Page 396: Disk Operations

    Disk Operations To carry out disk operations, first access the DISK menu, then depending on the type of data you wish to carry out operations on, access the EFFECT, SNAPSHOT, SETUP, MISC, UTILITY, or VTR menu from the DISK menu. This section first describes how to access the DISK menu and gives an example of the DISK menu display, then describes the disk operations in the following four groups, according to the type of data being handled.
  • Page 397 Accessing the DISK menu To access the DISK menu, press the DISK top menu button in the menu control section. The channels selected in the numeric keypad section appear in reverse video, indicating that they will be the object of disk operations. List of registers Disk operations on VTR control data (see page...
  • Page 398 Disk Operations Selecting the channels to which operations apply You can apply disk operations to the data of more than one channel at a time. The FORMAT and LABEL functions, however, do not require a channel specification. The RENAME operation applies the same name to all files of the same number, even on different channels;...
  • Page 399 Disk operations on key frame effect and snapshot data To carry out a disk operation on key frame effect or snapshot data, use the following procedure. In the DISK menu, select either of the following items, depending on the type of data you wish to operate on. Item 1 (EFFECT): key frame effect data Item 2 (SNAPSHOT): snapshot data Depending on the item you select, the EFFECT or SNAPSHOT menu...
  • Page 400 Disk Operations Function key indications for F7 to F10 now appear. (If you selected F3 (COPY), the indication for F7 (ALL) does not appear.) FUNCTION FILE SELECT [LABEL] [FORMAT] LOAD COPY DELETE BLOCK EXEC SAVE RENAME Function key indications after selecting one of F1 to F5 Press one of F7 to F9 to select the way in which you specify the registers or files to which the operation applies.
  • Page 401 Depending on the operation you are carrying out, enter a register or file number, as shown in the following table, in the reverse video position using the numeric keypad, then press the ENTER button. Operation Register or file to be specified Save Register whose contents are to be saved Load...
  • Page 402 Disk Operations To execute the operation, press F9 (YES). To abandon the operation without executing it, press F10 (NO). Using the keyboard displayed on the screen and the numeric keys in the numeric keypad section, enter a name of up to eight characters, and press F9 (ENTER) or the ENTER button in the numeric keypad section to confirm the name.
  • Page 403 Press F10 (EXEC). • If you selected F11 (FORMAT) in step 1, the function key indications change, and function keys F9 (YES) and F10 (NO) appear. In this case go to step 3. • If you selected F12 (LABEL) in step 1, the function key indications change, and a text input screen appears.
  • Page 404 Disk Operations Disk operations on setup, key memory, chroma key memory, wipe snapshot, DME wipe snapshot, and key snapshot data To carry out a disk operation on any of these data types, use the following procedure. In the DISK menu, select either of the following items depending on the type of data you wish to operate on.
  • Page 405 The function key indications change as follows. FUNCTION FILE SELECT [FORMAT] [LABEL] LOAD COPY DELETE SETUP MEMORY MEMORY EXEC SAVE RENAME Function key indications after selecting item 3 (SETUP) in step 1 FUNCTION FILE SELECT [LABEL] [FORMAT] LOAD COPY DELETE WIPE WIPE EXEC...
  • Page 406 Disk Operations To execute the operation, press F9 (YES). To abandon the operation without executing it, press F10 (NO). Using the keyboard displayed on the screen and the numeric keys in the numeric keypad section, enter a name of up to eight characters, and press F9 (ENTER) or the ENTER button in the numeric keypad section to confirm the name.
  • Page 407 Press F3 (OPERAT SETUP). The OPERATION SETUP menu appears. FUNCTION [FORMAT] [LABEL] LOAD COPY DELETE SAVE RENAME Function key indications in the OPERATION SETUP menu For the subsequent operating procedure, see steps 2 to 6 of the disk operation procedure described on page 10-12. Disk operations on all types of data that can be handled To save all selected types of data that can be handled by disk operations at a time or to load such data from a disk at a time, use the following procedure.
  • Page 408 Disk Operations Press F1 or F2 according to the operation you wish to carry out, turning it F1 (ALL SAVE): Save all selected types of data to a disk at a time. F2 (ALL LOAD): Load all selected types of data from a disk at a time. The function key indications change as follows.
  • Page 409 Disk operations on VTR control data To carry out a disk operation on the VTR control data, use the following procedure. In the DISK menu, hold down the SHIFT button (item 1 changes to “VTR”), then select item 1. The VTR menu appears. FUNCTION [FORMAT] [LABEL]...
  • Page 411 Chapter 11 Copy and Swap Operations Overview ....................11-2 Basic Copy and Swap Operations ............11-5 Copy and Swap Using Menu Operations .......... 11-5 Copying Using Button Operations ............ 11-7...
  • Page 412: Overview

    Overview It is possible to copy the settings on one M/E bank or keyer to another, or to swap the settings between a pair of M/E banks or keyers. There are four different ways you can make a copy or swap to affect different sets of settings, as follows: •...
  • Page 413 Keyer copy and keyer swap Keyers copied or swapped The following 10 keyers can be copied or swapped: • M/E-1 bank keys 1 and 2 • M/E-2 bank keys 1 and 2 • M/E-3 bank keys 1 and 2 • Downstream keyers 1 to 4 It is not, however, possible to copy or swap between an M/E keyer and a downstream keyer.
  • Page 414 Overview Wipe copy and wipe swap Wipe generators copied or swapped The settings of the following eight wipe generators can be copied or swapped: • The wipe generator for each of M/E-1 banks 1 to 3 • The wipe generator for the PGM/PST bank •...
  • Page 415: Basic Copy And Swap Operations

    Basic Copy and Swap Operations Copy and Swap Using Menu Operations For copy and swap operations, use the COPY menu. The basic menu operation is as follows. Press the MISC button in the SYSTEM group of the menu control section. Select item 5 (COPY).
  • Page 416 Basic Copy and Swap Operations Press F7 (TO) or turn control knob 3 to align the cursor on the “TO” side with the destination of the copy or swap. You can also use the cursor keys ( M m < ,). When you selected F3 (M/E) or F4 (KEYER) in step 1, set F5 (XPT DSBL) to ON or OFF.
  • Page 417: Copying Using Button Operations

    Copying Using Button Operations There are simple button operations for the following copy operations: • M/E copy • M/E keyer copy • M/E wipe copy • DSK copy • Color background copy Basic button operation The basic button operation is to hold down the button assigned to the source, then press the button assigned to the destination.
  • Page 418 Basic Copy and Swap Operations Downstream keyer copy button operation Use the keyer delegation buttons (DSK 1 to DSK 4) in the downstream keyer control section (see page 2-24). Copying from DSK 1 to DSK 2 (example operation) Hold down the DSK 1 button, then press the DSK 2 button. Color background copy button operation For each M/E bank, use the COLOR BKGD button of the cross-point buttons (see page 2-8).
  • Page 419 Chapter 12 MISC Menu Operations Overview ....................12-2 Port Enable Settings ................12-3 Controlling the Positioner Function With a Tablet ......12-5 Safe Title Settings ..................12-8 Color Correction ..................12-9 Overview ................... 12-9 Operation Using the COLOR CORRECTION Menu ..... 12-11 Settings for Input Video Processing ..........
  • Page 420: Overview

    Overview This section describes the functions controlled from the MISC (for “miscellaneous”) menu: the port enable function, the safe title function, the video process function, the color correction function and the copy and swap function. Accessing the MISC menu To access the MISC menu, press the MISC top menu button in the SYSTEM group of the menu control section.
  • Page 421: Port Enable Settings

    Port Enable Settings Overview The port enable function controls the enabling and disabling of ports on the switcher from external devices. You can make these settings for the following ports. Switcher ports: • GPI (parallel port, D-sub 25-pin) You can carry out the GPI input/output settings in a setup menu (see pages 14-51 and 14-54).
  • Page 422 Port Enable Settings Carrying out port enable settings Use the following procedure to enable and disable ports. In the MISC menu, select item 1 (ENABLE). The ENABLE menu appears. SWER DME1 DME2 DME3 EDIT A EDIT B PANEL 2 PANEL B TABLET DME4 ENBL...
  • Page 423: Controlling The Positioner Function With A Tablet

    Controlling the Positioner Function With a Tablet By connecting a tablet to the control panel, it is possible to control the positioner function using an electronic stylus in place of the trackball in the BKDS-7031 DME Control Panel Unit. This gives finer control of the positioner movement, and improves operation quality for the frame memory paint function for example.
  • Page 424 Port Enable Settings Connector pin assignments The connector pin assignments are as follows. TERMINAL 1 connector on the control panel Tablet cable connector Signal Pin number Pin number Signal Tablet settings Using the menu sheet supplied with the tablet, make the following settings. For more details of the settings, refer to the documentation supplied with the tablet.
  • Page 425 Functions which can be controlled from the tablet You can use the tablet for the following purposes. • As the wipe positioner for the wipe generator currently selected in the wipe control block. Note In this case, the entire tablet area corresponds to the positioner range, and the absolute stylus position is input as the data value.
  • Page 426: Safe Title Settings

    Safe Title Settings Overview The safe title display provides an indication on a monitor of the maximum area in which it is safe to put titling, to guarantee that it can be seen on a domestic television. You can independently enable or disable the display on the video output set in a setup menu.
  • Page 427: Color Correction

    Color Correction Overview Color correction refers to various adjustments to the color video signal (including black/white level, gamma, and knee values). With the DVS-7300/ 7350 system, you can carry out the following operations. • Input video processing • Primary color correction •...
  • Page 428 Color Correction Setting the color correction and frame memory function configuration When the BKDS-7420 Color Correction Board and BKDS-2041 Frame Memory Board are both installed, you can use their functions in the following two ways. • Using the color correction function along with the frame memory function. •...
  • Page 429: Operation Using The Color Correction Menu

    Operation Using the COLOR CORRECTION Menu Selecting the operation to carry out Use the following procedure. In the MISC menu, press item 4 (CCR) to display the COLOR CORRECTION menu for channel 1 or channel 2. Item selection button 4 allows you to toggle between the COLOR CORRECTION menu for channel 1 and that for channel 2.
  • Page 430 Color Correction Press one of the following function keys according to the operation you wish to carry out, turning it on. F1 (CCR): Toggle on and off the color correction function. F2 (COPY): Copy the color correction data set on either of the two channels to the other channel, or swap the color correction data between the two channels (see page 12-27).
  • Page 431: Settings For Input Video Processing

    Settings for Input Video Processing Input video processing effects the following adjustments on the Y, U, and V signals before conversion to the R, G, and B signals. • Video signal overall gain adjustment • Luminance (Y) signal gain adjustment •...
  • Page 432: Settings For Primary Color Correction

    Color Correction Settings for Primary Color Correction Primary color correction effects the following adjustments on the R, G, and B signals. Black balance adjustment: Sets the output level for a 0% input signal level. White balance adjustment: Sets the output level for a 100% input signal level.
  • Page 433 Set the following parameters. When you selected F4 (BLACK) or F6 (GAMMA): Knob Parameter Setting R signal adjustment/–100.00 to +100.00 Green G signal adjustment/–100.00 to +100.00 Blue B signal adjustment/–100.00 to +100.00 RGB simultaneous adjustment When you selected F5 (WHITE): Knob Parameter Setting...
  • Page 434 Color Correction To partly mask primary color correction Use the following procedure. In the PRIMARY COLOR CORRECTION menu, press F9 (PRIMARY MASK), turning it on. Press F10 (MASK). The COLOR CORRECTION MASK menu appears. MASK SOURCE LUM PROC MASK PRIMARY SECOND MASK MASK...
  • Page 435 When you selected F5 (PATTERN): Knob Parameter Setting Size Pattern size/0.00 to 100.00 Softness Degree of pattern edge softness/0.00 to 100.00 Pattern No. Pattern number/1 to 23 a) The patterns are the same as wipe patterns 1 through 23. For details of the wipe patterns, see the appendix “Wipe Patterns” (page A2).
  • Page 436: Settings For Secondary Color Correction

    Color Correction Settings for Secondary Color Correction Secondary color correction adjusts the luminance, saturation and hue for six colors: red, green, blue, yellow, cyan, and magenta. To set the parameters for secondary color correction Use the following procedure. In the COLOR CORRECTION menu, press F6 (SECOND). The SECONDARY COLOR CORRECTION menu appears.
  • Page 437 To reset the parameters Holding down the SHIFT button (the function display for F2 changes to “UNITY”), press F2 (UNITY). To partly mask secondary color correction Use the following procedure. In the SECONDARY COLOR CORRECTION menu, press F9 (SECOND MASK), turning it on. Press F10 (MASK).
  • Page 438: Adjusting Rgb Clip Values

    Color Correction Adjusting RGB Clip Values To adjust the RGB clip values To adjust the dark clip and white clip values for the R, G, and B signals, use the following procedure. In the COLOR CORRECTION menu, press F7 (RGB CLIP). The RGB CLIP menu appears.
  • Page 439: Settings For Output Video Processing

    Settings for Output Video Processing Output video processing effects the following adjustments on the Y, U, and V signals converted from the color-corrected R, G, and B signals. • Video signal overall gain adjustment • Luminance (Y) signal gain adjustment •...
  • Page 440: Settings For Luminance Processing

    Color Correction Settings for Luminance Processing Luminance processing allows the video signal to be adjusted for different sections of the luminance range. For luminance processing, the following two modes are available. Tint mode: Adds a specified matte color to the original video signal. Color modify mode: Adjusts the original video signal.
  • Page 441 Press one of F4 (DARK) to F8 (SOFT) to select the required function. For TINT mode: F4 (DARK): Add a matte color to the “Dark” section of the luminance range. F5 (MID): Add a matte color to the “Middle”" section of the luminance range.
  • Page 442 Color Correction Set the following parameters. When you selected one of F4 (DARK) to F6 (BRIGHT) in TINT mode: Knob Parameter Setting Luminance Luminance/–100.00 to +100.00 Saturation Saturation/0.00 to 100.00 Hue/0.00 to 359.99 When you selected one of F4 (DARK) to F6 (BRIGHT) in COLMOD mode: Knob Parameter...
  • Page 443 To reset the parameters Holding down the SHIFT button (the function display for F2 changes to “UNITY”), press F2 (UNITY). To partly mask luminance processing Use the following procedure. In the LUMINANCE PROCESS menu, press F9 (LUMPROC MASK), turning it on. Press F10 (MASK).
  • Page 444: Adjusting Yuv Clip Values

    Color Correction Adjusting YUV Clip Values The following clip values for the luminance and color difference signals can be adjusted. White clip: Sets the maximum level of the luminance signal. Dark clip: Sets the minimum level of the luminance signal. Positive clip: Sets the maximum amplitude in the positive direction of the color difference signal.
  • Page 445: Copying/swapping Color Correction Data

    Set the following parameters. When you selected F4 (LUM): Knob Parameter Setting Dark Dark clip value/–6.85 to +109.13 White White clip value/–6.85 to +109.13 When you selected F5 (CHROMA): Knob Parameter Setting U Nega Negative clip value for the U signal/–111.39 to +111.39 U Posi Positive clip value for the U signal/–111.39 to...
  • Page 446 Color Correction To copy or swap primary color correction data Use the following procedure. In the COLOR CORRECTION menu, press F2 (COPY). The COLOR CORRECTION COPY menu appears. FROM EXEC LAST X SOURCE STAGE SELECT SWAP COPY Function key indications in the COLOR CORRECTION COPY menu Press F2 (SOURCE) or turn control knob 2 to align the cursor on the “FROM”...
  • Page 447 Chapter 13 Interfacing With External Devices Overview ....................13-2 Interface With Routing Switcher ............13-4 Interface With VTR ................13-6 Tape Transport Control ..............13-6 Saving VTR Control Data in Registers ..........13-7 Tape Transport Control by Same Operation as Effect Execution ..13-8 Interfacing With Peripheral 2 Devices ..........
  • Page 448: Overview

    Overview Overview In a DVS-7300/7350 I/O expansion system, you can control DME, editor, VTR, and other devices connected to the switcher as though they were part of You can also control the switcher from a remote control panel. This section describes the interface between the DVS-7300/7350 I/O expansion system and external devices.
  • Page 449 Keyer operations using the BKDS-7060 Keyer Remote Control Panel By connecting a BKDS-7060 to the switcher unit, you can control the switcher keyers from the BKDS-7060. For keyer remote operations using the BKDS-7060, the BZS-7360 Operation Option Software is required. For details, refer to the User’s Guide for the BZS-7360.
  • Page 450: Interface With Routing Switcher

    Interface With Routing Switcher Overview By connecting a routing switcher (DVS-V6464M or similar) to the DVS- 7300/7350 I/O expansion system via the BKDS-7700 Tally Interface Unit, each can change cross-point settings on the other. Functions enabled when the routing switcher is connected When a DVS-M series routing switcher is connected to the switcher via the BKDS-7700, the following functions are enabled besides signal names set on the routing switcher are automatically displayed on the switcher control...
  • Page 451 To switch a cross-point on the routing switcher from the control panel Press the top menu selection button assigned to the ROUTER menu. To assign a menu to a top menu selection button, use the UTILITY menu (page 14-86). The ROUTER menu appears. SOURCE DEST SELECT...
  • Page 452: Interface With Vtr

    Interface With VTR Overview In a DVS-7300/7350 I/O expansion system, you can carry out the following control on a maximum of two VTRs connected to the control panel. • Controlling the VTR tape transport from the DME control panel • Saving VTR control data (start point, stop point, and start offset point) in a register •...
  • Page 453: Saving Vtr Control Data In Registers

    Saving VTR Control Data in Registers To save the VTR start point and stop point timecode values in a register, use the following procedure. In the numeric keypad section, recall the register in which you want to save the start point and stop point. For details of the operation, see the section “Accessing a Register”...
  • Page 454: Tape Transport Control By Same Operation As Effect Execution

    Overview Interface With VTR Tape Transport Control by Same Operation as Effect Execution If you have first saved the three timecode values for the VTR start point, stop point, and start offset duration in a register, then you can control the VTR in the same way as for a key frame effect.
  • Page 455: Interfacing With Peripheral 2 Devices

    Interfacing With Peripheral 2 Devices In a DVS-7300/7350 I/O expansion system, a number of Peripheral 2 devices connected to the control panel can be controlled as described below. Interfacing with Peripheral 2 devices requires an optional BKDS-7001 Option Control Port Extension Board to be installed in the control panel.
  • Page 456 Overview Interfacing With Peripheral 2 Devices When the PANEL PORT ASSIGN menu setting for DEVICE 1 (DME 3/DME 4) is “P2TL” You can carry out timeline control on Peripheral 2 devices connected to the control panel’s REMOTE2 port. Control is performed in such a way that the RECALL, LEARN, and TRIGGER commands are individually sent to the Peripheral 2 devices specified by device ID.
  • Page 457: Setup

    Chapter 14 Setup Overview ....................14-2 Saving and Recalling Setup Data ............14-2 Displaying the SETUP Menu ............14-3 Setup Relating to the Overall Switcher System (SYSTEM Menu) ..14-4 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) ............. 14-19 Setup Relating to Keyers, Wipes and Other Effects (EFFECT Menu) ................
  • Page 458: Overview

    Overview To operate a system comprising a switcher unit, control panel and DMK- 7000 connected together, it is necessary to access the various setup menus, and make various settings. These settings are referred to as setup data. For details of menu operation, see the section “Basic Menu Operations” (page 3-6).
  • Page 459: Displaying The Setup Menu

    Displaying the SETUP Menu To carry out a setup operation, first press the SETUP button in the SYSTEM group of the menu control section of the control panel to display the SETUP menu. Function key indications for Item each item displayed D2 525 SETUP Setup relating to the overall...
  • Page 460: Setup Relating To The Overall Switcher System

    Setup Relating to the Overall Switcher System (SYSTEM Menu) To carry out setup operations relating to the overall switcher system, access the SYSTEM menu. Accessing the SYSTEM menu In the SETUP menu, select item 1 (SYSTEM). The SYSTEM menu appears. SYSTEM SYSTEM INFOR-...
  • Page 461 Menus accessed from the SYSTEM menu (Continued) Menu Functions Function key See page SYSTEM • Setting the system configuration F4(SYSTEM 14-10 CONFIGU- • Setting the DMK-7000 CONFIG) RATION configuration • Setting the switcher program output (3M/E system only) • Setting the final bank controlled from the remote panel •...
  • Page 462 Setup Relating to the Overall Switcher System (SYSTEM Menu) Installing software (INSTALL menu) To install the BZS-7021A operation software, which is supplied on three floppy disks, and the software for option boards, use the following procedure. In the SYSTEM menu, press F10 (INSTALL). The INSTALL menu appears.
  • Page 463 Making various system settings (SYSTEM SETUP menu) You can use the SYSTEM SETUP menu for the following settings. • Setting the date: Set the calendar in the switcher. • Setting the time: Set the clock in the switcher. • Selecting the signal format: Select the signal format as one of D2-525, D1-525 and D1-625.
  • Page 464 Setup Relating to the Overall Switcher System (SYSTEM Menu) Carry out the operation in the following table to make the required setting. Setting Operation Setting the date Press F1 (DATE), then enter the date from the numeric keypad, in the American order (mm-dd- yy), but separating the items by periods.
  • Page 465 • To select a required signal format, press the corresponding function key (F2, F3 or F4). Signal format Function key to press D2-525 F2 (D2-525) D1-525 F3 (D1-525) D1-625 F4 (D1-625) • To set the screen aspect ratio, press F5 (4:3) or F6 (16:9). •...
  • Page 466: Menu)

    Setup Relating to the Overall Switcher System (SYSTEM Menu) Setting the system configuration (SYSTEM CONFIGURATION menu) You can use the SYSTEM CONFIGURATION menu for the following settings. • Selecting the system configuration: Select a switcher system configuration, SEPA (switcher system without including the DMK-7000) or PAIR (switcher system including the DMK-7000).
  • Page 467 To carry out these settings, use the following procedure. In the SYSTEM menu, press F4 (SYSTEM CONFIG). The SYSTEM CONFIGURATION menu appears. SYSTEM PHASE REMOTE SYSTEM SWER PANEL FM&CCR MLT XPT CONFIG CONFIG SWER CONFIG ASSIGN PAIR CASCAD M/E-3 M/E-1 Function key indications in the SYSTEM CONFIGURATION menu Carry out the operation in the following table to make the required setting.
  • Page 468 Setup Relating to the Overall Switcher System (SYSTEM Menu) Setting the color correction and frame memory function configuration Use the following procedure. In the SYSTEM CONFIGURATION menu, press F9 (FM&CCR CONFIG). The FM & CCR CONFIGURATION menu appears. CH1 CCR CH2 CCR CCR LOCATION WITH...
  • Page 469 Assigning a cross-point assignment table to a port You can assign any of the five cross-point assignment tables to each of the 9-pin ports on the rear panel. By default table 1 is assigned to all of the 9-pin ports. Use the following procedure. In the SYSTEM CONFIGURATION menu, press F10 (MLT XPT ASSIGN).
  • Page 470 Setup Relating to the Overall Switcher System (SYSTEM Menu) Creating different cross-point assignment tables To create the data for the five cross-point assignment tables, use the following procedure. Note that for the cross-point assignment table of the PANEL1 port, you can also make assignments in the XPT ASSIGN menu (see page 14-63).
  • Page 471 Saving setup data and making data write-protected or not (BACKUP menu) You can use the BACKUP menu for the following settings. • Saving the setup data: Save the setup data to be restored when the switcher is next powered on with F7(RESUME) and F8(PANEL RESUME) off in the SYSTEM SETUP menu.
  • Page 472 Setup Relating to the Overall Switcher System (SYSTEM Menu) Press F10 (EXEC). The function key indications change as follows. Function key indications in the BACKUP menu (after pressing F10) To carry out the operation you selected in step 2, press F9 (YES), and to cancel the operation press F10 (NO).
  • Page 473 Resetting and initializing the switcher, control panel, and DMK- 7000 (INITIALIZE menu) You can use the INITIALIZE menu for the following settings. • Resetting the switcher and control panel: Reset the switcher and control panel to the state at power on. •...
  • Page 474 Setup Relating to the Overall Switcher System (SYSTEM Menu) Press F10 (EXEC). The function key indications change as follows. Function key indications in the INITIALIZE menu (after pressing F10) To carry out the reset or initialization you selected in step 2, press F9 (YES), and to cancel the reset or initialization press F10 (NO).
  • Page 475: Setup Relating To Input/output Signals

    Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) To carry out setup operations relating to input/output signals, access the INPUT/OUTPUT menu. Accessing the INPUT/OUTPUT menu In the SETUP menu, select item 2 (INPUT/OUTPUT). The INPUT/OUTPUT menu appears. SWER SWER OUTPUT INPUT INPUT OUTPUT OUTPUT...
  • Page 476 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Menus accessed from the INPUT/OUTPUT menu (Continued) Menu Functions Function key See page SWITCH- Making settings relating to switcher output F5 (SWER 14-25 signals OUTPUT) OUTPUT • Setting the phase relation between the external sync input signal and the output reference signal •...
  • Page 477 Menus accessed from the INPUT/OUTPUT menu (Continued) Menu Functions Function key See page OUTPUT Assigning switcher and DMK-7000 output F7 (OUTPUT 14-30 ASSIGN signals ASSIGN) • Selecting the clean output of the switcher or DMK-7000. • Selecting the preview outputs of the switcher M/E banks and DMK-7000 •...
  • Page 478 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Carrying out setup relating to switcher input signals (SWITCHER INPUT menu) You can use the SWITCHER INPUT menu to adjust the horizontal phase of the input signal in the range –16 to +16 CK (clock cycles). To carry out these settings, use the following procedure.
  • Page 479 Press F4 (VIDEO PHASE ADJUST) or F7 (KEY SOURCE ADJUST), turning it to reverse video, and adjust control knob 4. Indications in the SWITCHER INPUT menu NO: cross-point button number VIDEO SOURCE NAME: signal name PHASE ADJUST: input signal phase adjustment value KEY SOURCE NAME: signal name PHASE ADJUST: input signal phase adjustment value...
  • Page 480 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) To carry out these settings, use the following procedure. In the INPUT/OUTPUT menu, press F4 (CRK INPUT). The CHROMA KEYER INPUT menu appears. INPUT SIGNAL GEN- PHASE SELECT FORMAT LOCK ADJUST BCAM0 SELF Function key indications in the CHROMA KEYER INPUT menu For details of indications other than for the function keys in the CHROMA KEYER INPUT menu, see the next item “Indications in the...
  • Page 481 Carrying out setup relating to switcher output signals (SWITCHER OUTPUT menu) You can use the two menu screens accessible from the SWITCHER OUTPUT menu for the following settings. Settings in screen 1 • Setting the phase relation between the external sync input signal and the output reference signal: Adjust in the range –28 to +84 µs.
  • Page 482 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) • Adjusting the vertical blanking interval: Adjust the vertical blanking interval in the range 10H to 20H (lines) (525-line systems) or 13H to 25H (lines) (625-line systems). Depending on the output signal selection, the vertical blanking interval setting applies to the signals from the following three groups of connectors: •...
  • Page 483 Carry out the operation in the following table according to the type of setting you wish to make. Setting Operation Setting made in adjustment Press F3 (OUTPUT ADJUST1) to switch to screen 1 adjustment screen 1, then continue to step 3. Setting made in adjustment Press F4 (OUTPUT ADJUST2) to switch to screen 2...
  • Page 484 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Settings in adjustment screen 2 Before proceding to the operation in the following table to make the required setting, press F1 (OUTPUT SELECT) or turn control knob 2 to move the cursor and select the input signal to which the settings apply. Selectable output signals PGM OUTPUTS, PST OUTPUT, ME-1 OUTPUT, ME-2 OUTPUT, ME-3 OUTPUT, CLEAN OUTPUT, AUX BUS OUTPUT 1 to AUX...
  • Page 485 Carrying out setup relating to DMK-7000 output signals (DMK OUTPUT menu) You can use the two menu screens accessible from the DMK OUTPUT menu for the following settings. Settings in screen 1 You can make the same settings as in screen 1 of the SWITCHER OUTPUT menu (see page 14-25) relating to the DMK-7000 output signals.
  • Page 486 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Carrying out setup relating to switcher and DMK-7000 output signal assignment (OUTPUT ASSIGN menu) You can use the OUTPUT ASSIGN menu for the following settings. • Output signal selection: Assign the following two groups of signals. Switcher clean output (SWER CLEAN): Select one of the following nine signals for output from the switcher’s CLEAN OUTPUT connector.
  • Page 487 • The above signal selection operation can only be carried out from a switcher control panel (BKDS-7011/7012/7021/7022/7023) or editor which can be directly connected to both the DVS-7000A and DMK- 7000 processors. It cannot be carried out from other controllers (such as an M/E remote panel using the BKDS-2010).
  • Page 488 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) • F-PVW (full-key preview) F-PVW can be selected only when the keyer configuration is set to CASCAD. The F-PVW output consists of the preview output of the preceding downstream keyer in which the keys of the preceding and current downstream keyers have been inserted.
  • Page 489 • Auto preview function: When you press the NEXT TRANSITION button in the transition control section of an M/E bank, the preview signal for that M/E bank is output from the CLEAN OUT connector of the DVS- 7000A. At this point the NEXT TRANSITION button lights green, to indicate that the preview for the M/E bank is being output.
  • Page 490 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) In a 3-M/E system, the effect depends on the final M/E setting. For example, if M/E-3 is the final M/E, when you select the M/E1 PVW, M/ E2 PVW, or PRESET signal on the EDIT PVW bus, then depending on the signal which is on air, the output signal from the EDIT PVW bus is switched as shown in the following table.
  • Page 491 Carry out the operation in the following table to make the required setting. Setting Operation Output signal selection Use the following procedure. 1 Press F1 (OUTPUT SELECT), and move the cursor to select the output signal group from SWER CLEAN (switcher clean output), and DMK CLEAN (DMK- 7000 clean output).
  • Page 492 Setup Relating to Input/Output Signals (INPUT/OUTPUT Menu) Setting Operation Assignable output Use the following procedure. setting 1 Press F6 (ASSIGN OUT), to access the ASSIGN OUT menu. 2 Press F1 (OUTPUT SELECT), and move the cursor to select the output to assign. You can select any of ASSIGN OUT 1 to 5.
  • Page 493: Setup Relating To Keyers, Wipes And Other Effects

    Setup Relating to Keyers, Wipes and Other Effects (EFFECT Menu) To carry out setup operations relating to keyers, wipes and other effects, access the EFFECT menu. Accessing the EFFECT menu In the SETUP menu, select item 3 (EFFECT). The EFFECT menu appears. SAFE KEYER WIPE...
  • Page 494 Setup Relating to Keyers, Wipes and Other Effects (EFFECT Menu) Menus accessed from the EFFECT menu (Continued) Menu Functions Function key See page SAFE Making the following settings relating to the F6 (SAFE 14-42 TITLE safe title function. TITLE) • Selecting an output to which to add a safe title.
  • Page 495 Carry out the operation in the following table to make the required setting. Setting Operation Toggling the key Press F2 (KEY MEMORY). memory function on This toggles the setting on and off. and off Saving default Use the following procedure. values of clip, gain 1 Press F4(DEFAULT LEARN) to display the function key and density...
  • Page 496 Setup Relating to Keyers, Wipes and Other Effects (EFFECT Menu) Carrying out setup relating to wipes (WIPE menu) You can use the WIPE menu for the following settings. • Adjusting the wipe pattern center position: For the three types of wipe listed below, you can adjust the center position of the wipe pattern horizontally and vertically in the range –15.0 to +15.0 pixels.
  • Page 497 Carrying out setup relating to matte generators (MATTE menu) You can use the MATTE menu for the following settings relating to the matte generators built into the switcher and DMK-7000. • Toggling the illegal color limiter function on and off •...
  • Page 498 Setup Relating to Keyers, Wipes and Other Effects (EFFECT Menu) Carrying out setup relating to the safe title function (SAFE TITLE menu) You can use the SAFE TITLE menu for the following settings. • Selecting the outputs to which to add a safe title: Select up to four outputs to which to add a safe title for each of the switcher and DMK- 7000.
  • Page 499 Press F6 (SELECT). Carry out the operation in the following table to make the required setting. Setting Operation Toggling the safe title Press F3 (CROSS). cross on and off This toggles the setting on and off. Toggling the safe title Press F4 (BOX).
  • Page 500: Setup Relating To Interfaces With Peripheral Devices

    Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) To carry out setup operations relating to interfaces with peripheral devices, access the PERIPH menu. To access the PERIPH menu In the SETUP menu, select item 4 (PERIPH). The PERIPH menu appears. PORT ROUTER PANEL...
  • Page 501 Menus accessed from the PERIPH menu (Continued) Menu Functions Function key See page ROUTER Making settings relating to the interface F6 (ROUTER 14-50 INTERFACE to the routing switcher GPI INPUT Making the following settings relating to F7 (GPI 14-51 switcher and DMK-7000 GPI inputs INPUT) •...
  • Page 502: (periph Menu)

    Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) Selecting the type of device connected to an RS-422A port of the switcher (PORT ASSIGN menu) You can use the PORT ASSIGN menu to select the type of device connected to an RS-422A port of the switcher. Select the type of device from the following.
  • Page 503 Carrying out setup relating to auxiliary bus control from an RS-422A port of the switcher (AUX CONTROL menu) You can use the AUX CONTROL menu for the following settings. • Setting the control function for bus control from an RS-422A port: For the control of the bus outputs from each of the following switcher ports, select ENBL (control enabled), DSBL (control disabled) or MANUAL (status determined by the ENABLE menu setting (see page 12-4)).
  • Page 504 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) Carry out the operation in the following table to make the required setting. Setting Operation Setting the control According to the switcher port for which you wish to make function for bus the setting, press one of F2 (PANEL1) to F9 (PANEL2).
  • Page 505 To carry out these settings, use the following procedure. In the PERIPH menu, press F5 (DME IF). The DME INTERFACE menu appears. RE-ENTRY BUTTON ON AIR SELECT ASSIGN SELECT TALLY SELECT SELF Function key indications in the DME INTERFACE menu Press F1 (DME SELECT) or turn conrol knob 2 to move the cursor and select the required DME input to which the settings apply.
  • Page 506 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) Carrying out setup relating to the interface to a routing switcher (ROUTER INTERFACE menu) When the output of a DVS-B series routing switcher is input to the switcher, you can set the correspondence in a menu. In this way, for example, the signal names assigned on the routing switcher can be displayed on the control panel.
  • Page 507 Carrying out setup relating to GPI inputs (GPI INPUT menu) You can use the GPI INPUT menu for the following settings relating to switcher and DMK-7000 GPI inputs. • Selecting the trigger polarity: Select the trigger polarity from the following five kinds. : Trigger on the rising edge of an input pulse.
  • Page 508 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) For the DMK-7000: • On the PGM/PST bank: CUT, AUTO TRANS (auto transition) • On each DSK: CUT, AUTO TRANS (auto transition), FTB CUT (cut-to-black), FTB (fade-to-black) • SS RECALL (recall snapshot), EFF RECALL (recall effect), RECALL &...
  • Page 509 Press F2 (PORT SELECT) or turn control knob 2 to move the cursor and select the required GPI input port of the device selected in step 2. Press F3 (TRIGGER TYPE), and select the trigger polarity. Pressing F3 cycles the setting through , NOP, and LEVEL.
  • Page 510 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) Carrying out setup relating to GPI outputs (GPI OUTPUT menu) You can use the GPI OUTPUT menu for the following settings relating to switcher and DMK-7000 GPI outputs. • Selecting the operation to cause the GPI output: Select the operation to cause the GPI output from the following.
  • Page 511 Press F1 (DEVICE SELECT) to move the cursor and select the switcher (SWER) or DMK-7000 (DMK) as the device to which the settings apply. The menu display changes according to the selection you make. Press F2 (PORT SELECT) or turn control knob 2 to move the cursor and select the required GPI output port of the device selected in step 2.
  • Page 512 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) Carrying out setup relating to external devices controlled using the control panel DME 3 to DME 6 buttons and also relating to VTR control time data (PANEL PORT ASSIGN menu) Normally, the DME 3 to DME 6 buttons in the numeric keypad section are used to control a DME-7000/3000.
  • Page 513 Using the REMOTE 2 to REMOTE 5 ports requires the optional BKDS- Option 7001. The following describes how to make these settings in the PANEL PORT ASSIGN menu. Setting external devices controlled using DME 3 to DME 6 buttons Use the following procedure. In the PERIPH menu, press F9 (PANEL PORT).
  • Page 514 Setup Relating to Interfaces With Peripheral Devices (PERIPH Menu) Press F10 (EXEC). The control panel is reset and the selected interface is set. Setting the GPI output ports When the DME3 to DME6 buttons are linked to the GPI output ports, use the following procedure to set the GPI output ports.
  • Page 515 Press F4 (FIELD) to select the GPI trigger output timing. Pressing this button cycles through the settings: ANY (arbitrary timing), F1 (first field), and F2 (second field). Press F9 (ACTION SELECT) or turn control knob 3 to align the cursor with the desired action causing the GPI output.
  • Page 516: Setup Relating To Operations From The Control Panel (operation Menu)

    Setup Relating to Operations From the Control Panel (OPERATION Menu) To carry out setup operations relating to operations from the control panel, access the OPERATION menu. Accessing the OPERATION menu In the SETUP menu, select item 5 (OPERATION). The OPERATION menu appears. OPERAT PANEL TRACK...
  • Page 517 Menus accessed from the OPERATION menu (Continued) Menu Functions Function key See page F5 (PANEL PANEL • Setting the screen saver delay time 14-76 ENABLE) ENABLE • Selecting the control over banks given to the control panel • Setting the fade-to-black function on the DMK-7000 LINK Making the following settings for linking...
  • Page 518: (operation Menu)

    Setup Relating to Operations From the Control Panel (OPERATION Menu) Carrying out setup relating to assigning an input signal to a cross-point button (XPT ASSIGN menu) You can use the XPT ASSIGN menu for the following settings. • Input signal assignment: Select the input signal which you wish to assign to the selected cross-point button number.
  • Page 519 • Signals which can be selected on auxiliary buses AUX 1 to AUX 8, edit preview bus, frame memory 1 bus, and frame memory 2 bus M/E-1 COLOR BKGD, KEY1 PROC VIDEO, KEY1 PROC KEY, KEY2 PROC VIDEO, KEY2 PROC KEY, CRK KEY, PVW (KEY, CLEAN) M/E-2 COLOR BKGD, KEY1 PROC...
  • Page 520 Setup Relating to Operations From the Control Panel (OPERATION Menu) Select the cross-point button to which you wish to assign an input signal, using either of the following methods. • Hold down F1 (BUTTON No.) and press the required cross-point button in the auxiliary bus bank.
  • Page 521 Press F6 (SELECT). When you have selected a signal name attached with “?” in step 7, further specify the required number and press the ENTER button. • If you selected USER in step 7, a text input screen appears. In this case, advance to step 9.
  • Page 522 Setup Relating to Operations From the Control Panel (OPERATION Menu) Changing switcher functions (OPERATION MODE menu) You can use the OPERATION (operation) MODE menu for the following settings. • Setting the background transition flip-flop mode: Toggle between the bus flip-flop mode (“ON” setting) and bus fixed mode (“OFF” setting) for carrying out background transitions.
  • Page 523 OFF: The shift button does not lock. That is, to shift a cross-point button selection, you must always hold down the shift button. ON: When you press the shift button it lights, and locks, shifting the cross-point button selection. To release the lock, press the shift button once more.
  • Page 524 Setup Relating to Operations From the Control Panel (OPERATION Menu) Programmable button Functions available for allocation KEY INV: The KEY NO ASSIGN: No function allocated. INV button in the key KEY INVERT ON/OFF: Switches the key invert function control section of on or off.
  • Page 525 (Continued) Programmable button Functions available for allocation AUX BLANK: NO ASSIGN: No function allocated. (Factory default Unlabeled button to setting) the right of the V/K AUX OR EXT: When you press the button, turning it on, button (above the shift the auxiliary bus bank control switches to the routing button) in the auxiliary switcher.
  • Page 526 Setup Relating to Operations From the Control Panel (OPERATION Menu) • Setting custom modes: You can make the following custom settings for the operating mode of parts of the control panel. a) Switching the operating mode of the FlexiPad: You can switch the operating mode of the FlexiPad in each of the M/E banks.
  • Page 527 MODE3: The following procedure shows how to specify a register from 10 to 19. Other operations are the same as for MODE2. To specify a register from 10 to 19 1 Press the SNAPSHOT button, which lights amber. 2 Press the SHIFT button, which lights amber. 3 Press the desired key from “0”...
  • Page 528 Setup Relating to Operations From the Control Panel (OPERATION Menu) e) Making the settings relating to the lighting of buttons when the same signal is assigned to more than one cross-point button: Select the mode of button lighting to be used when one of the buttons to which the same signal has been assigned is pressed.
  • Page 529 j) Setting for priority to the effect snapshot name display in the REGISTER menu. MODE1: Display S (switcher) and/or 1 to 4 (DME 1 to 4) when data is saved in the corresponding register(s). MODE2: Display the effect snapshot name when data is saved in the corresponding register.
  • Page 530 Setup Relating to Operations From the Control Panel (OPERATION Menu) Setting Operation Setting the cross- Press F4 (SHIFT LOCK). point shift button lock/ This cycles the setting through OFF, ON and HOLD. unlock function Settings for key frame Carry out the following procedure. operations 1 Press F6 (KF MODE).
  • Page 531 Carry out the operation shown in the following table corresponding to the desired setting. Setting Operation Setting the operating Press F1 (FLX PAD MODE). mode for the FlexiPad This cycles the setting through MODE1, MODE2, and MODE3. Setting the linkage Press F2 (FLX PAD AUTO SELECT).
  • Page 532 Setup Relating to Operations From the Control Panel (OPERATION Menu) Making settings relating to control panel operation, screen saver and fade-to-black function (PANEL ENABLE menu) You can use the PANEL ENABLE menu for the following settings. • Setting the screen saver delay time: Select the delay time until the screen saver comes into operation after the last control panel operation.
  • Page 533 Carry out the operation in the following table to make the required setting. Operation Setting Setting the screen saver Press F1 (SCREEN SAVER). delay time This cycles the setting through OFF, 1, 3, 5, and 10. Selecting the control over Press one of F3 (M/E-1), F4 (M/E-2), F5 (M/E-3), and each of banks given to the F6 (P/P).
  • Page 534 Setup Relating to Operations From the Control Panel (OPERATION Menu) Linking two functions (LINK menu) You can make the following settings in the LINK menu. • Linking operations on two buses: You can set up one bus (the master bus) so that operations on another bus are linked to it.
  • Page 535 Press F2 (TYPE) to select the type of link. OFF: No operation. BUS: Link two buses. GPI: Link a button on the control panel to a GPI output port. • When you select “BUS”, proceed to step 5. • If you select “GPI”, continue with the procedure in the next section, “Linking a button to a GPI output port”.
  • Page 536 Setup Relating to Operations From the Control Panel (OPERATION Menu) Press F3 (AUTOSEL SETUP). The AUTOSEL SETUP menu appears. AUTOSEL TABLE SETUP AUTOSEL SELECT TYPE SWER Function key indications in the AUTOSEL SETUP menu Press F2 (AUTOSEL SELECT), or turn control konb 2 to align the cursor with the auto select table you wish to select.
  • Page 537 Select the MASTER signal to which you wish to allocate a LINK signal, using either of the following methods: • Hold down F3 (MASTER) and press the required cross-point button in the auxiliary bus bank. • Hold down F3 (MASTER) and use the cursor movement keys to select the required cross-point button.
  • Page 538 Setup Relating to Operations From the Control Panel (OPERATION Menu) Press F10 (LINK SELECT) or turn control knob 3 to align the cursor with the GPI port (1 to 8) you wish to link to the “master button” selected in step 5, then press F8 (SELECT). This confirms the selection of the GPI port with which the cursor is aligned.
  • Page 539 Linking a number of downstream keyers Use the following procedure. In the OPERATION menu press F7 (LINK). The LINK menu appears. Press F2 (DSK BUTTON). The DSK BUTTON LINK menu appears. LINK BUTTON MASTER DSK 1 DSK 2 DSK 3 DSK 4 SELECT DSBL...
  • Page 540 Setup Relating to Operations From the Control Panel (OPERATION Menu) Adjusting the trackball and Z-ring (TRACK BALL menu) This menu adjusts various functions of the trackball and Z-ring on the BKDS-7031 DME Control Panel Unit. Selecting the speed of image movement This selects the speed of movement of the image under trackball and Z-ring control.
  • Page 541 Selecting the speed of image movement produced by the VELO HOLD button There are three options for the maintained speed of image movement produced by the VELO HOLD button, selected by pressing F7 (VELOCTY HOLD) as follows. ×1:The image continues moving at the detected speed (the speed before you removed your hand from the trackball or Z-ring) /2: The image continues moving at 1/2 of the detected speed.
  • Page 542 Setup Relating to Operations From the Control Panel (OPERATION Menu) Assigning functions to the UTILITY buttons (UTILITY menu) To assign menu recall or command execution functions to the 14 UTILITY buttons and 32 buttons on BKDS-7033 Memory Recall Control Panel Unit installed in the switcher control panel, use the following procedure.
  • Page 543 Press the one of the buttons to which you wish to assign the function. The buttons which were lit continuously go off, and the assignment is complete. Returning the top menu assignment to the default state (only when F2 is selected) In the default state, the top menus shown below are assigned to the UTILITY buttons.
  • Page 544 Setup Relating to Operations From the Control Panel (OPERATION Menu) Assigning registers to the SHOT BOX buttons (SHOT BOX menu) You can assign switcher or DME registers storing such data as snapshots and key frame effects to the 14 UTILITY button or the 32 buttons on BKDS- 7033 Memory Recall Control Panel Unit.
  • Page 545 Connecting BKDS-8061 Memory Recall Remote Panel Units to the switcher control panel You can connect up to two BKDS-8061 units to the switcher control panel; with one unit there are 20 buttons, and with two units a maximum of 40 buttons.
  • Page 546 Setup Relating to Operations From the Control Panel (OPERATION Menu) To assign switcher registers to buttons Use the following procedure. In the OPERATION menu, press F10 (SHOTBOX). The SHOTBOX menu appears. If in the screen “SWITCHER” is not selected, press the cursor movement button (<) to select it.
  • Page 547 To assign DME registers to buttons Use the following procedure. If in the SHOTBOX menu “DME” is not selected, press the cursor movement button (,) to select it. The menu appears as follows. RCALL REGS CHANNEL SELECT S. S BUTTON GLBL Function key indications in the SHOTBOX menu (with “DME”...
  • Page 548 Setup Relating to Operations From the Control Panel (OPERATION Menu) To assign VTR control data to buttons Use the following procedure. If in the SHOTBOX menu “VTR” is not selected, press the cursor movement button (,) to select it. The menu appears as follows. BUTTON Function key indications in the SHOTBOX menu (with “VTR”...
  • Page 549 Chapter 15 DIAGNOSIS Menu Operations Overview ....................15-2 Operations ....................15-3 Checking the Board Configuration ............ 15-3 Displaying Error Messages ..............15-4...
  • Page 550: Overview

    Overview The DIAGNOSIS menu supports the following functions. • Display of the board configuration installed in the switcher and the DMK- 7000. • Displaying Error Messages 15-2 Chapter 15 DIAGNOSIS Menu Operations...
  • Page 551: Operations

    Operations This section describes the operations carried out from the DIAGNOSIS menu. Checking the Board Configuration Checking the configuration of the boards installed in the switcher In the DIAGNOSIS menu, select item 1 (SWER PROC), then press F3 (BOARD CONFIG). The board configuration appears in the menu display.
  • Page 552: Displaying Error Messages

    Operations Displaying Error Messages You can use the ERROR MESSAGE menu to display error messages for the switcher and DME connected to the control panel. To display error messages, use the following procedure. In the DIAGNOSIS menu, select item 5 (ERROR), and then press F3 (ERROR MESSAGE).
  • Page 553 Appendixes Wipe Patterns .................... A-2 Standard Wipes ................... A-2 Enhanced Wipes ................A-3 Rotary Wipes ..................A-4 Mosaic Wipes ..................A-5 Random/Dust Wipes ................A-7 DME Wipe Patterns ................. A-8 Menu System ..................... A-7 M/E-1, M/E-2, and M/E-3 KEY 1 Menus, and M/E-1, M/E-2, and M/E-3 KEY 2 Menus ......
  • Page 554: Appendixes

    Wipe Patterns Standard Wipes Appendixes...
  • Page 555: Enhanced Wipes

    Enhanced Wipes POLYGON Appendixes...
  • Page 556: Rotary Wipes

    Wipe Patterns Rotary Wipes Appendixes...
  • Page 557: Mosaic Wipes

    Mosaic Wipes KARAOKE1 KARAOKE2 KARAOKE3 KARAOKE4 Appendixes...
  • Page 558 Wipe Patterns Appendixes...
  • Page 559: Random/dust Wipes

    Random/Dust Wipes RANDOM RANDOM2 RANDOM3 RANDOM4 DIAMOND DUST Appendixes...
  • Page 560: Dme Wipe Patterns

    DME Wipe Patterns Slide 1000 1001 1002 1003 1004 1005 1006 1007 Split 1008 1009 1010 Squeeze 1100 1101 1102 1103 1104 1105 1106 1107 1108 1109 1111 Appendixes...
  • Page 561 Door (BG: Background color) 1200 1201 1202 1203 1204 1205 Page turn 1300 1301 1302 1303 1304 1305 1306 1307 Page roll 1400 1401 1402 1403 1404 1405 1406 1407 Appendixes...
  • Page 562 DME Wipe Patterns User programmable 1901 1902 1903 1904 PROG PROG PROG PROG 1905 PROG 1906 PROG 1907 PROG 1908 PROG PROG PROG PROG PROG 1909 1910 1911 1912 1951 PROG 1952 PROG 1953 PROG 1954 PROG 1955 1956 PROG PROG PROG PROG...
  • Page 563: Menu System

    Menu System This Appendix shows the organization of each menu, and the top menu buttons in the menu control section used to recall each menu. In addition to the top menu buttons, for some menus there are particular buttons which recall the menu when pressed twice in rapid succession. For details of menus accessed by pressing a button twice, see page 3-4.
  • Page 564 Menu System Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 Item NORMAL TYPE BORDER EDGE FILL/SOURCE DROP BORDER TYPE EDGE SHADOW MAIN MASK OUTLINE SUB MASK 4H DROP SOFT EDGE UTILITY BUS EDGE FLAT MATTE FILL...
  • Page 565: Dsk Menu

    DSK Menu Top menu button: FRAME FRAME STATS WIPE WIPE DISK REGS MISC SETUP DIAG FRAME SYSTEM Item TYPE LINEAR FILL/SOURCE KEY TYPE CLEAN EDGE COLOR VECTOR MASK COLOR VECTOR ZABTON/SHADOW ADJUST CLEAN VECTOR KEY POS Y INVERT FINE KEY CHROMA POS KEY INVERT BLINK...
  • Page 566 Menu System Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK DIAG MISC SETUP FRAME SYSTEM NORMAL FLAT BORDER MATTE EDGE TYPE DROP BORDER Item (F1 selected) SHADOW TYPE OUTLINE FILL/SOURCE 4H DROP EDGE SOFT EDGE FLAT MATTE MASK SEP EDGE ZABTON/SHADOW MATTE ADJUST...
  • Page 567: M/e-1, M/e-2, And M/e-3 Wipe Menus

    M/E-1, M/E-2, and M/E-3 WIPE Menus Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 Item PATTERN MAIN PATTERN DIRECT/POS EDGE NORMAL PAGE1 PAGE DIRECTION MAIN MODIFY NORMAL/ PAGE2 REVERSE SUB MODIFY ENTER REVERSE (F2 selected) MAIN NORMAL...
  • Page 568 Menu System Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 FLAT Item PATTERN BORDER MATTE PATTERN MIX EDGE TYPE DIRECT/POS SOFT WIPE MIX EDGE SOFT BORDER (F1 selected) MAIN MODIFY UTILITY BUS EDGE FILL SUB MODIFY MATTE...
  • Page 569: Pgm/pst Wipe Menu

    PGM/PST WIPE Menu Top menu button: FRAME FRAME STATS WIPE WIPE DISK REGS MISC DIAG SETUP FRAME SYSTEM Item F10 ENTER PATTERN DIRECT/POS EDGE NORMAL MODIFY NORMAL/ COLOR BKGD DIRECTION REVERSE REVERSE NORMAL POSITIONER AUTO CENTER CENTER BORDER EDGE TYPE SOFT SOFT BORDER ASPECT...
  • Page 570: Dsk Wipe Menu

    Menu System DSK WIPE Menu Top menu button: FRAME FRAME STATS WIPE WIPE DISK REGS MISC SETUP DIAG FRAME SYSTEM Item F10 ENTER PATTERN DIRECT/POS MODIFY NORMAL NORMAL/ DIRECTION REVERSE REVERSE NORMAL POSITIONER AUTO CENTER CENTER ASPECT MULTI ANGLE ROTATION SPEED SOFT A-18...
  • Page 571 M/E-1, M/E-2, and M/E-3 DME WIPE Menus, and P/P DSK DME WIPE Menu Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 FRAME FRAME STATS WIPE WIPE REGS DISK DIAG MISC SETUP FRAME SYSTEM SL/SQ Item PATTERN...
  • Page 572: M/e-1, M/e-2, And M/e-3 Bkgd/trans Menus

    Menu System M/E-1, M/E-2, and M/E-3 BKGD/TRANS Menus Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 Item FLAT COLOR BKGD MATTE PATTERN MIX LIMIT/S-MIX WIPE MIX (F1 selected) FLAT MATTE PATTERN MIX WIPE MIX ASPECT MULTI ANGLE...
  • Page 573: Status Menu

    STATUS Menu Top menu button: FRAME FRAME STATS WIPE WIPE DISK REGS MISC DIAG SETUP FRAME SYSTEM Item AUX1 SNAPSHOT M/E-1 AUX2 WIPE M/E-2 AUX3 M/E-3 DME WIPE AUX4 NORMAL AUX5 NORMAL/REVERSE DIRECTION AUX6 REVERSE AUX7 AUX8 a) Displayed only when F2 or F3 is selected.
  • Page 574: Menus

    Menu System M/E-1, M/E-2, and M/E-3 CHROMA KEY Menus • Chroma keying using only a BKDS-2031, and • Chroma keying using a BKDS-2032 as a second chroma key channel (dual mode) Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD...
  • Page 575 • Chroma keying using a BKDS-2031 and BKDS-2032 for the enhanced chroma key function (single mode) Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 MODE Item SETUP TYPE ADJUST FRGD/BKGD VIDEO CORRECT MAIN MASK INPUT SUB MASK SELECT...
  • Page 576 Menu System Top menu buttons: BKGD WIPE TRANS M/E-1 BKGD WIPE TRANS M/E-2 BKGD WIPE TRANS M/E-3 Item FRGD SETUP BKGD ADJUST SPOT CCR VIDEO CORRECT SAMPLE MARK MAIN MASK AUTO START SUB MASK KEY ADJUST WINDOW SPOT CCR MASK MASK SOURCE MASK INVERT KEY MASK...
  • Page 577: Frame Memory 1 And Frame Memory 2 Menus

    FRAME MEMORY 1 and FRAME MEMORY 2 Menus Top menu buttons: FRAME FRAME STATS WIPE WIPE FREEZE DISK REGS MISC DIAG SETUP FRAME OUTPUT SELECT SYSTEM MEMORY CLEAR FREEZE MODE INPUT SELECT Item MANUAL INPUT MASK PAINT MASK SOURCE MOVE MASK INVERT LINK PATTERN MODIFY...
  • Page 578: Key Frame Menu

    Menu System KEY FRAME Menu Top menu button: FRAME FRAME STATS WIPE WIPE DISK REGS MISC DIAG SETUP FRAME SYSTEM TIME LINE DISPLAY EXPAND XPT DSBL MODE DETAIL LOOP MODE RUN MODE END TIME PAUSE KF FADER RECALL MODE START DISPLAY See the next page.
  • Page 579 Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM TIME LINE M/E-1 M/E-1 DISPLAY EXPAND M/E-2 M/E-2 MODE DETAIL M/E-3 M/E-3 CURVE RUN MODE USER USER PAUSE PGM/PST DSK PGM/PST DSK RECALL MODE XPT DSBL START HUE PATH DISPLAY...
  • Page 580 Menu System Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM TIME LINE DISPLAY EXPAND See the next page. TRANSFORM MODE DETAIL BKGD EDGE RUN MODE FREEZE RECUR PAUSE PIC MODIFY RECALL MODE BORDER VIDEO MODIFY START SOFT...
  • Page 581 Continued from the previous page, F2(TRANS ALL). LOCATE SIZE PERS SIZE ASPECT ROTATION SKEW AXIS SPIN PERS TRANS1 TRANS2 SKEW AXIS SPIN A-29 Appendixes...
  • Page 582: Register Menu

    Menu System REGISTER Menu Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM Item EFFECT SNAPSHOT MOVE ATTRIB EDIT SWAP CONFIG USER COPY EDIT CH COPY DELETE NAME MERGE SELECT BLOCK EXEC LOCK UNLOCK MOVE SWAP COPY...
  • Page 583 Top menu button: FRAME FRAME STATS WIPE WIPE DISK REGS MISC DIAG SETUP FRAME SYSTEM With cursor on “GPI” With cursor on “EXT” Item PORT1 EFFECT PORT2 SNAPSHOT F7 EXT PORT3 ATTRIB EDIT PORT4 GPI OUTPUT CONFIG USER PORT5 PORT No. F7 XPT DISABLE CH COPY PORT6...
  • Page 584: Disk Menu

    Menu System DISK Menu Top menu button: FRAME FRAME STATS WIPE WIPE SAVE LOAD FUNCTION COPY REGS DISK MISC SETUP DIAG FRAME DELETE SYSTEM RENAME SAVE LOAD FILE BLOCK FUNCTION COPY SELECT Item DELETE EFFECT EXEC RENAME SNAPSHOT FORMAT VTR1 FILE SETUP LABEL...
  • Page 585: Misc Menu

    MISC Menu Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM Item ENABLE DME1 DME2 SAFE TITLE DME3 COPY DME4 EDIT A EDIT B SWER PANEL 2 DMK PANEL B a) Display depends on setup. TABLET SWER PGM EDIT PVW...
  • Page 586 Menu System Top menu button: FRAME FRAME STATS WIPE WIPE PRIMARY BLACK DISK REGS MISC DIAG SETUP FRAME WHITE SYSTEM ADJUST GAMMA KNEE PRIMARY MASK Item MASK LAST X ENABLE UNITY SOURCE SAFE TITLE FROM STAGE SELECT COPY SECOND SWAP BLUE EXEC COPY...
  • Page 587: Setup Menu

    SETUP Menu Top menu button: DATE FRAME FRAME TIME STATS WIPE WIPE SIGNAL FORMAT 7.5 IRE REGS DISK MISC DIAG SETUP FRAME SCREEN FORMAT SYSTEM SWITCH TIMING RESUME PANEL RESUME Item SYSTEM SETUP ALARM SYSTEM SYSTEM CONFIG a) D2 systems only. INPUT/OUTPUT BACKUP EFFECT...
  • Page 588 Menu System Top menu button: FRAME FRAME STATS WIPE WIPE DISK REGS MISC DIAG SETUP FRAME SYSTEM Item SWER INPUT SYSTEM CRK INPUT BUTTON No. INPUT/OUTPUT SWER OUTPUT VIDEO PHASE EFFECT DMK OUTPUT ADJUST PERIPH OUTPUT ASSIGN KEY PHASE OPERATION ADJUST INPUT SELECT SIGNAL FORMAT...
  • Page 589 Continued from the previous page, F6 (DMK OUTPUT). OUTPUT ADJUST1 OUTPUT ADJUST2 REF OUT PHASE REF OUT FORMAT D2 systems OUTPUT SELECT WHITE CLIP DARK VIDEO V BLKG BIT ROUND D1 systems OUTPUT SELECT WHITE DARK CLIP CHROMA V BLKG Y BIT ROUND C BIT ROUND Continued from the previous page, F7 (OUTPUT ASSIGN).
  • Page 590 Menu System Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM Item SYSTEM M/E-1 KEY1 INPUT/OUTPUT M/E-1 KEY2 EFFECT M/E-2 KEY1 KEYER PERIPH KEY MEMORY M/E-2 KEY2 WIPE OPERATION CRK MEMORY M/E-3 KEY1 MATTE DEFAULT LEARN M/E-3 KEY2 CRK MEMORY...
  • Page 591 Top menu button: FRAME FRAME STATS WIPE WIPE PORT SELECT SELECT PERIPH SELECT DISK REGS MISC DIAG SETUP FRAME SYSTEM BUS SELECT PANEL1 DME1 Item PORT ASSIGN DME2 SYSTEM AUX CTRL DME3 INPUT/OUTPUT DME IF DME4 EFFECT ROUTER IF EDIT A PERIPH GPI INPUT EDIT B...
  • Page 592 Menu System Top menu button: FRAME FRAME STATS WIPE WIPE SOURCE SELECT SELECT NAME SELECT REGS DISK DIAG MISC SETUP FRAME USERNAME SELECT SYSTEM SET USER NAME Item SET USER NAME SYSTEM INPUT/OUTPUT BUTTON No. CLEAR EFFECT INHIBIT BACK SPACE VIDEO PERIPH SELECT...
  • Page 593 Continued from the previous page, F6(LINK). LINK AUTOSEL SELECT DSK BUTTON TYPE LINK SELECT Continued from the previous TYPE page, F7(TRACK BALL). SELECT AUTO SEL When F2 is set to SETUP 3D MOVEMENT OFF. TABLE FINE MODE VELOCTY HOLD LINK SELECT XY MOVE SNSTVTY TYPE...
  • Page 594: Diagnosis Menu

    Menu System DIAGNOSIS Menu Top menu button: FRAME FRAME STATS WIPE WIPE REGS DISK MISC DIAG SETUP FRAME SYSTEM Item SWER PROC BOARD CONFIG DMK PROC TERM MODE F2 TERMINAL MODE ERROR BOARD CONFIG TERM MODE F2 TERMINAL MODE ERROR MESSAGE SWER PROC DMK PROC PANEL...
  • Page 595: About Peripheral Ii Protocol

    About PERIPHERAL II Protocol PERIPHERAL II Protocol DVS-7000 Series Switchers use PERIPHERAL II protocol to interface with peripherals. Peripheral transmission to the switcher is not required. The PERIPHERAL II protocol accommodates up to 24 devices on the same bus. The switcher selects devices on the bus by using an address from 0 to PERIPHERAL II can initiate (trigger) an operation once a recall has taken place.
  • Page 596: Peripheral Ii Commands

    About PERIPHERAL II Protocol Message Format A PERIPHERAL II message begins with a command abbreviation, followed by one or more fields containing the data characters listed above. Fields are not separated by spaces. The message ends with a carriage return. PERIPHERAL II protocol ignores the ASCII characters for line feed and space within the body of a command.
  • Page 597 The format of the RECALL command is: Format:Rddddddrrr<cr> The RECALL command abbreviation. dddddd The peripheral address. It is a 6-character field that is interpreted as a hex representation of a 3-byte or 24-bit bitmask. The bits that are set (value 1)indicate which of 24 peripherals are included in the RECALL command.
  • Page 599 Index Border COLOR CORRECTION menu DME wipe pattern 4-127 12-11 key 4-41 Color mix Additive mix (chroma key) 5-22 wipe pattern 4-100 for color background 4-141 ADJUST menu 5-7 for key edge fill (DSK) 4-85 enhanced chroma key 5-23 correspondence to cross-point for key edge fill (M/E) 4-59 Aspect ratio 4-100 buttons 4-6...
  • Page 600 5-6 pattern See “DME wipe Dual key 5-23 Frame memory pattern” Dual mode (chroma key) 5-16 DSK 4-88 selection 4-17 DVS-7300/7350 I/O expansion link 6-15 settings 4-131 system 1-2 lock 6-16 single mode 4-126 features 1-7 manual 6-7 snapshot 4-137...
  • Page 601 Key parameters Mask 4-43, 4-61 default values, saving/recalling chroma key 5-13 4-45 main 4-61 setting knobs 2-16 settings (DSK) 4-89 cut 4-13, 4-34 Key position 5-11 settings (M/E) 4-61 edge fill 4-43 Key preview 14-31 subsidiary 4-64, 5-34 edge modification See “Key Key source 4-10 MASK menu 5-13 edge”...
  • Page 602 Index PGM/PST bank 2-20 RS-422A port settings 14-46 operations 4-21 PGM/PST WIPE menu 4-116, OPERATION MODE menu A-17 14-66 Phase, output adjustment 14-10 OPERATION menu 14-60 Plane function 5-22 Safe title display 12-8 Operation software PORT ASSIGN menu 14-46 setup 14-48 BZS-7021A 1-5 Port enable function 12-3 SAFE TITLE menu 14-42...
  • Page 603 Software 1-5 execution mode 4-31 Wipe direction 4-99 installation 14-6 indicator 2-11, 2-22, 4-31 setting (DME wipe) 4-134 version display 14-18 limits 4-19 setting (M/E) 4-107 Source name display manual transition 4-35 setting (PGM/PST, DSK) AUX bus bank 2-27 non-sync state 4-36 4-119 M/E banks 2-8 rate (duration) 4-32...
  • Page 605 The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the equipment described in this manual. Sony Corporation expressly prohibits the duplication of any...
  • Page 606 Sony Corporation B & P Company BZS-7021A (WW) 1999.11 © 1999 A-ADZ-600-01(1)

This manual is also suitable for:

Dvs-7350

Comments to this Manuals

Symbols: 0
Latest comments:
