ELECTRICAL ADJUSTMENTS
d)
e)
H L– _
The sensor presumes the headrest
to be at a too low position.
Rotate the axle counterclockwise
(seen from the axle).
f)
g)
h)
Technical Manual

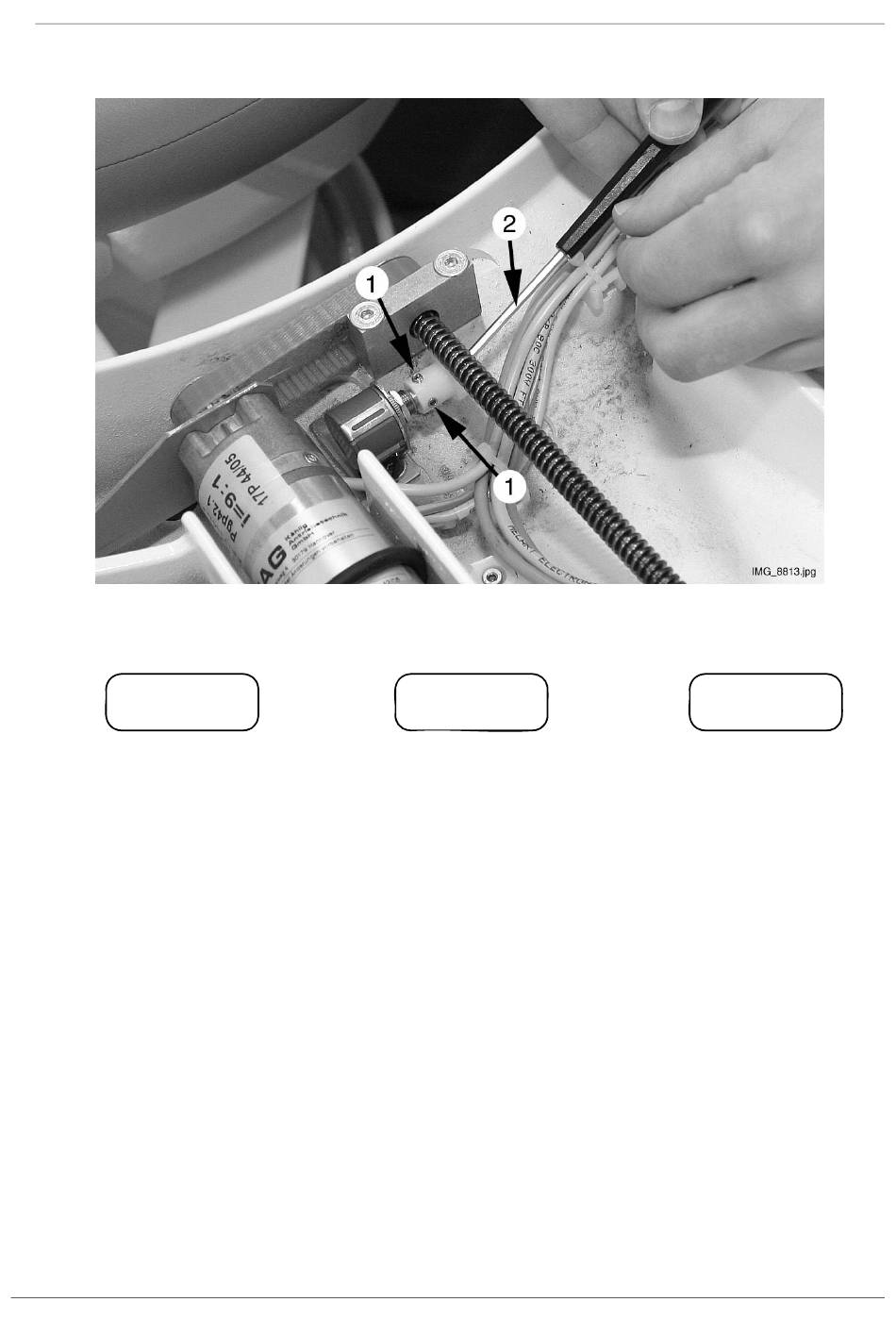

Loosen the two M4x4 DIN 916 screws holding the cog wheel of the sensor in position (1).
Rotate the axle of the sensor with a screwdriver (figure above, 2) until the two horizontal lines
on the display are in line.
Tighten the two M4x4 DIN 916 screws to secure the cog wheel into position.
Drive the headrest past the calibration point a couple of times to ensure that the sensor is now
calibrated correctly.
Exit service mode.
H L– –
The sensor is calibrated
correctly.
Chapter F - ADJUSTMENTS
H L–
The sensor presumes the headrest
to be at a too high position.
Rotate the axle clockwise (seen from
the axle).
