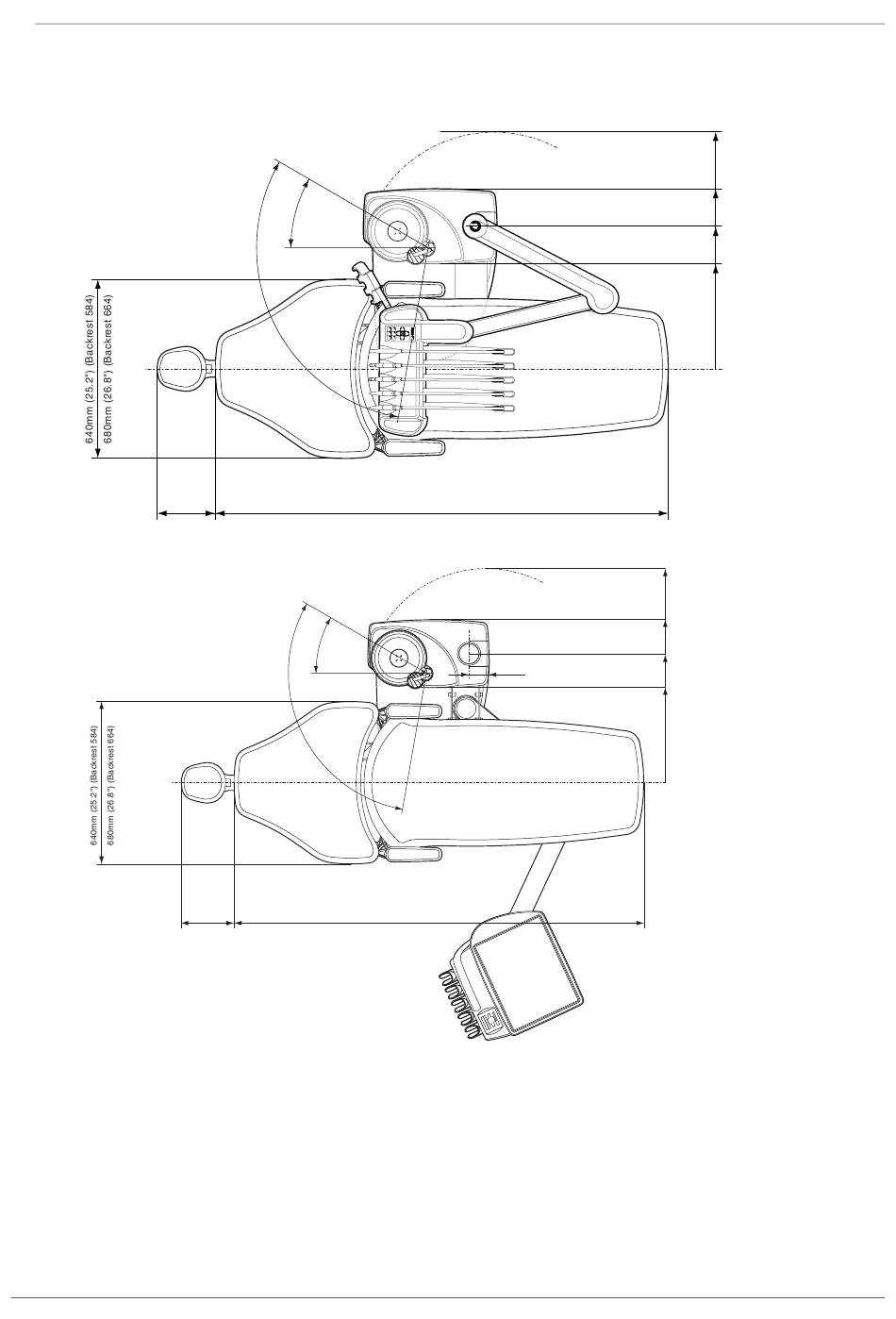

TECHNICAL SPECIFICATIONS
Dimensions
OP delivery arm
(swing of cuspidor) 110˚
max.
390mm
(15.4")
Side delivery arm
Technical Manual
30˚
1620mm (63.8") (fixed seat 610)
1520mm (60") (automatic seat 510)
1470mm (57.9") (automatic seat 460)
30˚
(swing of cuspidor) 110˚
max.
390mm
(15.4") 1620mm (63.8") (fixed seat 610)
1520mm (60") (automatic seat 510)
1470mm (57.9") (automatic seat 460)
Chapter A - GENERAL & TECHNICAL DATA
850mm (33.5") (swing of service door)
645mm (25.4")
510mm (20.1")
80
375mm (14.8")
0
850mm (33.5") (swing
of service door)
645mm (25.4")
510mm (20.1")
375mm (14.8")
0
