Planmeca Compact I Technical Manual page 233

Instrument
Flushing
A B
OPTIONAL CLEAN /
STERILE WATER
SYSTEM
OPTIONAL
WATER
HEATER
P14 White
AIR
AIR 500 - 700 KPA
Spittoon
2 cm
QUICK CONNECTOR
QUICK CONNECTOR
WATER
WATER 450 - 700 KPA
Head Office Planmeca Oy
Asentajankatu 6
00880 Helsinki
Finland
tel.+358 20 7795 500
fax.+358 20 7795 555
www.planmeca.com
e-mail: sales@planmeca.com
OPTIONAL NURSE
SYRINGE
Water collector Coarse filter
Microvac
separator
P7 Green
MICROVAC
PULSE
Deposit cup
OPTIONAL
AIR
OPTIONAL
WATER
OPTIONAL EJECTOR
Date

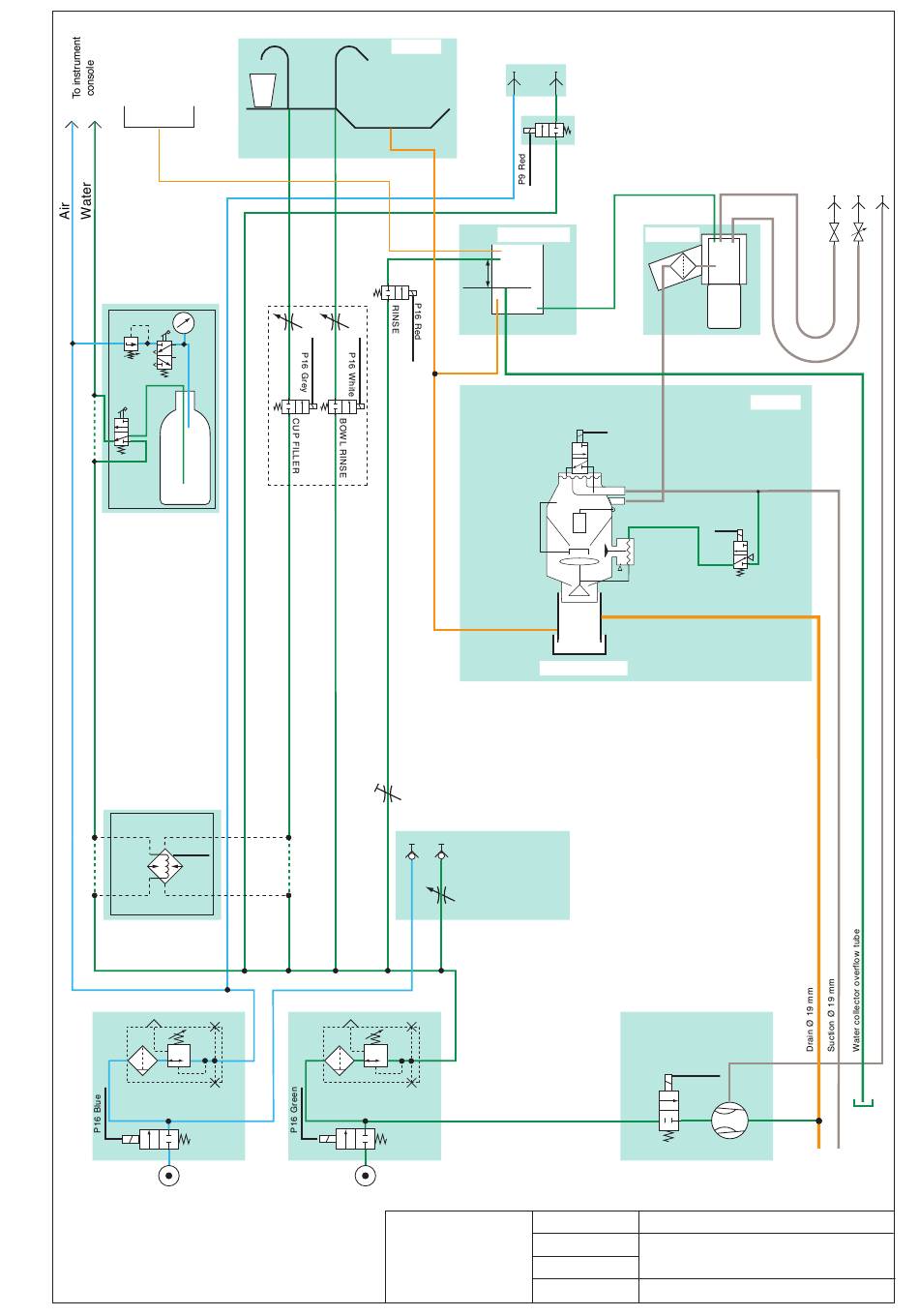

02.01.2008 PNEUMATICAL DIAGRAM
Designed
J.Fröjdman PLANMECA COMPACT with Microvac amalgam
separating system
Drawn
S.Jänkävaara
Checked
J.Fröjdman Rev.E
Suction tubes
Amalgam
collector
Separator
P16 Black
P16 Yellow
