Planmeca Compact I Technical Manual page 124

Chapter F - ADJUSTMENTS

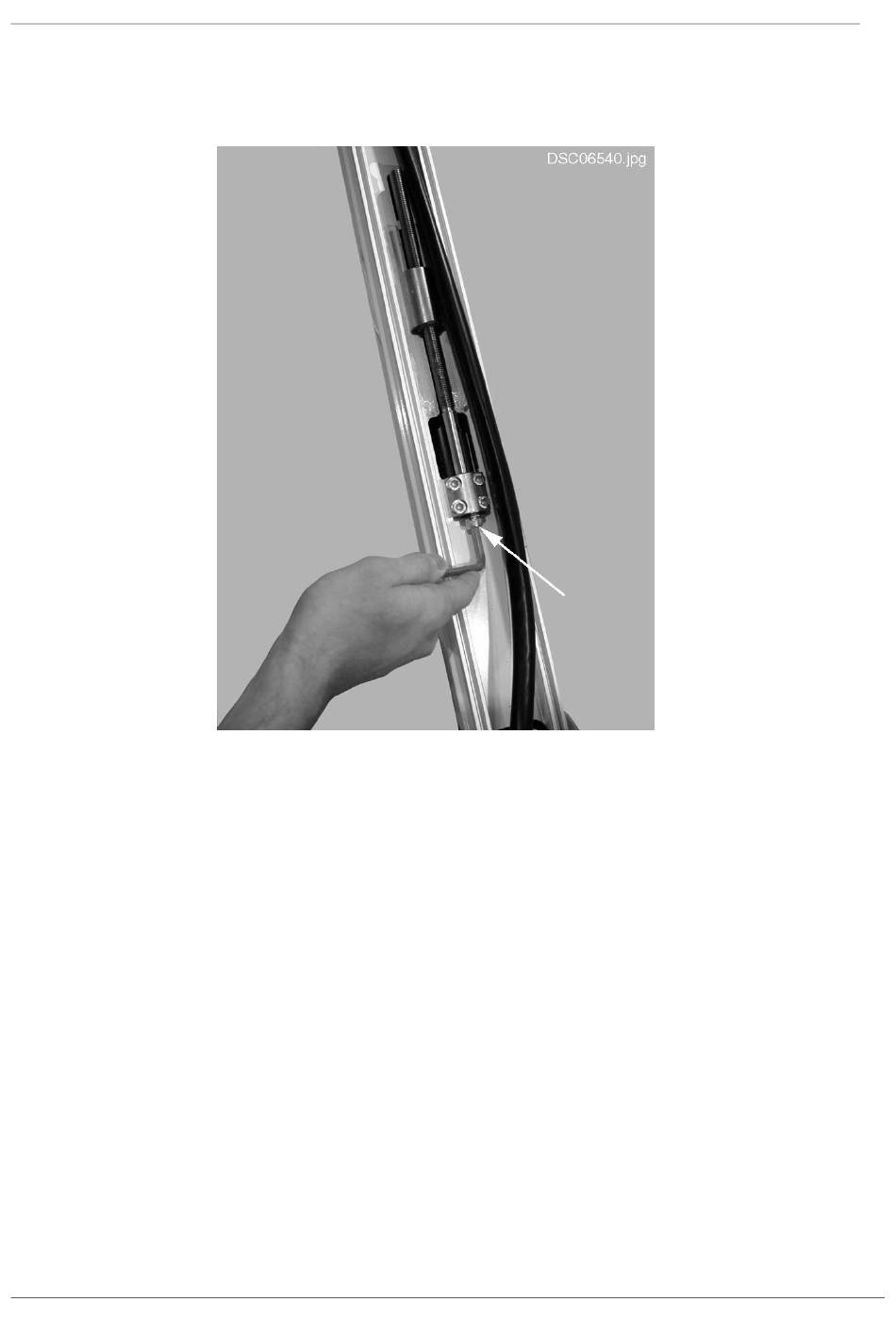

Adjust the tension of the gas spring by rotating the adjustment screw (located in the lower end
of the gas spring) with the 6mm Allen key as shown on the figure below. Turning the screw
clockwise will increase the tension, i.e, the weight-carrying capacity.
Adjust the lifting friction of the delivery arm with the 5 mm allen key.
Attach the level arm cover back to its position.
F-14 Planmeca Compact i
MECHANICAL ADJUSTMENTS
Technical Manual
