SUCTION SYSTEM RELATED
4.5 Replacing suction closing membrane
a)
b)
c)
d)
NOTE
NOTE
Technical Manual
Detach the Microvac II separating tank from the unit as described in section 4.2 "Replacing
the whole PM Microvac II separating tank" on page G-17.
Remove the lid assembly by unscrewing the four M3X16 screws.
Lift off the old suction closing membrane.
Install the new suction closing membrane in reverse order.
Care must be taken when positioning the suction closing membrane.
Tighten the lid assembly screws crosswise.

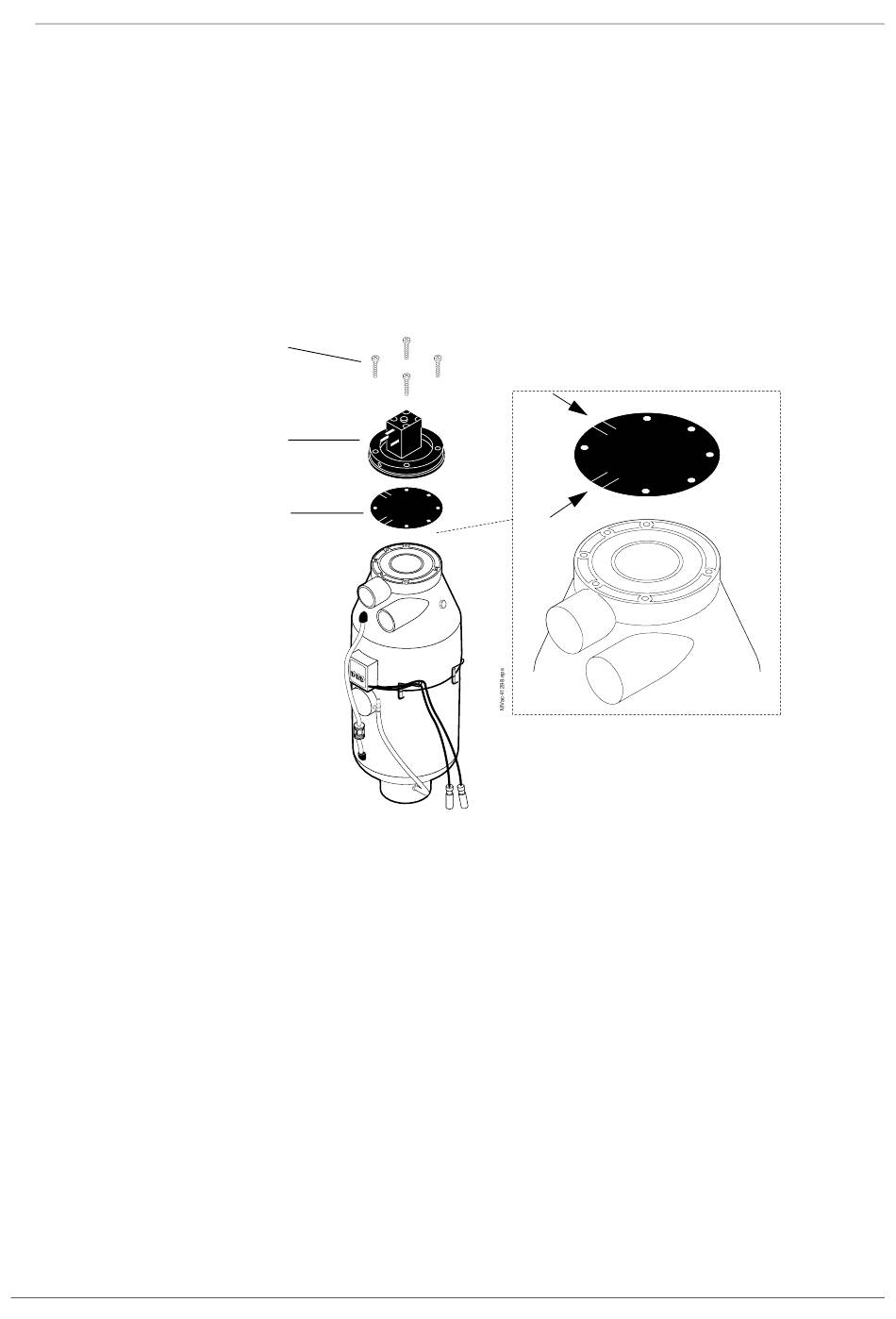

Screw M3x16
Lid assembly
Suction closing
membrane
Chapter G - PARTS REPLACEMENT & REPAIR
Note the positions of the grooves!
Planmeca Compact i G-19
