Planmeca Compact I Technical Manual page 221

air
drive
P2
1 2 3 4 5
P13
Instr.1
control
valve
P15
Instr.2
control
valve
P17
Instr.3
control
valve
P19
Instr.4
control
valve
air exhaust
1
2 3 4 5
air water
spray
spray
P3 P4
Syringe
control
valve
P9
Date
PLANMECA OY
05.02.2003
Asentajankatu 6, Designed
00880 Helsinki Finland
P.Peräsaari / M.Jarva
Tel +358 9 759 05500
Drawn
Fax +358 9 759 05555
S.Jänkävaara
www.planmeca.com
Checked
P.Peräsaari / M.Jarva
2 1
PCB 115-10-18-A
Connector J2
From spittoon
WATER
AIR
STERILE WATER
A
B
C
PCB 115-10-18-A
Connector J1
D
A
B
C
D
A
B
C
D
A
B
C
D

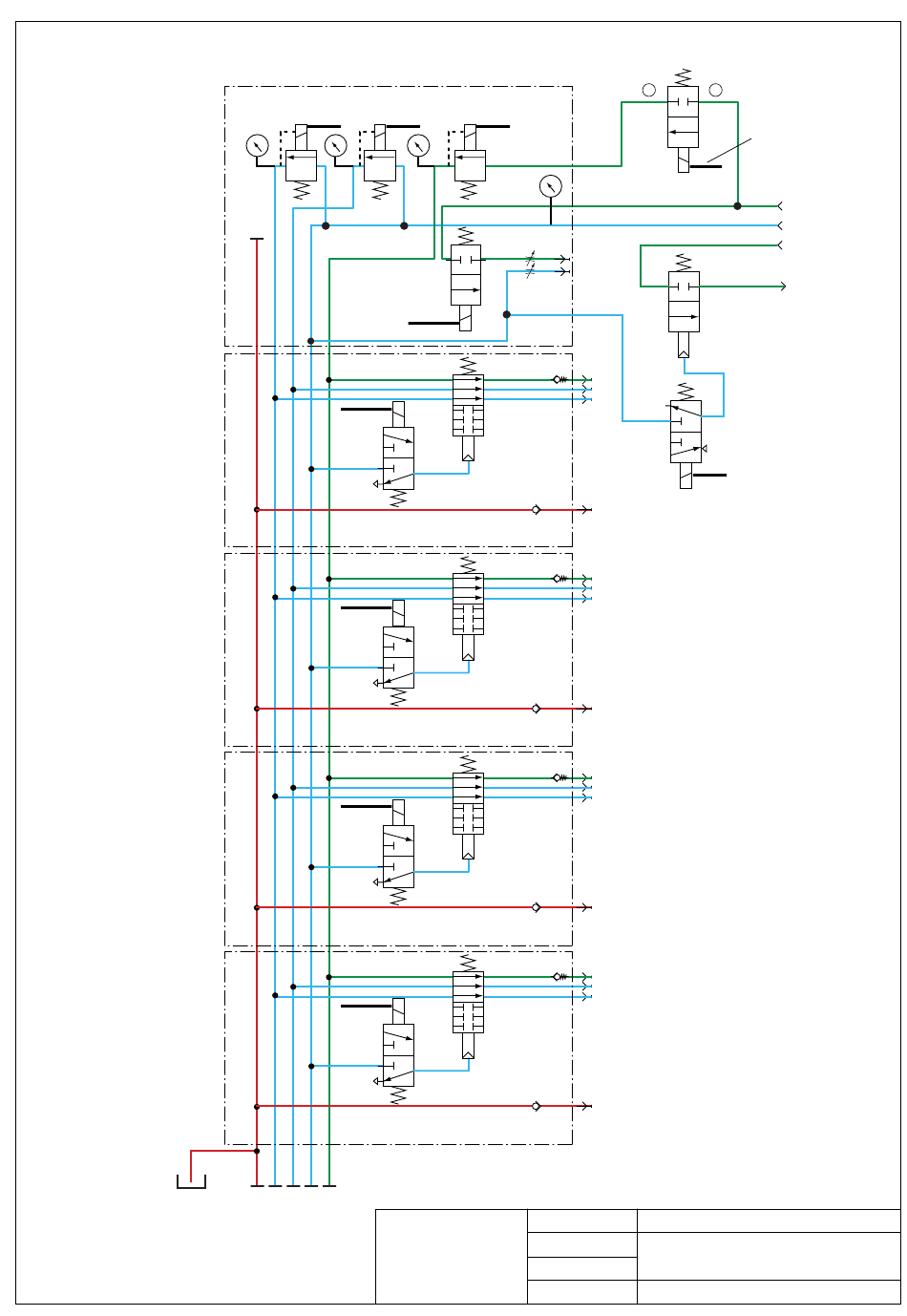

PNEUMATICAL DIAGRAM
PLANMECA COMPACT instrument console
with Sterile Water System
Rev.D
A
B
C
Sterile
instrument
water
