Chapter B - CONTROL PANEL FUNCTIONS

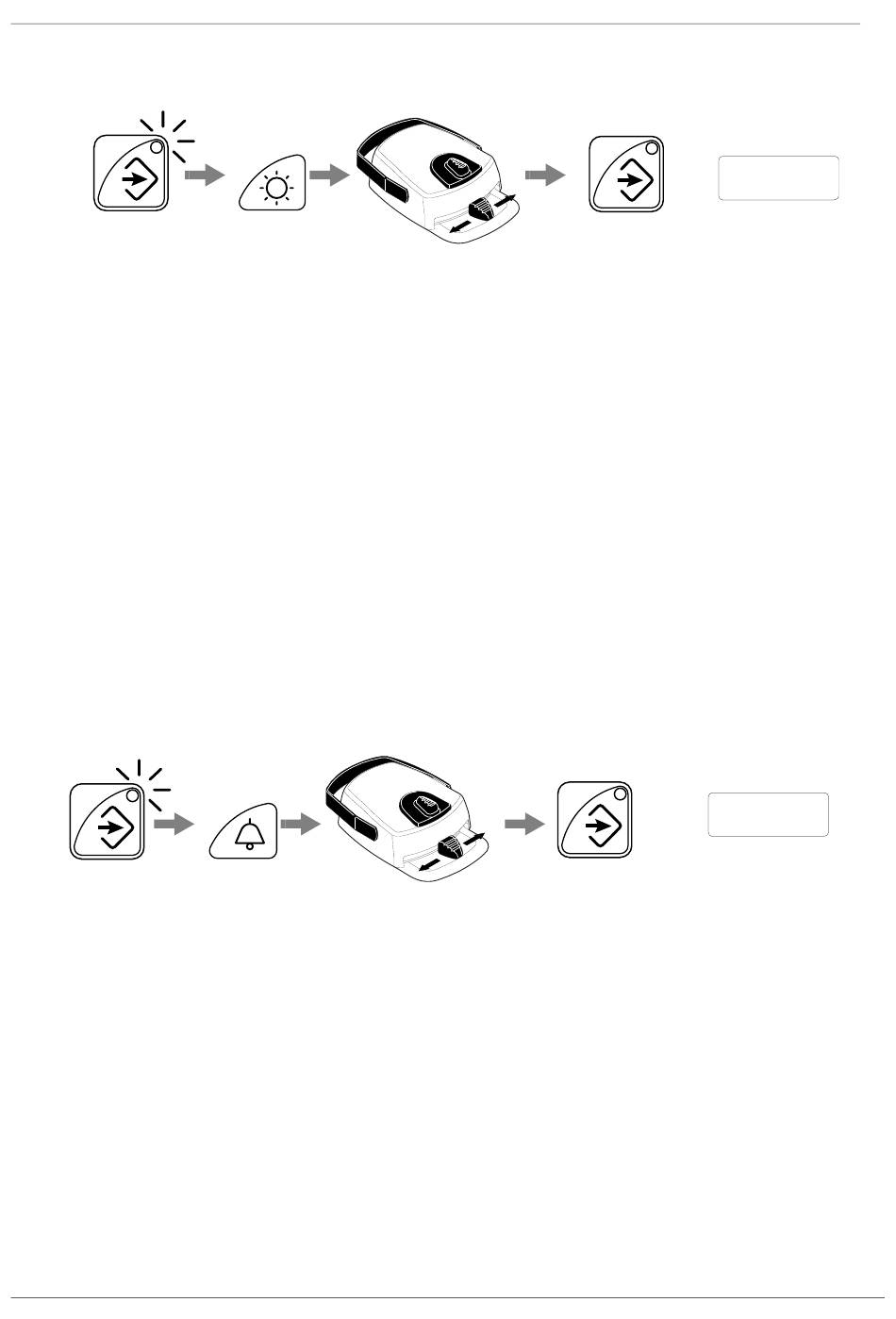

4.7 Intensity of the operating light

a) Press the program key.
Press the operating light key. The text ' o nnn' will appear on the display.
b)
c) Change the intensity with the help of the foot control pedal. Bringing the pedal to the right
increases the intensity, taking it to the left side will decrease the intensity.
d) The minimum value is 70% of the maximum intensity and the maximum 100%, and the
adjustment step is 2.
e) Press the program key to exit and store the new setting.
NOTE The intensity of the operating light can also be programmed as follows:
Press and hold the operating light key (or the button in the light handle) for longer than 0,5
seconds. As long as the button is pressed, the light intensity slowly decreases (or increases)
until it comes to the minimum (or maximum) value. A short beep sounds at the end limit. The
adjustment direction is automatically toggled each time the button is released.
Both methods have the same effect when adjusting the brightness of the operating light. How-
ever, the former is implemented only for the sake of symmetry of the functions, the later
method being the easier to use.

4.8 Duration of the extra function relay activation

a) Press the program key.
b) Press the extra function key. The text 'd.nnn' will appear on the display.
c) Change the door open/nurse call time with the foot control. The minimum value is 0 sec. and
the maximum 25 sec., and the adjustment step is 0.5 seconds.
d) Press the program key.
B-8 Planmeca Compact i
PROGRAMMING MODE FUNCTION DETAILS
+
-
+
-
o
82
d. 12
Technical Manual
