INSTRUMENT MULTIPLEXER RELATED
l)
m)
Water tube from the
console arm
T-nipple
Technical Manual

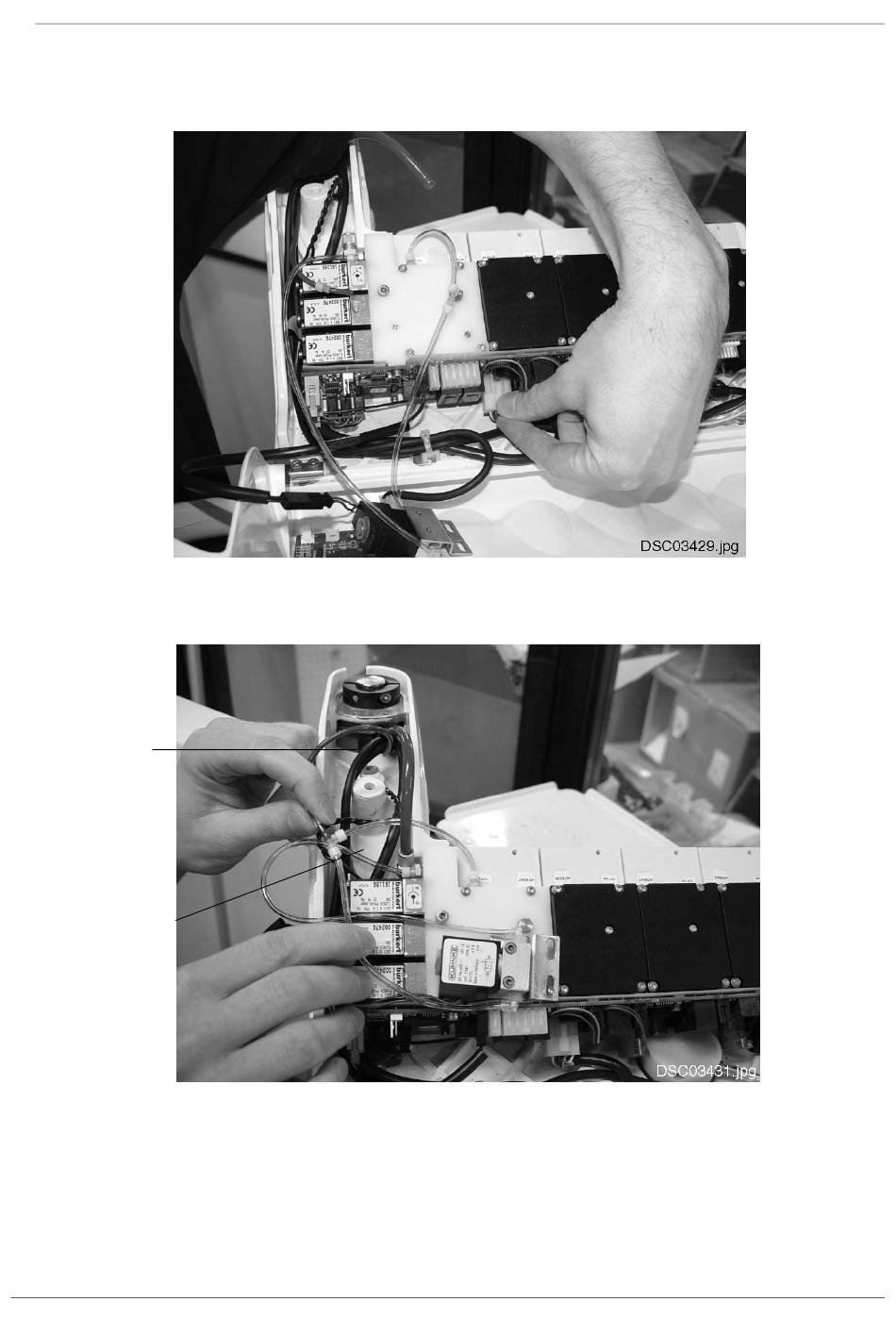

Connect the instrument multiplexer cable to the connector P11 on the Instrument multiplexer
PCB.
Connect the water tube coming from the console arm to the T-nipple of the valve assembly.
