Chapter G - PARTS REPLACEMENT & REPAIR
m)

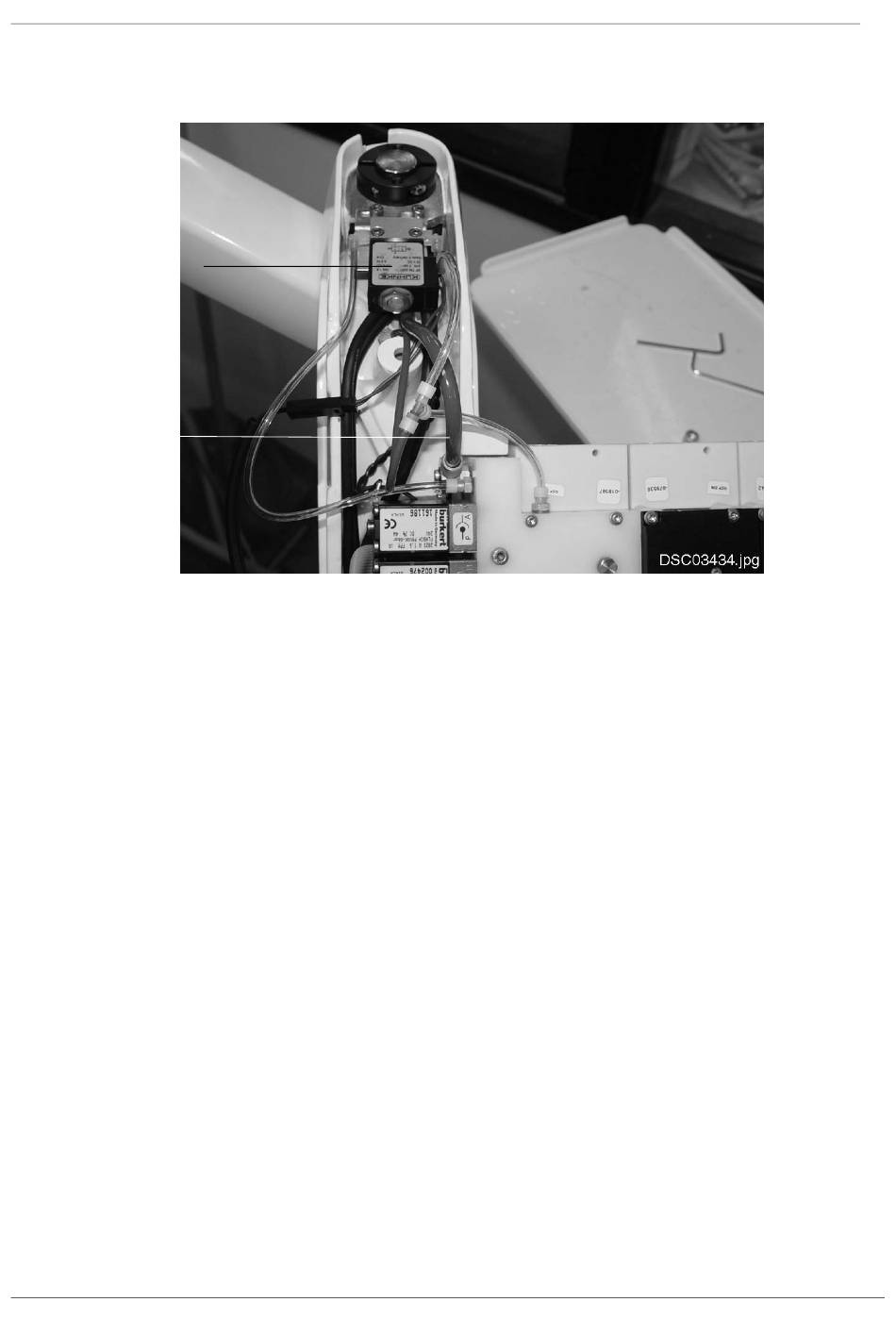

Connect the arm air tube to the instrument multiplexer air nipple. Attach the instrument control
valve assembly to the console with the two M4x6 DIN 912 screws.
Instrument control valve
assembly
Arm air tube
n)
Make sure that the instrument control valve cable is connected to the connector P6 on the
Instrument multiplexer PCB.
o)
Make sure that the cables and tubes are not squeezed or folded.
p)
Close the instrument console cover. Attach the balanced arms and the instruments to their
places.
q)
Bleed the multiplexer according to the instruction described in Chapter 4 "BLEEDING OF
THE SPRAY WATER SYSTEM" on page F-14.
G-10 Planmeca Compact i
INSTRUMENT MULTIPLEXER RELATED
Technical Manual
