Chapter H - FOOT CONTROL

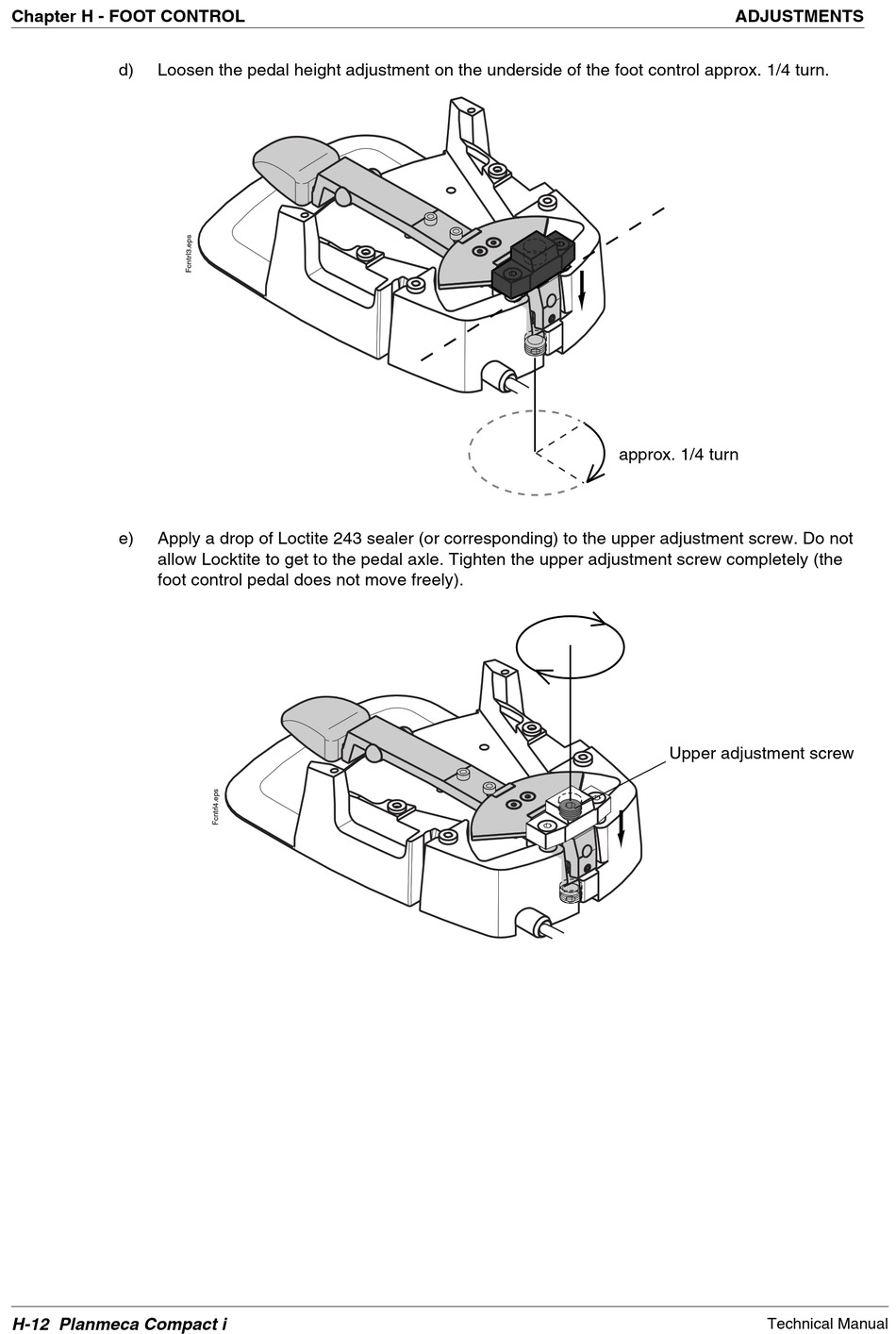

d)
Loosen the pedal height adjustment on the underside of the foot control approx. 1/4 turn.
e)
Apply a drop of Loctite 243 sealer (or corresponding) to the upper adjustment screw. Do not
allow Locktite to get to the pedal axle. Tighten the upper adjustment screw completely (the
foot control pedal does not move freely).
H-12 Planmeca Compact i
ADJUSTMENTS
1/4 round
approx. 1/4 turn
Upper adjustment screw
Technical Manual
