MECHANICAL ADJUSTMENTS

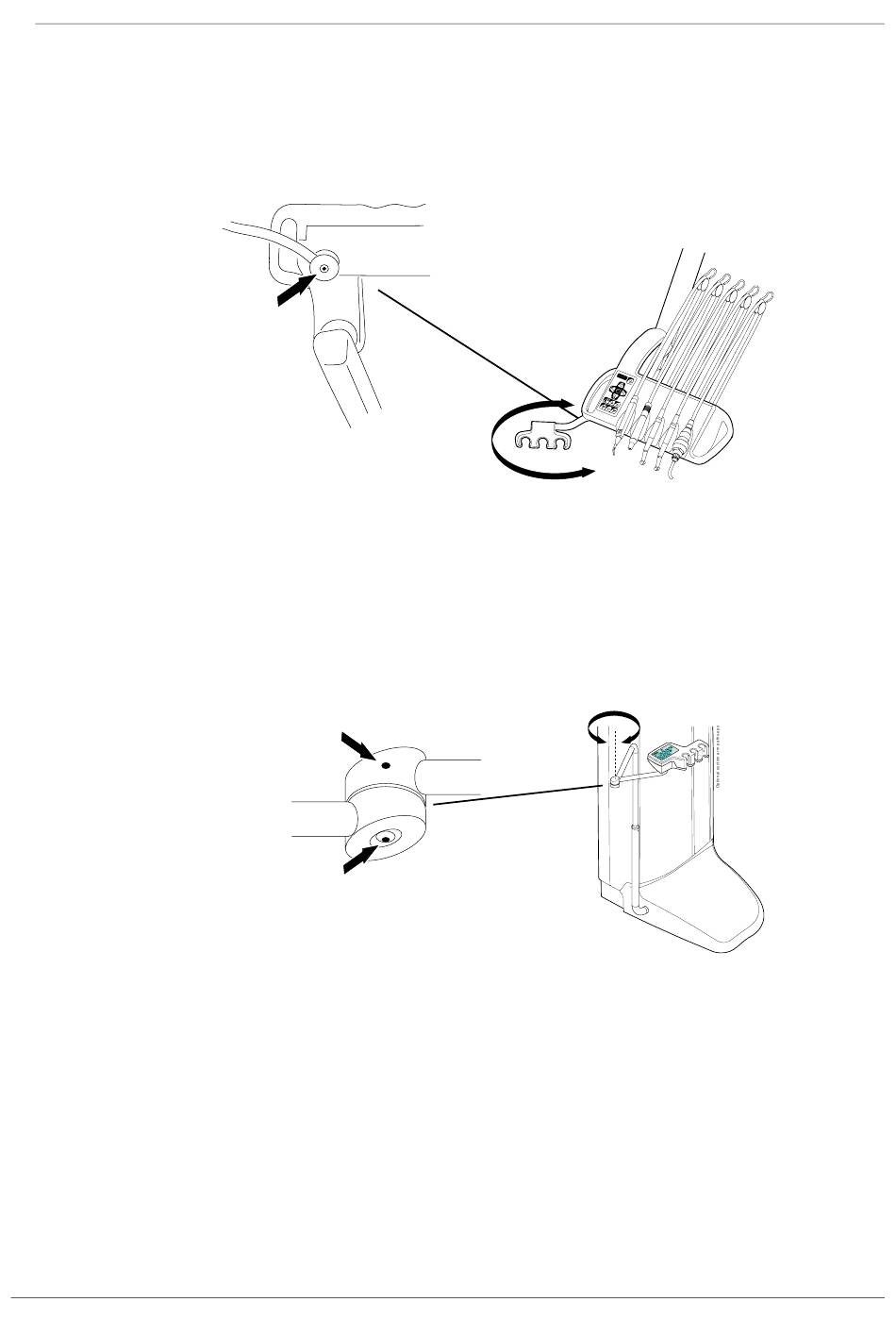

1.10 Adjusting friction of the ergo suction arm
Adjust with 4 mm allen key.
1.11 Adjusting friction of the adjustable suction arm
Loosen the screw
with 2 mm allen key.
Technical Manual
Adjust the rotational friction of the suction arm with the 4 mm allen key. Tightening the screw
increases the friction.
Loosen the holding screw at the side of the optional suction arm joint with the 2 mm allen key.
Adjust the rotational friction of the joint with the 4 mm allen key. Tightening the screw
increases the friction. Lock the screw into position with the holding screw.
Adjust with 4 mm allen key.
Chapter F - ADJUSTMENTS
